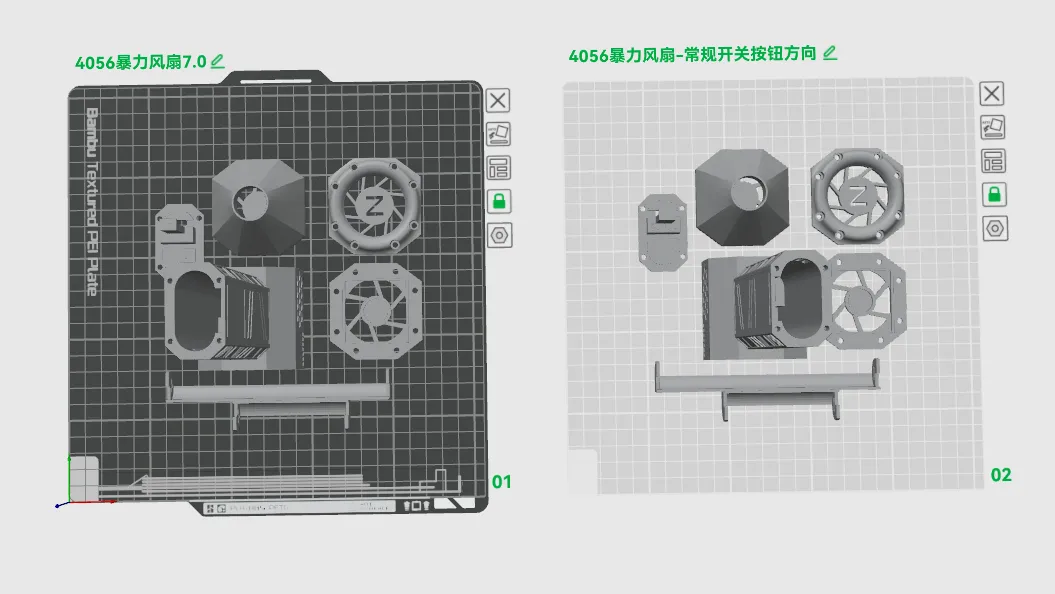

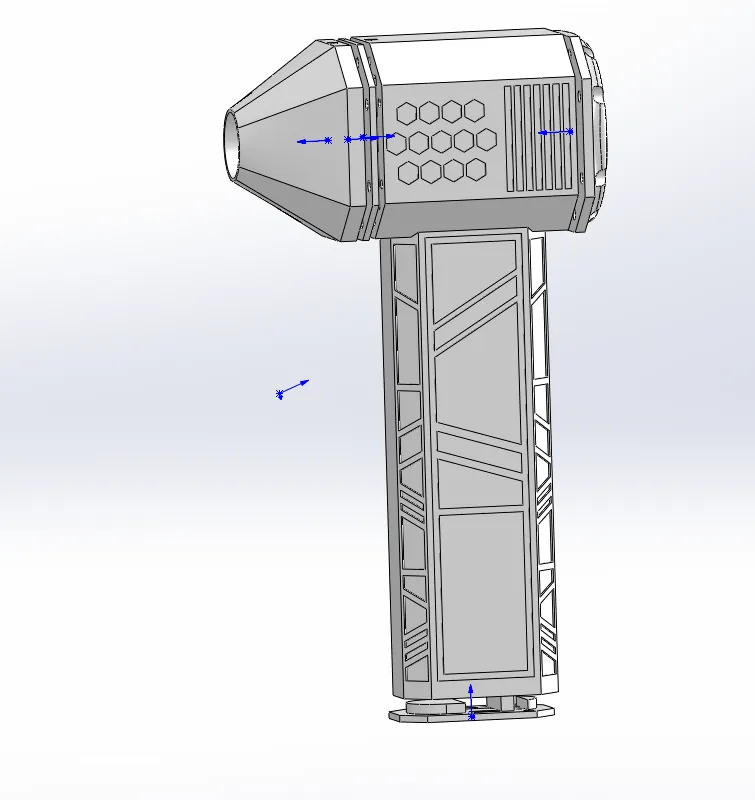

Two years of relentless refinement have culminated in this perfected design, boasting ease of construction and elegant aesthetics(Please boost)
For wiring, silicone wire is strongly recommended, specifically silicone soft wire 24AWG (0.2 sq mm) or 22AWG (0.33 sq mm) is suggested. Tighten the screws on the metal switch completely; do not remove them

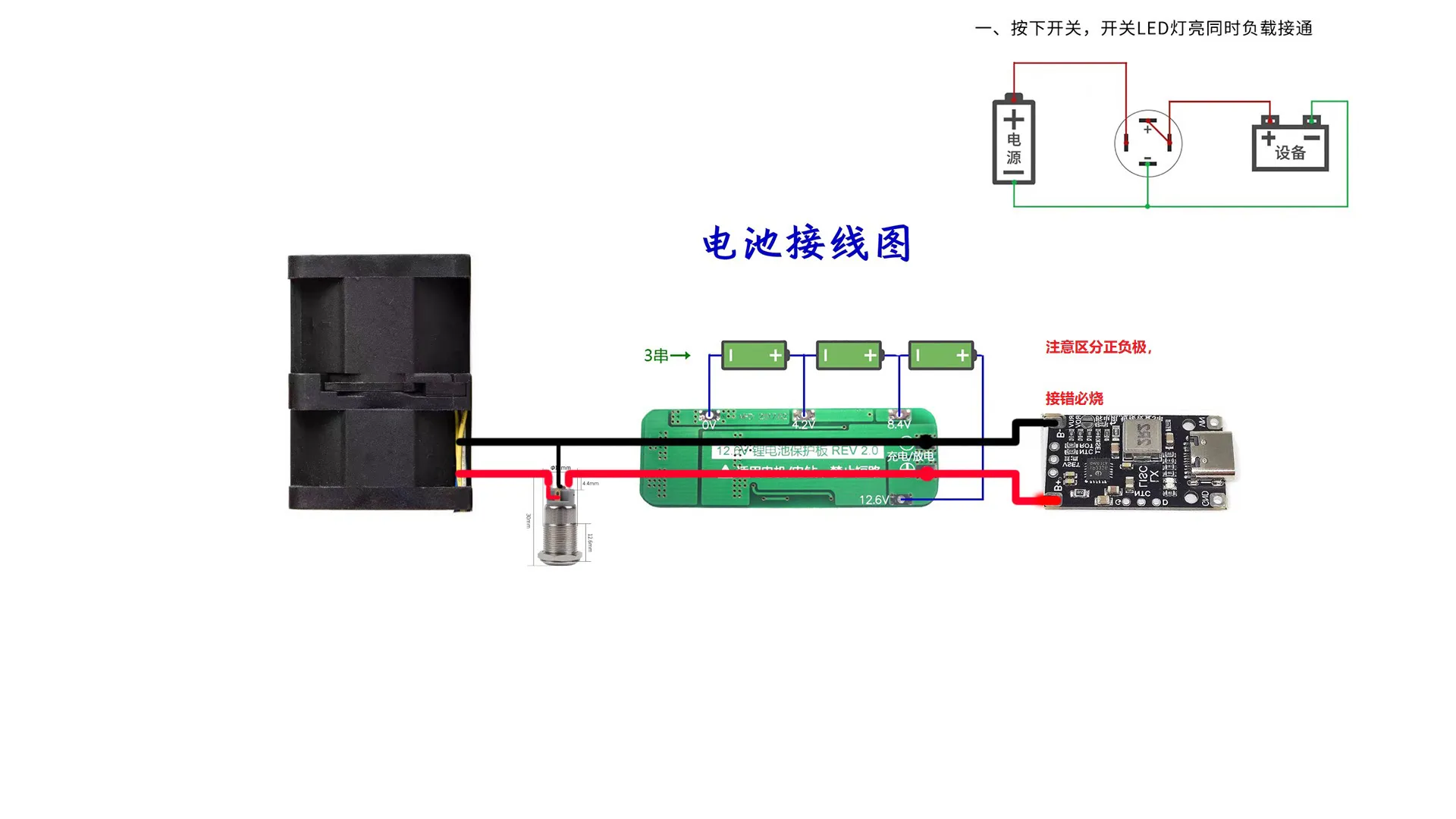

Wiring Diagram
Hardware Components
Fan options are varied; if unavailable, consider Xiaohong's
4056 fan, 1 unit
Charging Module:
2S or 3S boost fast charging
Upgrading to the purple version with a capacitor is recommended. Upon receipt, verify that the resistor hasn't been removed or shorted, as this prevents 3S charging

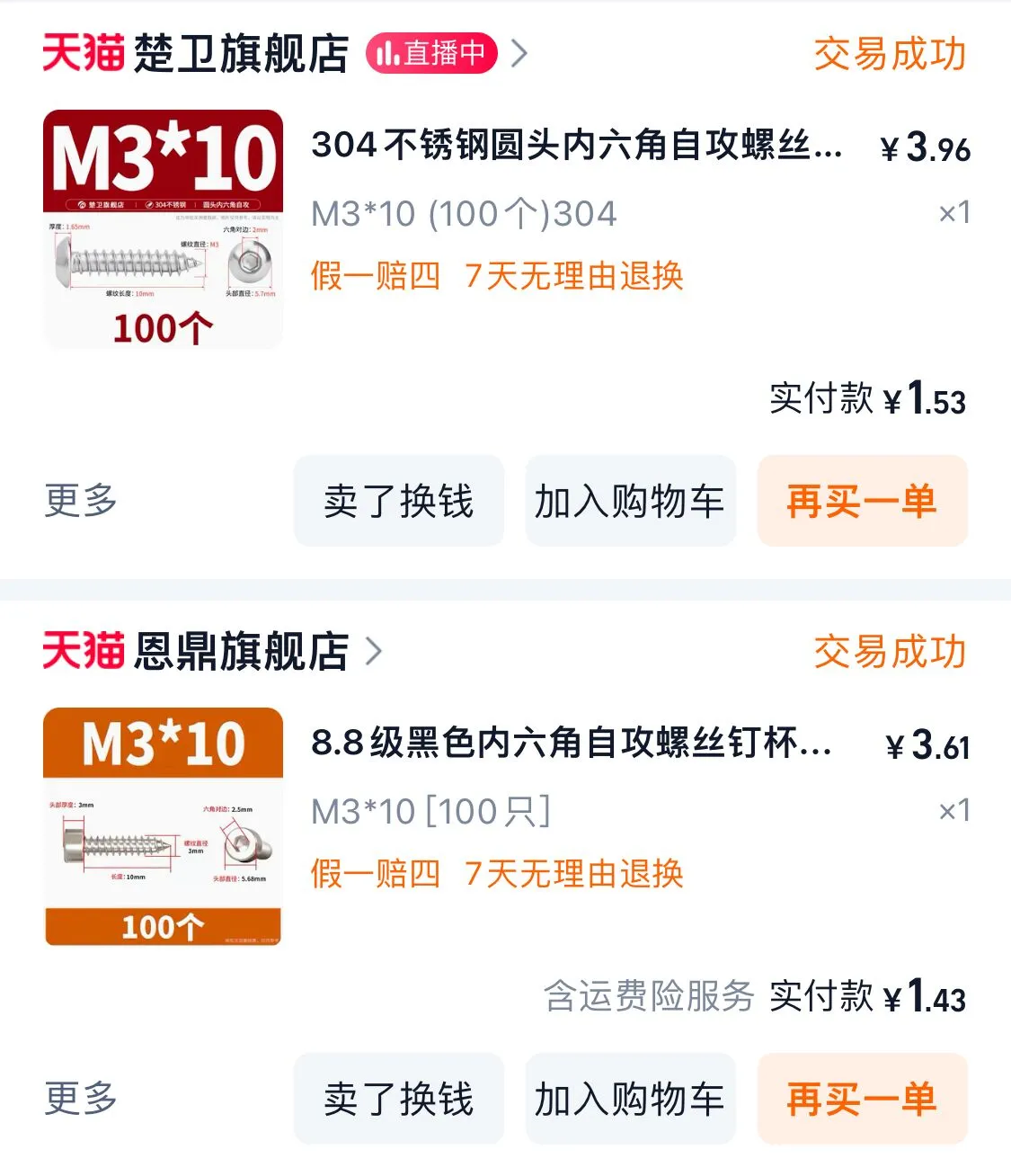

Screws:
M3*10 countersunk socket head self-tapping screws, 12 units
M3*10 countersunk socket head self-tapping screws, 8 units
15*2 magnets, 2 units
3S 20A lithium battery protection board, 1 unit

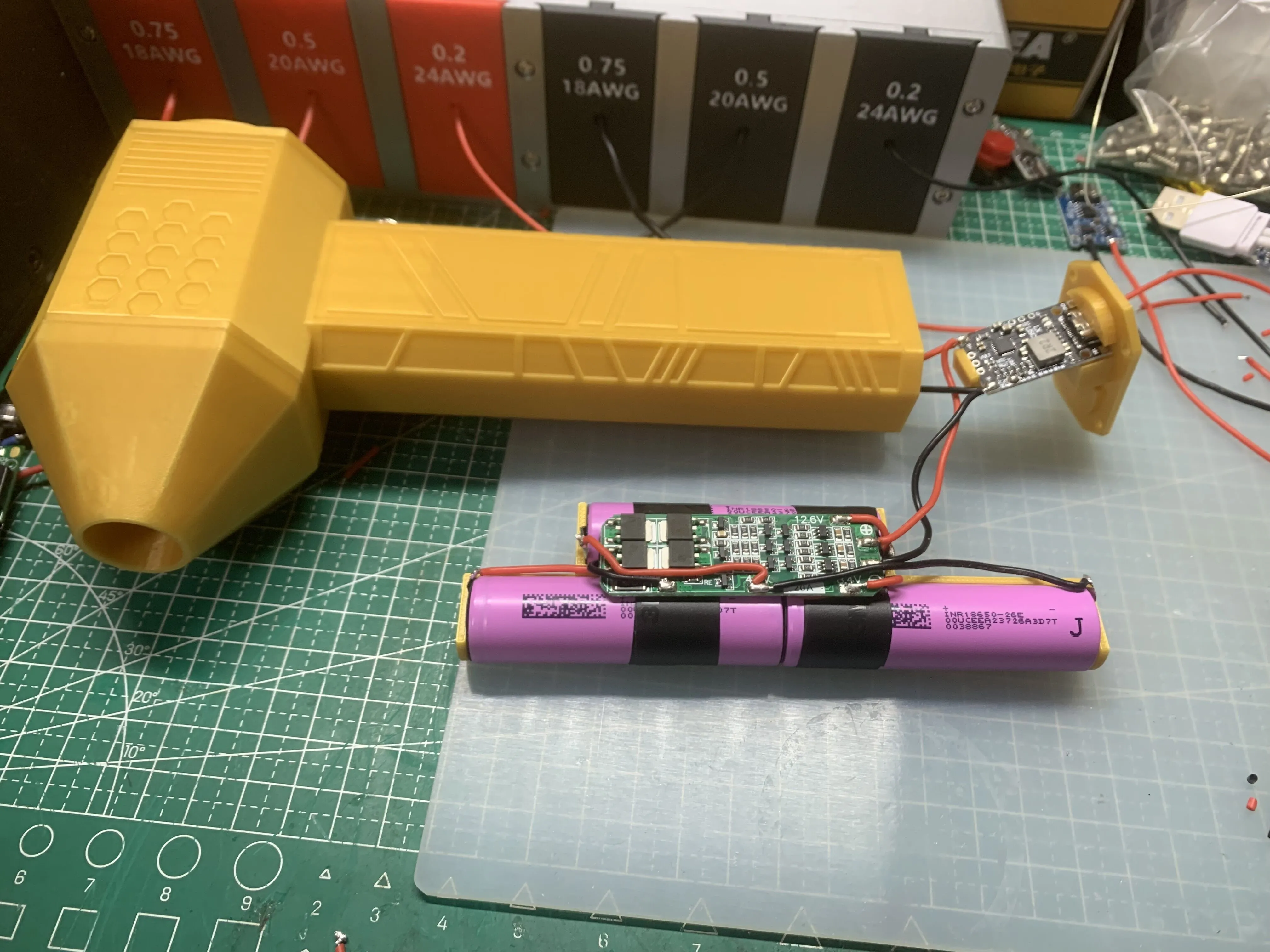

18650 batteries, 3 units (If you lack a spot welder, purchase pre-nickel-plated batteries, or if confident in your soldering skills, solder directly; however, absolutely avoid sharp edges. Refer to the video tutorial for details)
12mm metal latching switch with LED, without wires, high head (Specify high head)
【Taobao】Promotional price guarantee https://e.tb.cn/h.6XGDH1zX4PwqhSw?tk=1JqyeGk6xEs CZ225 「12/16/19/22MM LED metal button waterproof push button self-resetting latching switch car modification」
Click the link to open directly or search on Taobao
Fan Assembly Tutorial (Part 1)

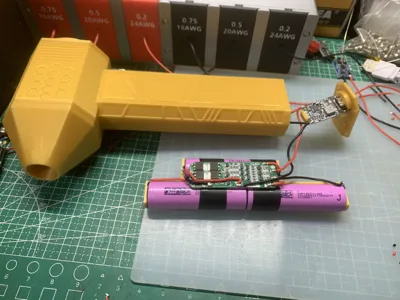

Battery Assembly Tutorial (Part 2)
