SCX24 - LGRP Brass Knuckle Weight Hanger

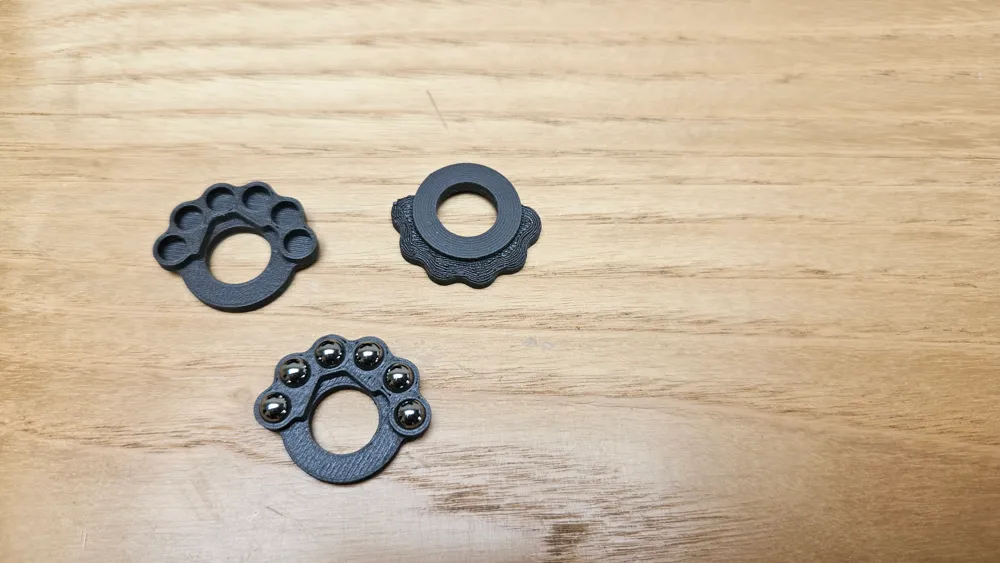

These are knuckle weight hangers that fit the LGRP brass knuckles and have space for 6 tungsten or steel balls with 5mm diameter.

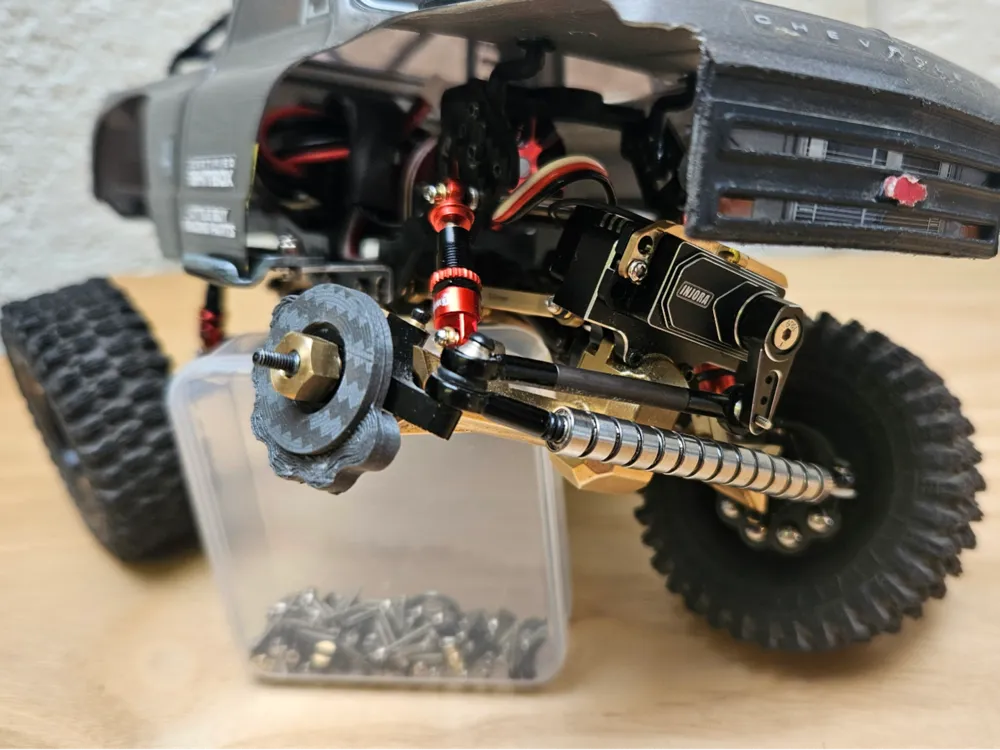

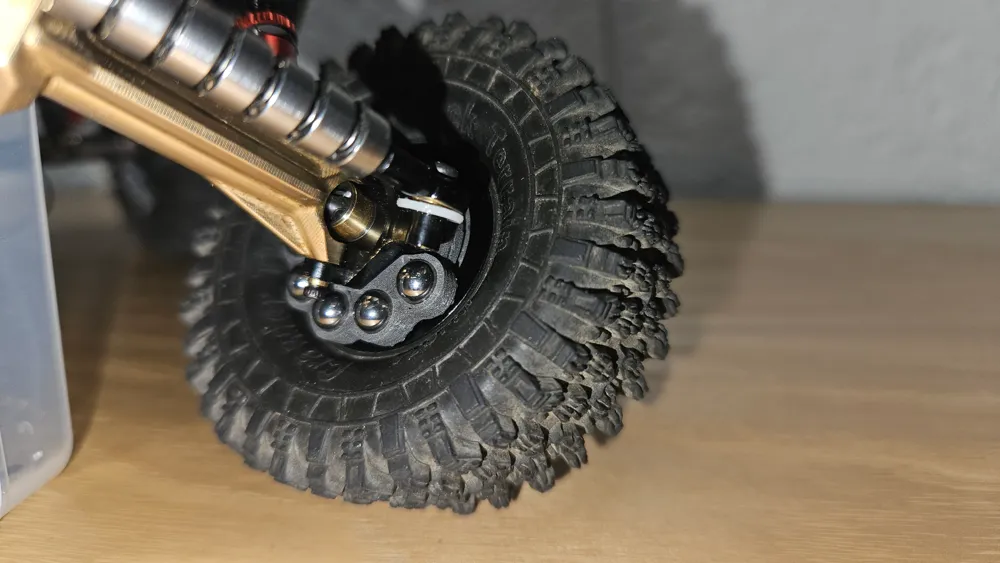

I have only tested them for clearance with the Mofo RC DDP 1.0" Beadlock rims so i can't guarantee clearance for other rims, test at your own discretion

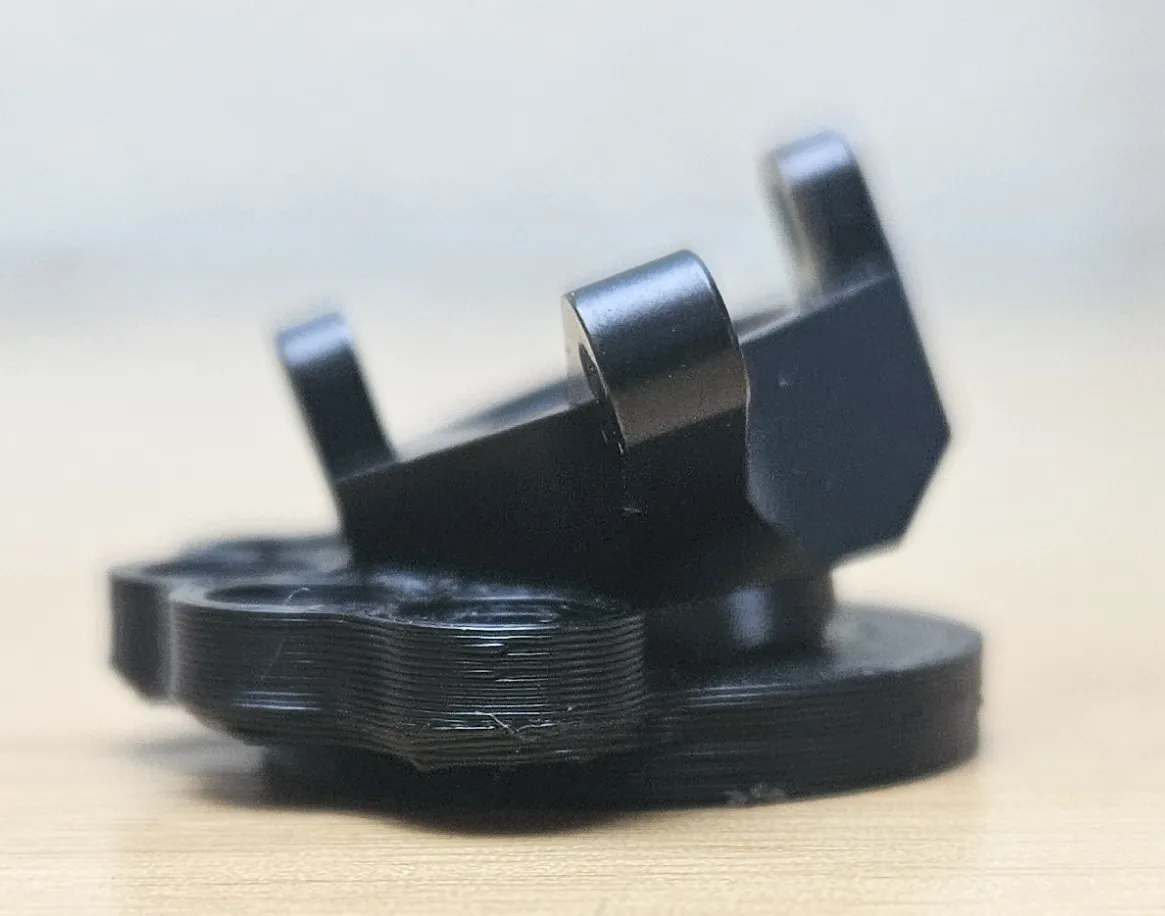

They are press fit and need some force to be put in place. What worked best for me was to slot them in from the lower/underside so the V-shape aligns with the lower part of the knuckle like this:

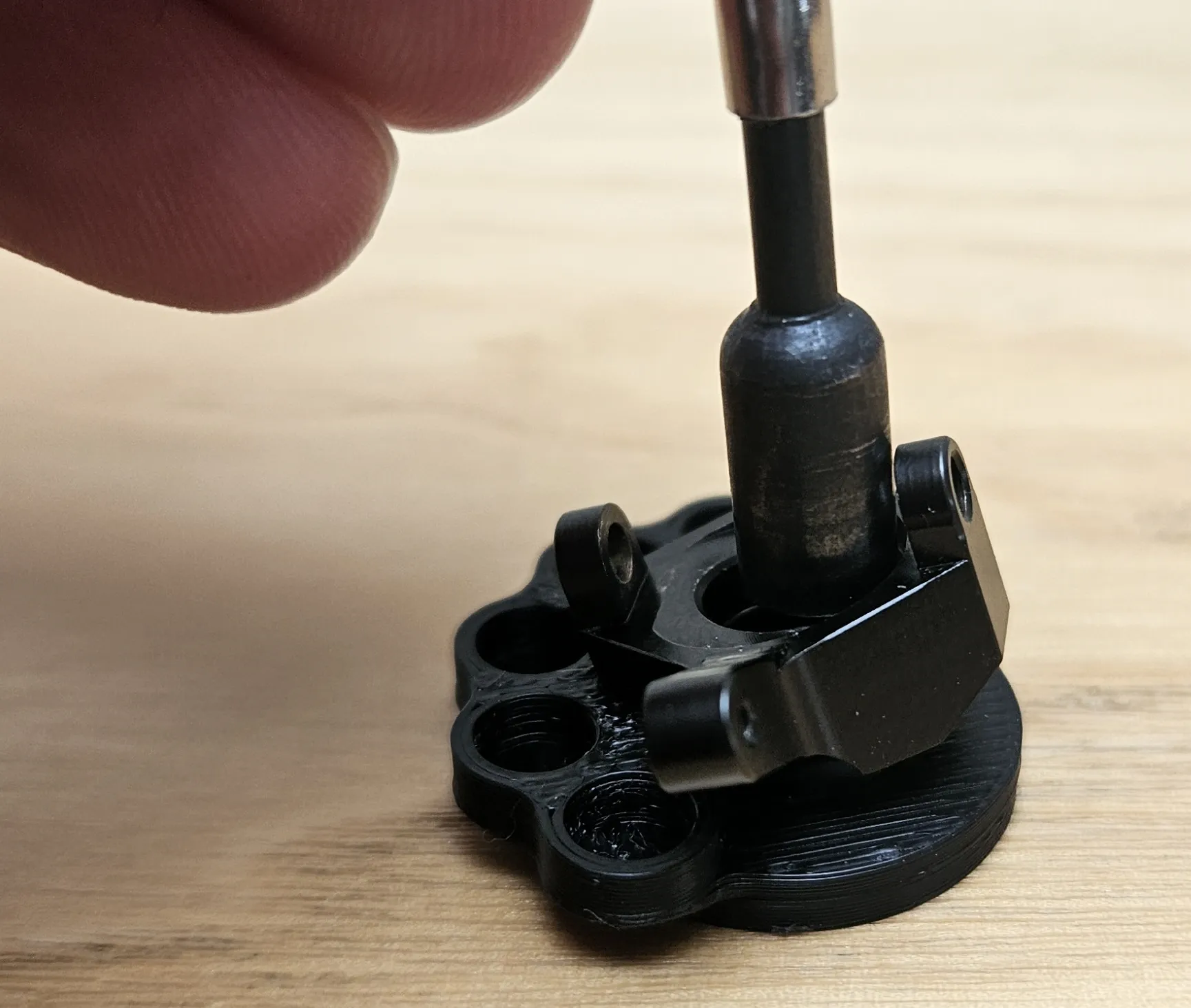

Then i've used a punch and carefully tapped on the opposite site on the inner ring and it should nicely snap in place:

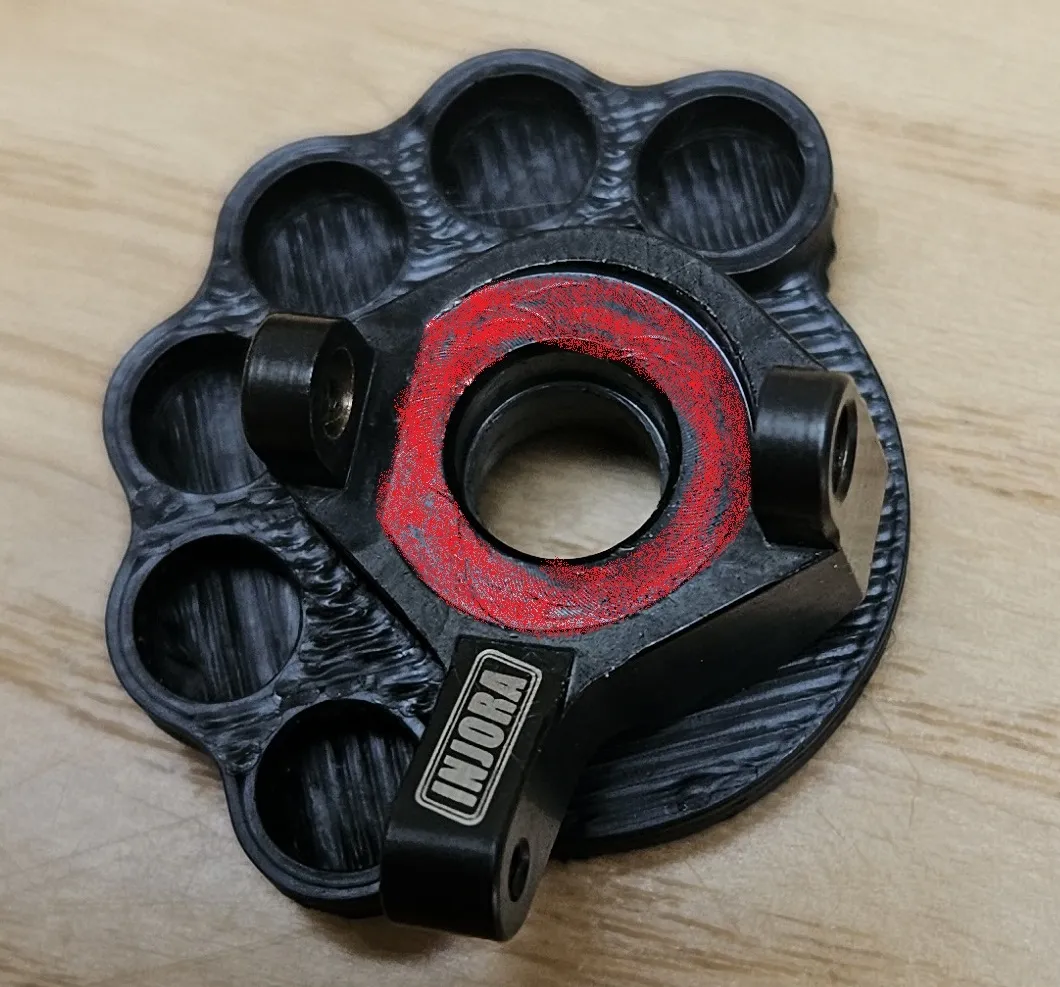

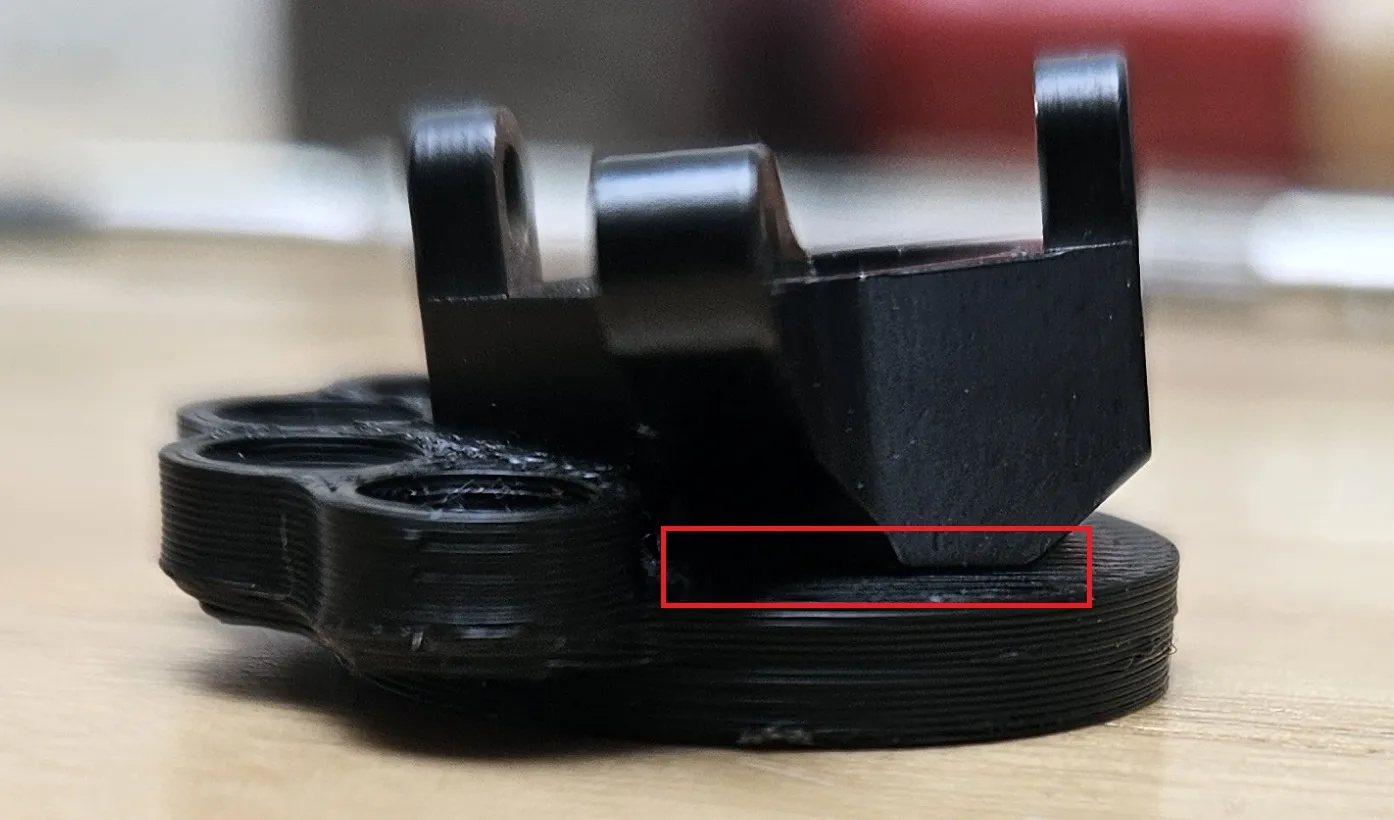

You can then carefully tap around the inner ring to be sure the knuckle is completly pressed into the weight hanger and there is no gap between the two parts all around so everything is flush and parallel:

There are 2 print profiles, the standard one is PLA+ while the second one is for Protopasta Iron Composite PLA for some additional weight.

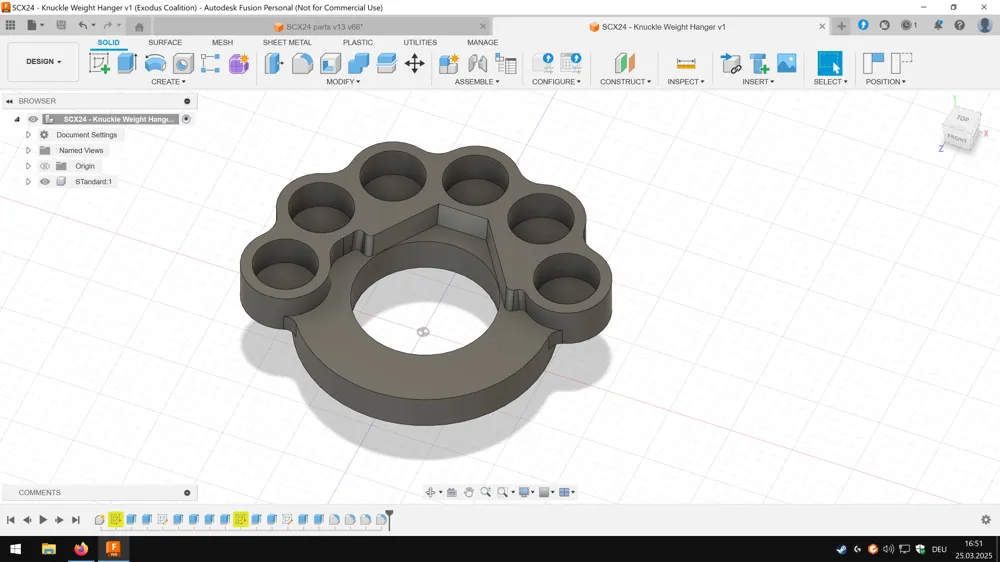

Added Fusion 360 file in case anyone wants to change something.

Print Settings

• Material: Sunlu PLA+ Black / Protopasta Iron Composite PLA
• Nozzle Size: 0.4mm
• Layer Height: 0.2mm
• Walls: 4
• Top Layers: 5
• Bottom Layers: 12
• Infill: Gyroid, 15%
• Seam Position: Random
• Wall Generator: Arachne
• Supports: Yes (Grid, Pattern Angle = 90*, Top Interface Layers = 3, Top Interface Spacing = 0.05mm)
• Raft: No
