Smartwatch Xplora X5 Play Holder

Description:

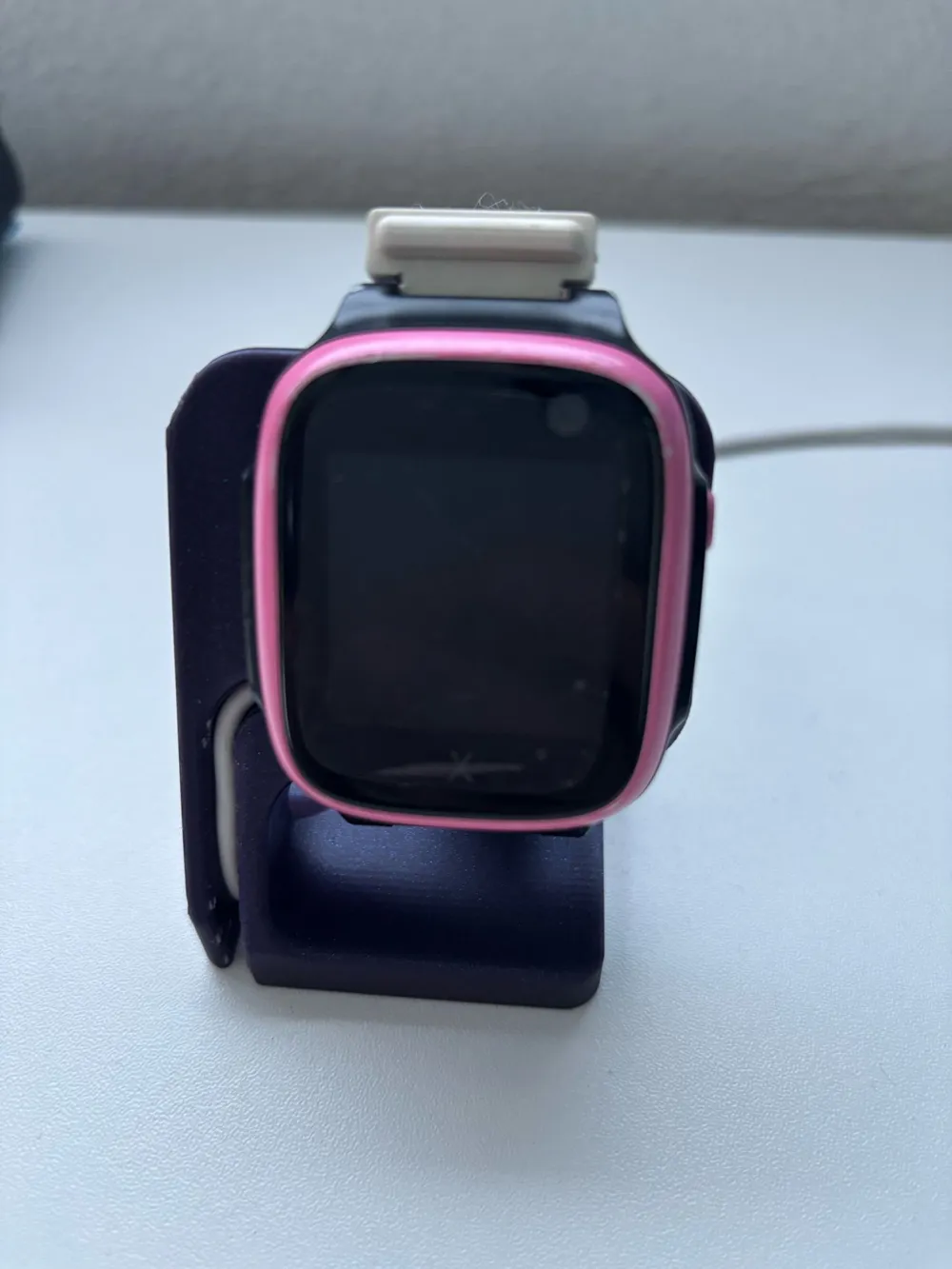

Here is a neat stand/holder for the children's smartwatch Xplora X5 Play. The original charging device can be inserted into the stand, and the watch placed on it accordingly. This neatly positions the watch, preventing the charging device from slipping off the contacts as it would if laid flat.

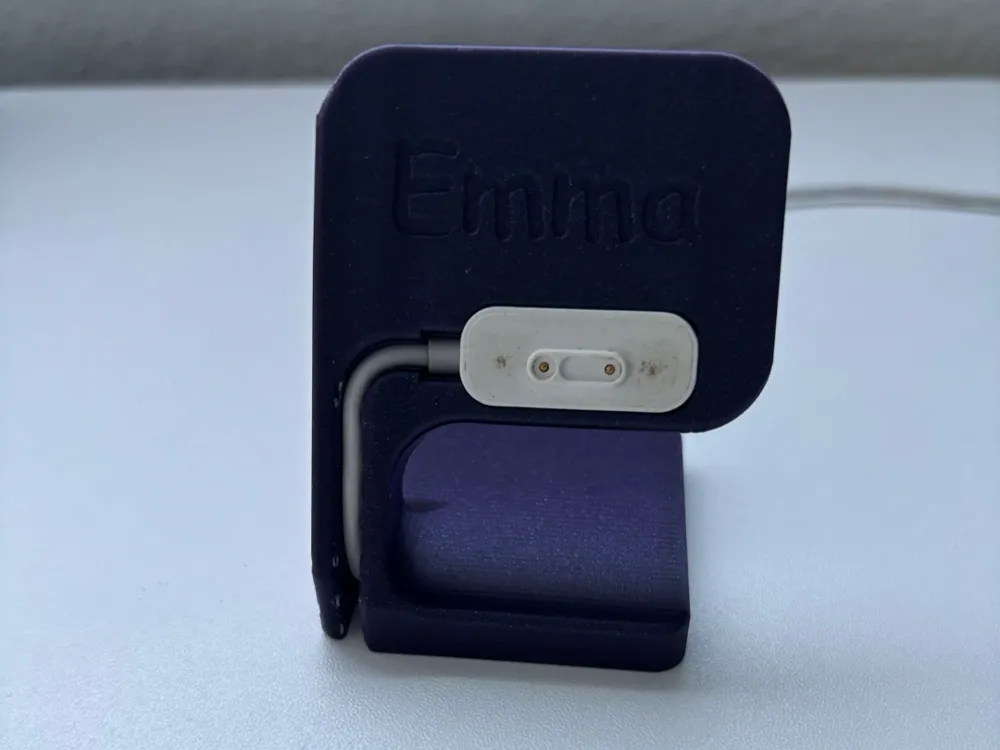

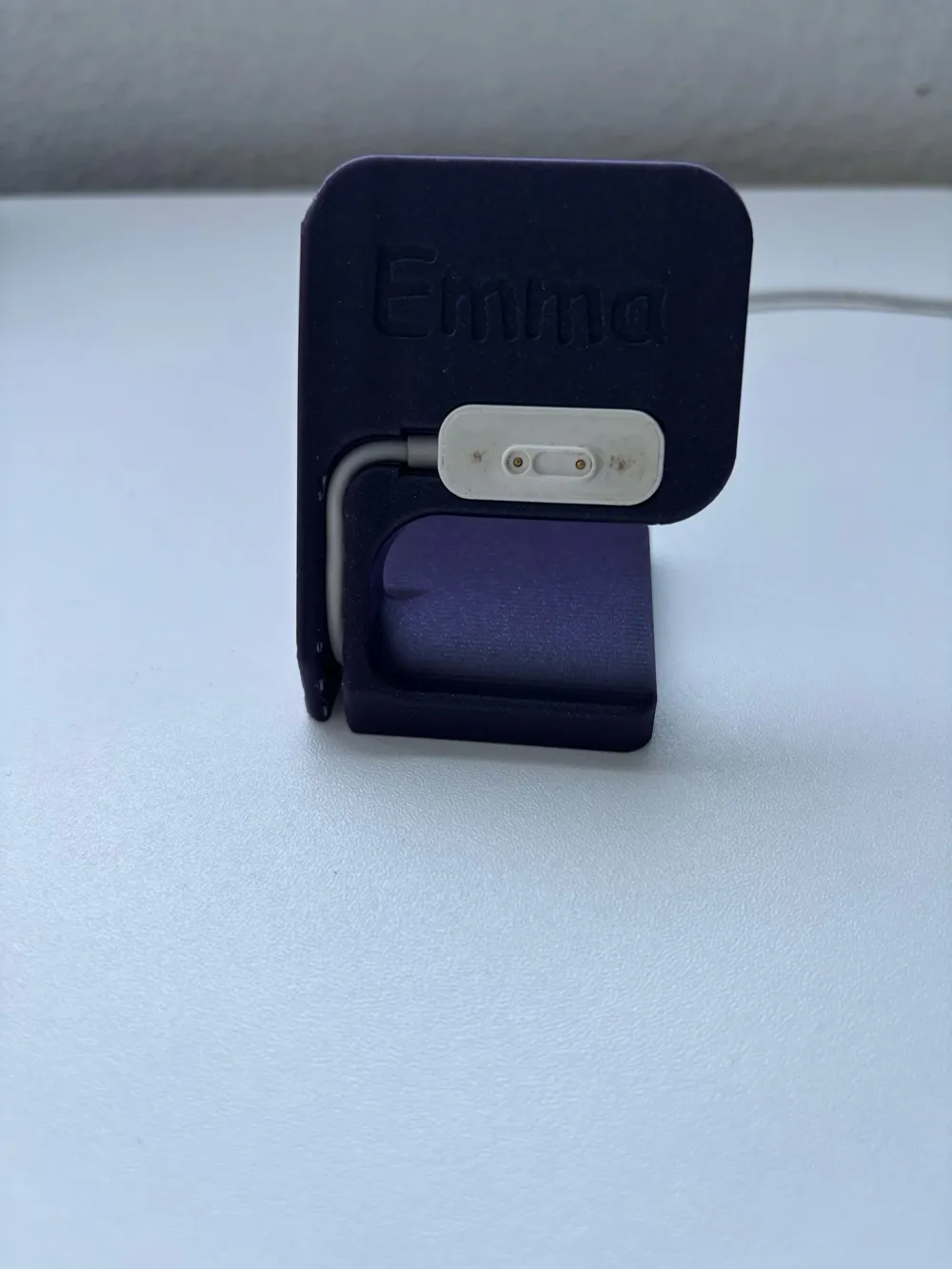

The cable is neatly routed through a groove in the holder and additionally secured at the bottom, giving it a clean look.

Variants:

Two print profiles are available.

1. Print profile is unlabeled
2. Print profile is labeled/named

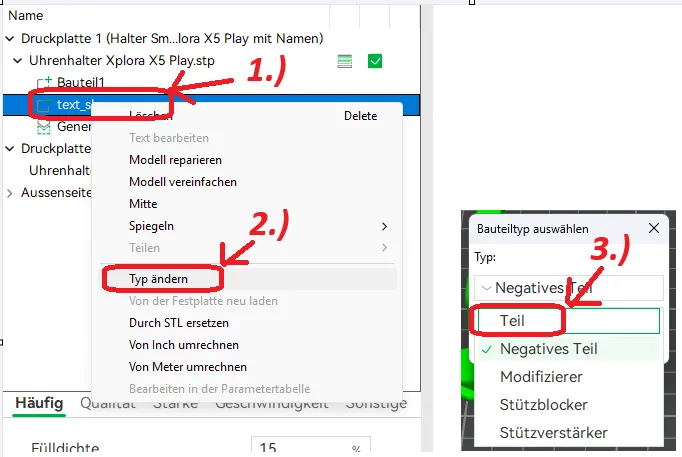

   The text can be individually customized via Bambu Studio. After opening, switch to Objects in the process

Then right-click on “text_shape”, click on “Change Type”

Then, by right-clicking on “text_shape”, you can edit the text and enter a custom name or text.
Then simply right-click on “text_shape” again, change the type back to a “Negative Part” and slice.
The text should now be subtracted accordingly. :-) If anything is unclear, just write to me
then I will try to help here.

Assembly:

Inserting the charging device is self-explanatory.

To make it easier to insert the cable at the bottom for fixing, the holder can be gently squeezed at the bottom and top. This widens the lower groove slightly, allowing the cable to be inserted without damage :-).
