Sunlu Dryer S1 Roller
IP Report
Print Profile(1)
0.2mm layer, 2 walls, 15% infill
Designer
1.8 h
1 plate
Open in Bambu Studio
Boost
16
15
1
0
19
6
Released
Description

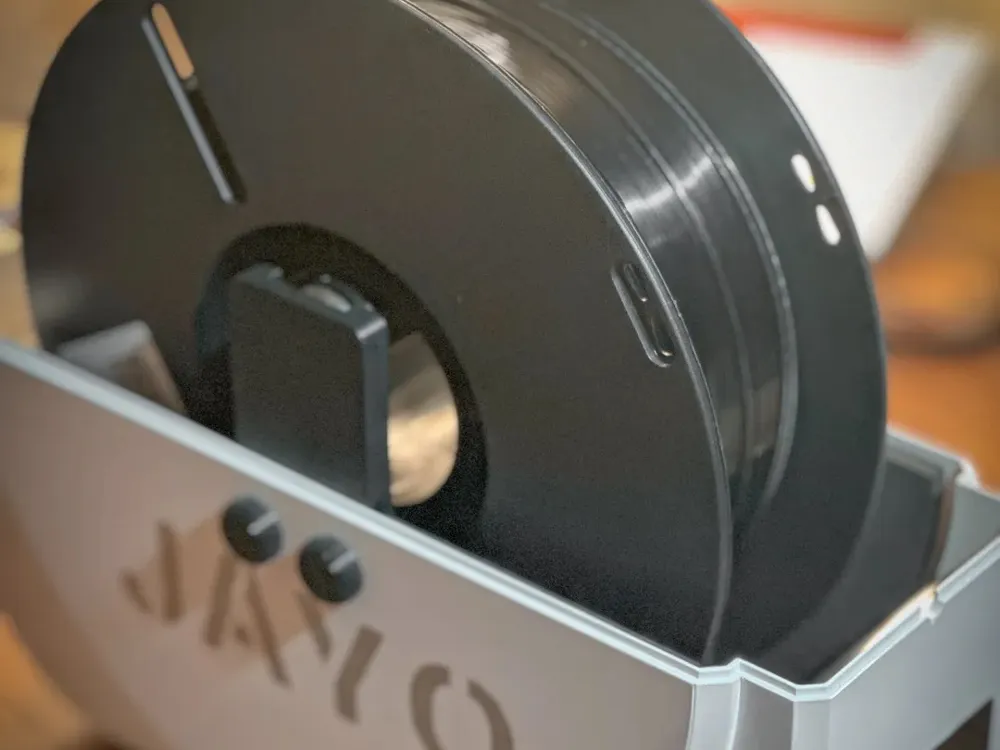

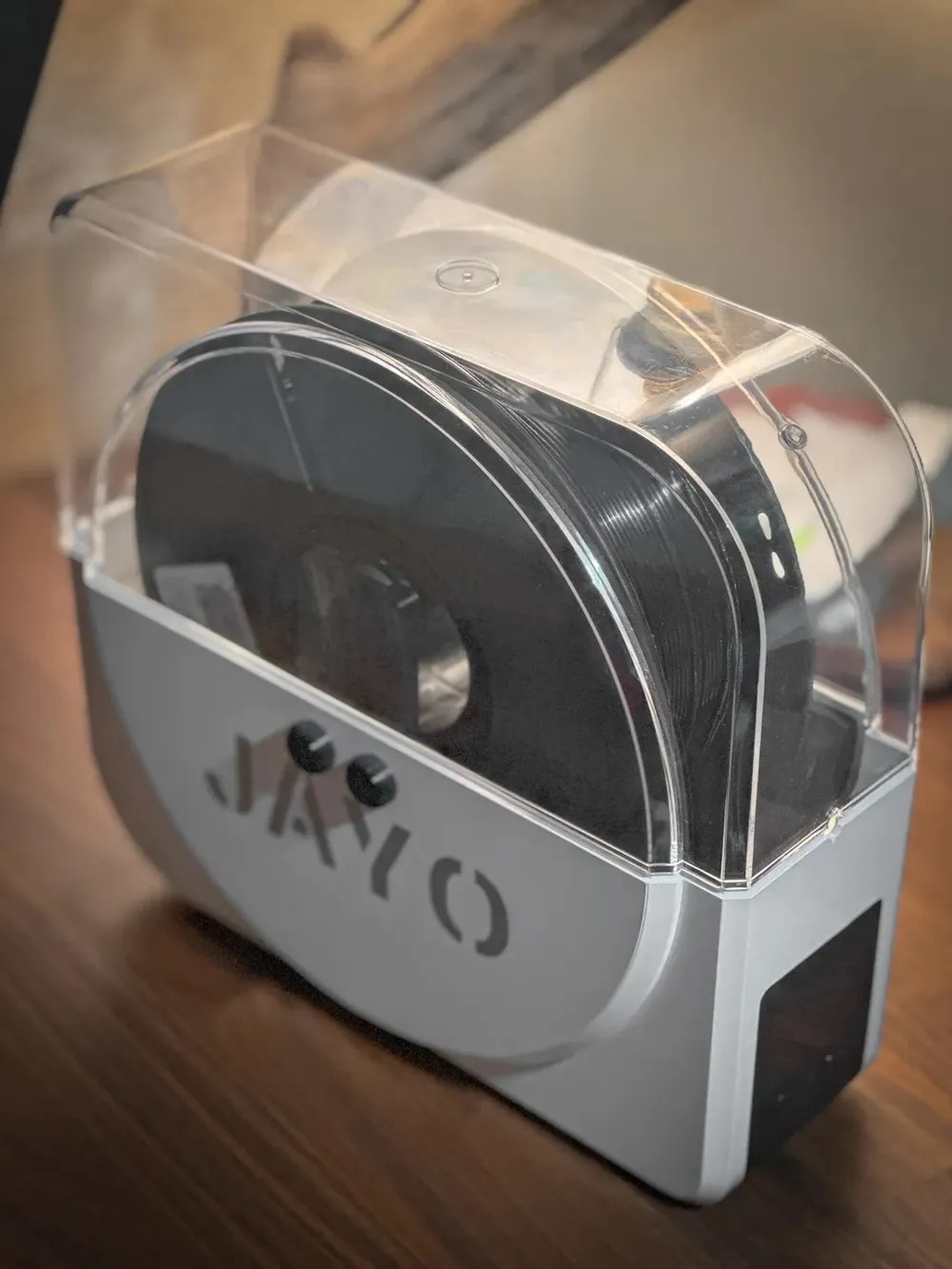

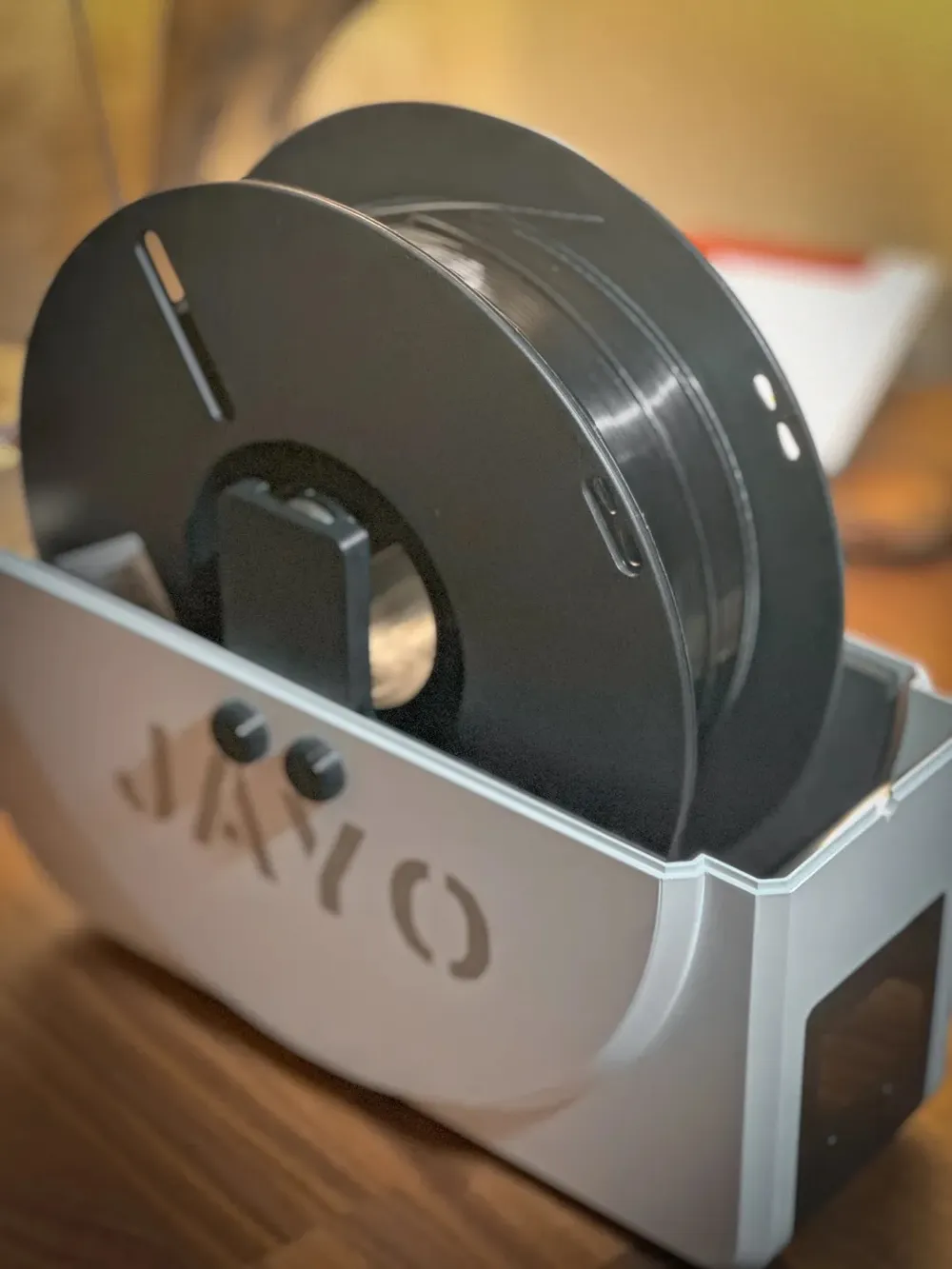

With this upgrade you will be able to use your Sunlu S1 Dryer (or the JAYO one) while printing. The original roller bars were too small to allow to roll the spool correctly.
What do you have to print?
- x1 Roller;
- x2 Bracket;
- x1 Holes Guide;
- x4 Screw Cap Body;
- x4 Screw Cap Cover.

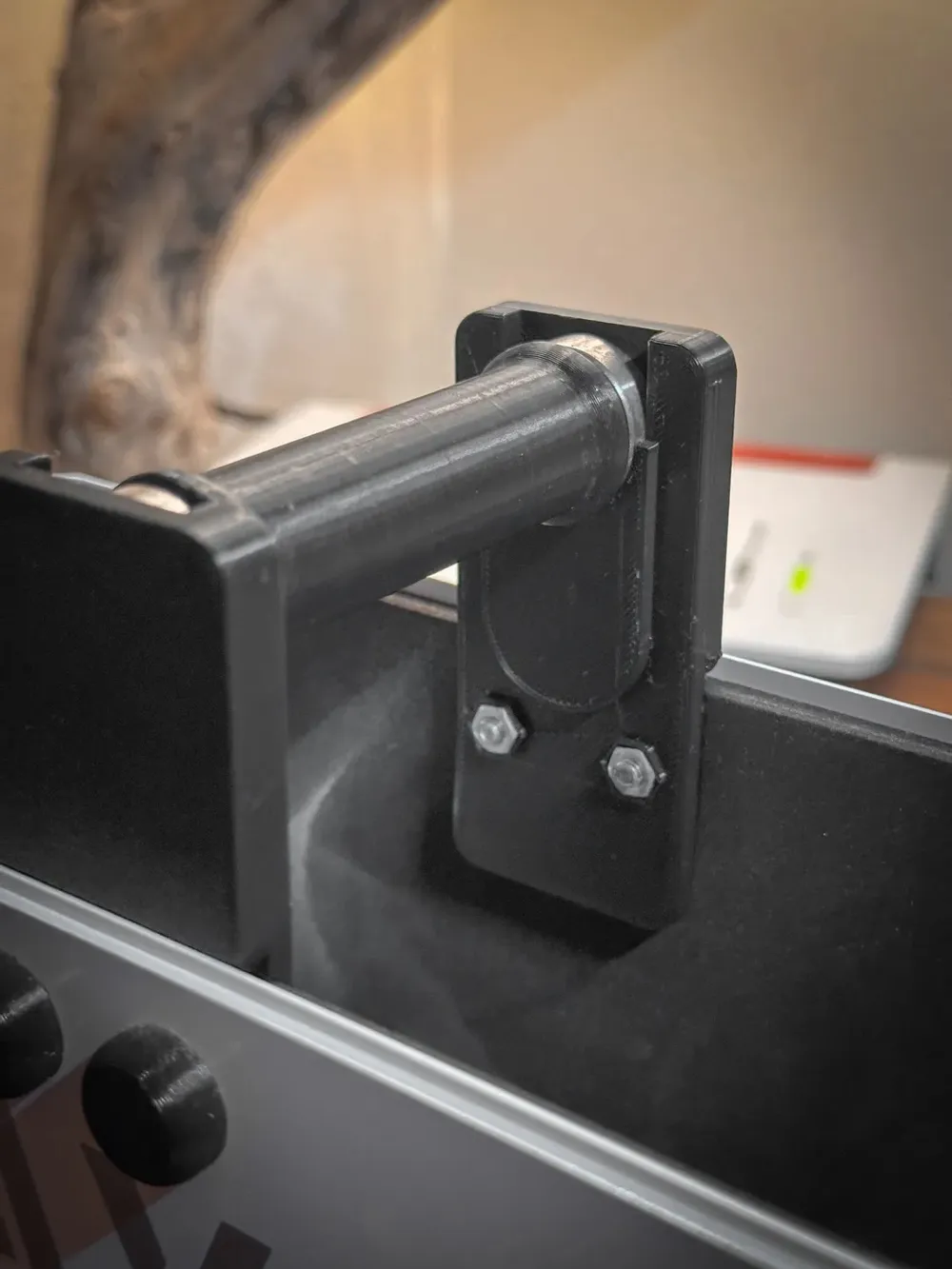

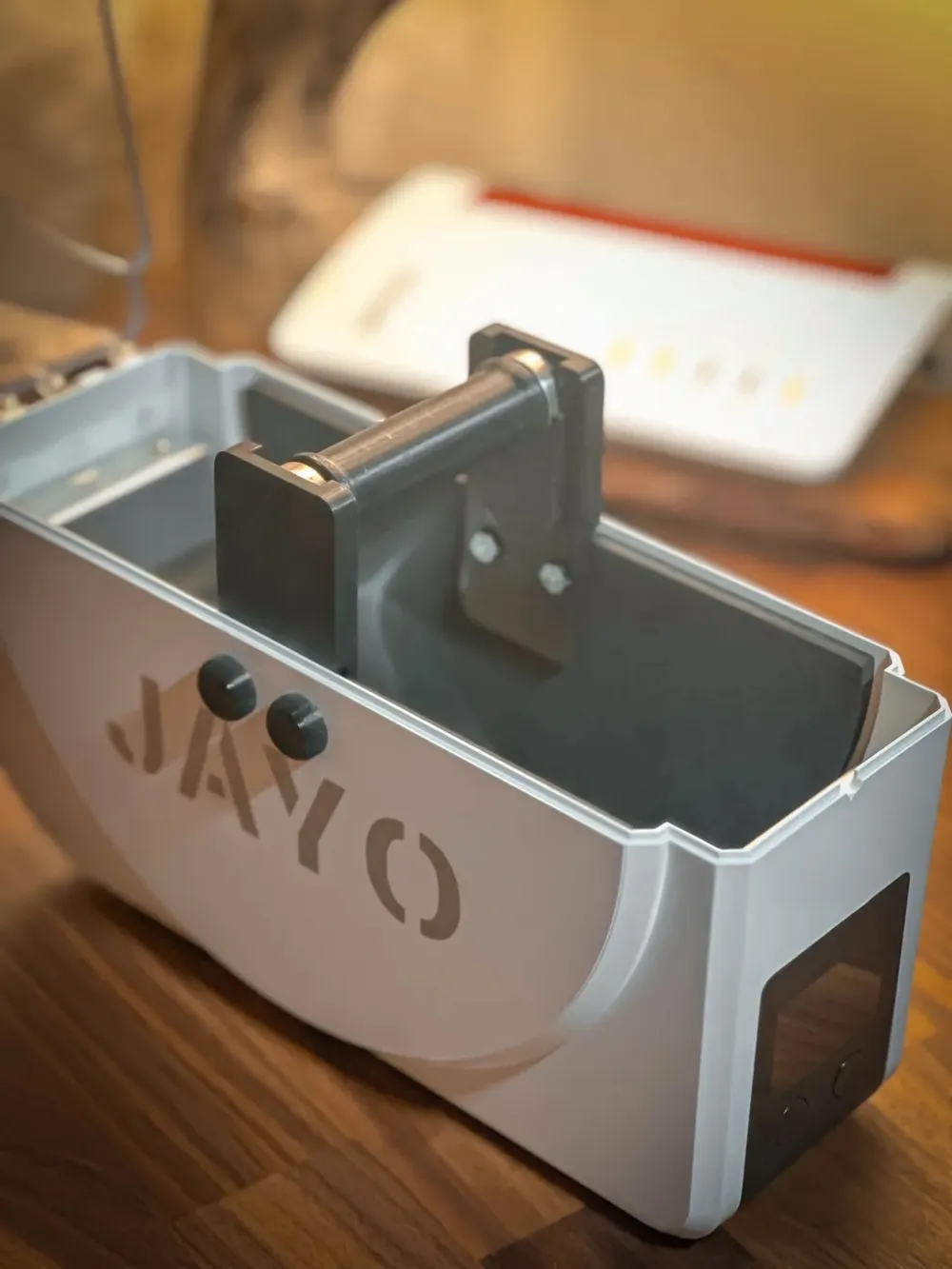

In order to mount the bracket, you have to make two holes per side using the “Holes Guide.stl” after positioning it in the middle of the dryer case.
You will need also need:
- x4 M5 nuts;
- x4 M5 bolts;
- x2 608 type 22mm ball bearings.
