Magnetic storage box with mandala inlay
Print Profile(1)
Bill of Materials
- Magnets x 12:
Description
My wife asked me to make her a storage box for her crochet hooks and other items, so I designed this.

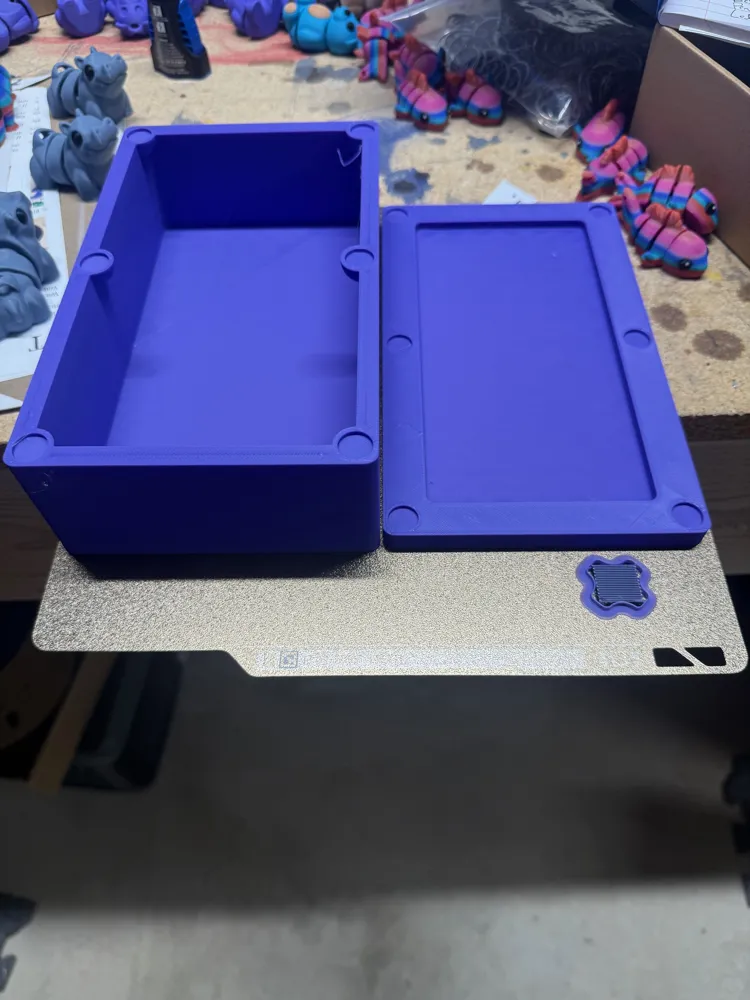

The outside measure 210mm x 125mm x 68mm. Both fit on the A1 plate, but barely, so this will NOT work on the A1 mini
The internal area measures 194mm x 199mm x 58mm

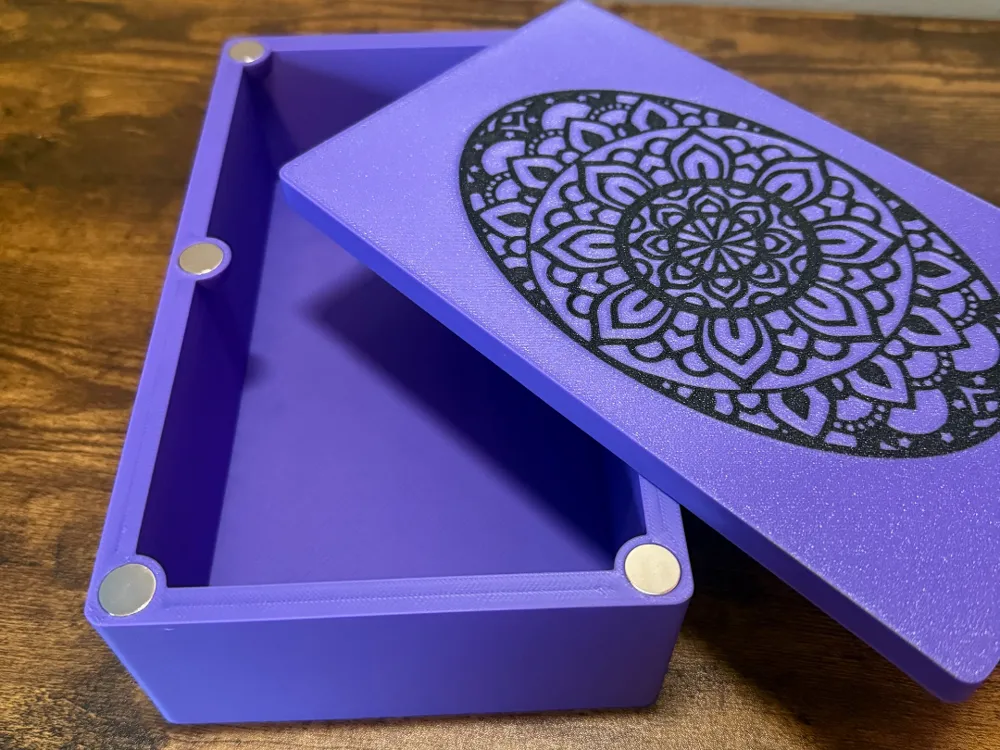

I used magnets to hold it together and using 6 set of 12mm x 2mm magnets holds the lid tight enough together that I am not worried about it opening unexpectedly.

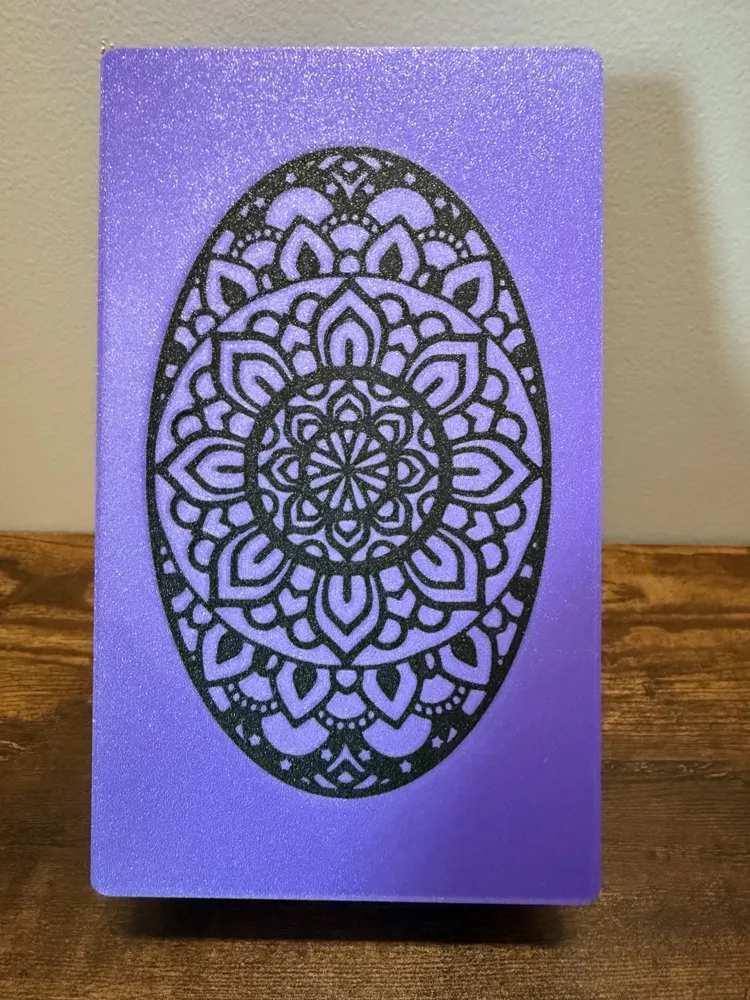

To select the color of the mandala, simply choose the objects section, right click on the mandala and change filament.
Printed at .20mm with 7% gyroid infill to keep the filament usage down while still keeping it's strength. I did slow down the overhang speeds to make sure the magnet mounts on the top the box print well and it worked perfectly.
As always, thank for checking this out and if you like it, please consider a like, collect or even a boost. Check out my other items as well.
If you have suggestions or issues, please let me know ASAP
