2" Hitch Receiver TPU Cover with Subaru stars
Print Profile(1)

Bill of Materials
Description

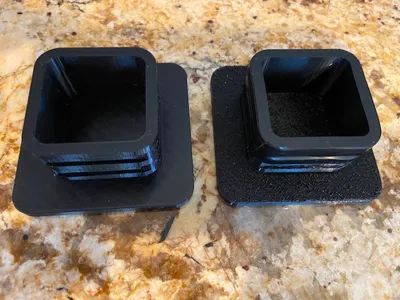

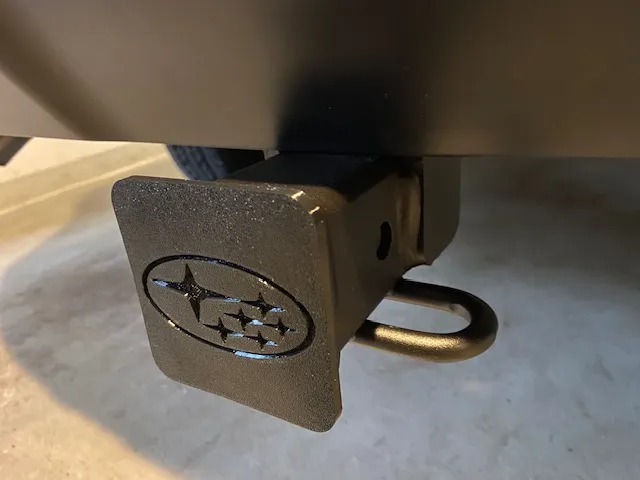

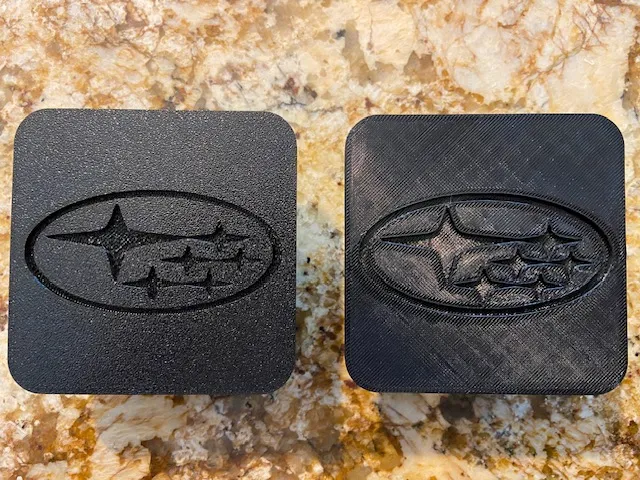

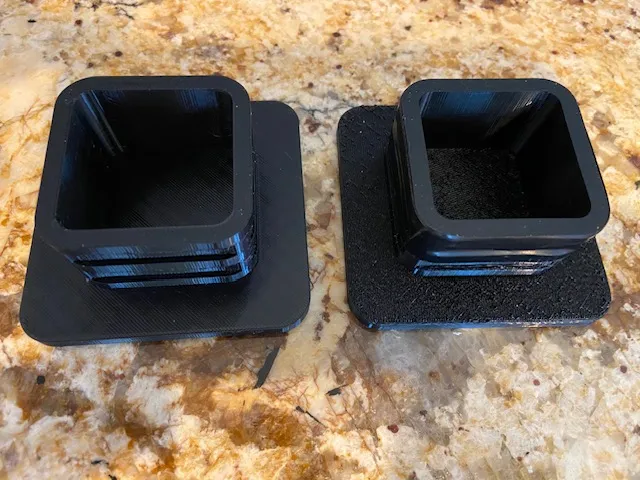

This is designed to be made out of TPU to allow compression and an interference fit. Print file provided is at 102% scale for best interference fit in new (un-rusted) 2" hitch receiver. Print file provided will produce the model shown in photos on left hand side and requires Subaru logo to be removed with pick and needle nose pliers. I prefer this look - printed on Textured PEI Plate, which only used 37.84 g of material and took 3 hr 14 min to print.
The model in the photos on right hand side was flipped 180 degrees, which did not require picking material out of the logo; but required many more supports (as expected with all the overhangs) resulting in 65.96 g of material which took 5 hr 19 min to print. This was my test case at 100% scale and was too loose (as it printed approx. 1mm short dimensionally in the TPU). I had to make up the difference with about 3 full wraps of electrical tape in order to get a tight enough fit at 100% (this may differ with a different material).
If you don't have TPU and want to try printing with a hard material (hopefully UV resistant), then printing at 100% and using electrical tape wraps to achieve an acceptable interference fit may work best for you.
