Description

26/11/2023

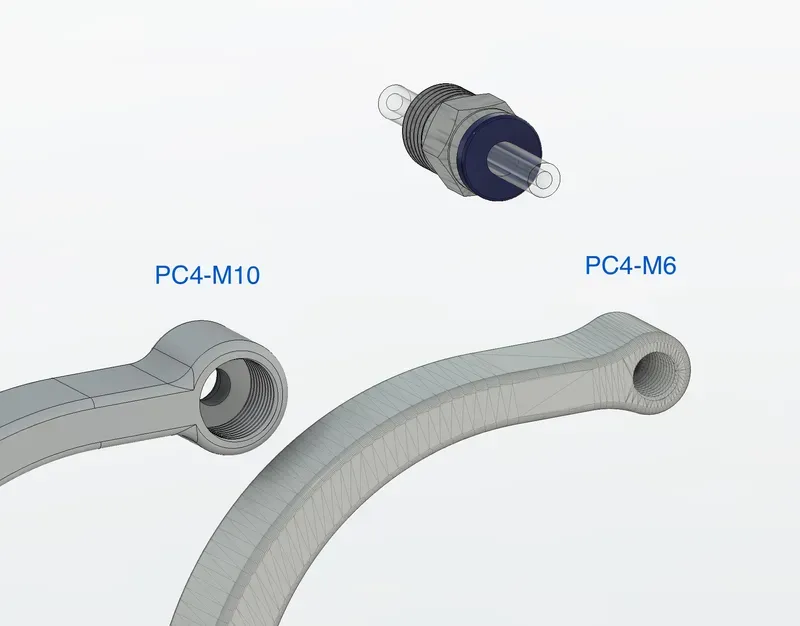

Added Pushfit to the arm, there are 2 versions:

PC4-M6 shared by Micha (thanks you again)
PC4-M10 as various users ask it

Printed with @0.12mm, 3 perimeters.

----------

In this post, you'll find everything you need to equip your X1 or P1P with a side spool support fitted with a PTFE tube to guide the filament easily to the extruder.

The spool support can be either the one supplied with the printer (the metal one), or a roller using 2 608 bearings.

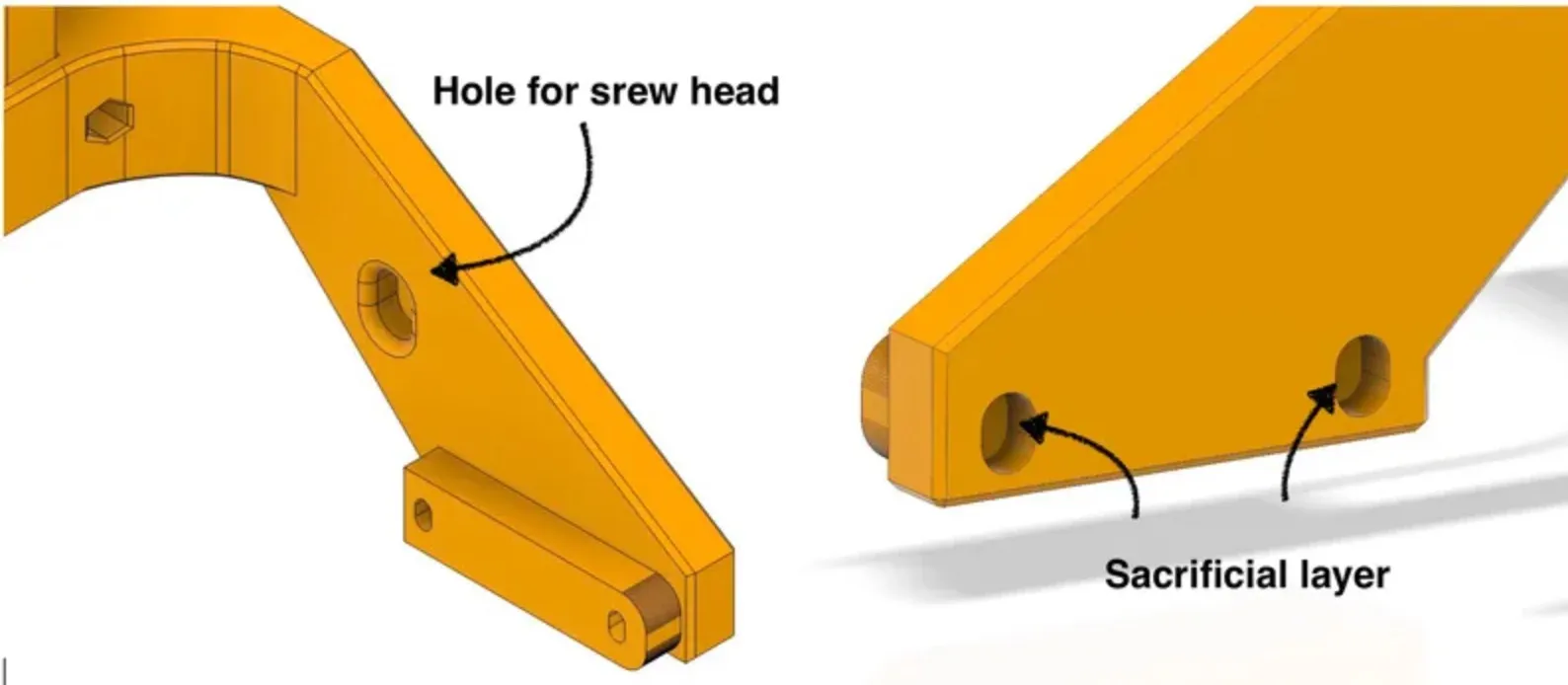

P1P ARC version is very similar to X1 version with the exception of a few changers needed to adapt to acrylic panels:

How to print and use:

Make sure the print is strong and rigid, I've printed mine with 4 perimeters, 0.2mm layer height 5 top/down layers, cubic (or gyroid) infill.

The filament guide just fits into arms, you can glue it but it's not necessary

PTFE tube is pushed into the hole, tolerance may vary depending on your filament and printer calibration

Plate 1 is P1P ARC original support

Pate 2 is P1P ARC roller support

Plate 3 is X1 original support

Plate 4 is X1 roller support
