Bambu Lab H series first layer test, dual color dual nozzle, 350x320 full plate

I had never performed a first-layer test before, but I secured an H2D on launch day and wanted to conduct a first-layer check for my new machine.

Because others' tests involved only single colors, simple color blocks, or incomplete print area coverage,

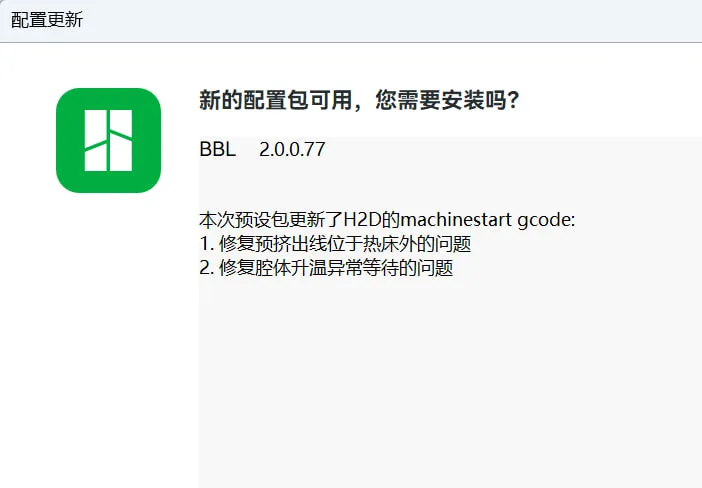

I created a test that completely fills the entire H2D print bed. It also accommodates the recent adjustments to the pre-extrusion line location.

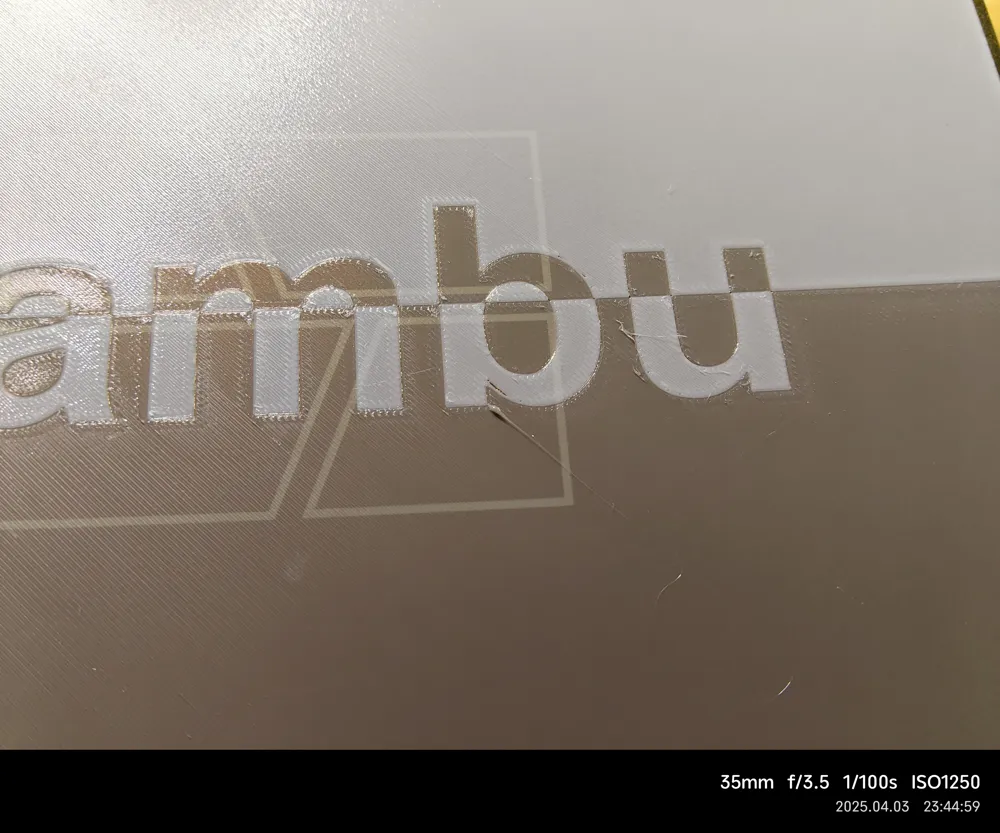

Simple text is incorporated to verify the accuracy of the dual nozzle alignment.

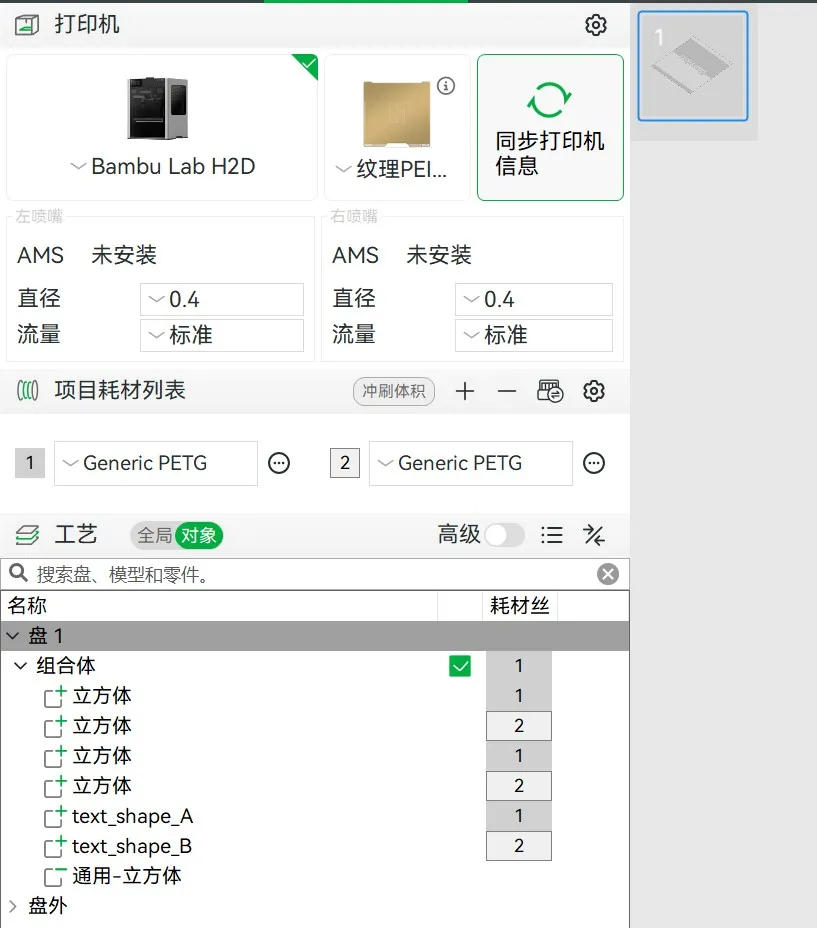

The default is gray on the left and white on the right; please substitute filaments according to your preferences. Just ensure both filaments are of the same type—avoid using PLA on one side and PETG on the other.

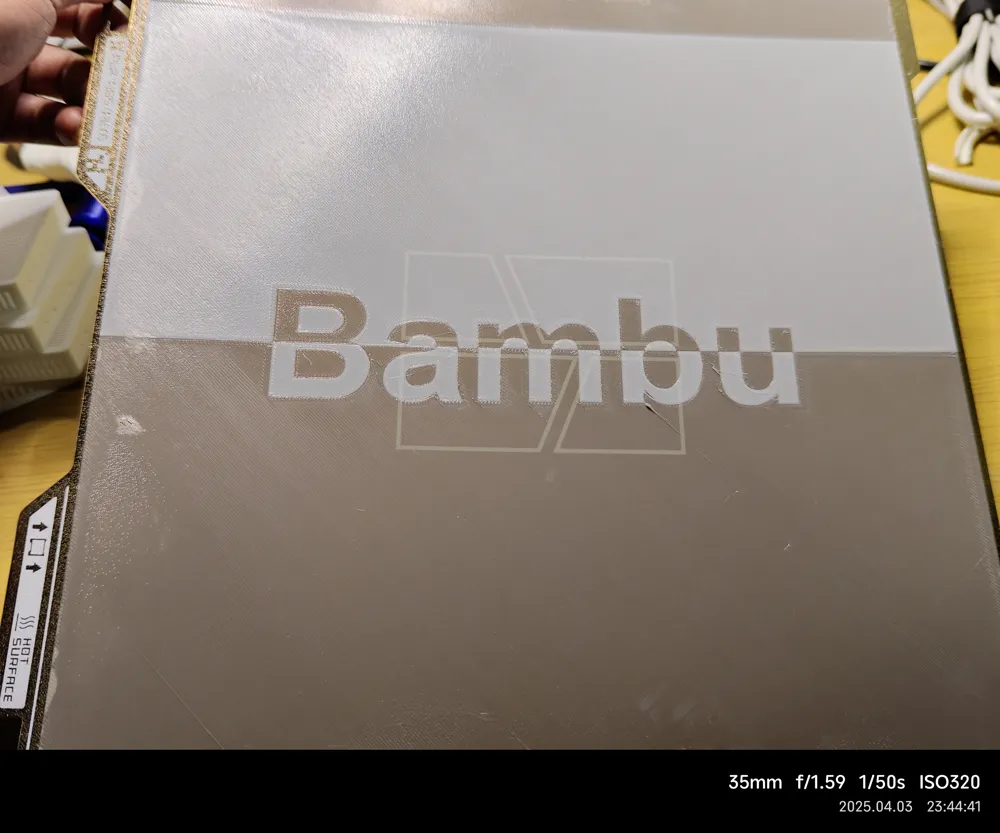

The uploaded images depict the print results without motion precision enabled or calibration. I find the accuracy acceptable for general printing purposes.

Incidentally, when will the visual encoding plates be available? I'm eagerly awaiting them.😂😂😂

Print imperfections are likely due to dust or grease on my build plate preventing proper adhesion, and inconsistent filament flow resulting from moisture absorption. I believe the printer's auto-leveling is functioning correctly.

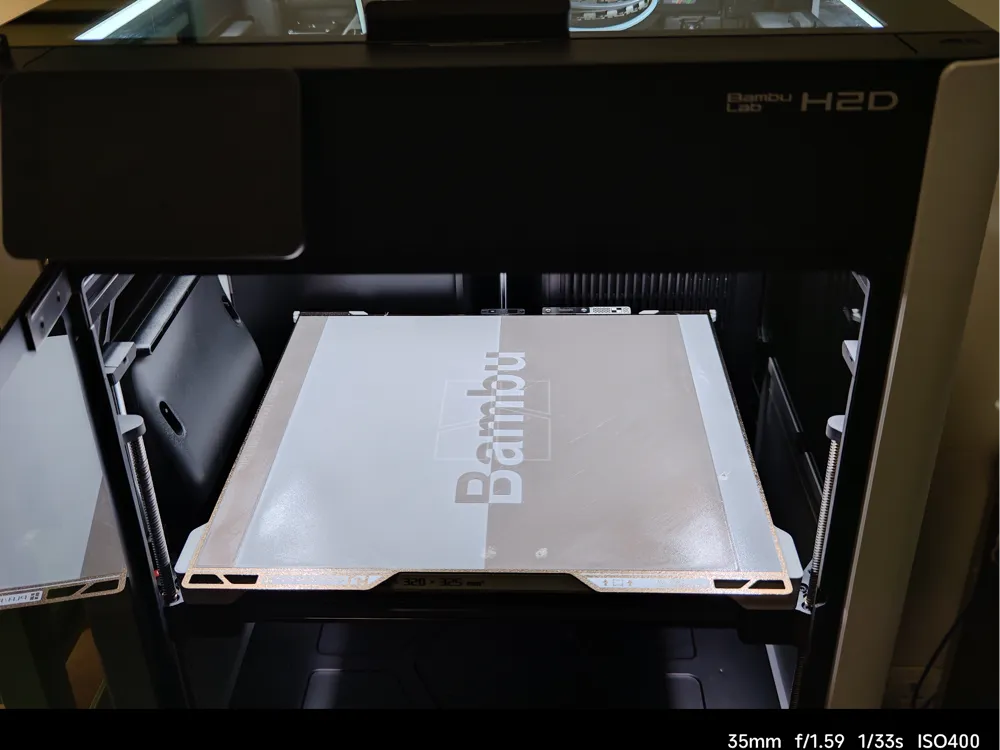

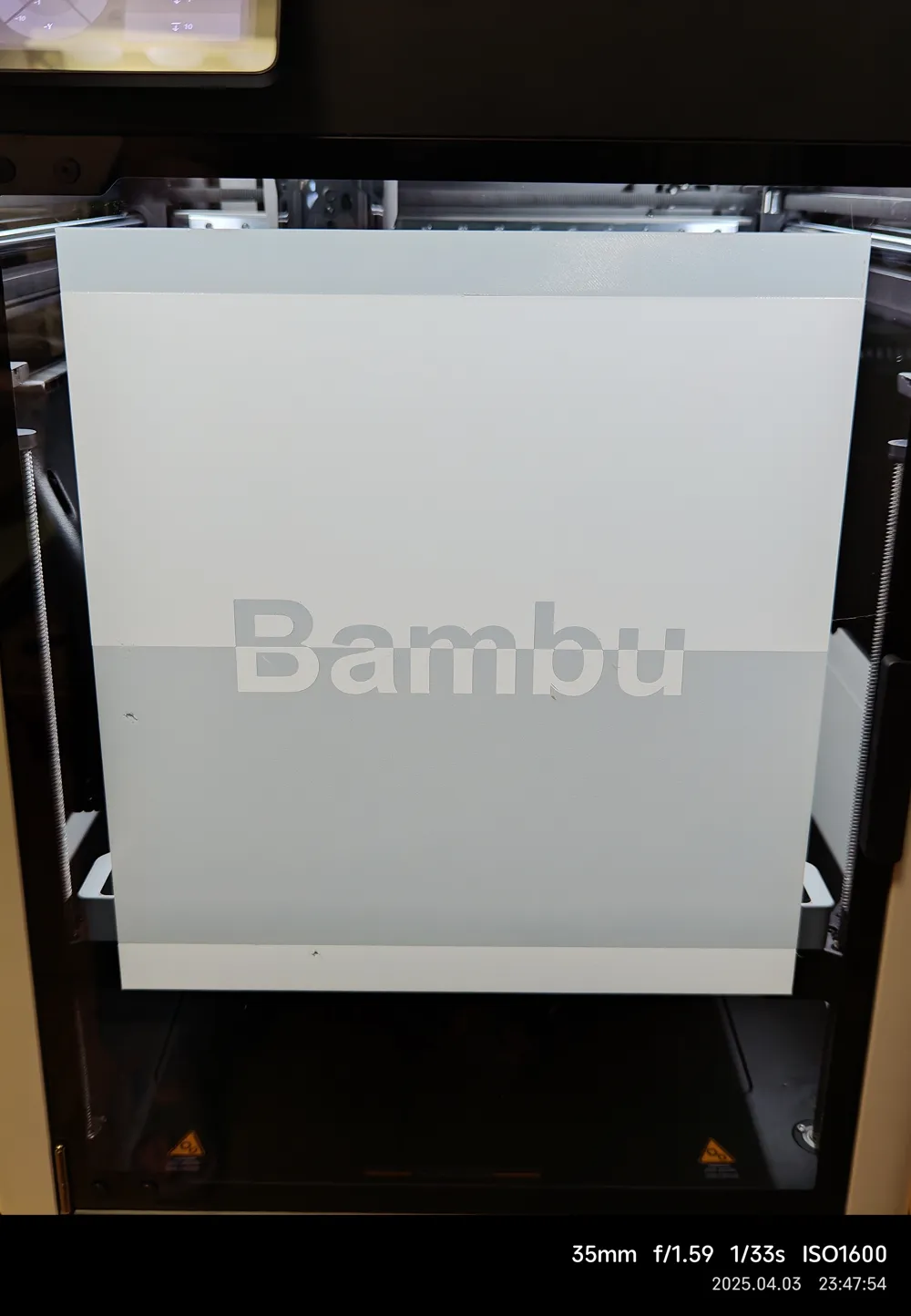

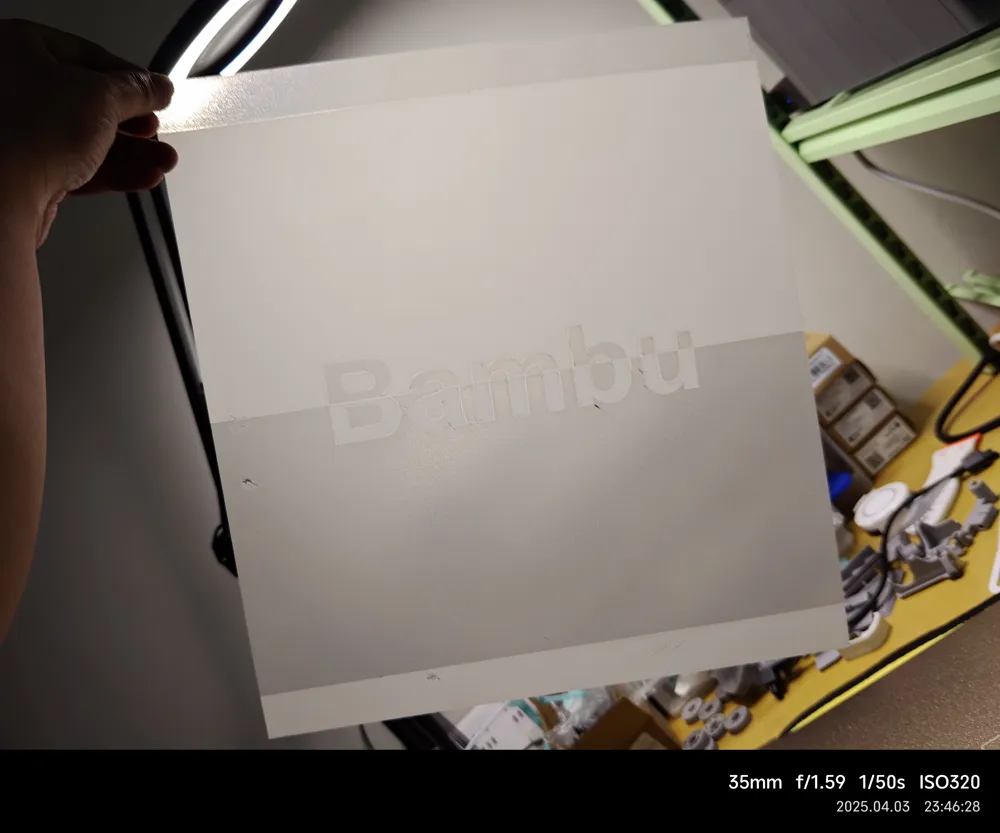

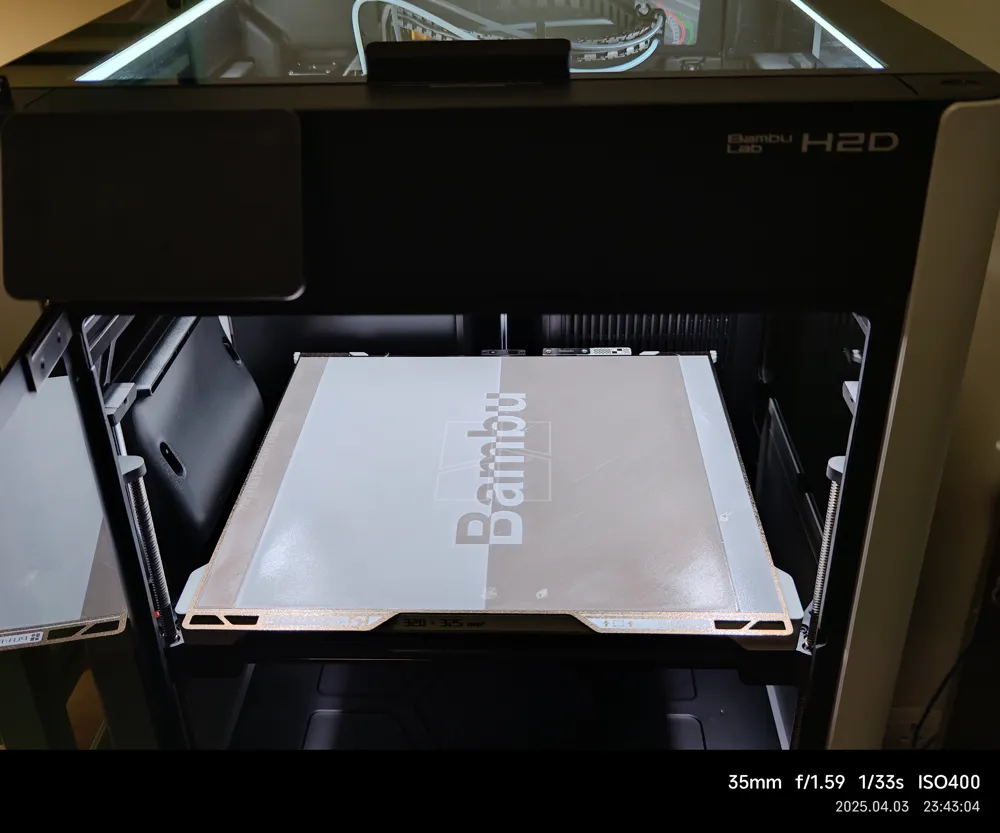

The images showcase the results of a print filling the entire 350x320 print area.

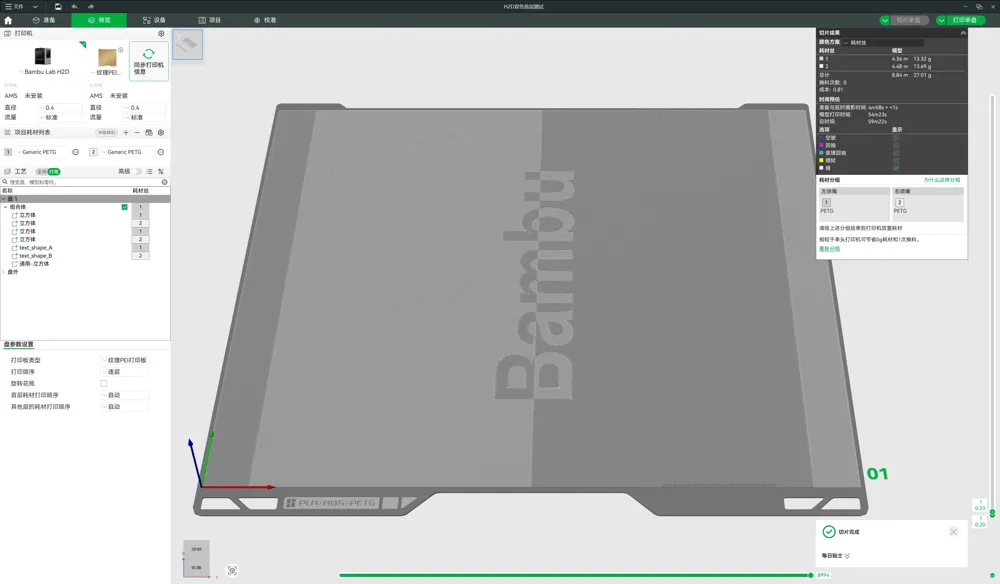

The uploaded model, adapted for the updated pre-extrusion line position, has a gap on the right. If anyone wishes to replicate my complete print area coverage,

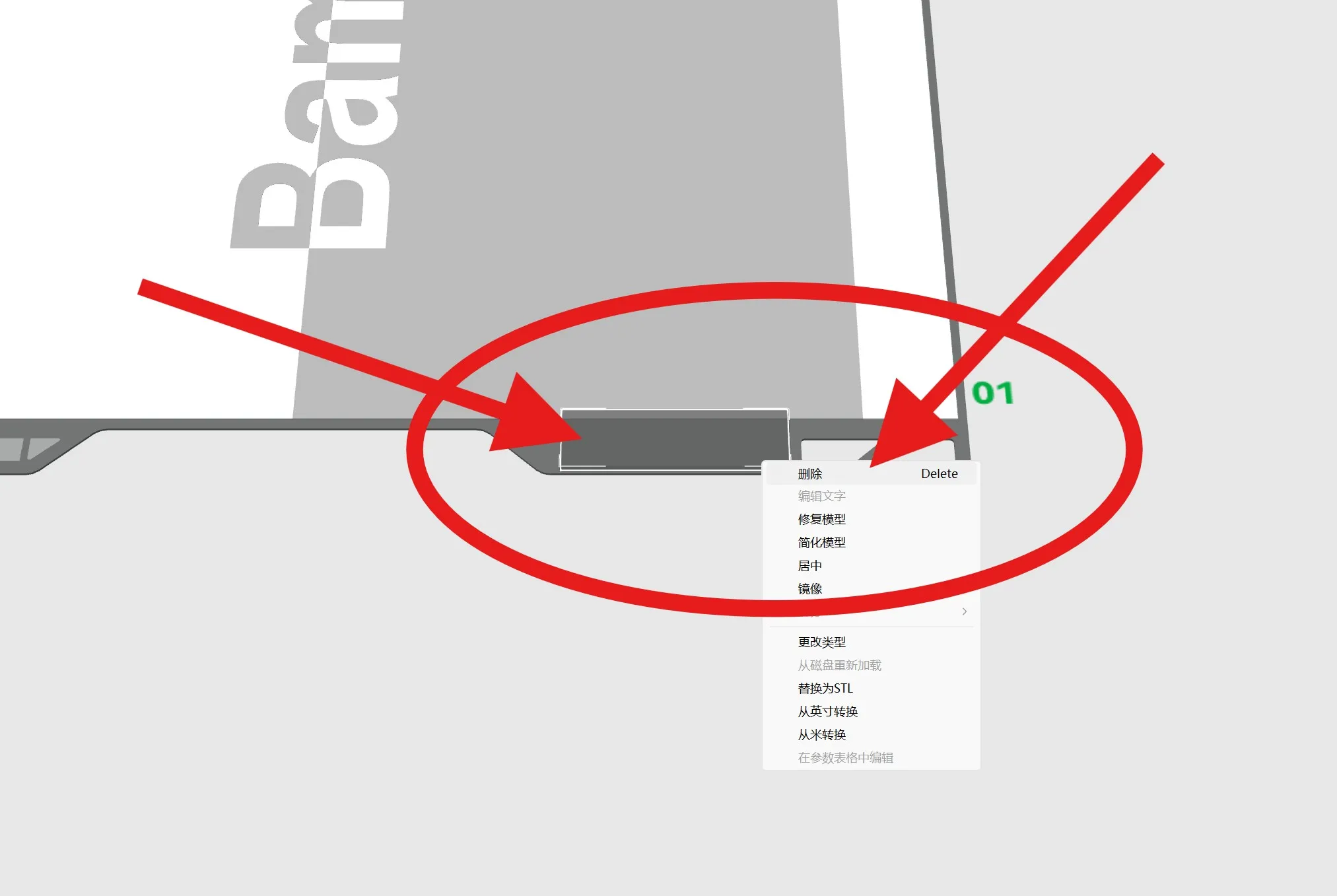

right-click the negative modifier in the indicated area and select delete.

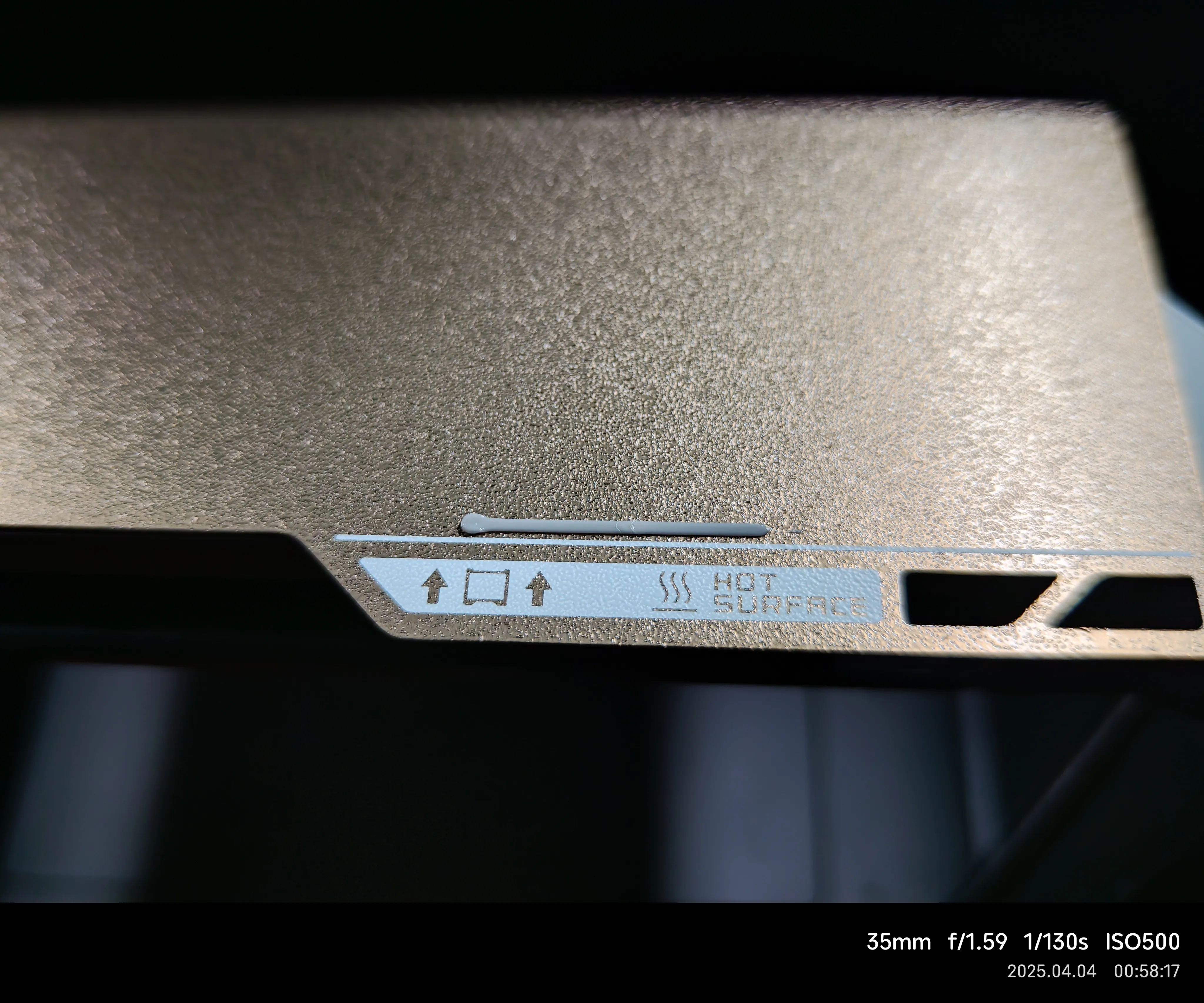

Then, during printing, discreetly remove the pre-extrusion line, thereby achieving complete coverage.😂😂😂
