PIPE BRACKET FOR SHELVES - V2
Next iteration of a previously published shelf bracket made of pipes and connectors.
https://makerworld.com/en/models/1217370-pipe-bracket-for-shelf?from=search#profileId-1233516
Version 2 is ready to be published after a whole lot of tinkering.
NOTICE: This bracket is not for heavy shelves! Not for holding books or expensive vases, but more plastic prints and light decoration.

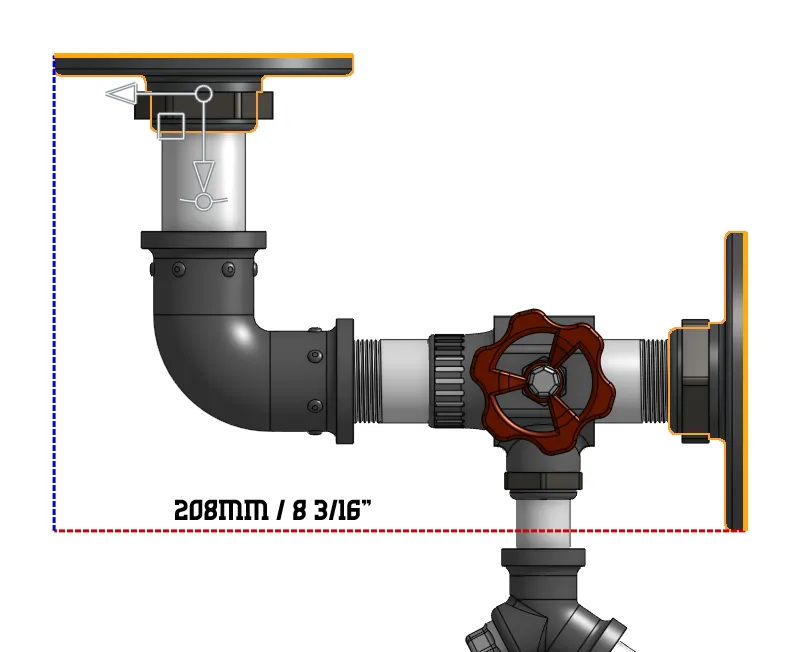

FULL VERSION MESSURES W:208mm x H:230mm / W:8,2 inch x H:9 inch

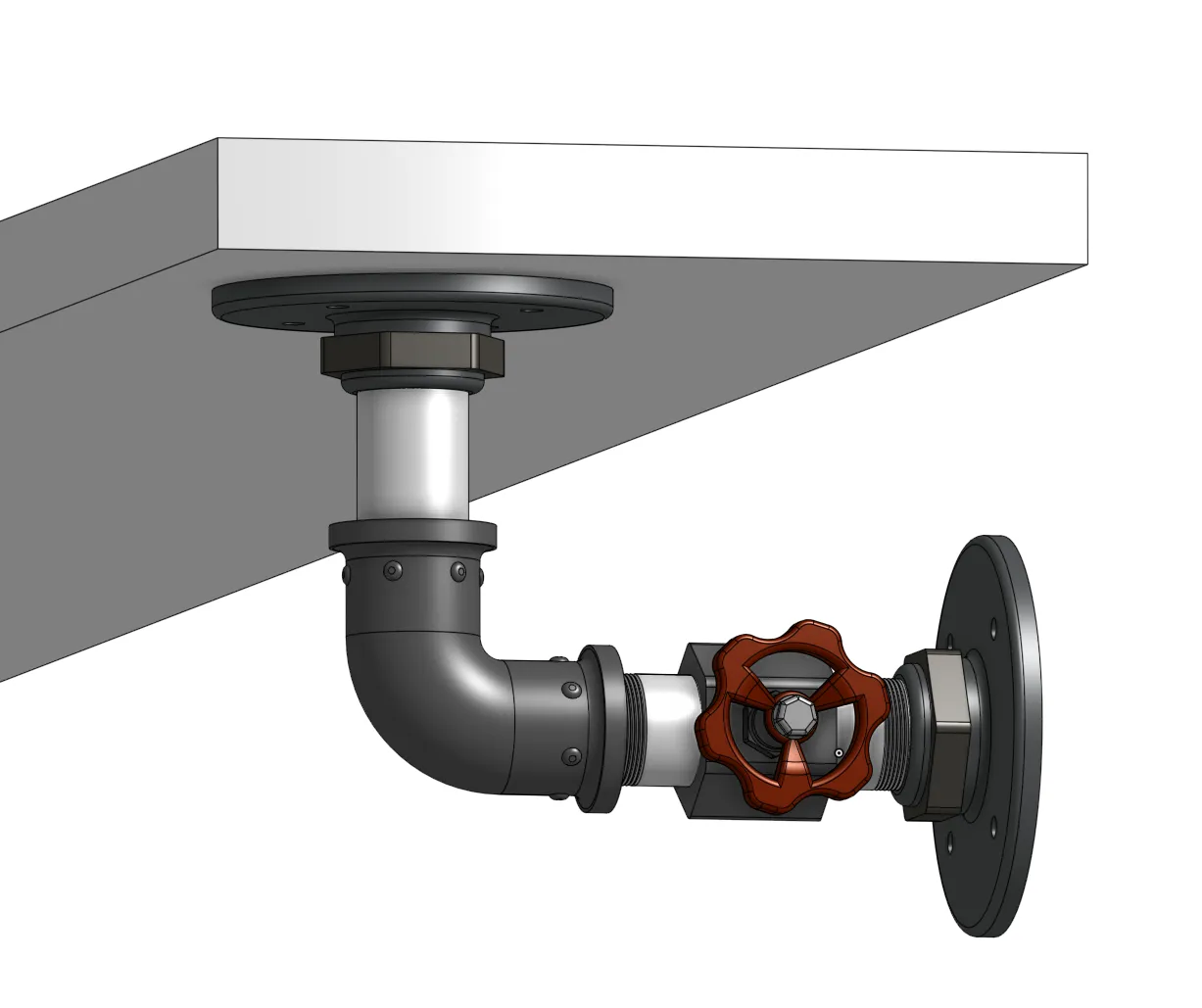

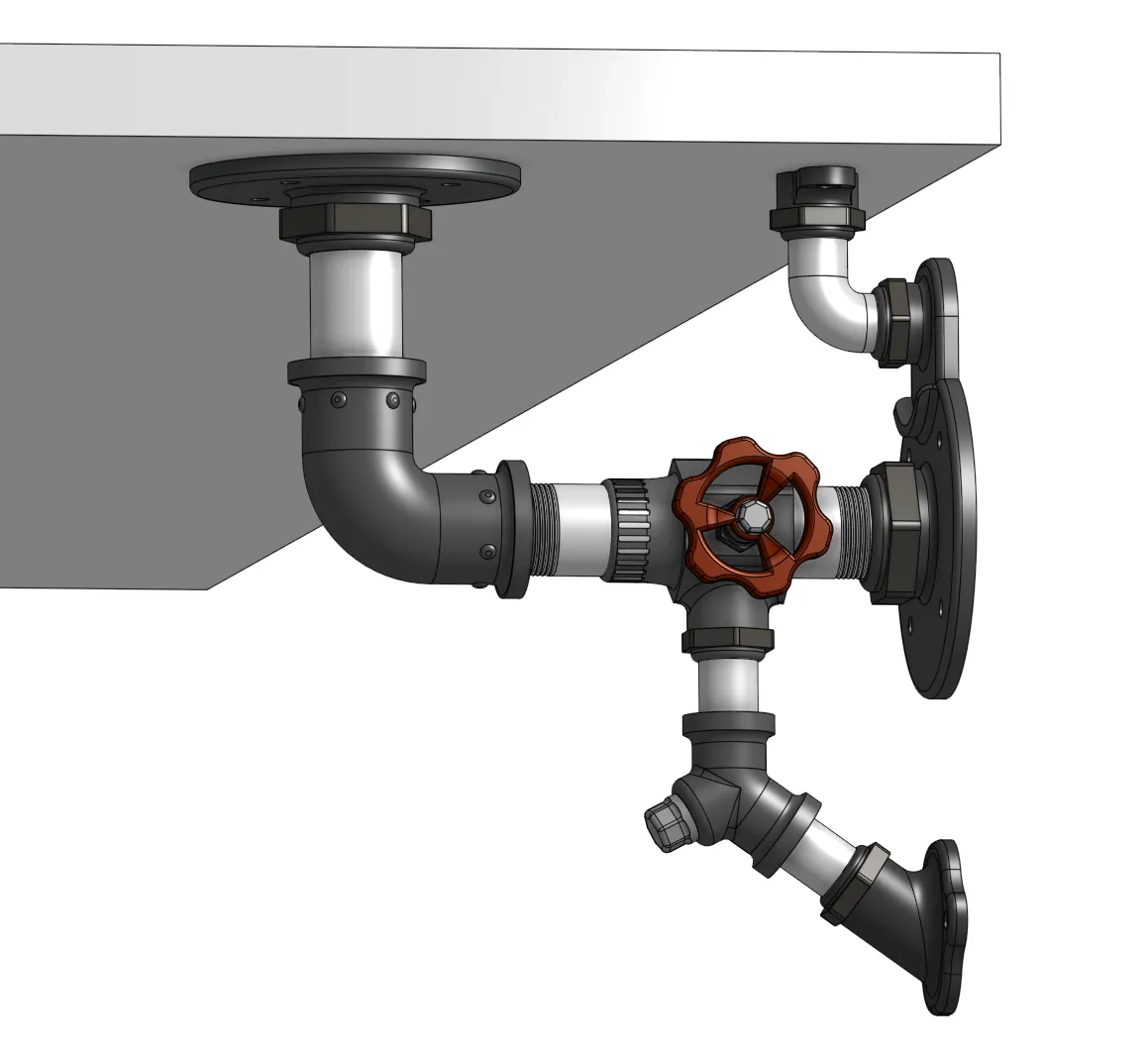

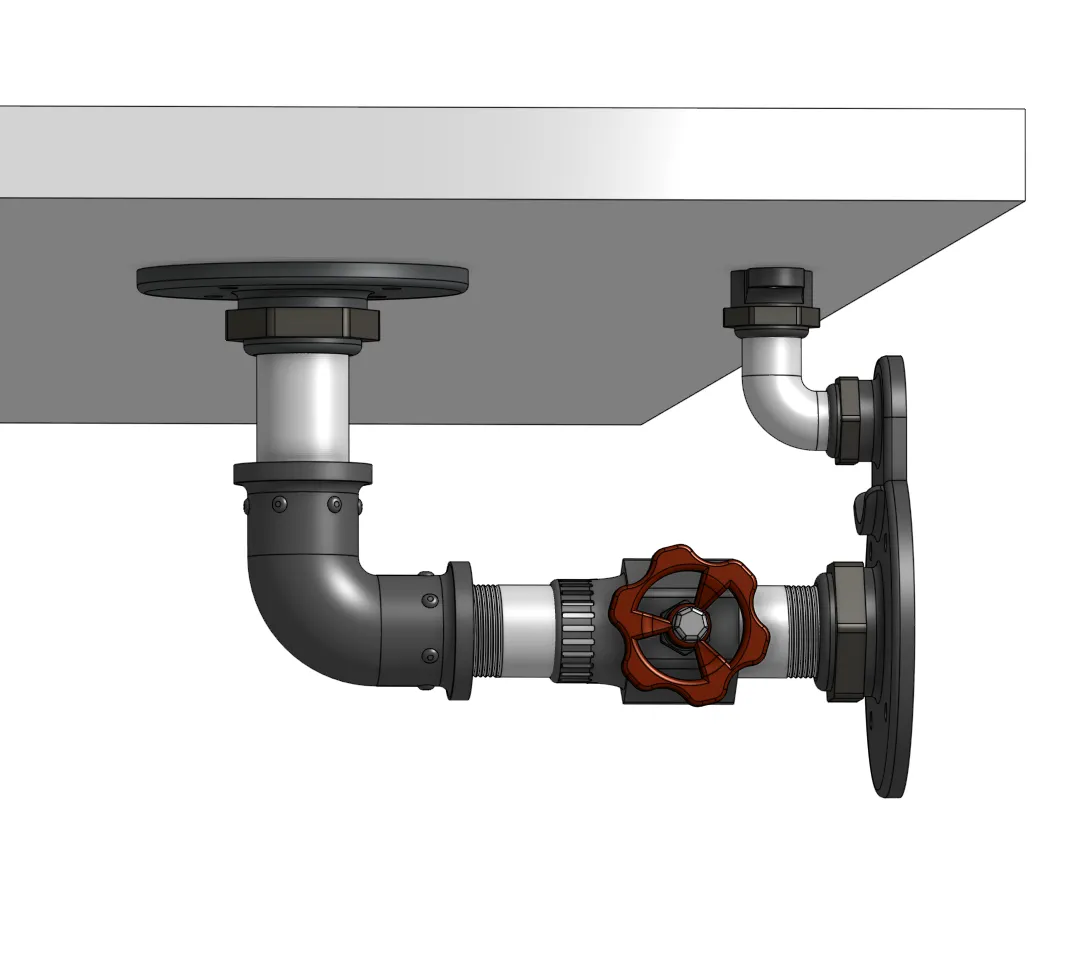

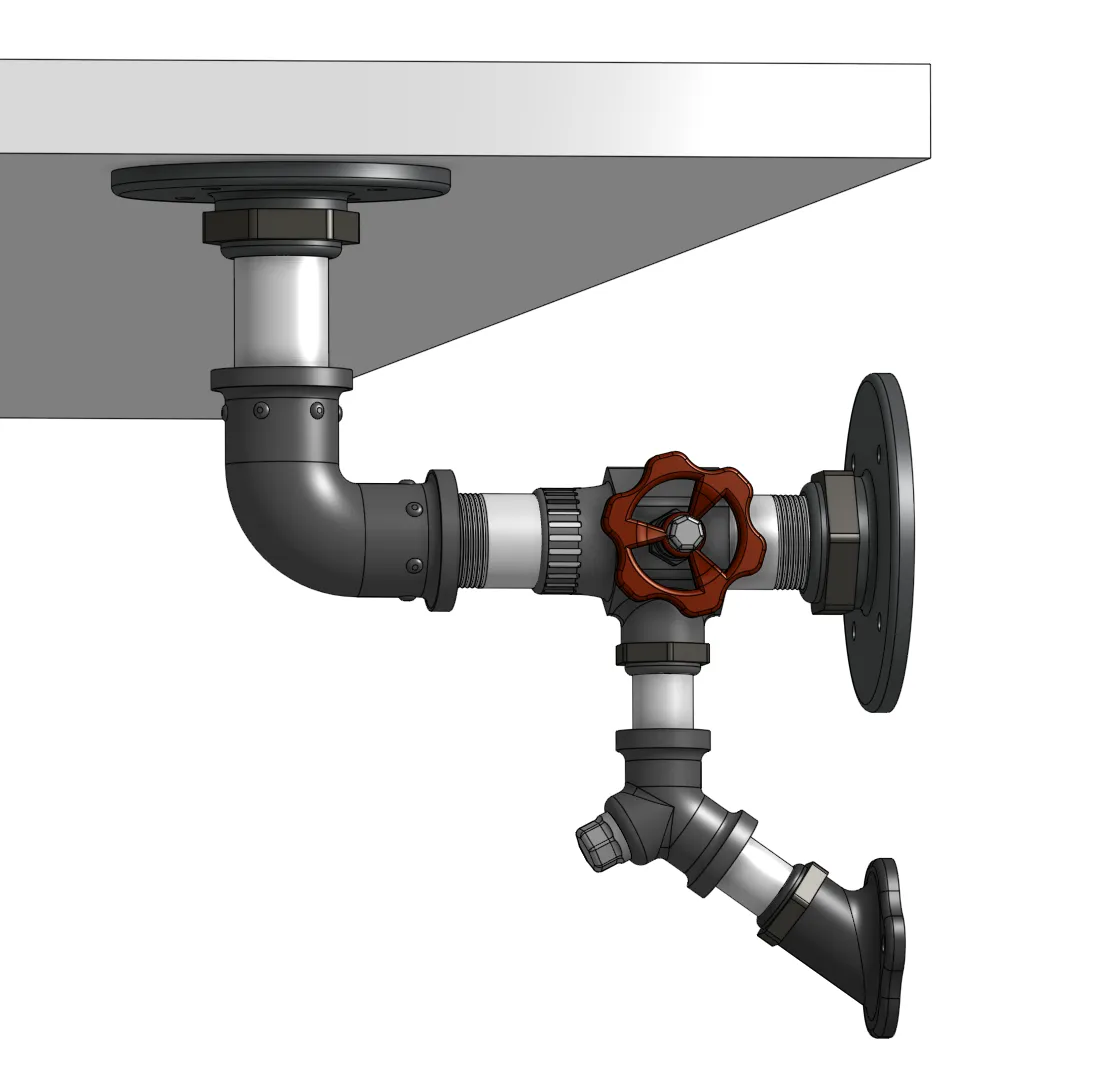

This time its more modular:

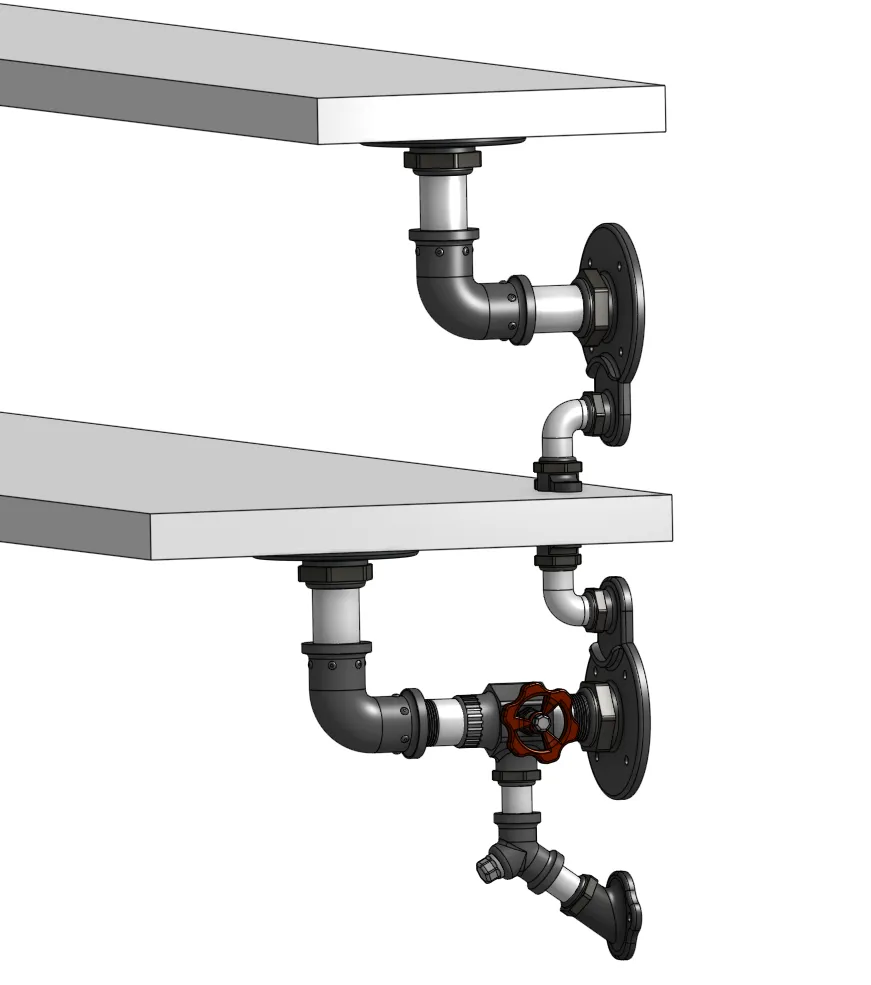

Or maybe just go completely nuts!
Depending on what filament used, glue can be required for better hold.
Mounts and connectors are designed to fit perfectly with pipes, but sometimes flow and ratios can be off.
PETG is to prefer and maybe up the infill if you plan on having heavier shelves resting on them.

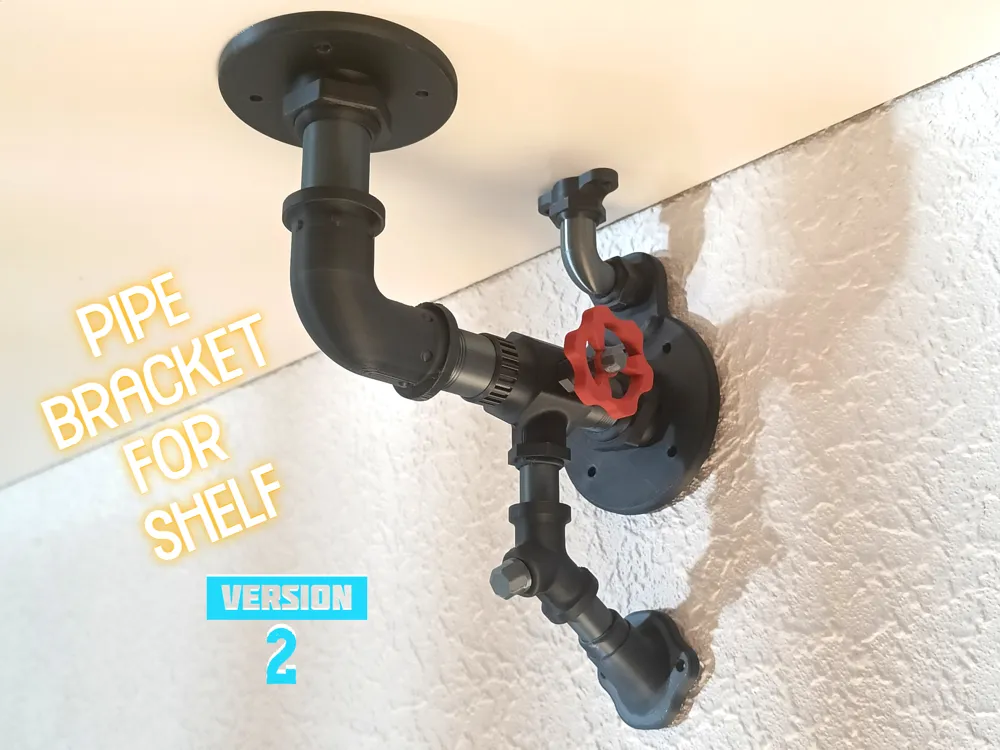

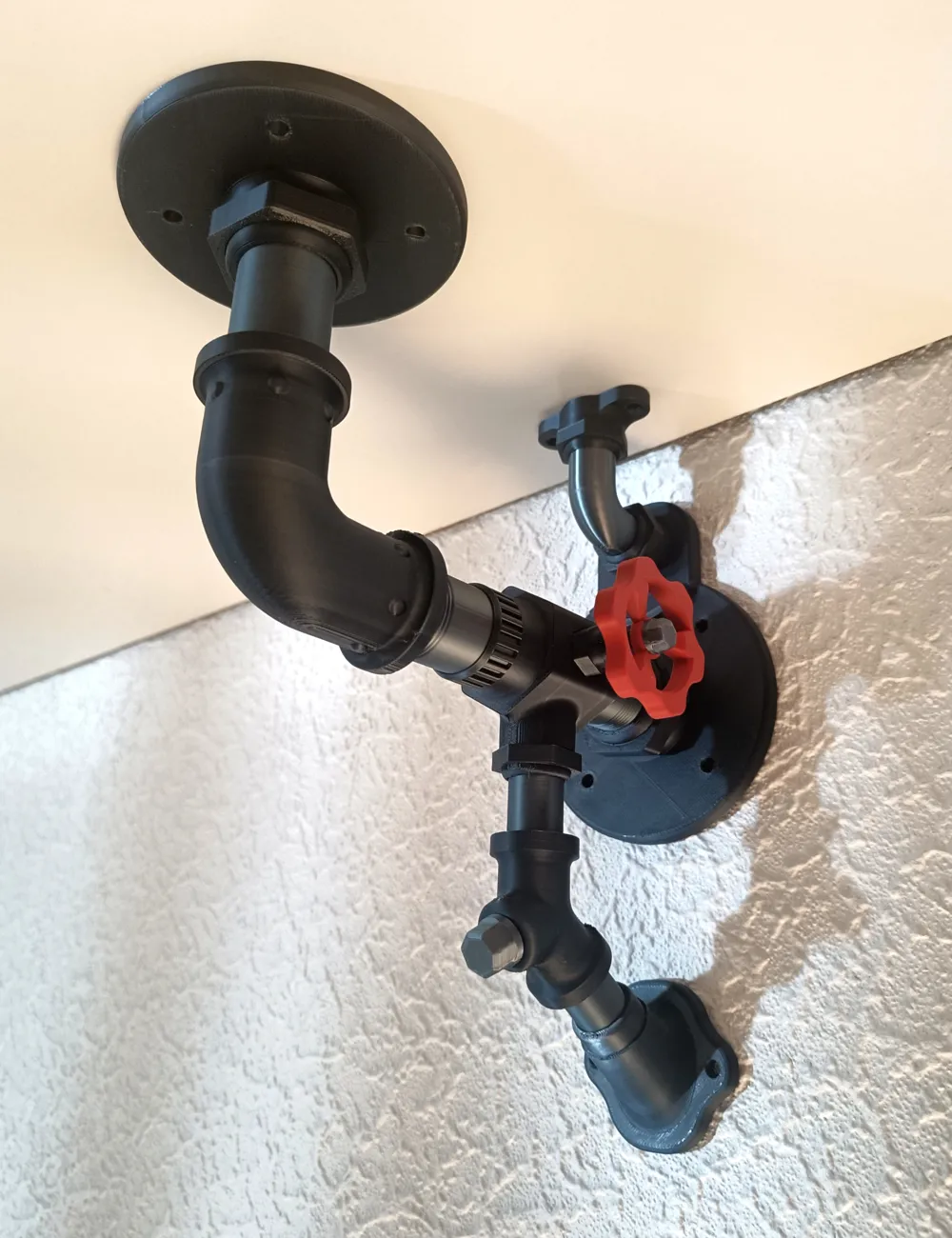

In my initial print used in the pictures I used PrimaSelect Satin PLA - Soft Black for mounts and connectors, and PrimaSelect Satin PLA - Space Gray for the pipes and nuts.
A series of images in the assembly guide for how to connect all the pieces.
When mounting on a wall I highly recommend some help holding up the shelf, I found that out the hard way.
