3U 19" Server rack VESA 75 monitor mount
IP Report
Print Profile(1)
0.2mm layer, 4 walls, 20% infill
Designer
2.3 h
1 plate
Open in Bambu Studio
Boost
16
48
0
3
53
34
Released
Description

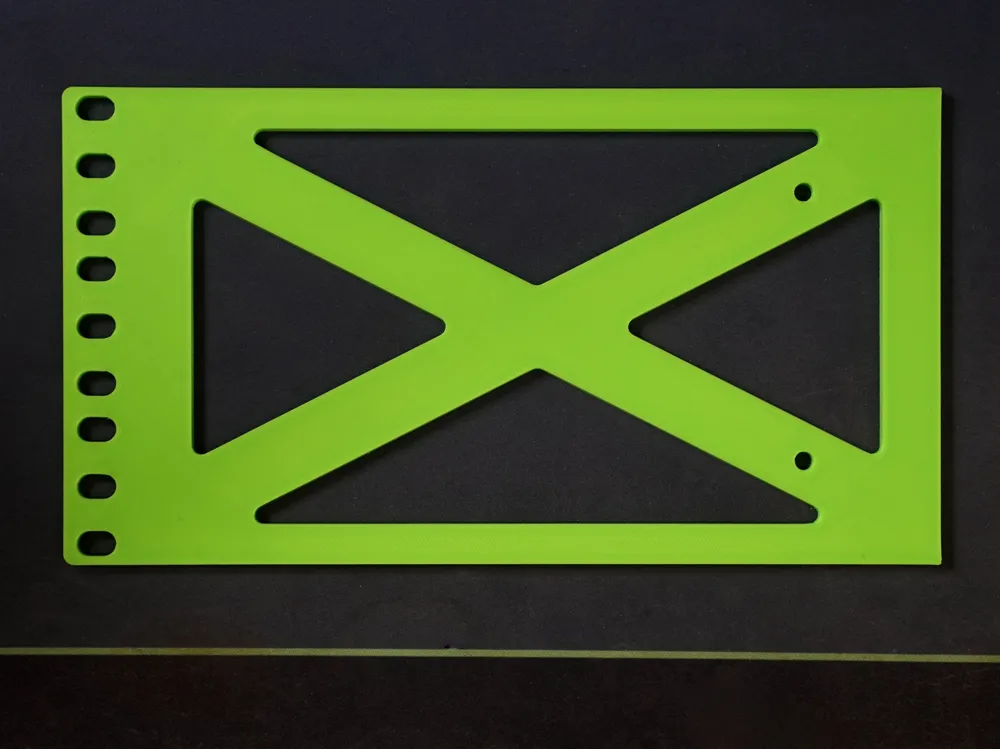

This is a VESA 75x75 version of my server rack monitor mount, designed to fit inside a 19" rack. It's similar to the original VESA 100x100 model, with adjusted mounting points to fit smaller screens.
Printed in PLA with increased wall count and infill for strength. PETG is recommended for added durability. Slight flex is normal, but it holds steady under vertical load.
For more context, print tips, and the story behind the design, check out the original version!
Boost Me (for free)
If you found this model helpful, I would be really happy if you can boost :)
Technical Details
- Rack Type: 19-inch server rack
- Space Used: 3U
- Material: PLA (recommended: PETG)

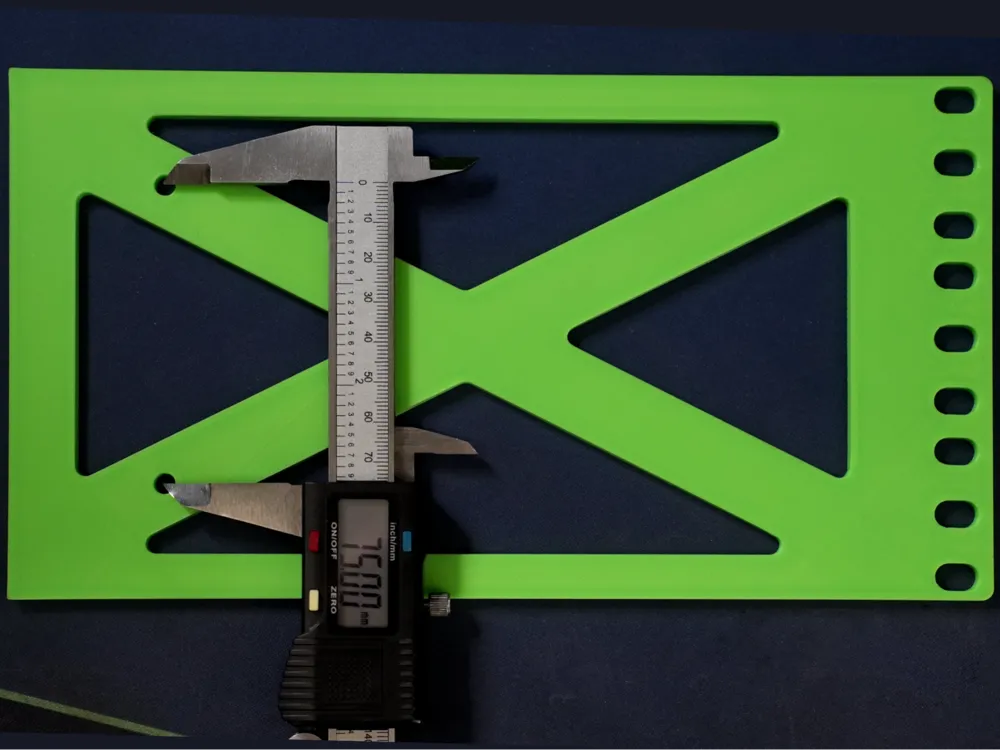

- Compatibility: VESA 75x75
- Print Settings: Increased wall count and infill density for enhanced strength
- Flexibility/Durability: Slight flex back and forth, but stable under vertical loads
- Printing Instructions: Designed to fit on a 256x256 bed. The model is printed in two identical halves; print the same model twice.
