1/4" screw mount Magsafe magnetic phone holder suction cup

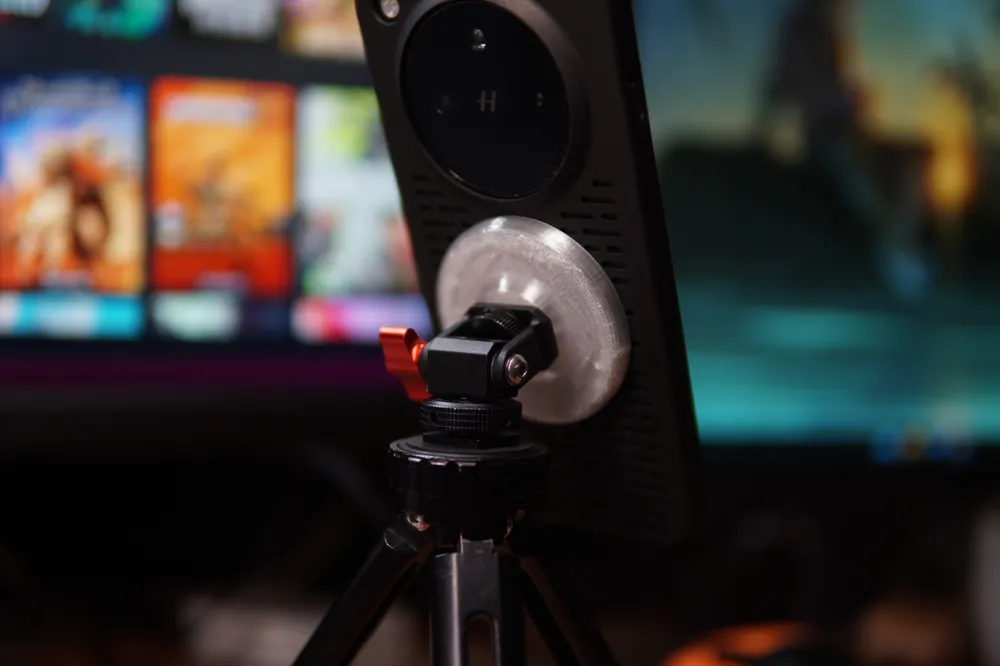

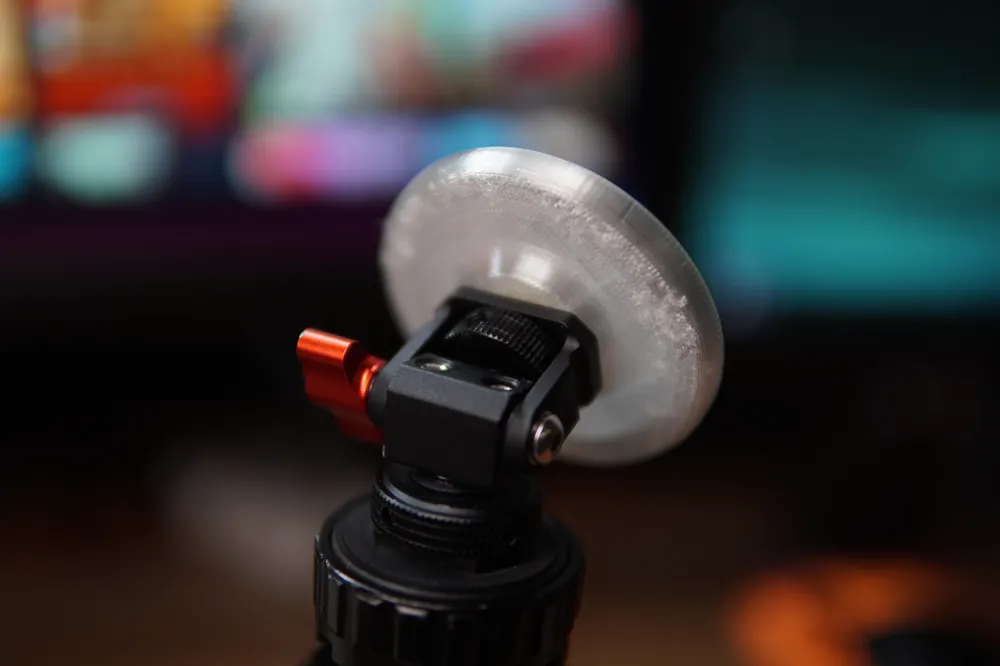

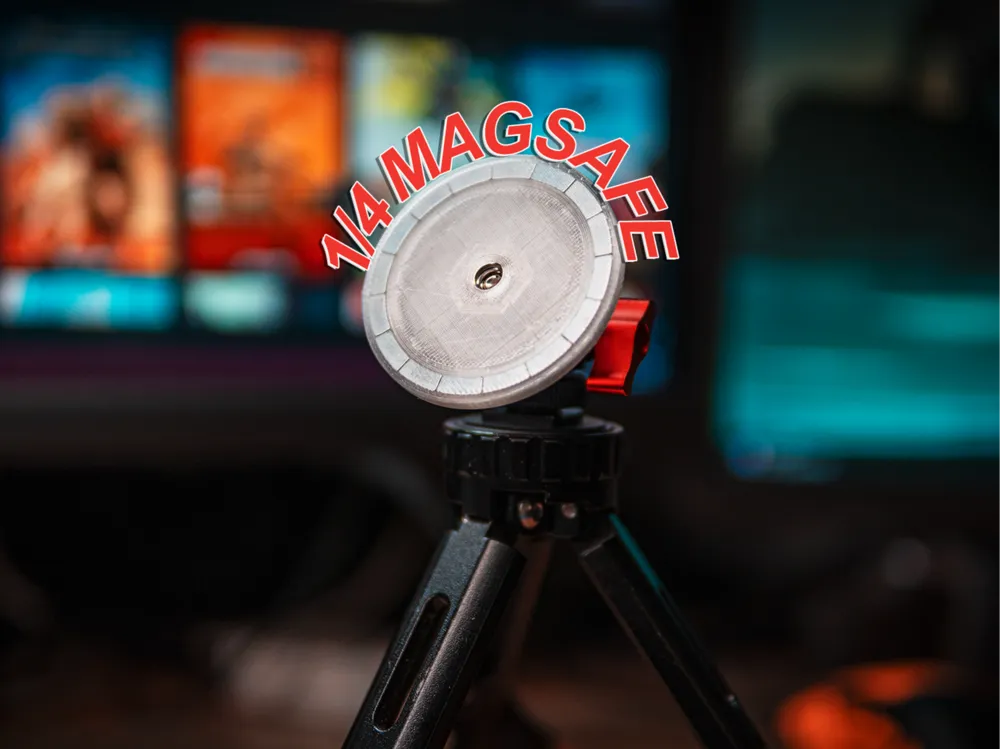

1/4 Inch Quarter-Turn MagSafe Magnetic Phone Stand

Apprehensive about the sturdiness of commercially available MagSafe magnetic bases costing over ￥40?

Why not procure your own thickened, high-strength magnets & 316 stainless steel 1/4 inch nuts to craft your personalized magnetic phone stand

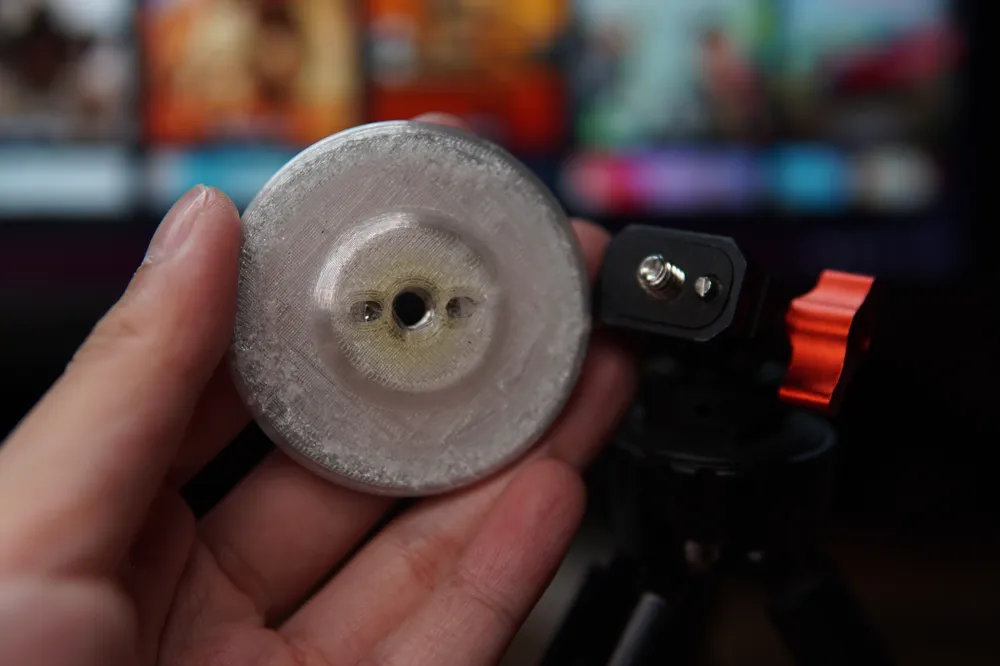

The design incorporates Arri locating holes, compatible with various photographic accessories, preventing deflection

Encompassing three magnet thickness options: 2, 3, and 4mm, a height clearance of 0.1mm is reserved; please use calipers to measure your magnetic ring before printing to ensure it falls within this range

(For instance, the magnet used in the 4mm version should be less than 4.1mm)

Employing the print pause function, seamlessly embed the metal components within the printed piece, eliminating the need for adhesive and mitigating detachment risks (pause points are pre-set in the print profile)

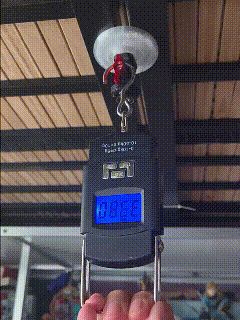

Empirical testing demonstrates a detachment force of 4.8kg when affixed to a 1mm iron square tube, effortlessly supporting even an iPad

Externally Sourced Components

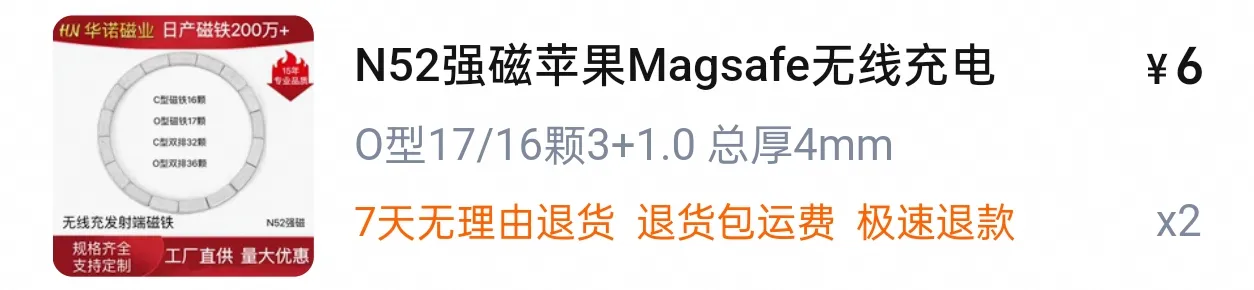

4mm thick 46ID*54OD MagSafe emitter magnet

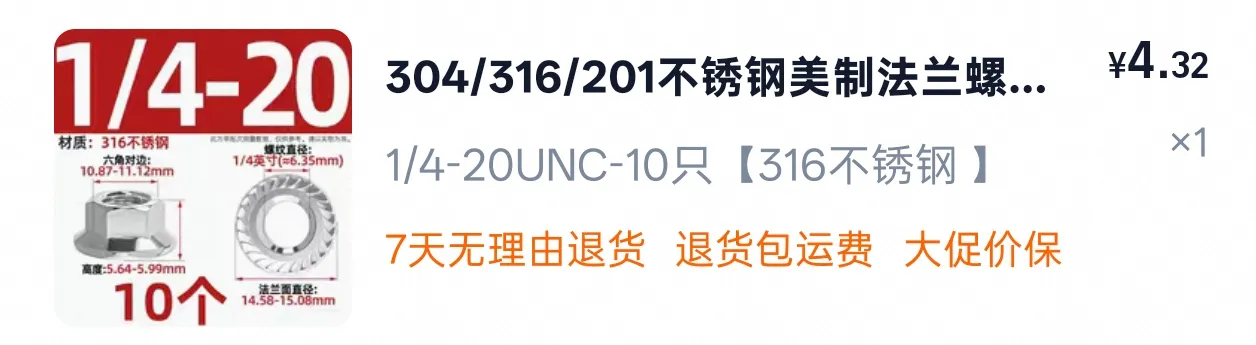

¼-20UNC stainless steel flange nut

Installation Guide

The entire printing process involves two pauses

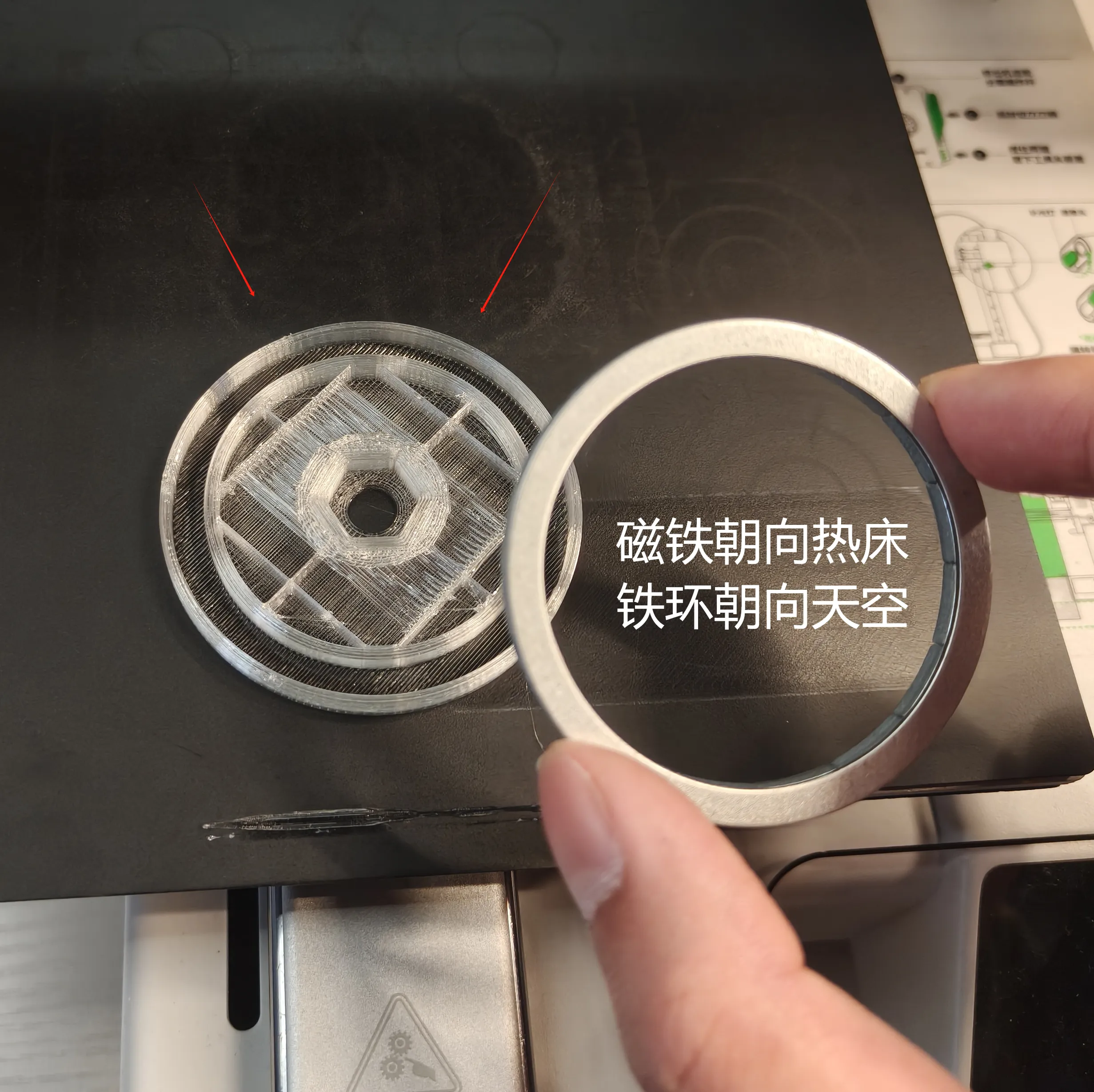

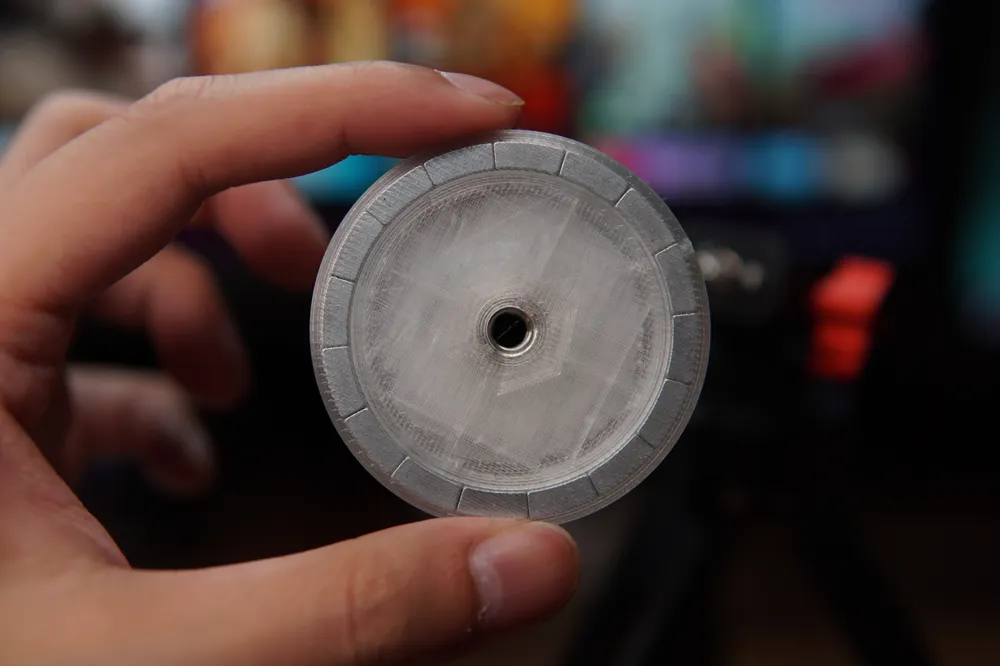

During the first pause, insert the MagSafe ring into the recess, ensuring the magnet faces the heated bed

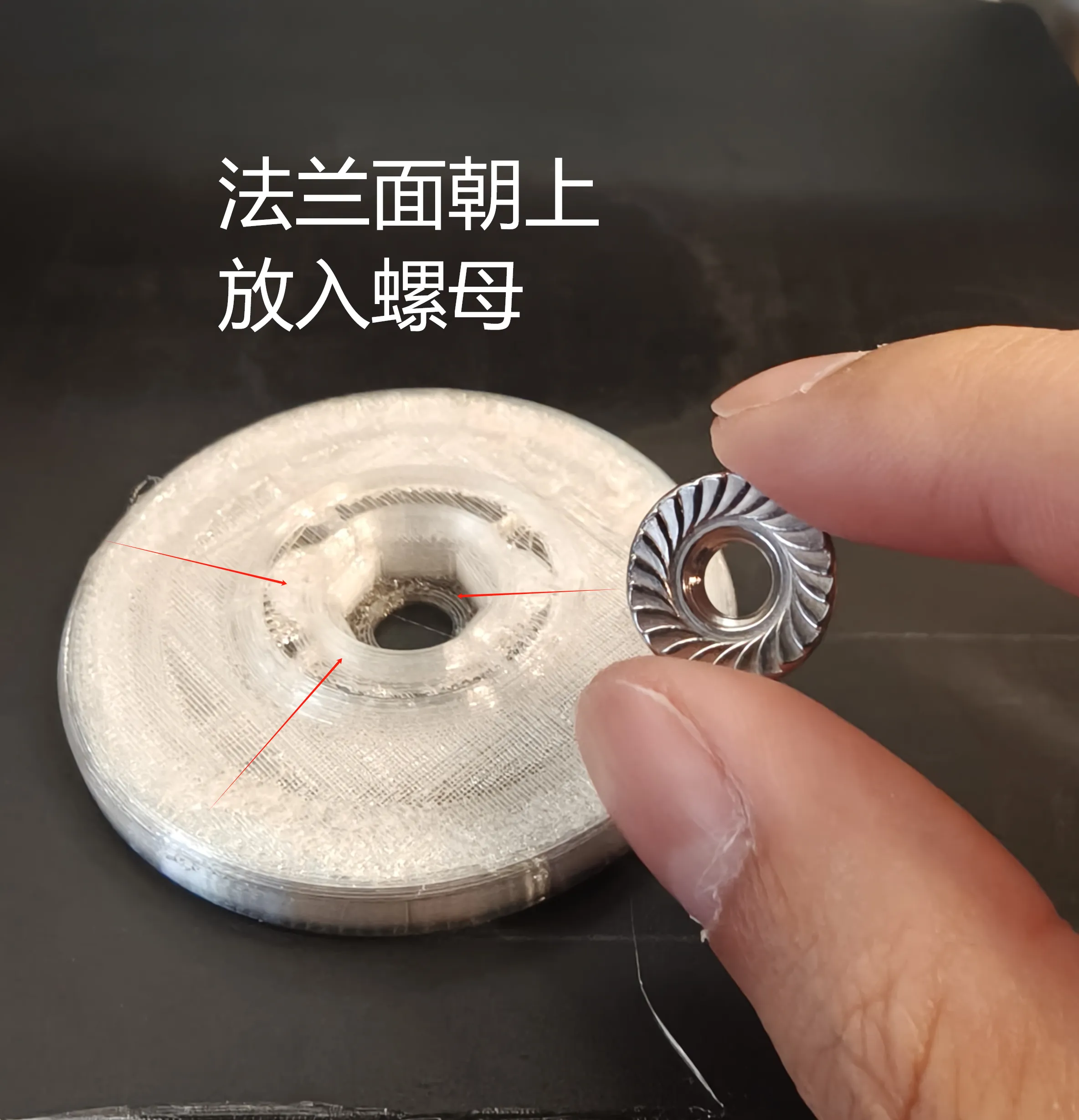

During the second pause, insert the 1/4 inch flange nut, ensuring the flange faces upward

Disclaimer

Adhesive strength is intrinsically linked to the performance of the magnets you purchase, and the material and thickness of the magnetic plate The "4.8kg pull force" represents the ideal test data obtained when the model's product was affixed to a 1mm iron square tube

I have fulfilled my obligation to inform; any damage to your belongings resulting from the model's product falling during use is your sole responsibility
