Beadlock 1.0 inch - military style
Print Profile(2)
Description
Boost Me (for free)
Leave a boost and a comment if you like this or you want more models like this one, thanks!
*** I like to keep my models free, so if you'd like to help me out even further, you can Buy Me A Coffee too! ***

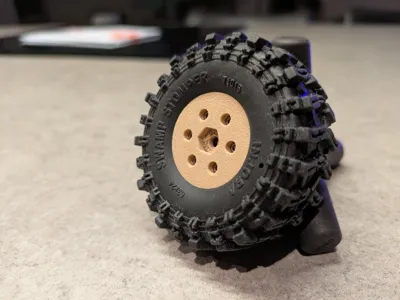

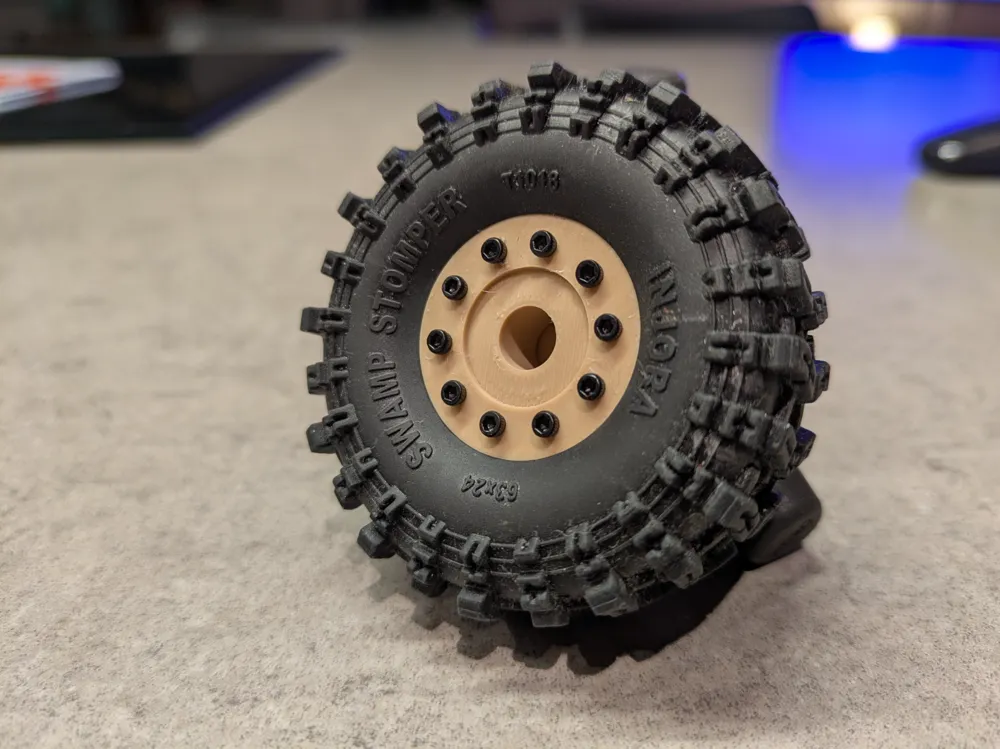

Here are some straight forward military style 1.0 inch beadlock wheels. I've added two options, one that uses ten M1.6 bolts on the outside (for aesthetic purposes only) and another with printed dimples (for a different look or to avoid RSI trying to screw in a million screws)
Check out the new 1.3" variant here: https://makerworld.com/en/models/2762819-beadlock-1-3-inch-military-style#profileId-3067583
These will suit most 3rd party tires, like those from INJORA, DJ CRAWLER, etc. They have a large offset, so the wheels will protrude wider than standard and should easily bolt on to a standard 7mm hex without any problems.

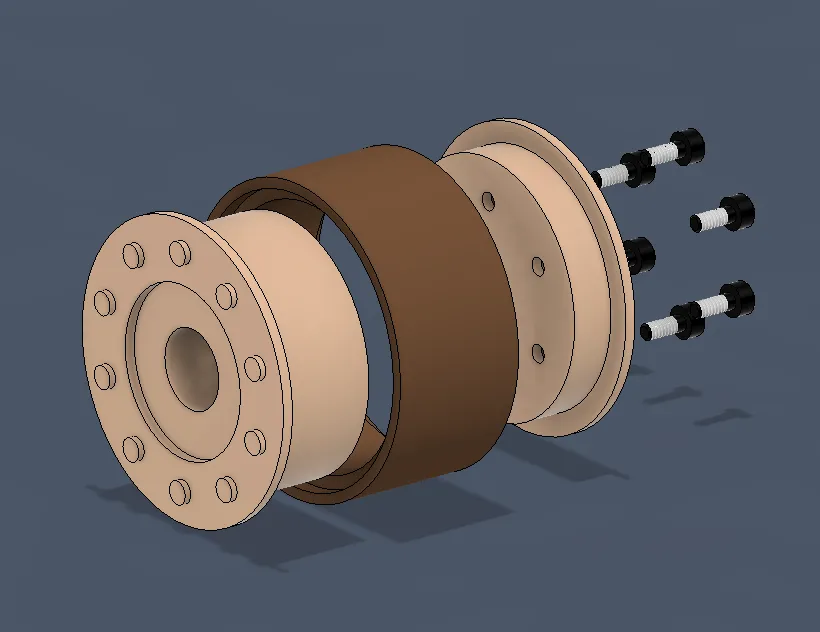

Each wheel requires six M1.6 x 5mm (6mm is fine too), plus ten M1.6 (up to 6mm long) if using the version with external bolts. Aligning the first bolt to tighten the parts together can be a bit of a pain, but just carefully line the front and back up and once the first bolt grabs it's pretty simple from there.
The opening to put the wheel nut on is narrow, so you'll need a thin-walled hex driver (approx. 7mm wide), like the ones sold by Injora.
