Soft Door Stopper

if you have young children or stroppy teenagers I’m guessing you know what it’s like having doors slammed open or closed in your home. Well I can’t help with the closed part yet but I can help with the open part.

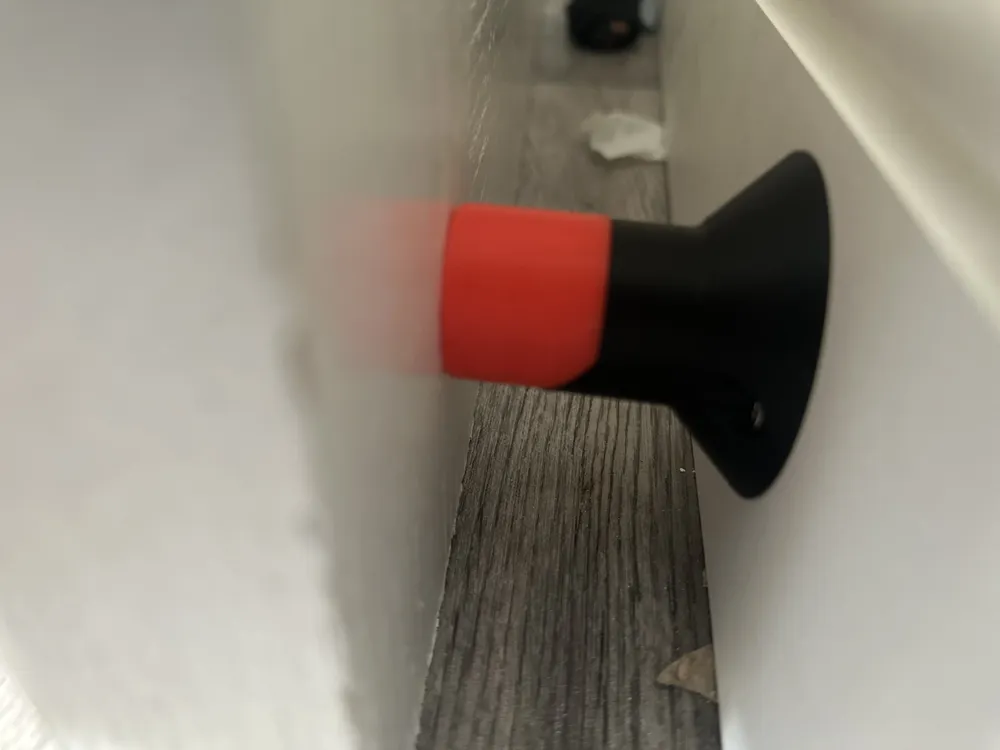

My 5 year old daughter is always slamming our bathroom door open and it has damaged the wall behind the door and after repairing that a couple of times I decided to design something really quick to help fix the issue.

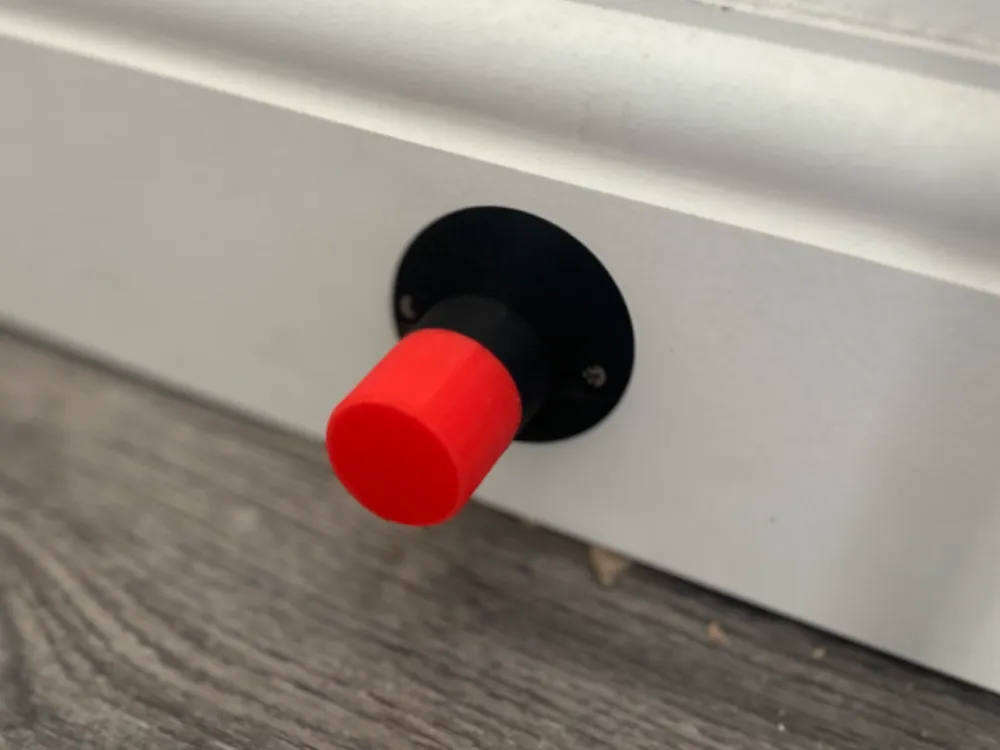

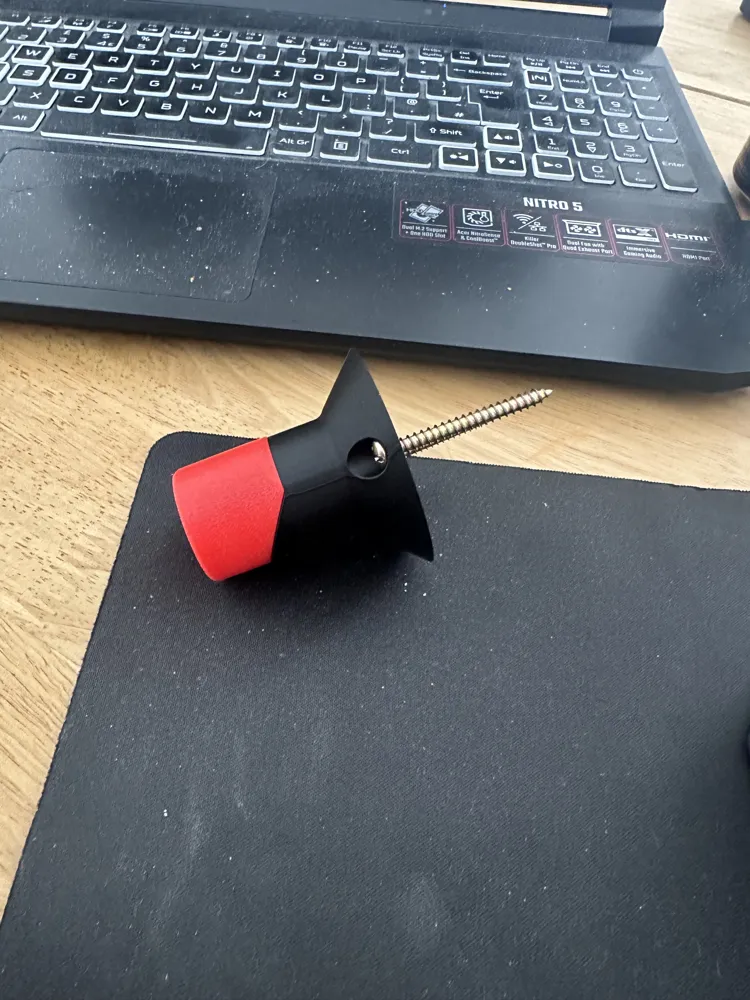

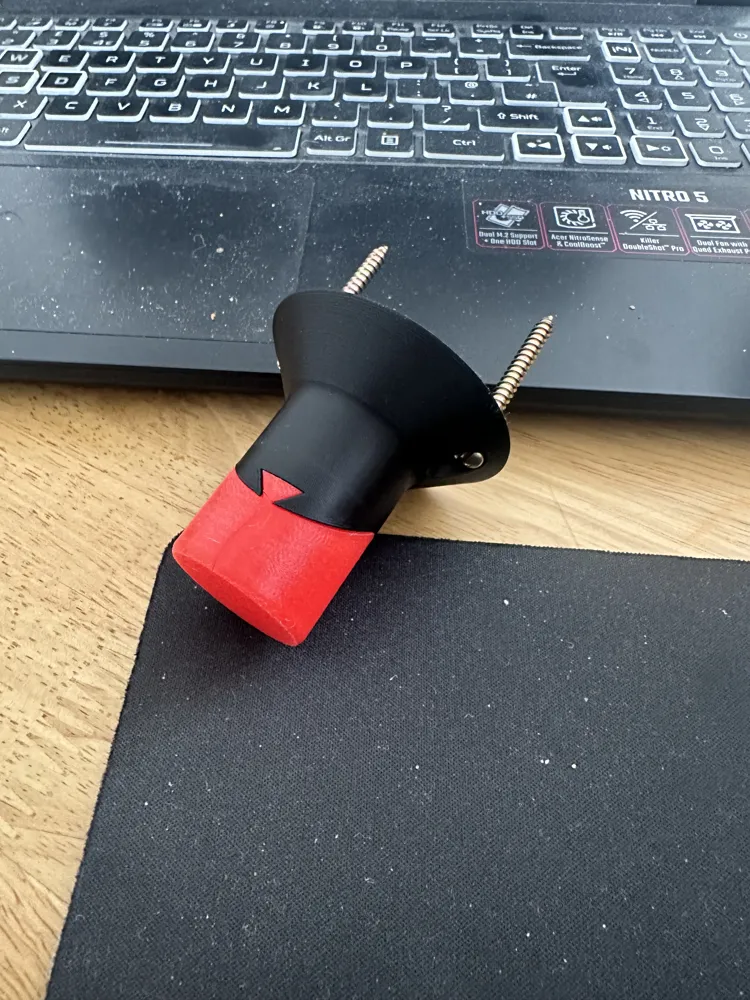

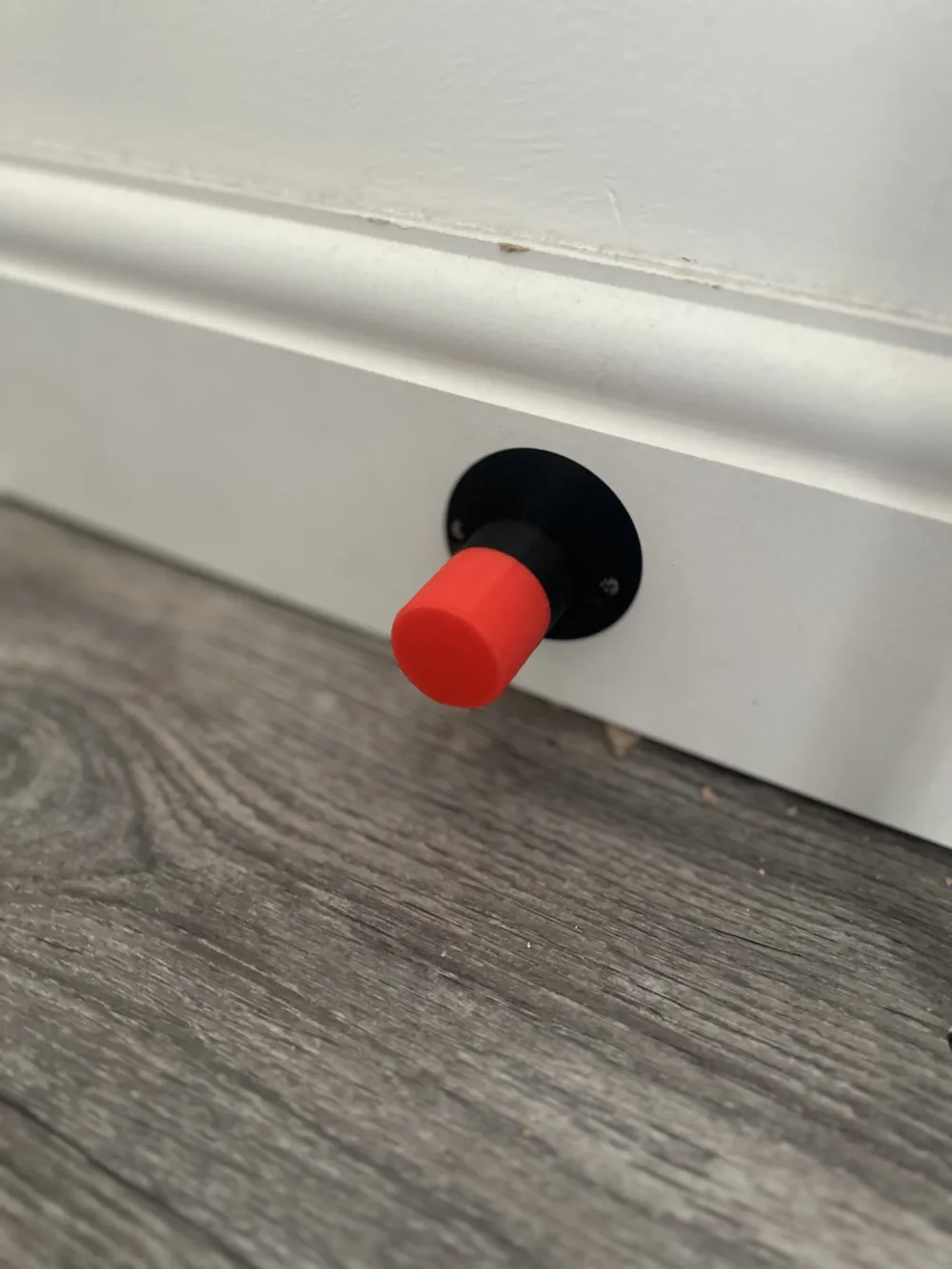

Simply fix the base plate to the skirting board with 2x screws of your choice, the hole diameter is 4mm so keep that in mind when selecting a screw.

You can use any TPU you like for the end cap which is easily swappable yet holds in place when attached. I’m going to add some longer end caps and a shorter one too for different needs to the print profiles but for now, the one that is printable from the current print profile is the standard medium.

Measurements from skirting board with cap attached:

Smaller - 43.9mm

Smaller mushroom head - 47mm

Medium - 51.9mm

Medium mushroom head - 55mm

Longer - 59.9mm

Longer mushroom head - 63mm

As with all of my designs, you are absolutely free to sell the printed product, no memberships or subscriptions are needed. make as many as you like and sell as many as you like. It is your printer, your filament and your time, not mine.
