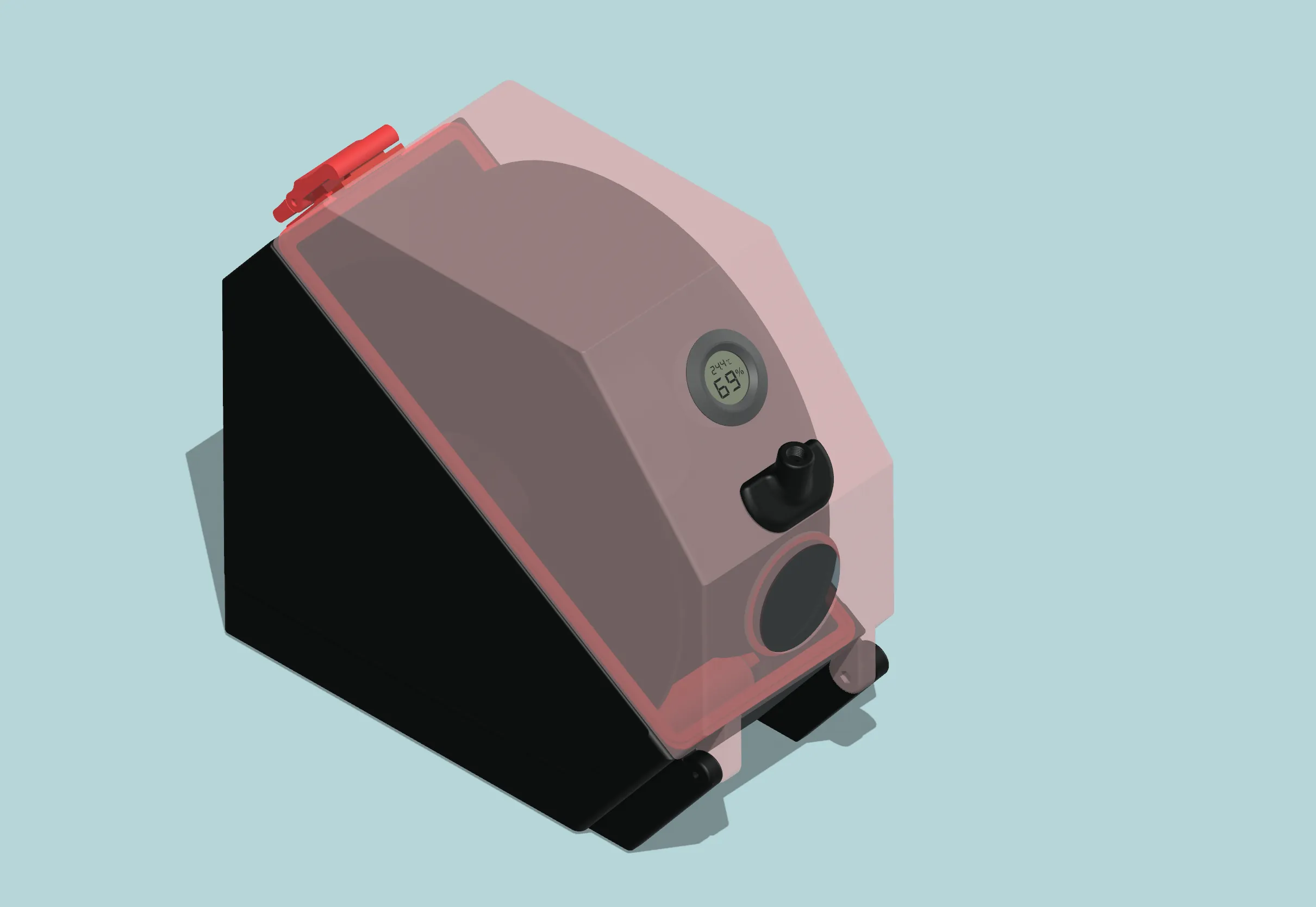

3KG Drybox spool storage compatible with polydryer

If you want to download .STEP files vistit my Pateron

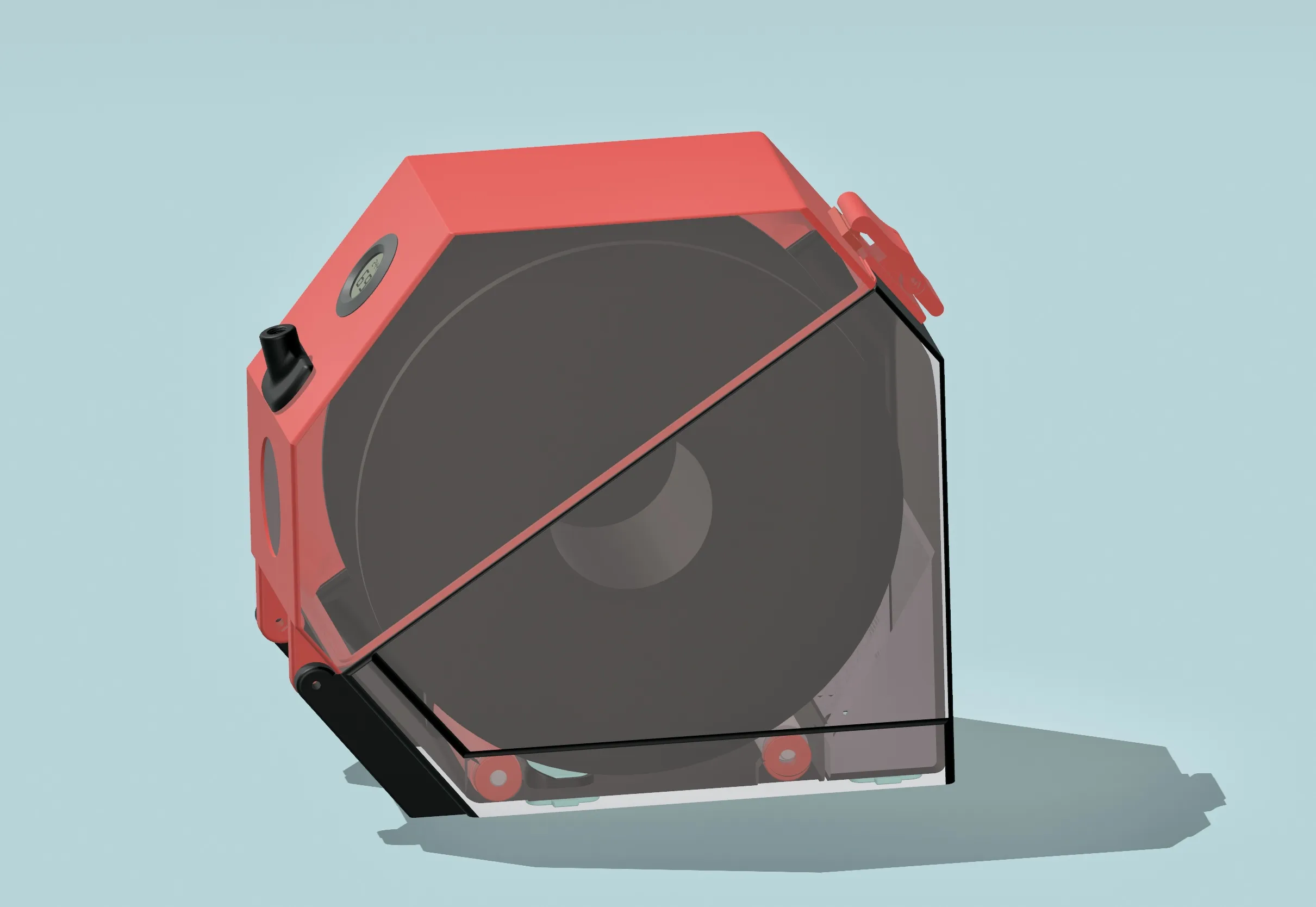

I couldn't find an elegant 3kg dry box spool storage, so I decided to make my own, inspired by a smaller dry box already existing.

If this model helped you, don't forget to post your make-photo here

The profiles are all prepared; just print them and assemble, no support is needed

I split the design into parts for ease of printing on any printer with a bed 230 and up Also, there's a full size if your printer can print big

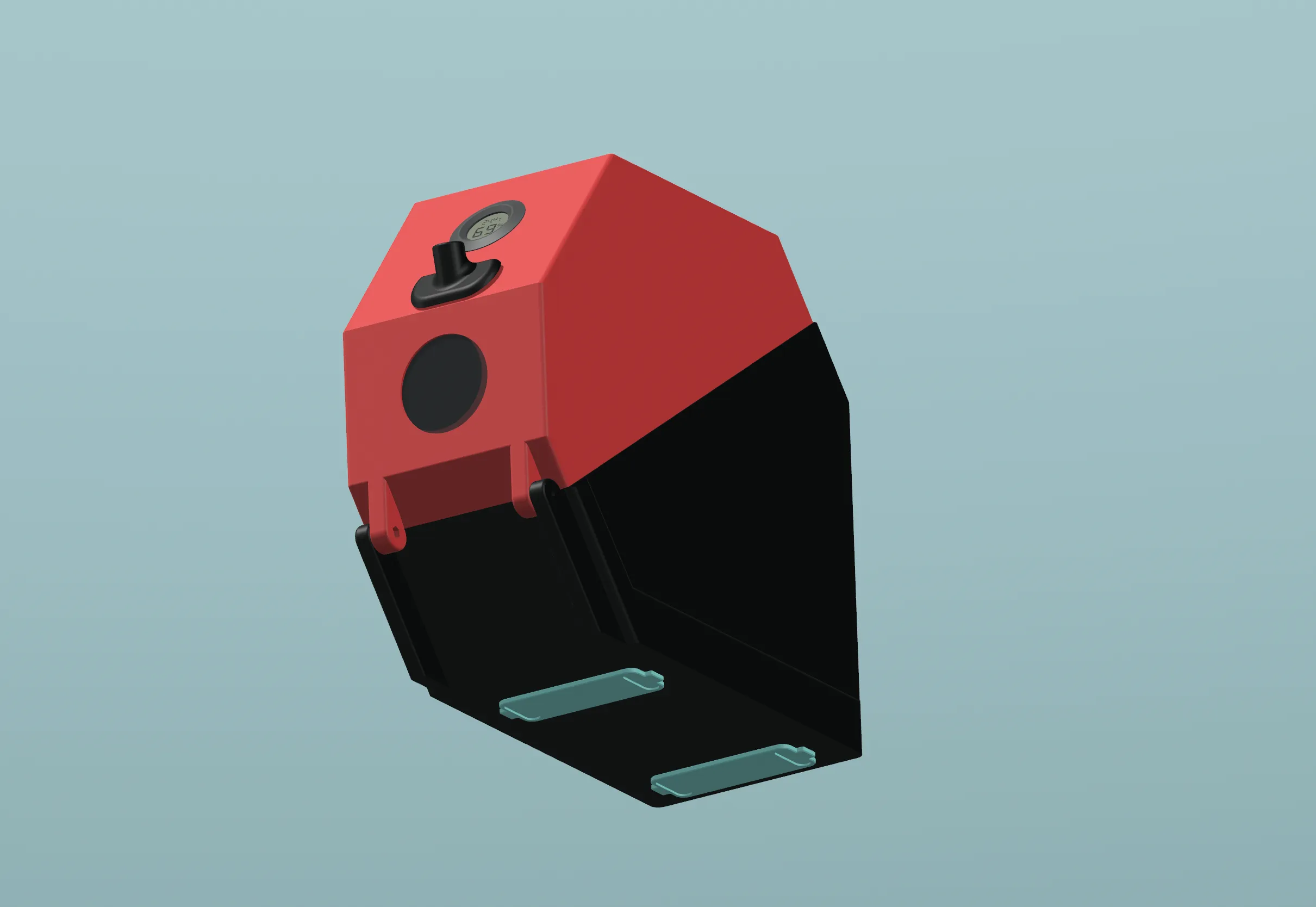

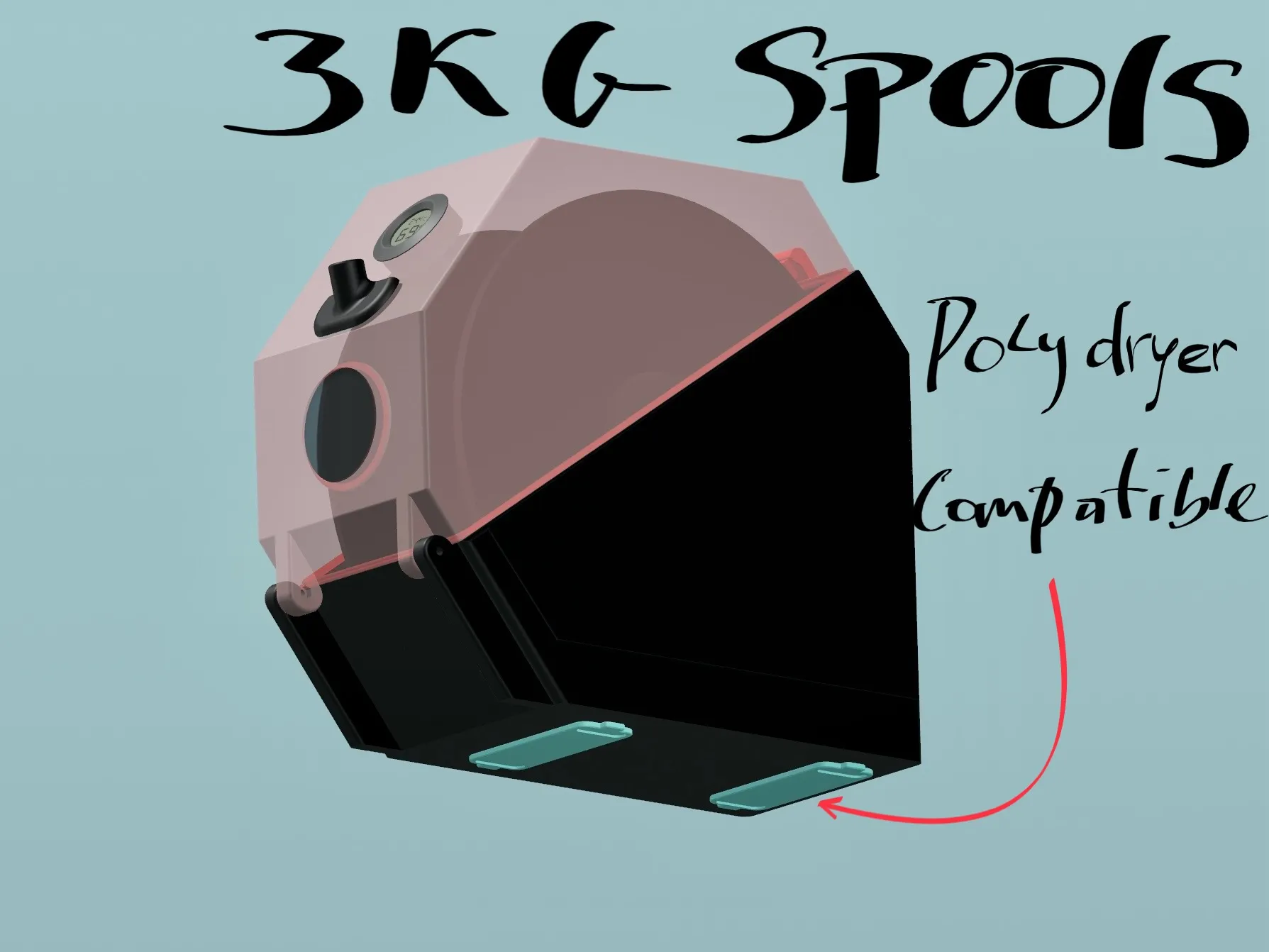

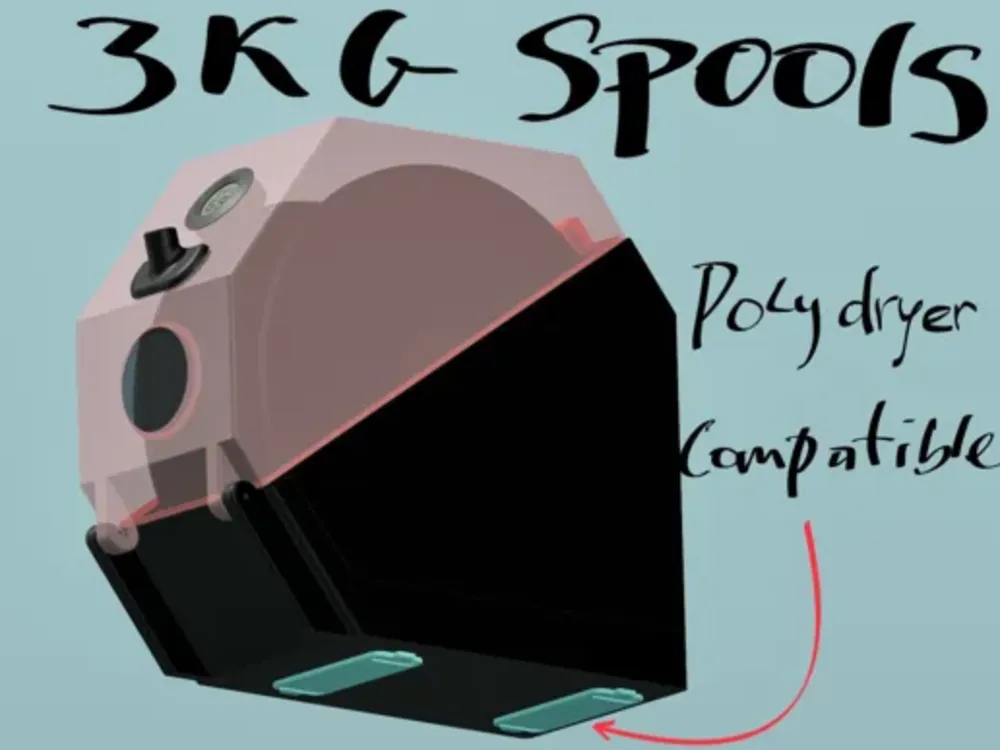

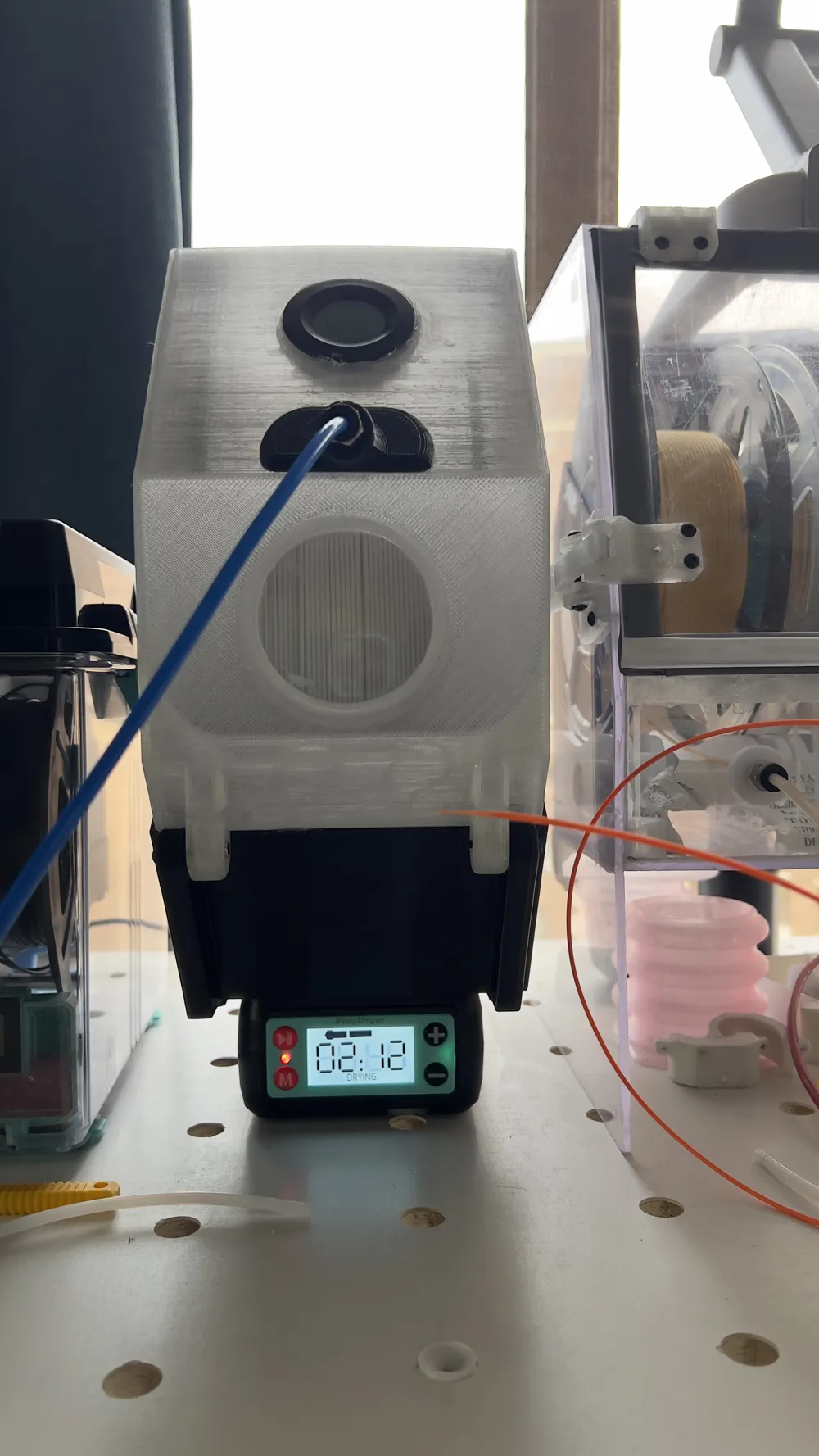

#(UPDATE) added a new version compatible with Polymaker polydryer. Remember if you do this version, print with petg or ABS for temperature resistance (the only change I did here is the base part to adapt polydryer  you can still combine it with the previous version

I uploaded all stl files and the other 3MF

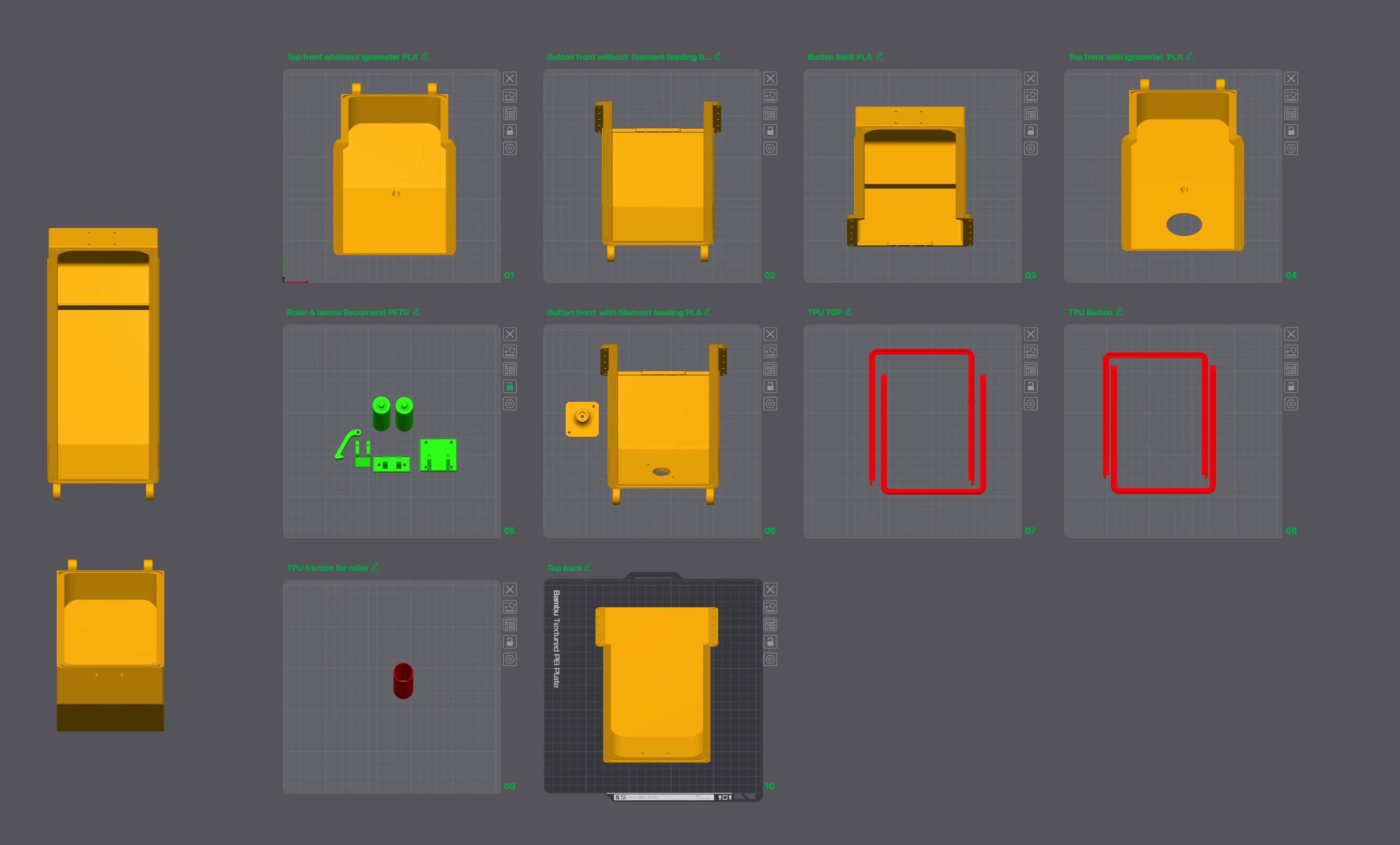

 profiles  for a bigger printer

You will need

about 20 M3 nuts

2 M3-22 mm or longer for  upper and  lower body hinge

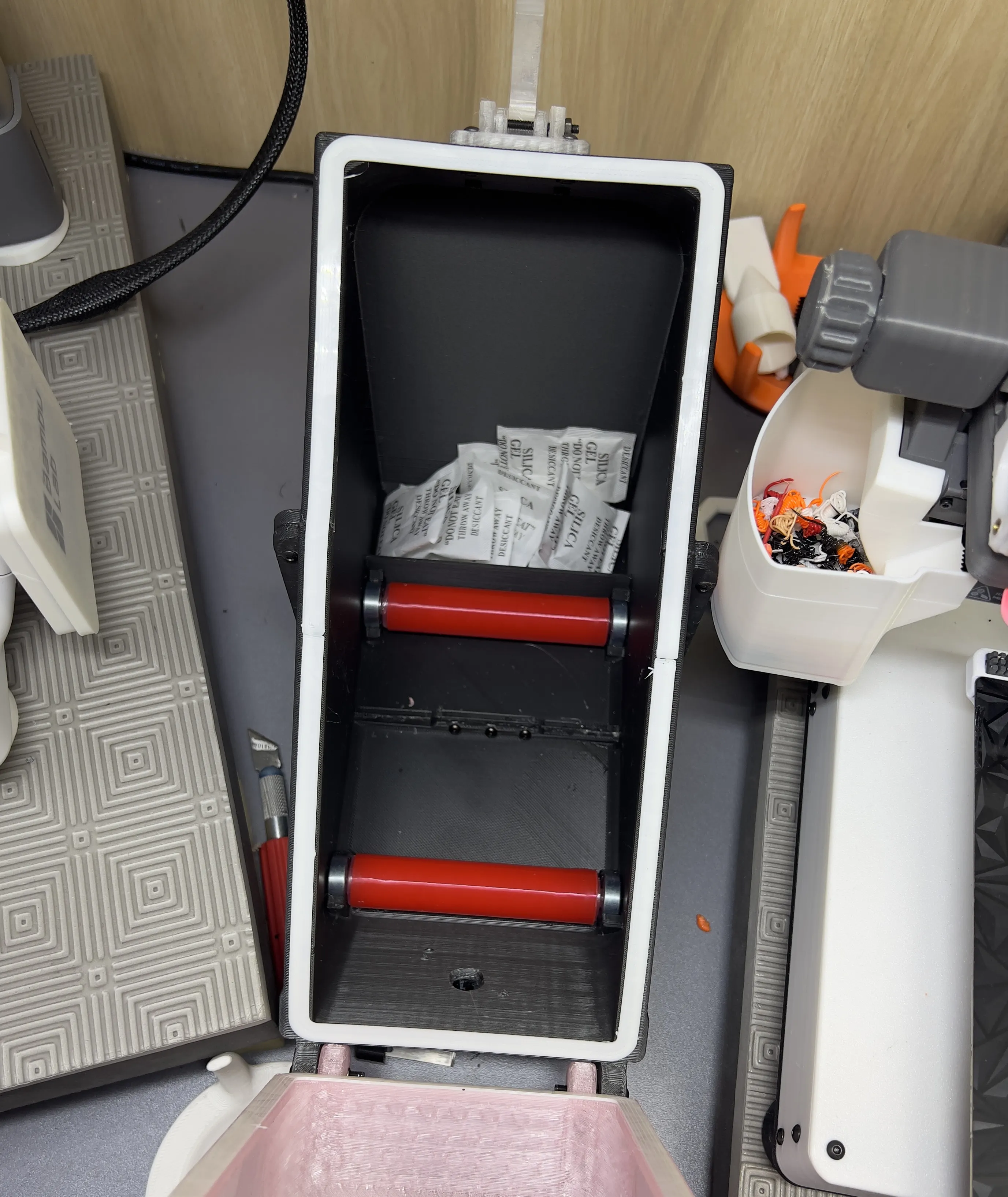

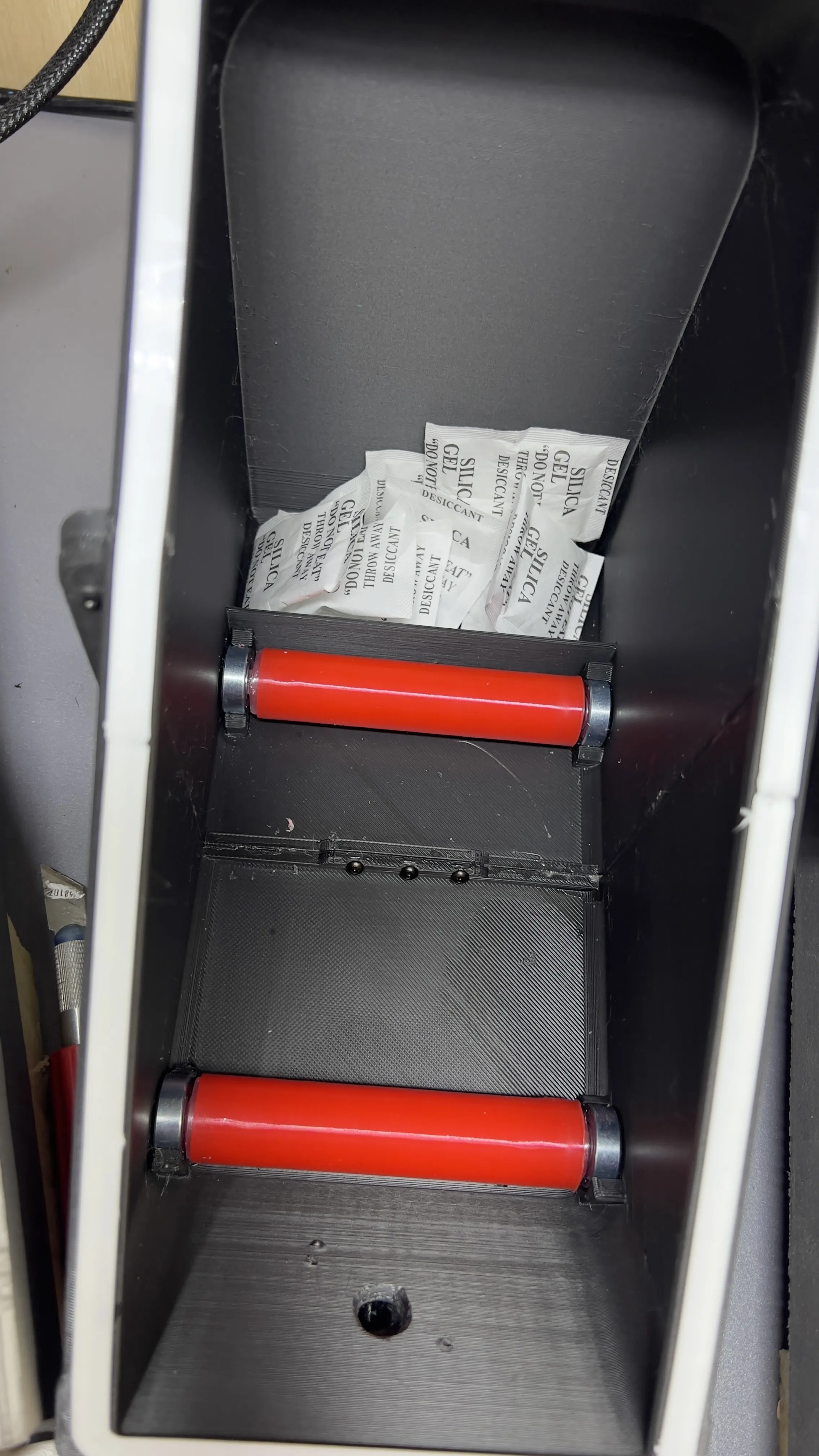

4 ballbearings 608zz or 608Rs.

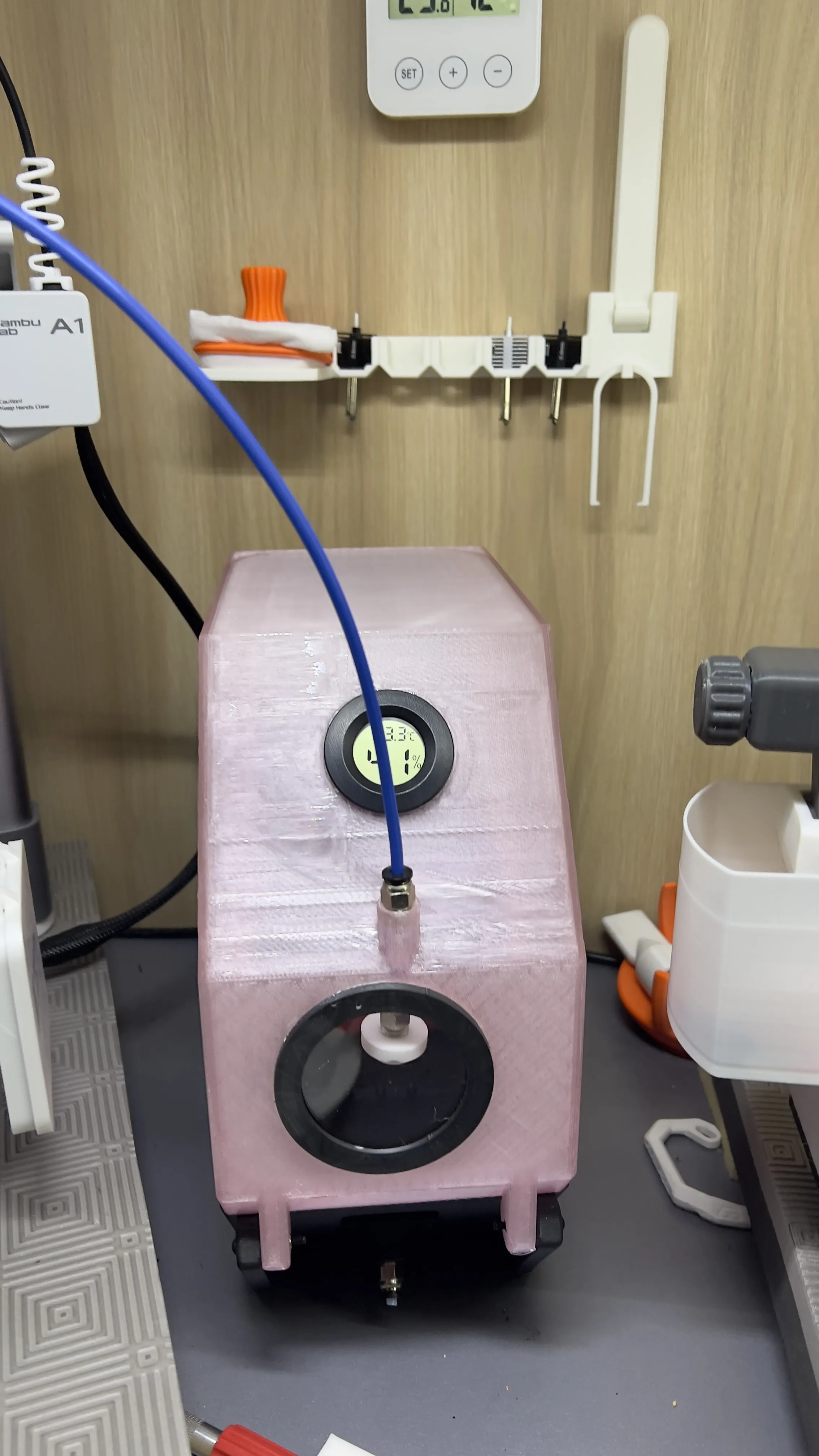

1 hygrometer

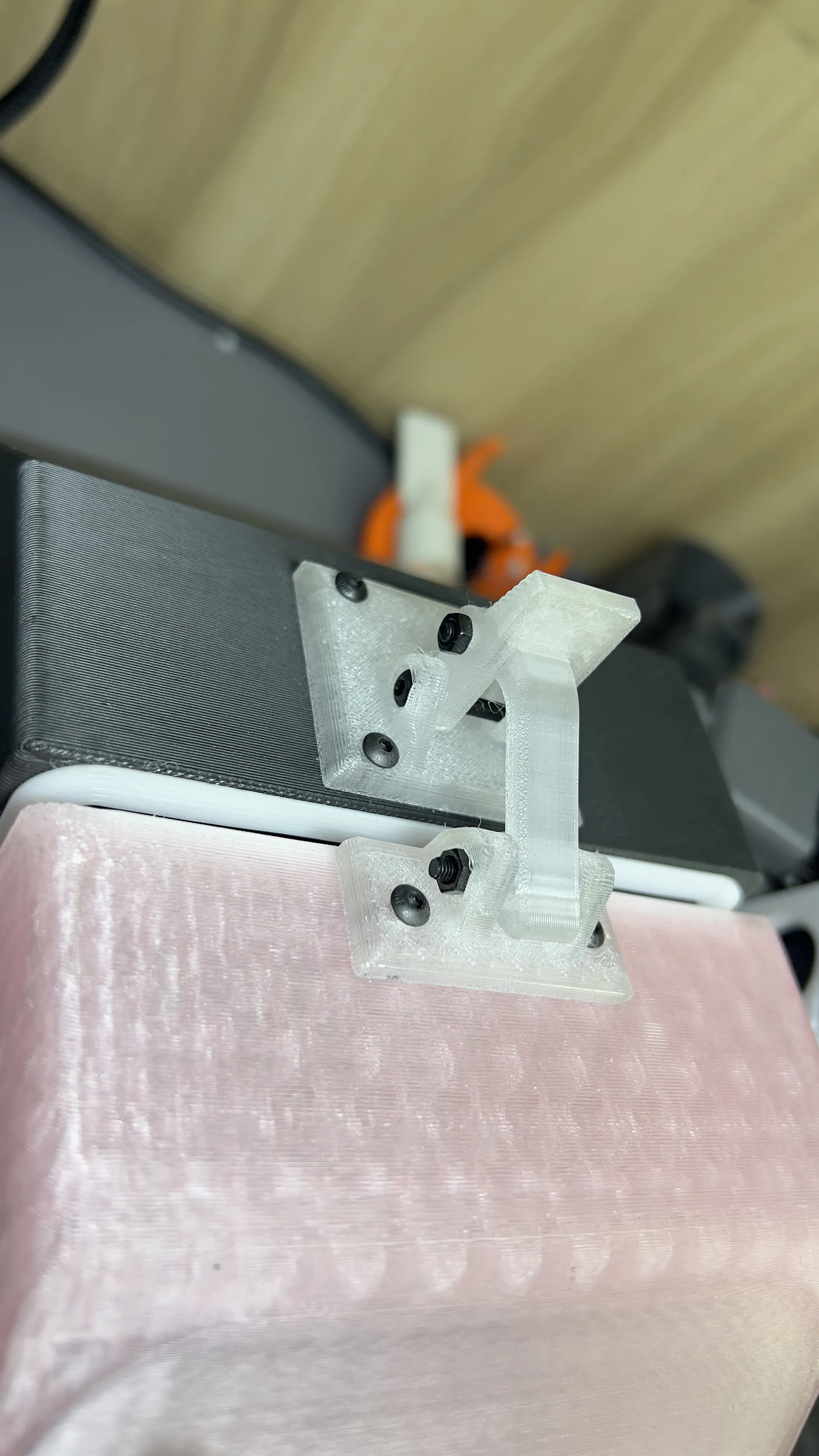

For laches, you may need

•  1 M3-40mm screw (or longer )
• 2 M3-25mm
• couple of m3-14mm or longer

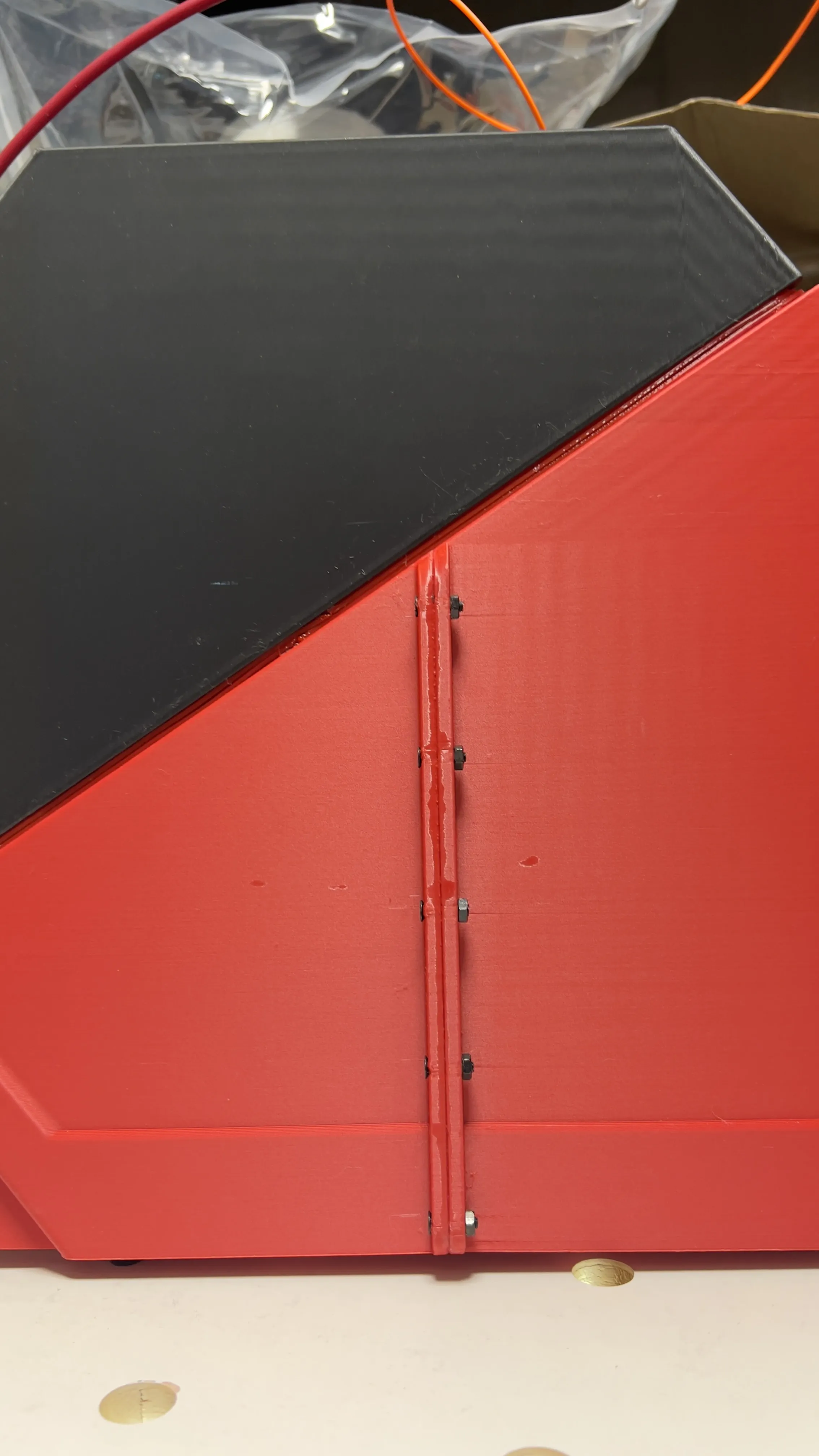

 For assembling spliced parts, you will need ..

• about 20 of M3-10 screws and 20 M3 nuts to lock the screws
• (super glue  alternative)
