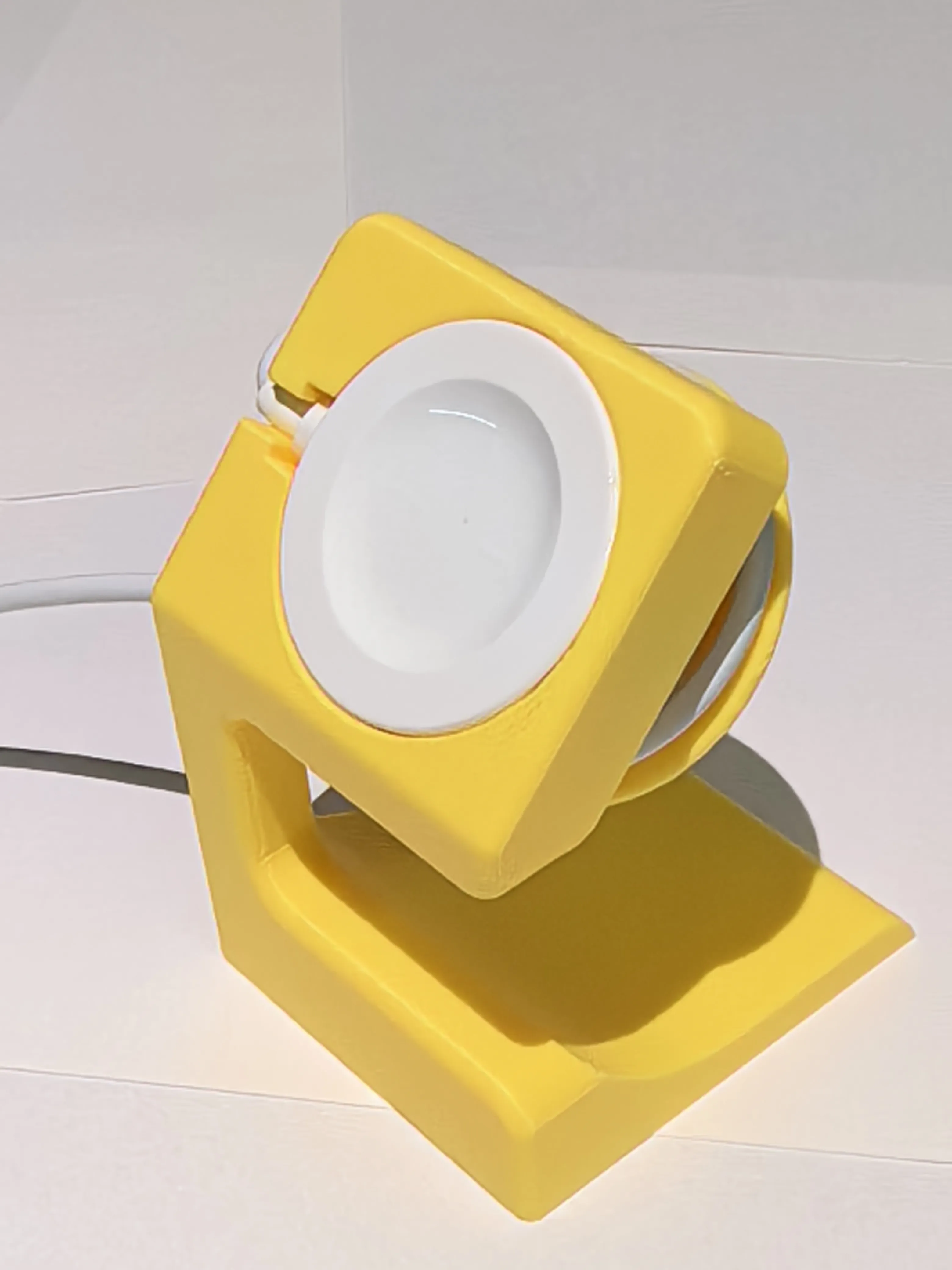

Huawei Smartwatch Wireless Charging Dock

【Update Log】

2025.6.13 Update:

V2 version

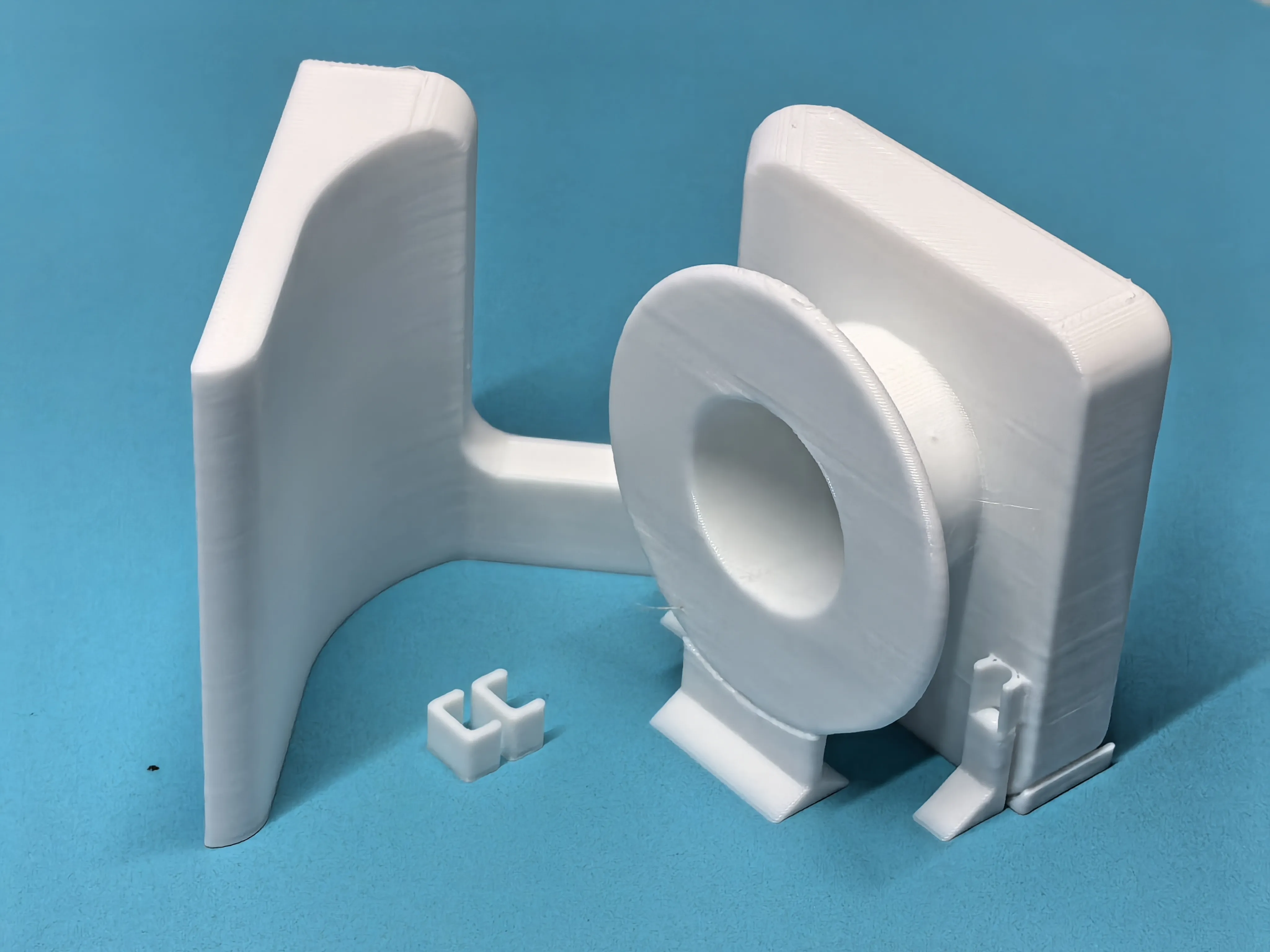

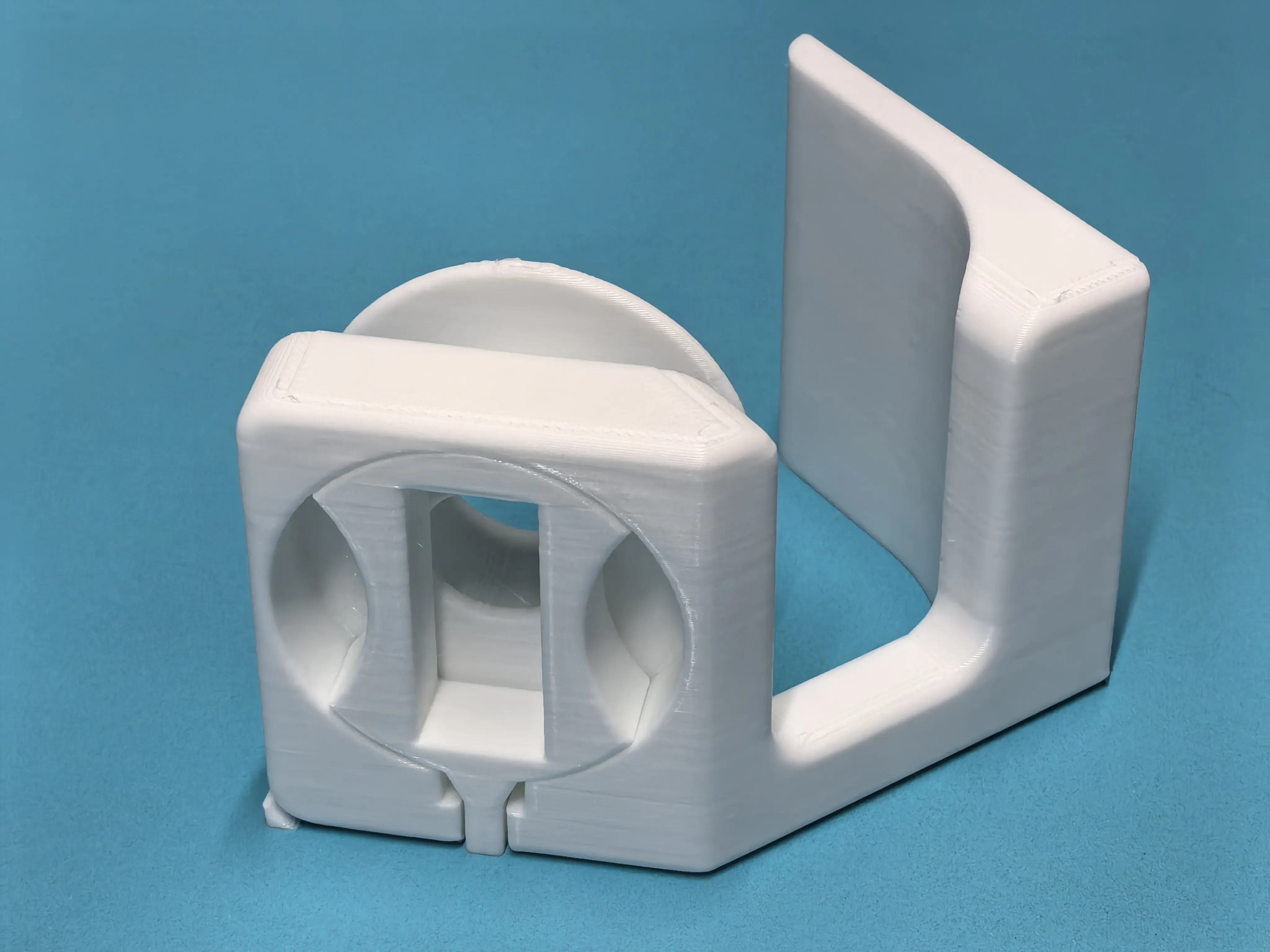

Printing result:

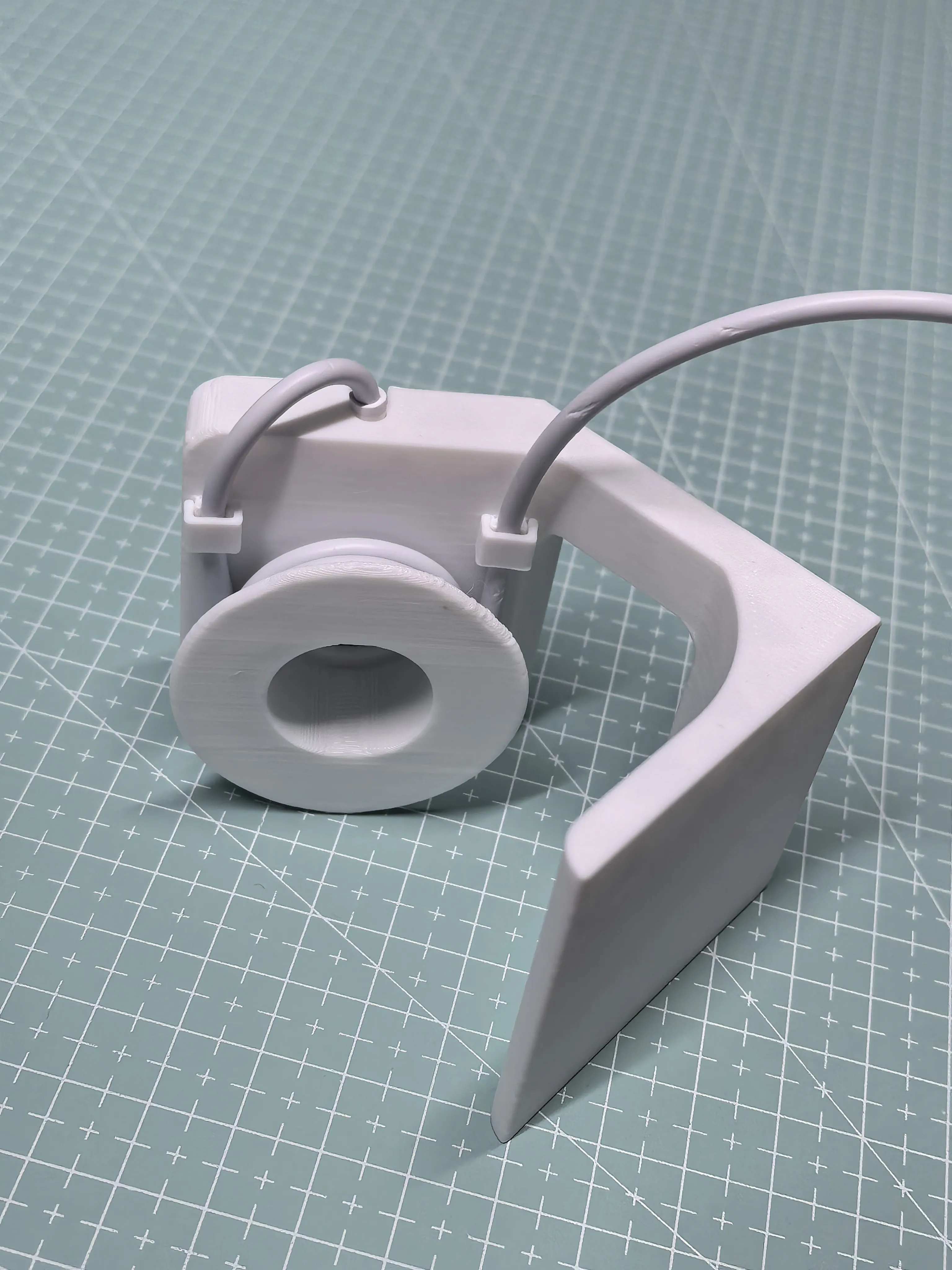

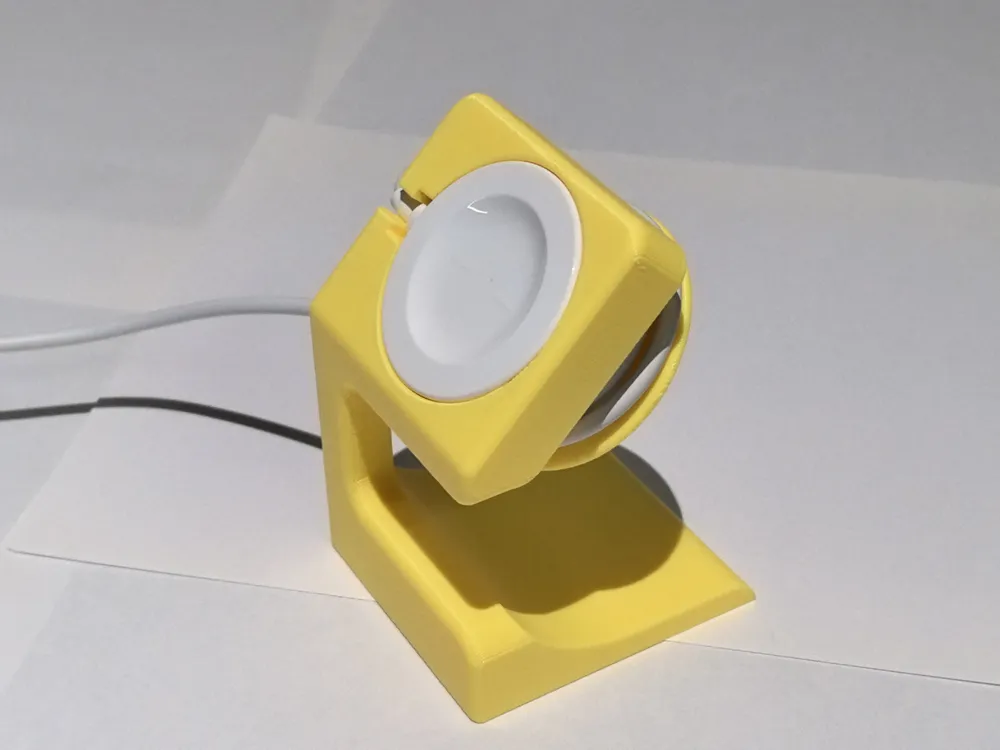

Finished product result:

Update content:

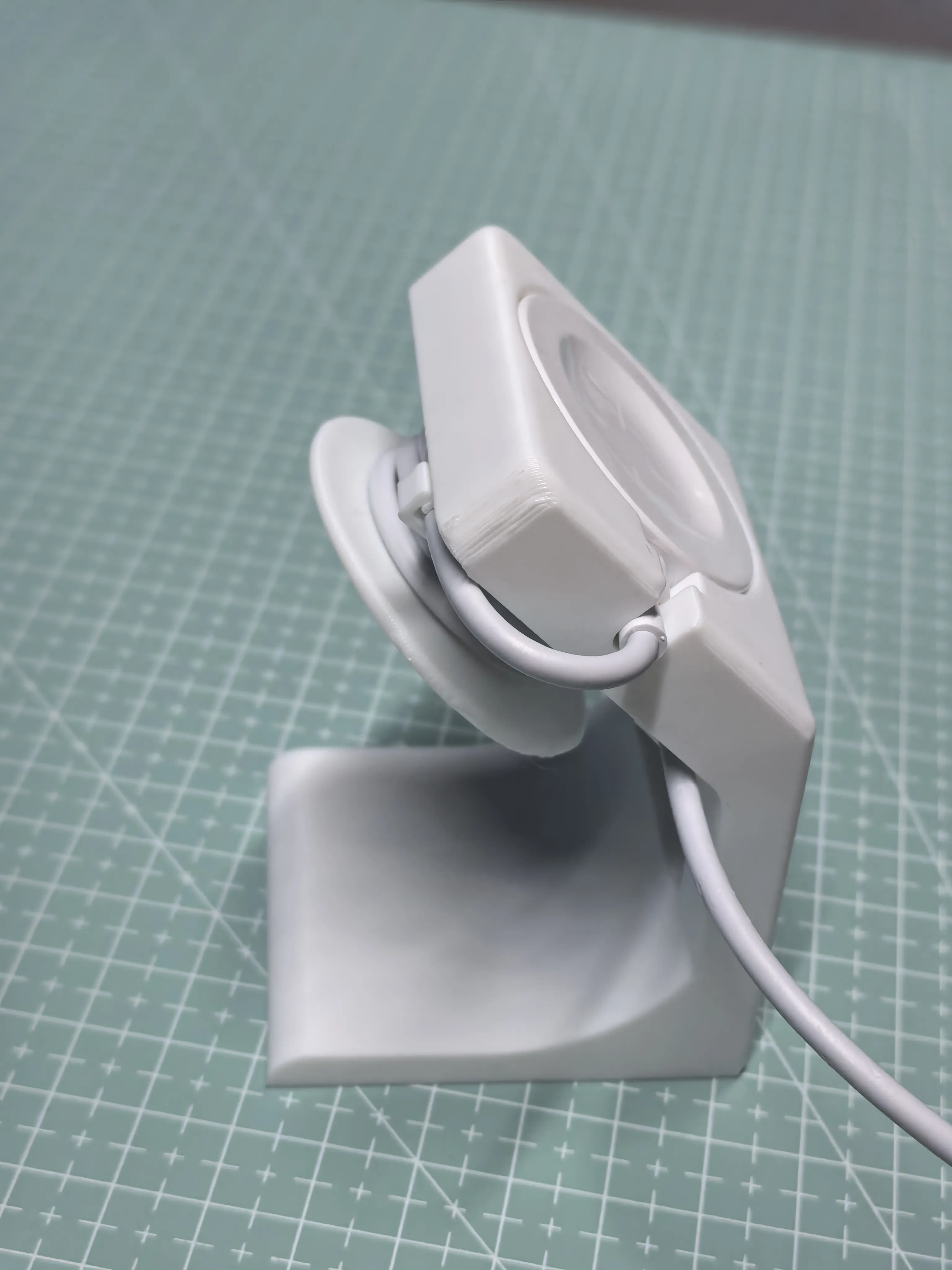

Snap clip: Added a snap clip that latches onto the outside of the cable slot to further secure the cable and prevent it from coming loose
The snap clip might require high dimensional accuracy If there are tightness issues, you can scale the snap clip independently
Cable winder: Increased the height of the winding post by 3mm for easier operation

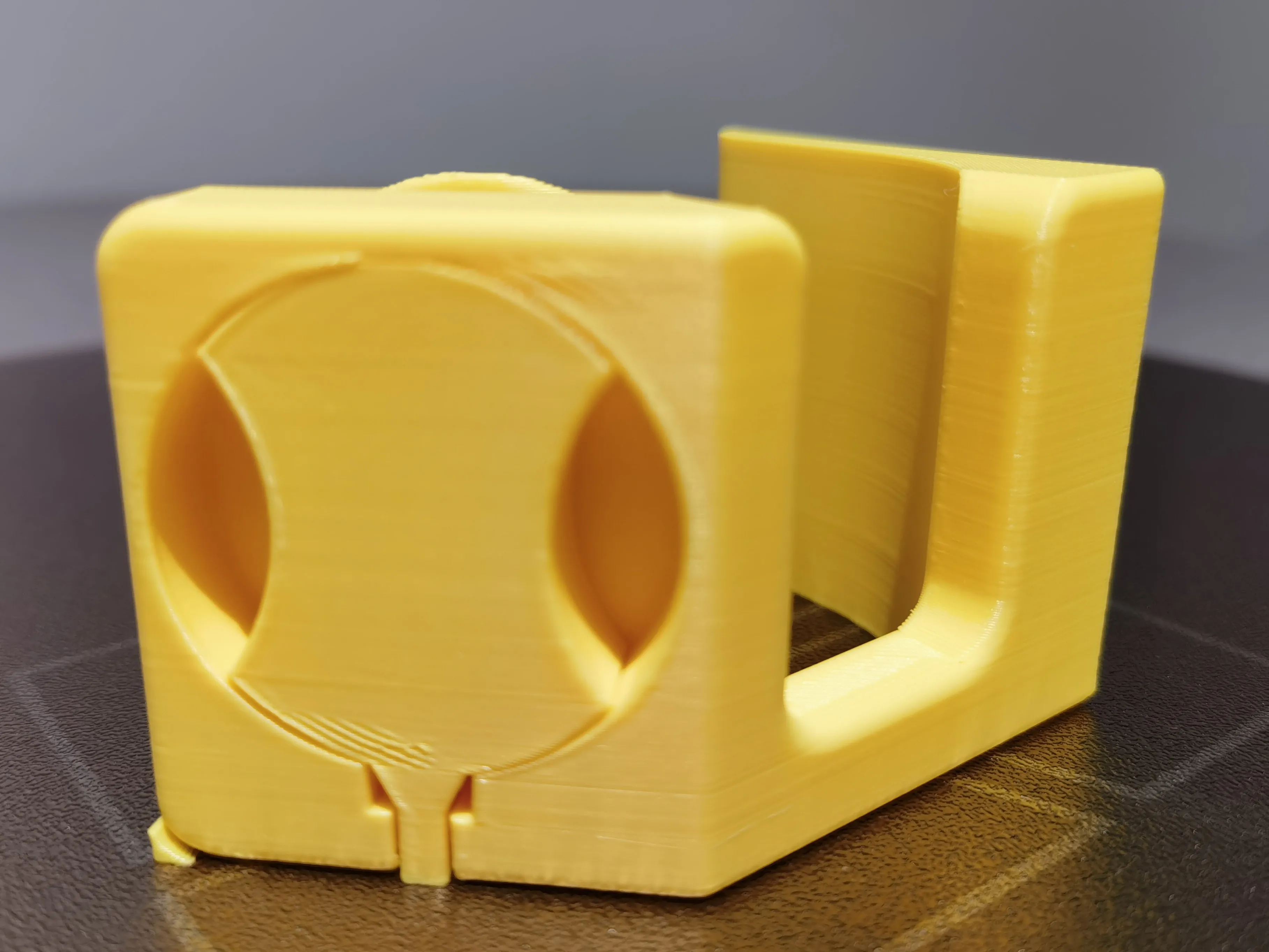

Parameter optimization: The old version's charger slot often had noticeable defects on the bottom right, which has been resolved by changing the smoothing coefficient
User feedback follow-up:
1. Main support difficult to remove issue: The new version has a hole in the middle of the main support, allowing you to cut the weak parts with wire cutters for easier removal
2. Charger doesn't fit issue: Expanded the charger slot by 0.2mm, balancing stability and ease of placement If there are still size issues, it's recommended to calibrate your machine
3. Winding plate deformation issue: Widened the winding plate support

【Model Features】

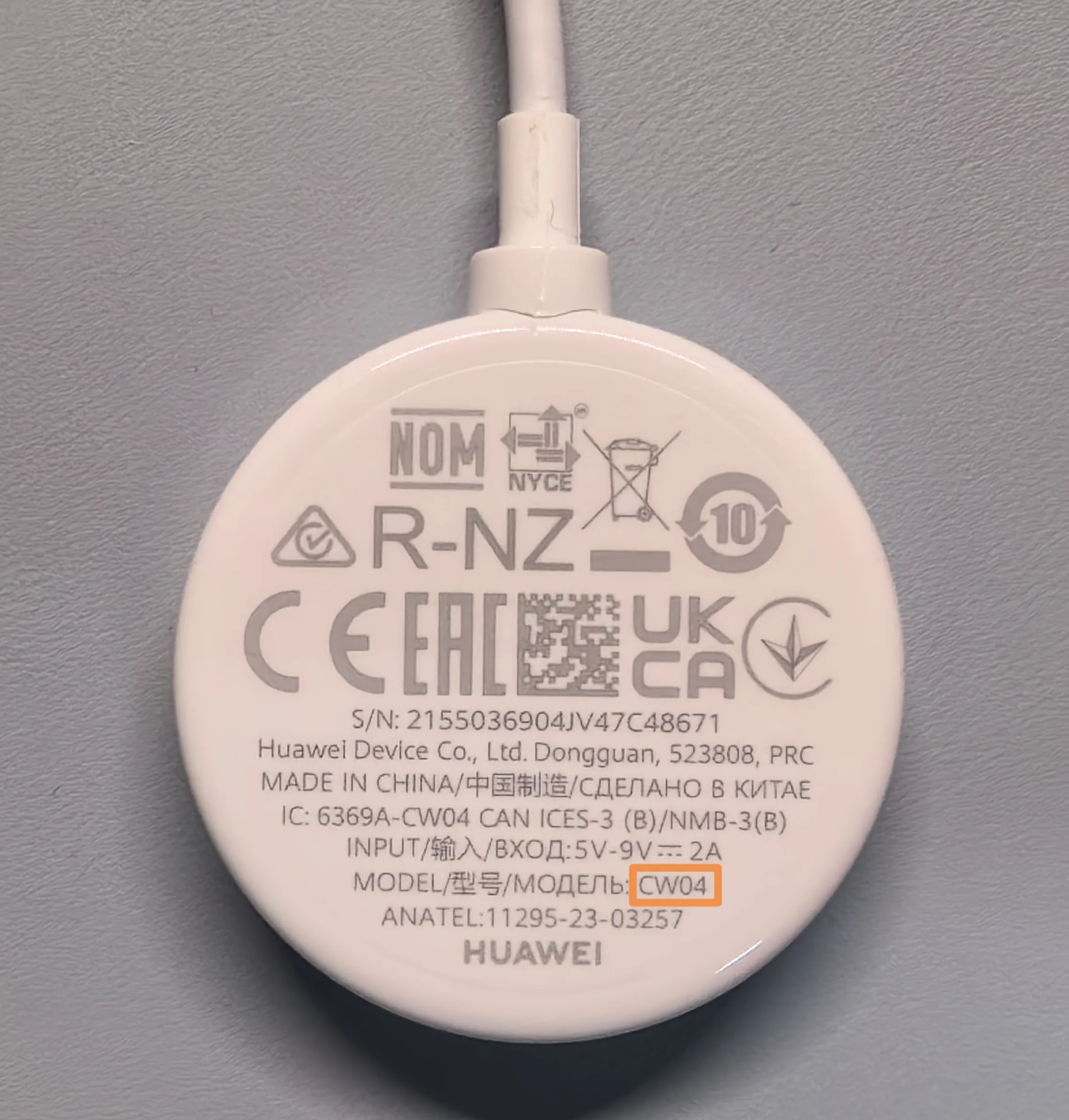

This 3D model is compatible with Huawei CW03/CW04 wireless chargers (integrated cable and base design) and is not compatible with wireless charging docks with Type-C interfaces

CW05 (standard with HUAWEI watch 5) has not been tested, but it should also be supported Feedback is welcome

Supported device models include:
HUAWEI Watch D2, Watch GT 5 series, Watch GT 4 series, Watch GT 3 series, Watch ULTIMATE series, Watch 4 series, Watch 3 series, Watch Buds, Watch Runner and Watch GT Cyber

This model uses the Watch D2 reference design, but it should support all the above models If there are compatibility issues, your feedback is welcome

【User-Friendly Design】

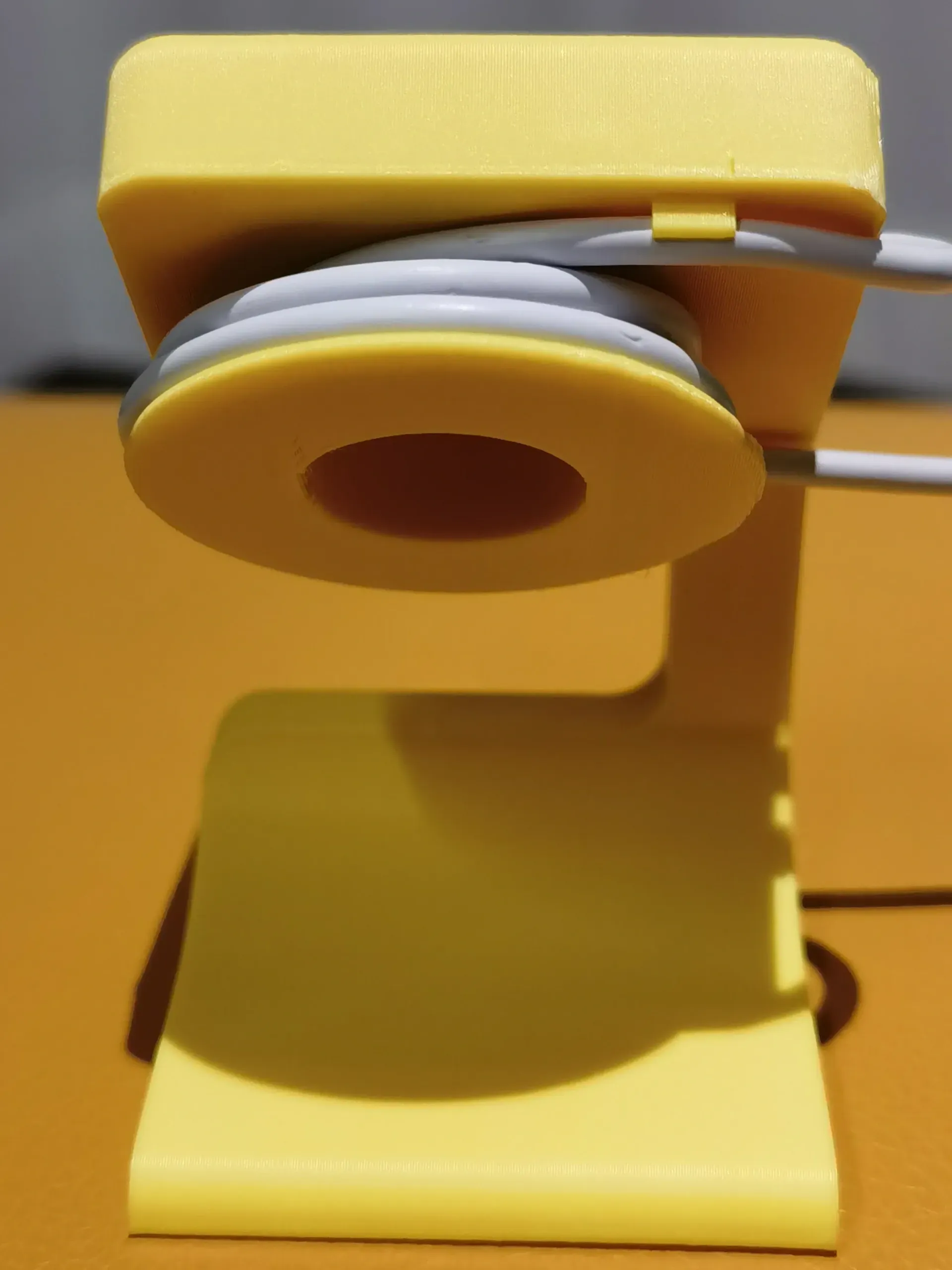

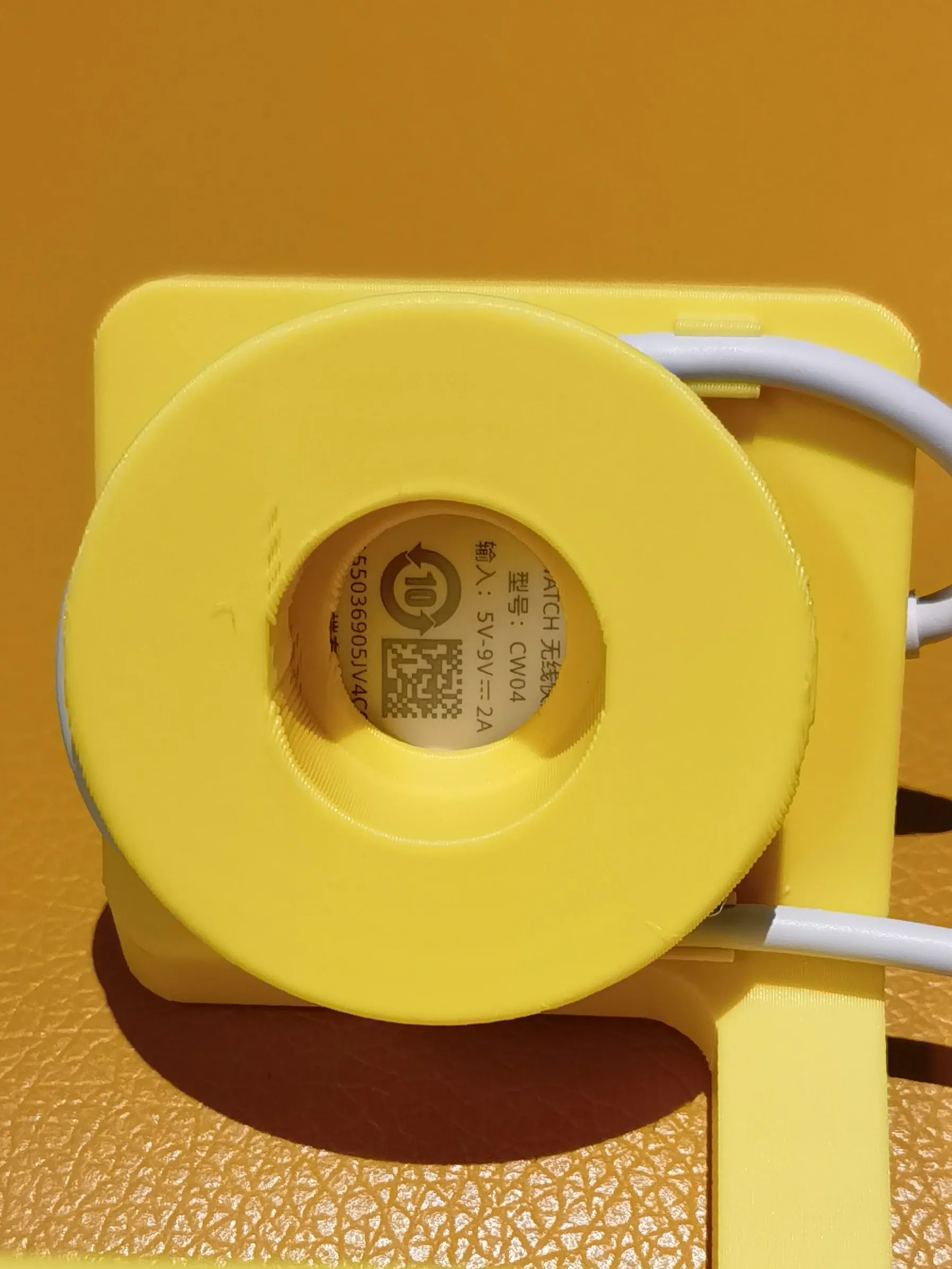

Integrated Cable Management: The back of the charging dock features a round cable winder, which securely holds excess cables through a dual-slot cable management structure, effectively keeping your desktop tidy and organized
▷ Gentle Reminder: When winding, please leave appropriate slack to prevent the cable from being under prolonged tension, which could lead to fatigue cracking

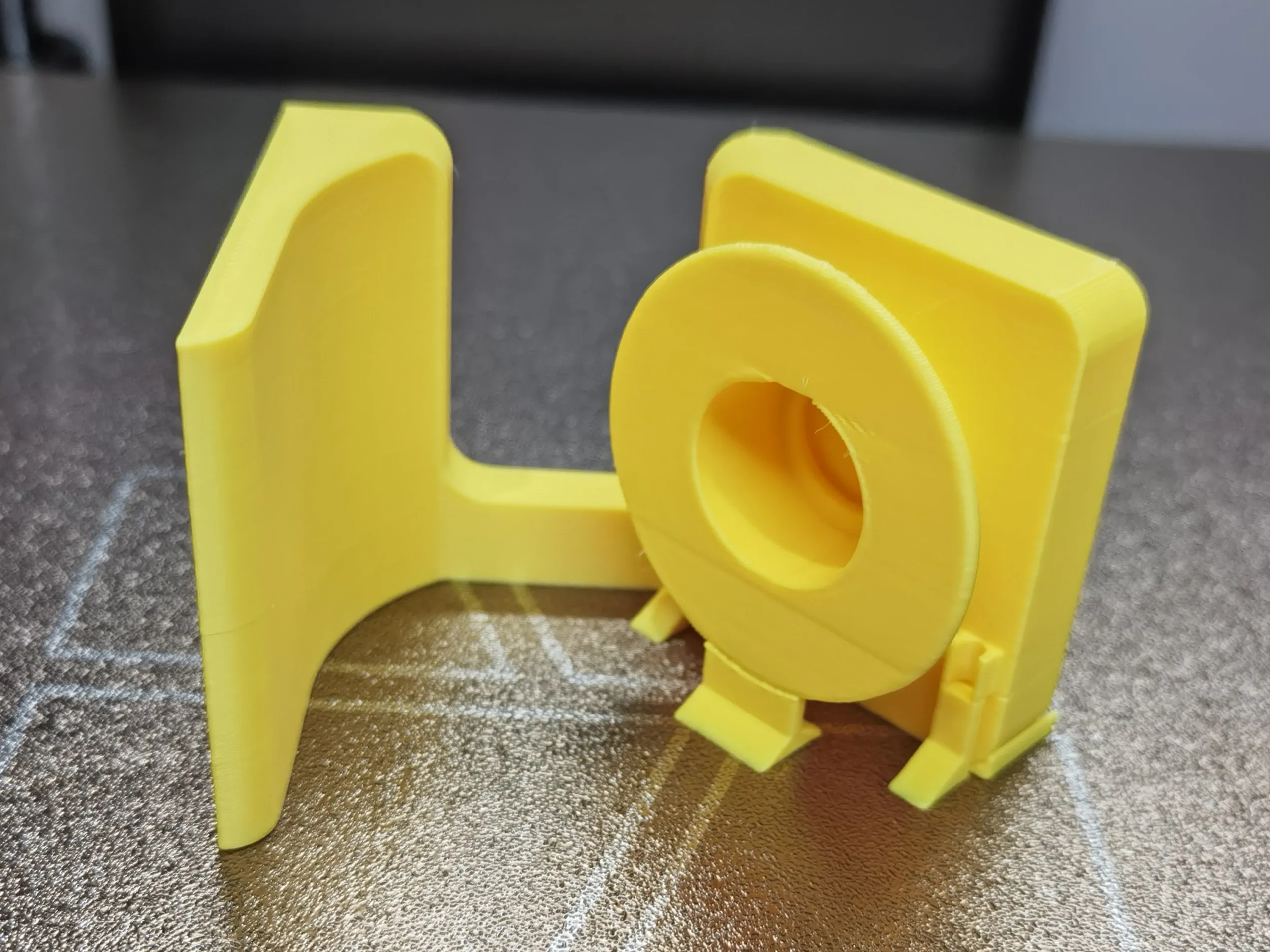

Pre-set Supports: Support structures have been drawn during modeling, so you can print directly without setting up supports You can appropriately reduce the wall layers and infill density of the supports for easier removal and material saving
