Dayi A3 Power Tool Battery with 3518 Fast Charging Module, Voltmeter, XT60, and DC Power Outlets
Print Profile(1)
Description

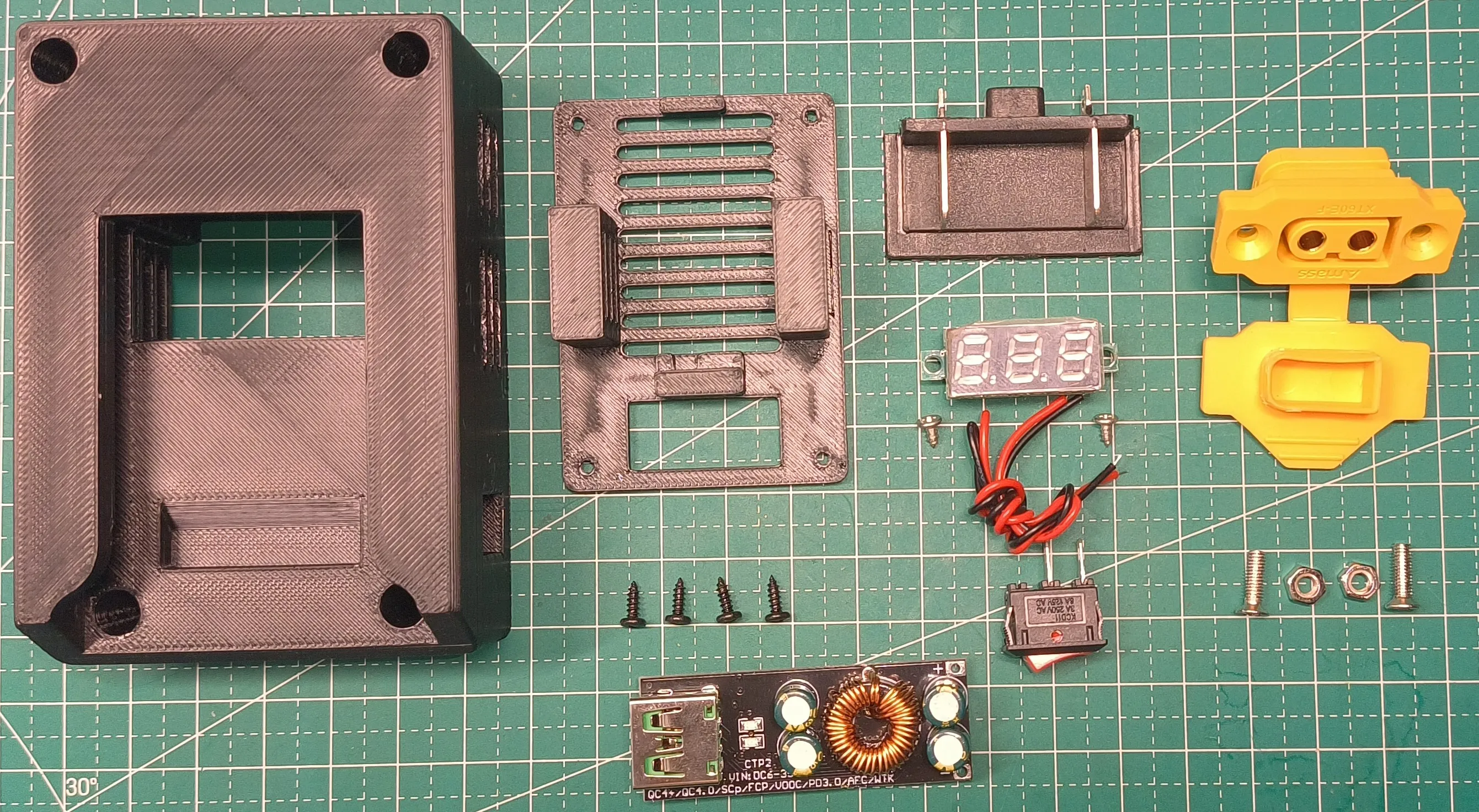

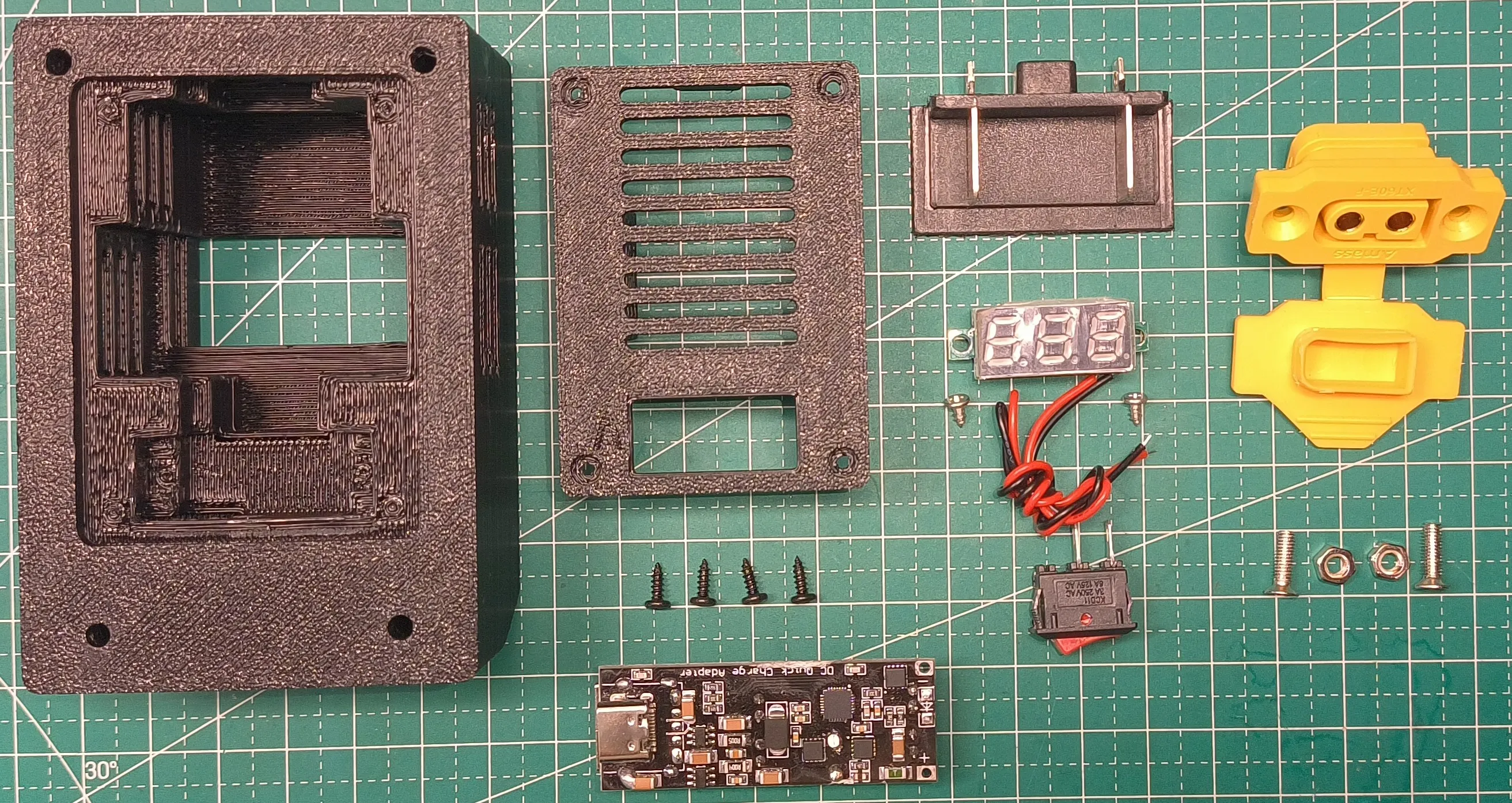

My design incorporates a Dayi A3 power tool battery featuring a 3518 fast charging module, a voltmeter, XT60 connectors, and DC power outlets (the voltmeter can be added or removed as needed). See the complete set in the images below:

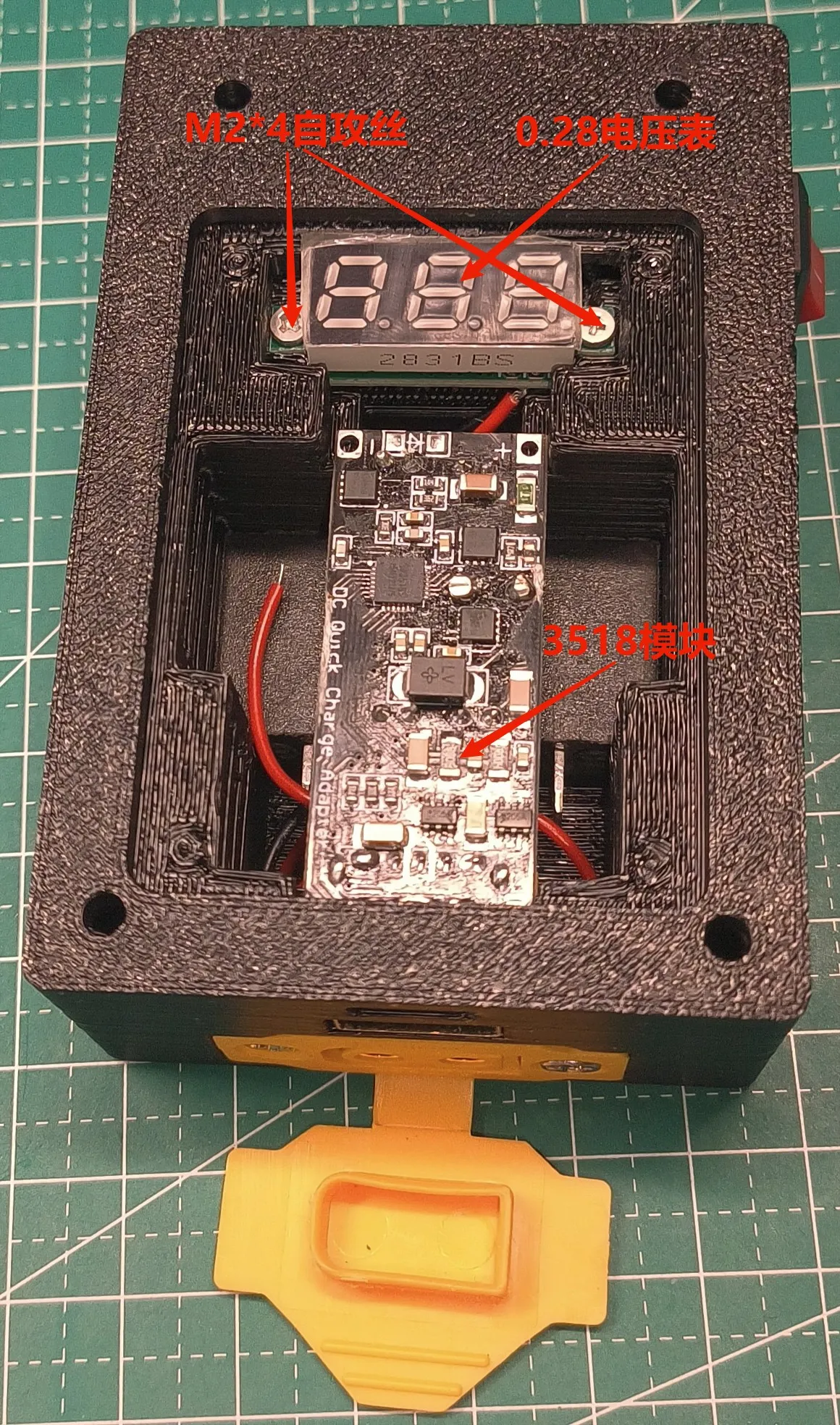

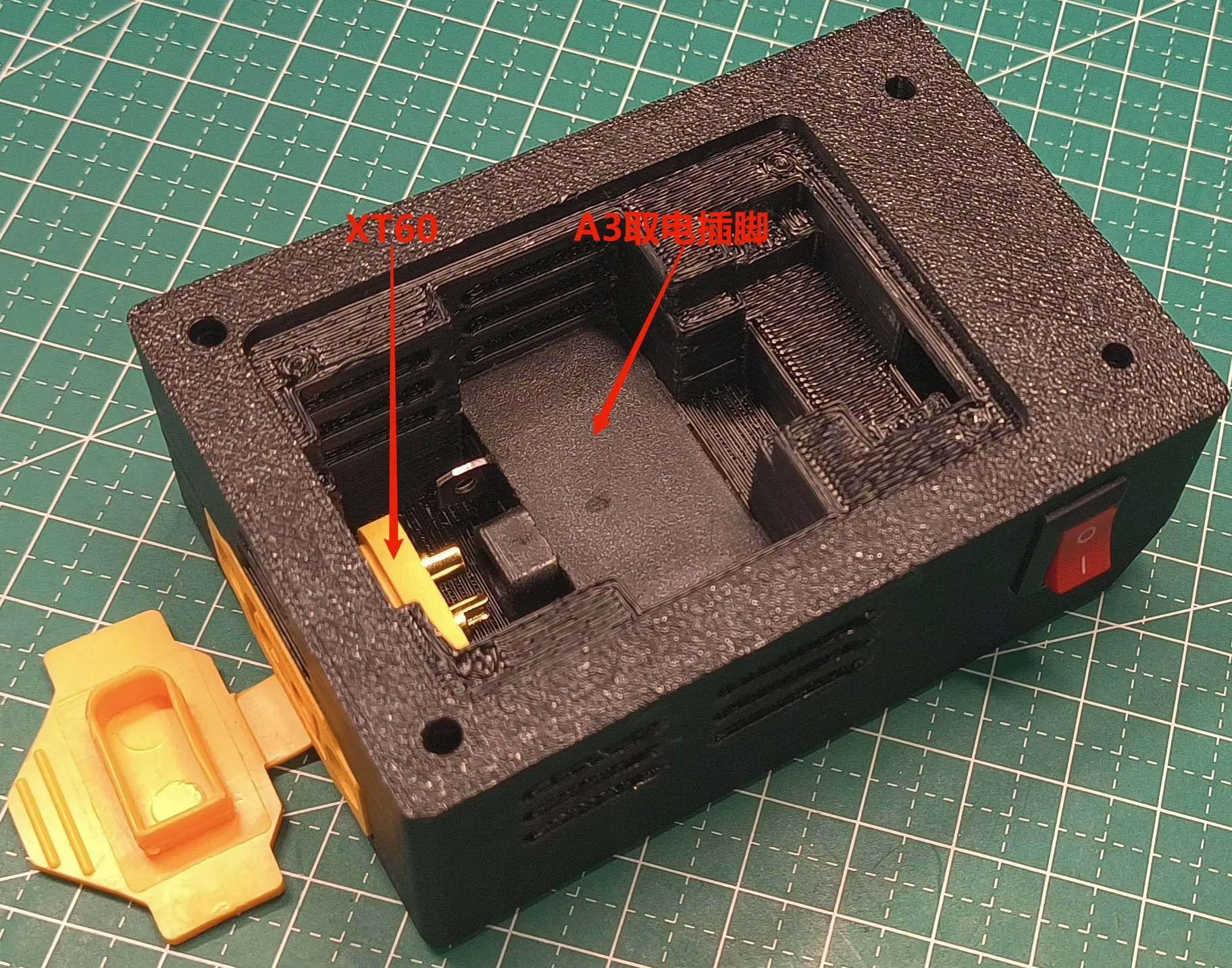

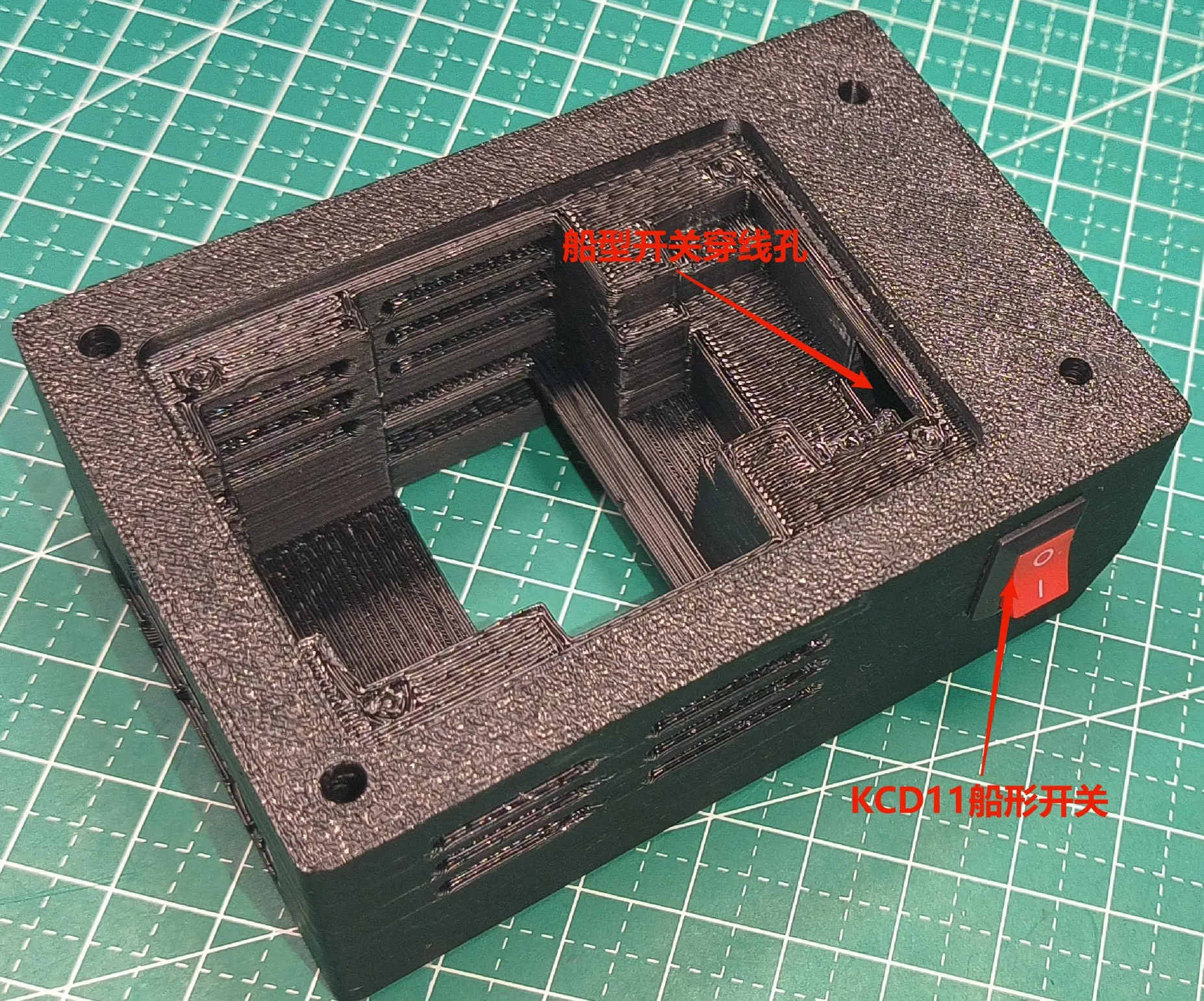

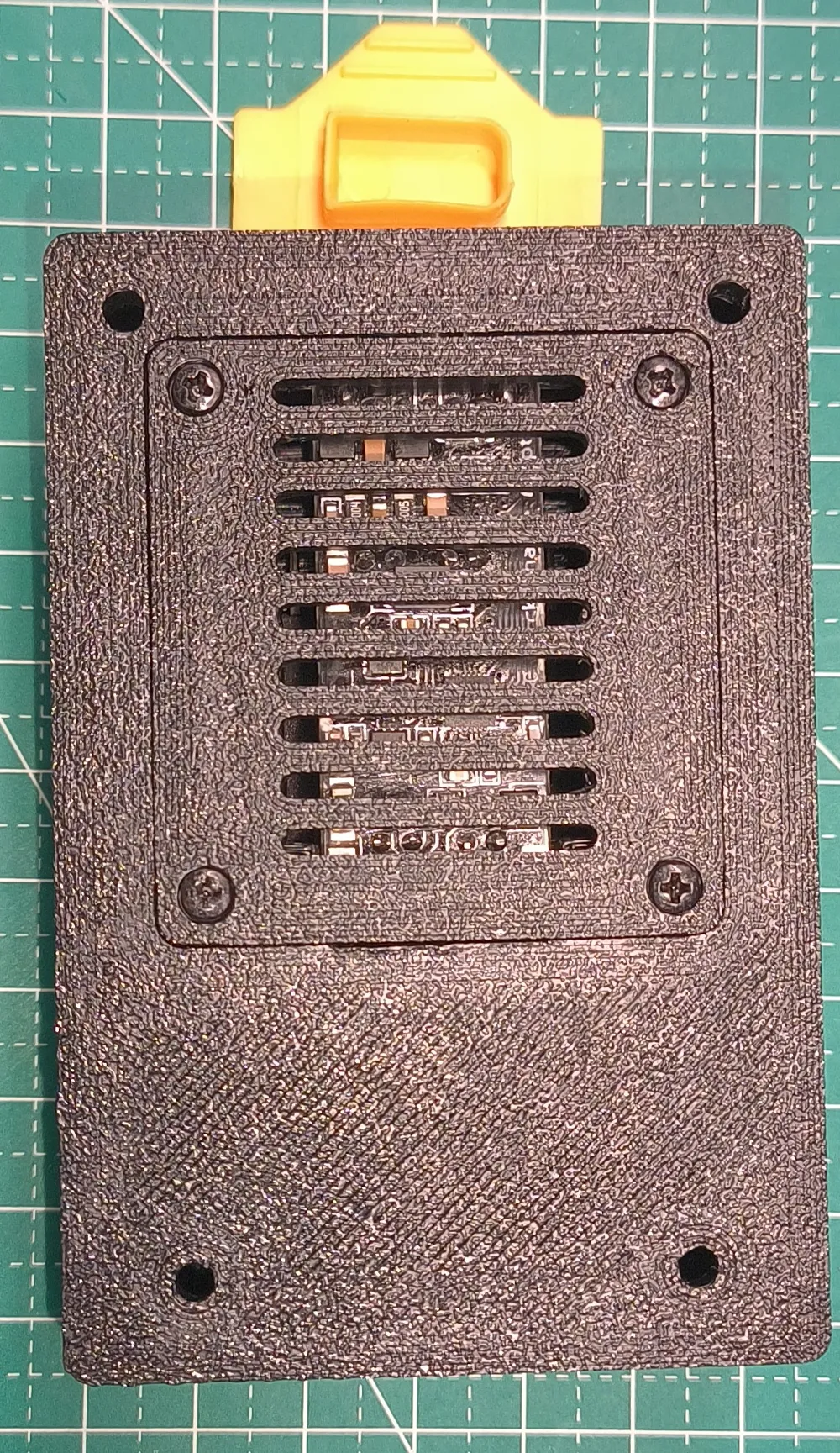

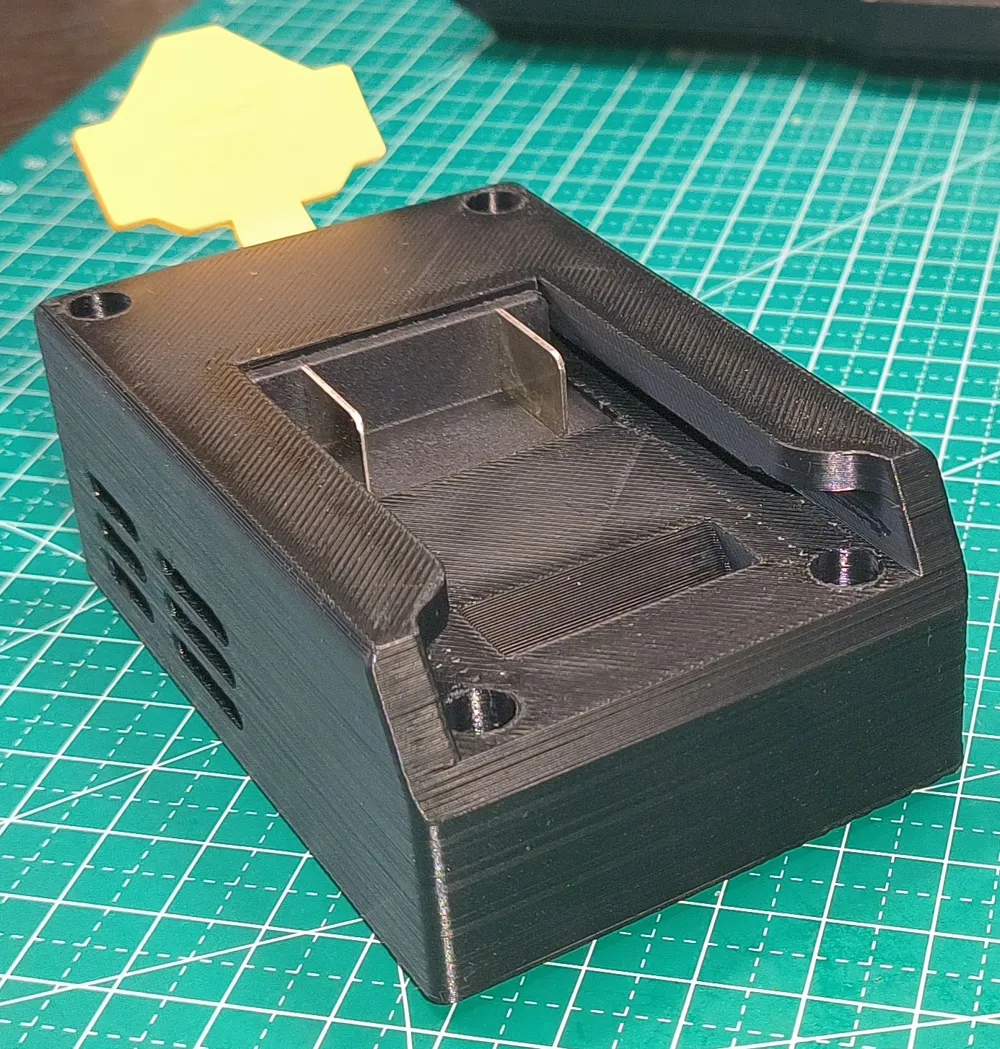

The XT60 connector is secured using M3*10 (ideally M3*15) stainless steel pan head screws and nuts. The bottom cover is fastened with M2*6 black iron self-tapping screws. The 0.28 voltmeter is fixed with M2*4 self-tapping screws, and the power outlet is secured using M3*14 black iron pan head self-tapping screws. Assembly instructions are shown below:

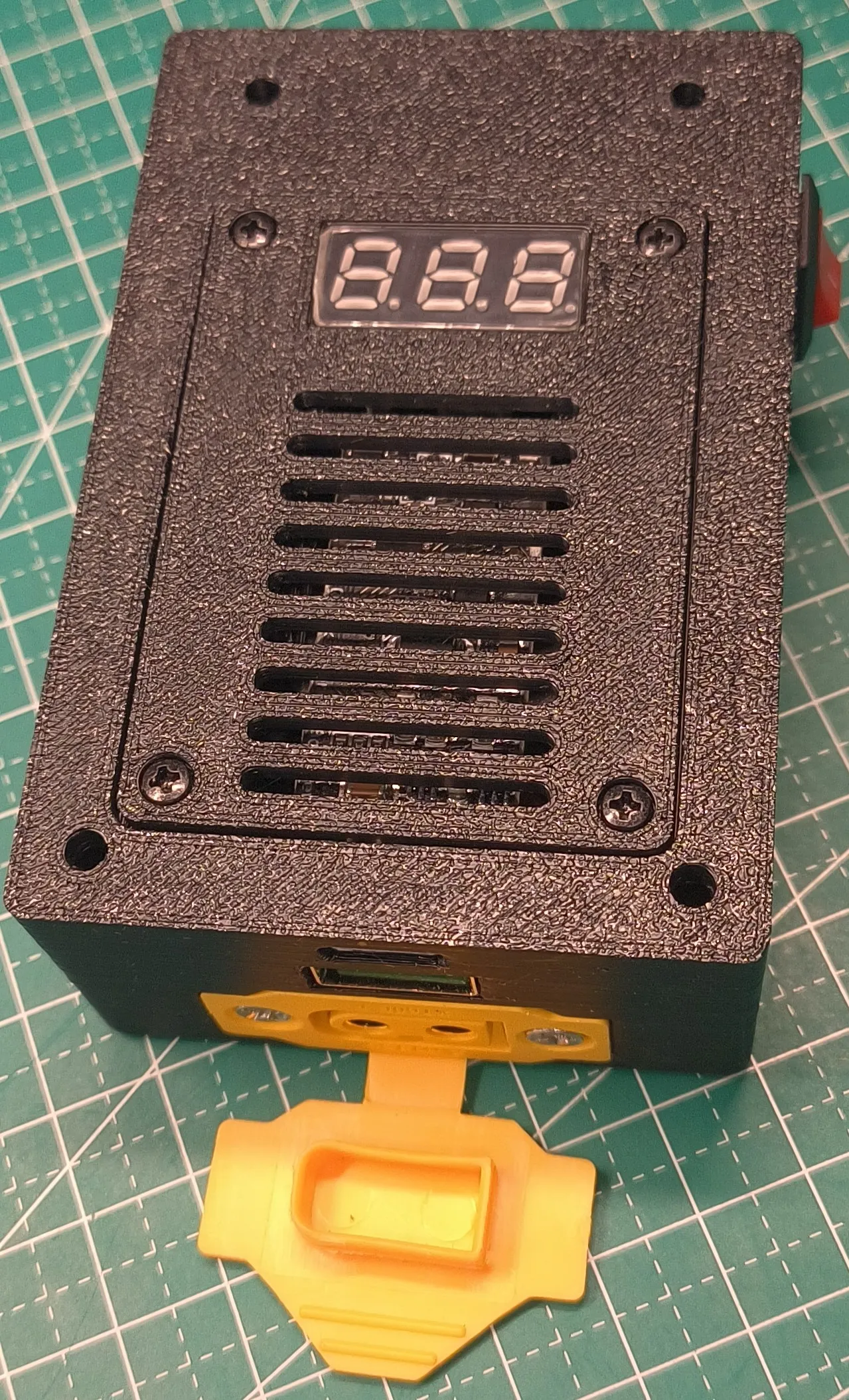

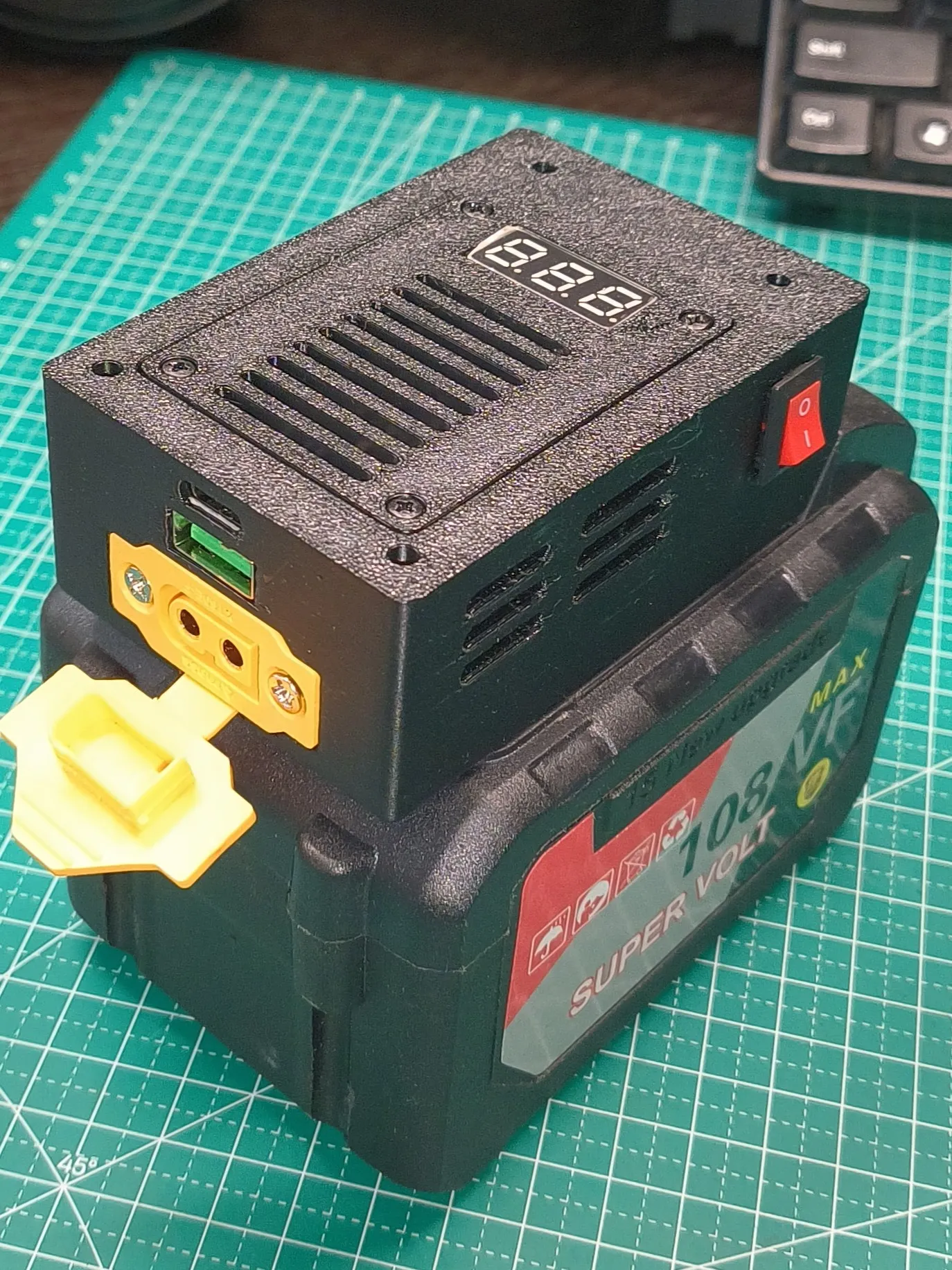

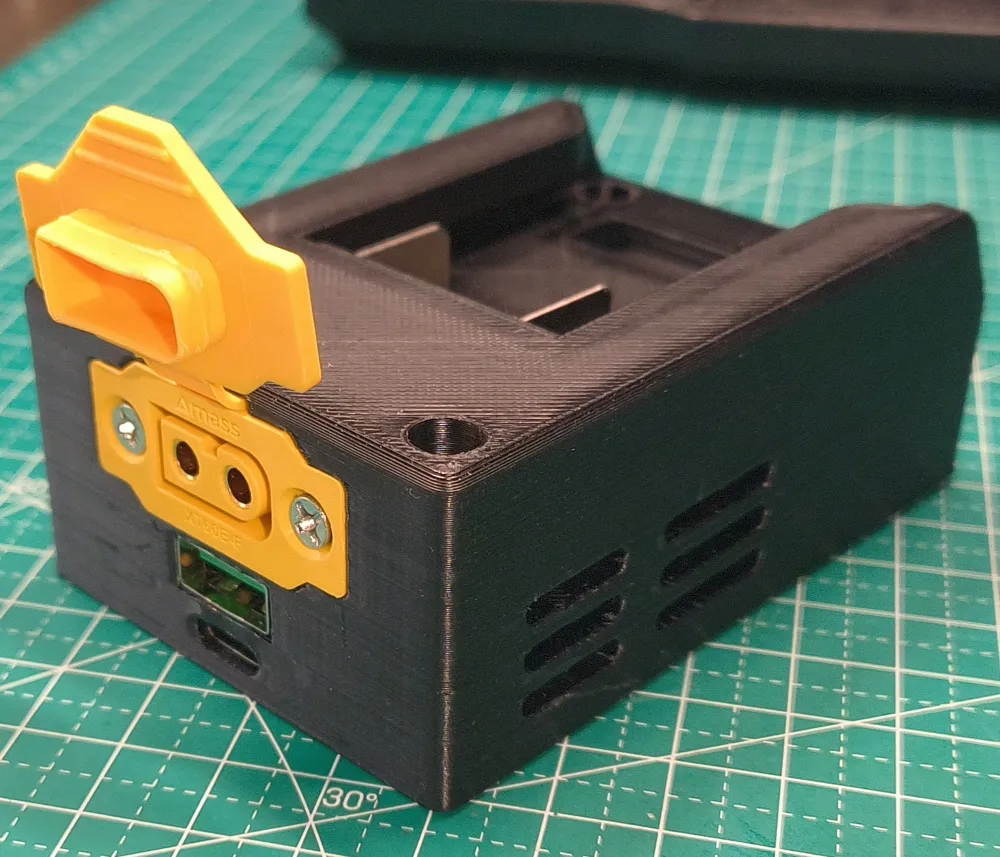

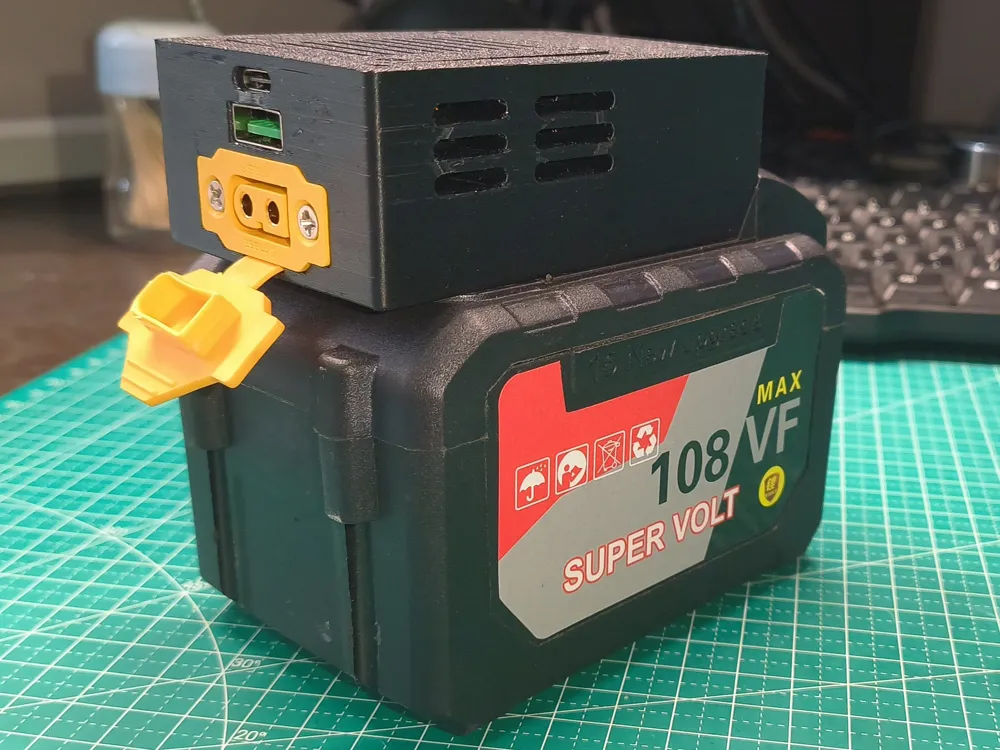

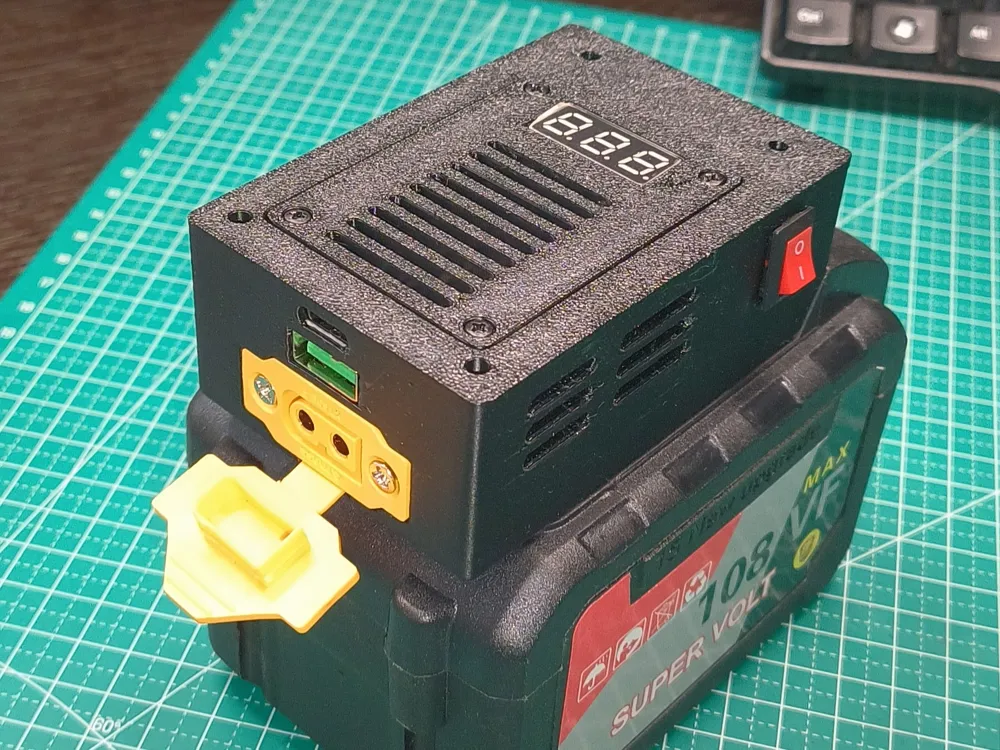

The assembled unit is shown in the following images:
Additionally, this configuration includes a cover without a voltmeter, for those who do not need one. I hope you enjoy it and appreciate your support. Thank you!!!
