Printable Tinywhoop FPV frame
Print Profile(1)
Description

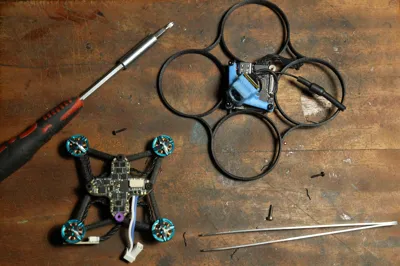

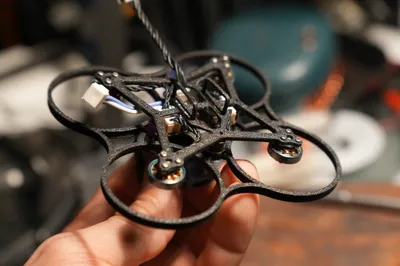

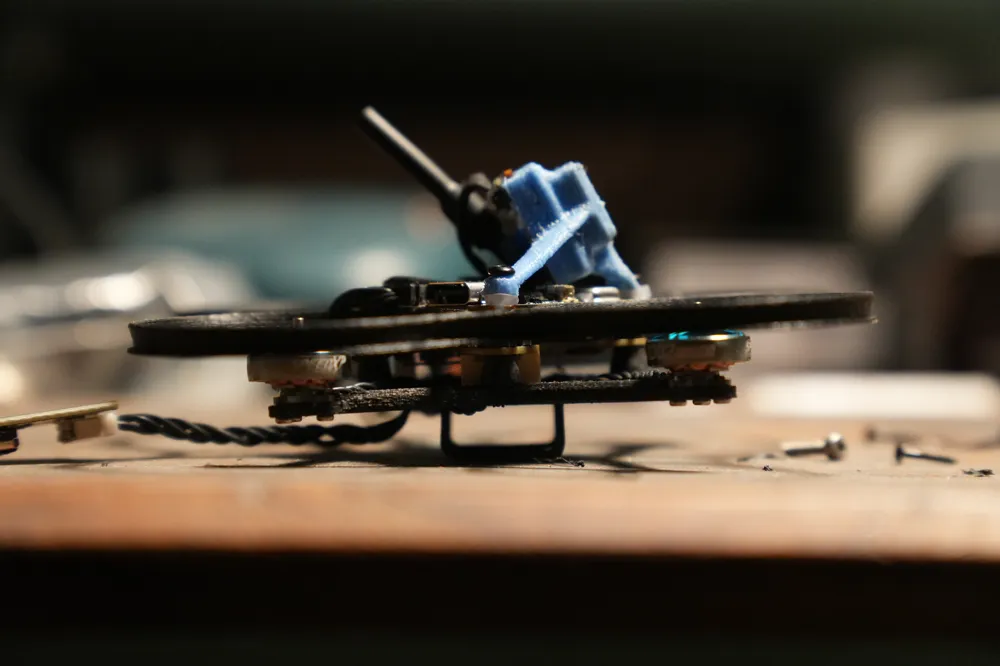

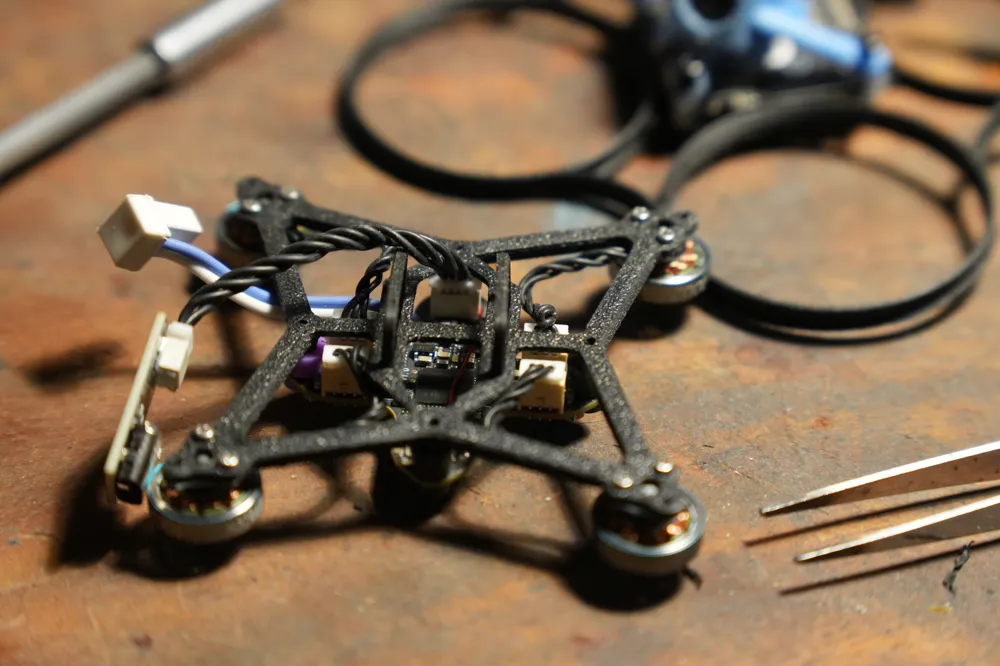

Printable tinywhoop 75mm frame (41mm props).
Optimized for 3d printing. Wall thickness is a multiple of nozzle diameter. Everythings lays flat on build plate.
For functional frame I sugest to make it out of nylon, mine is PAHT-CF feels solid, to be flight tested soon.
Recuired 4x M2x8-16mm bolts.
Frame is ~5g

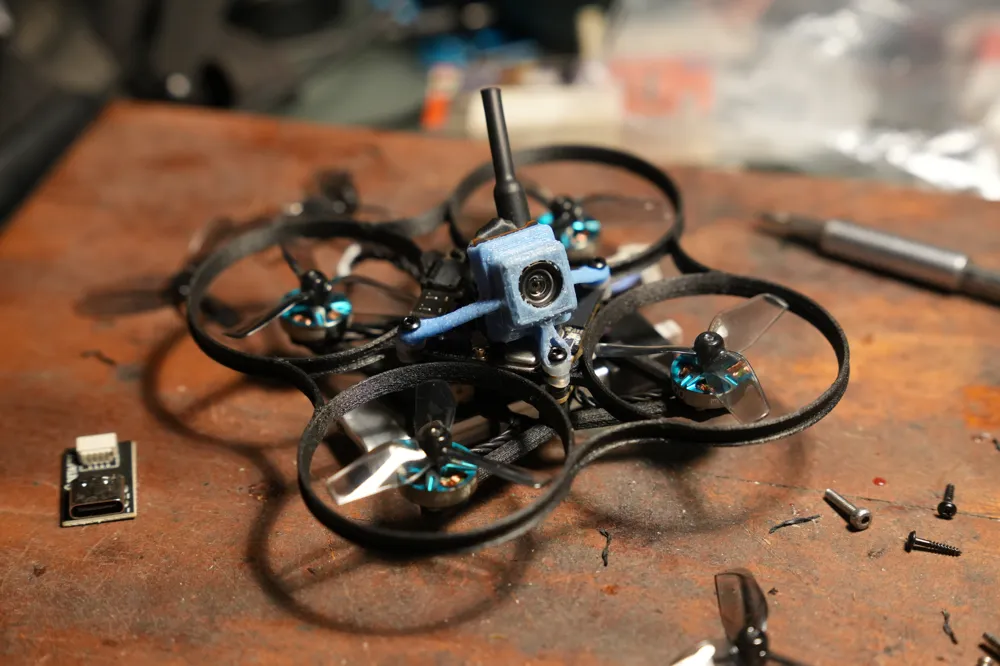

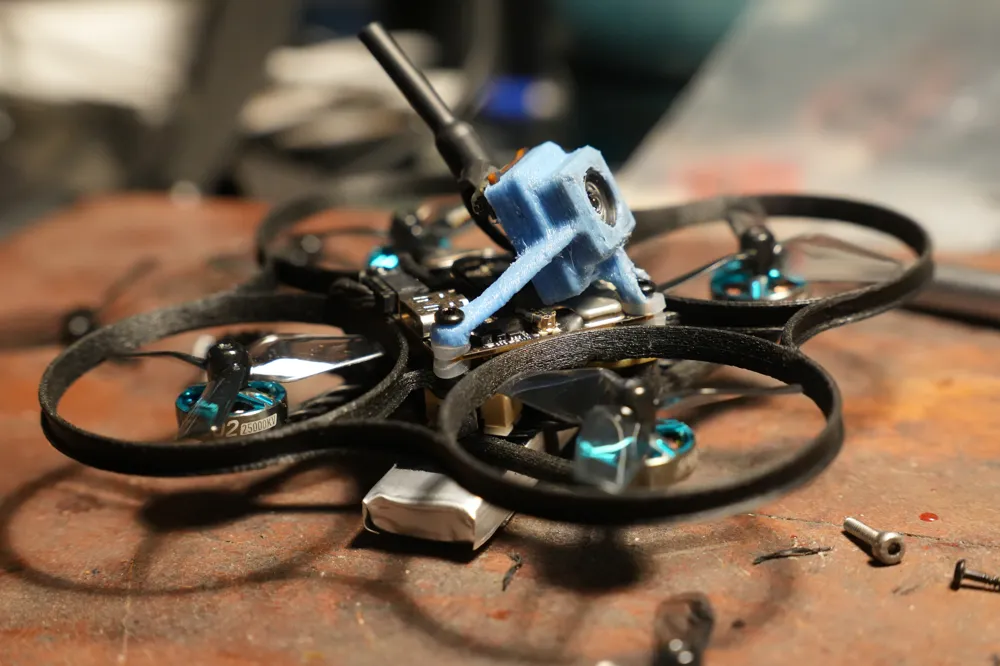

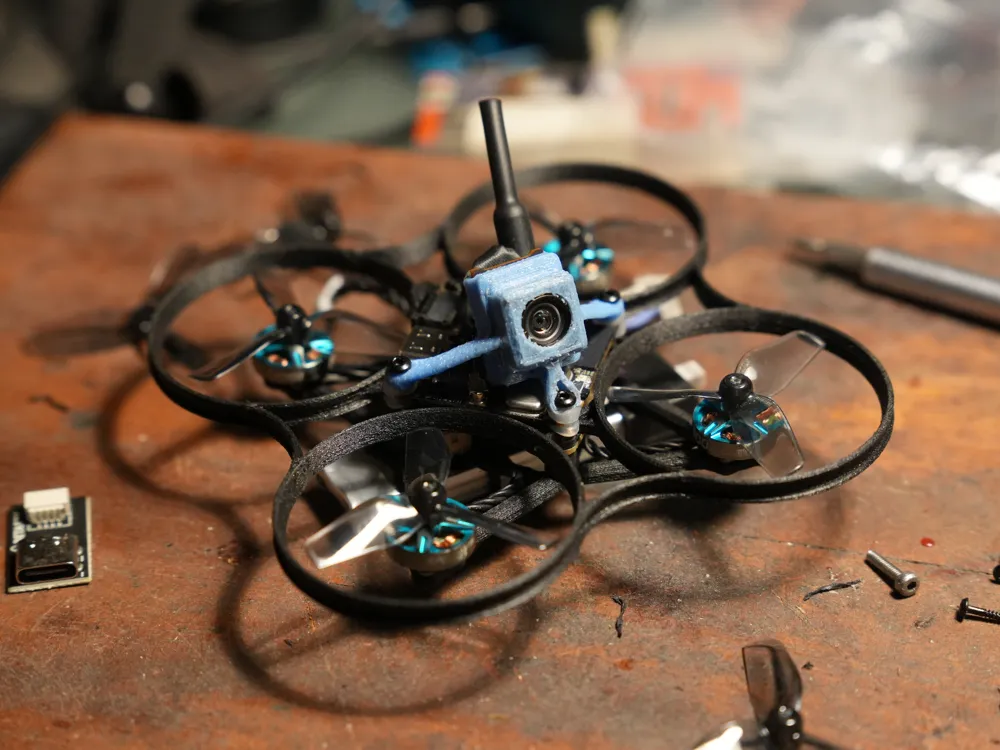

Mine setup:
GepRC 1002, 25000kV motors
Matrix 3in1 FC
DJI O4 lite
camera canopy: https://makerworld.com/en/models/1086287-dji-o4-lite-tiny-whoop-canopy-work-in-progress#profileId-1079149
450mah Tattu 1s, BT2.0

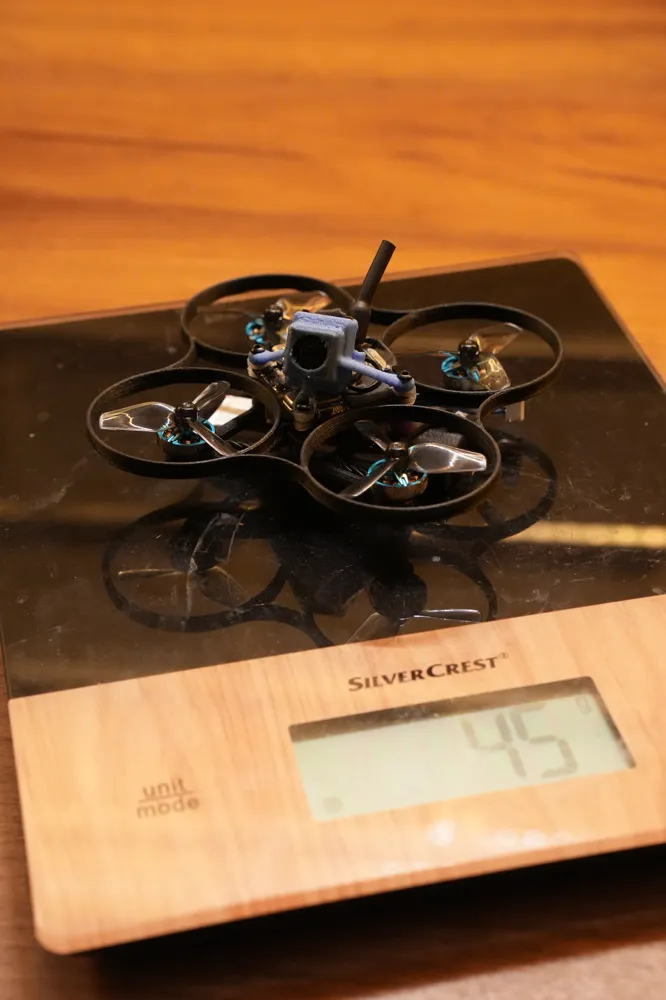

Drone AUW 45g
***
Edit: my flight tests were not satisfactory enough. Don't know if it was due to too flimsy ducts or it's just ICM gyro. Will try to update the model so it works for me. Nevertheless toughtness of the frame is on point, now to make it fly resonable 😅
Let me know your experience if you printed it!
