Network device cooling base (router, switch 12025 fan)
Print Profile(1)
Description
Boost Me (for free)
Thank you!

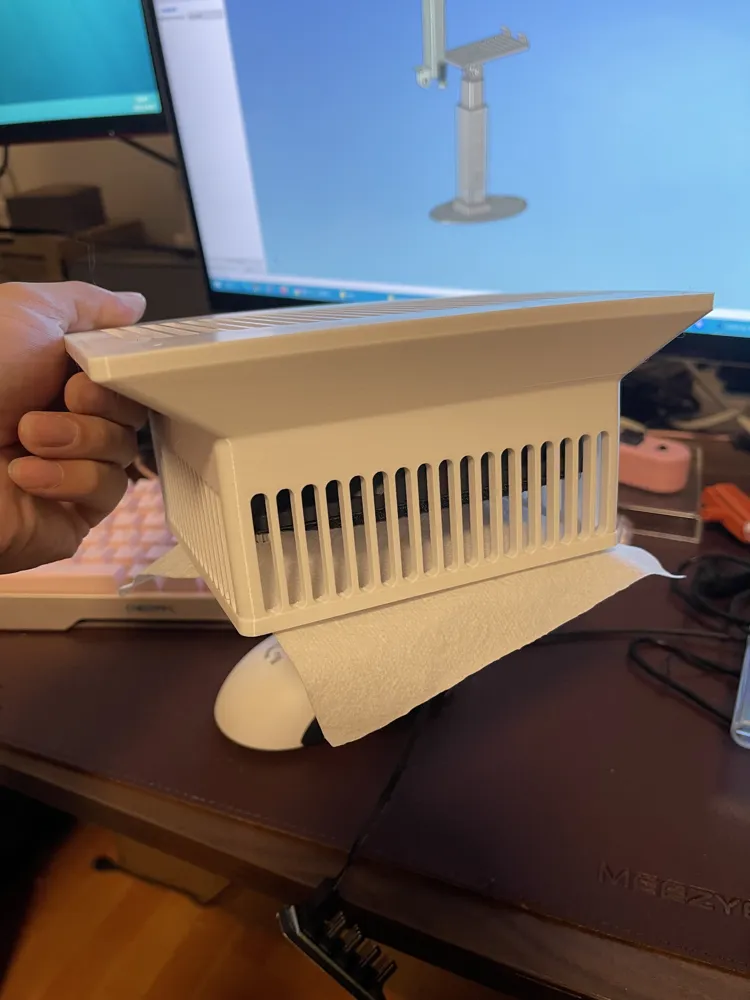

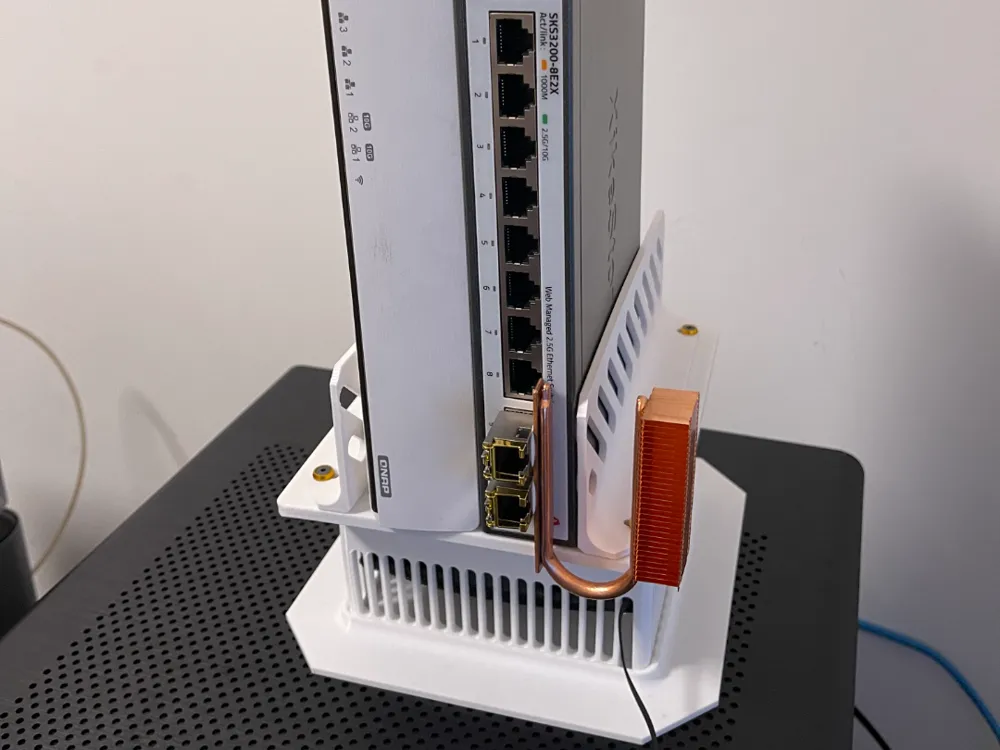

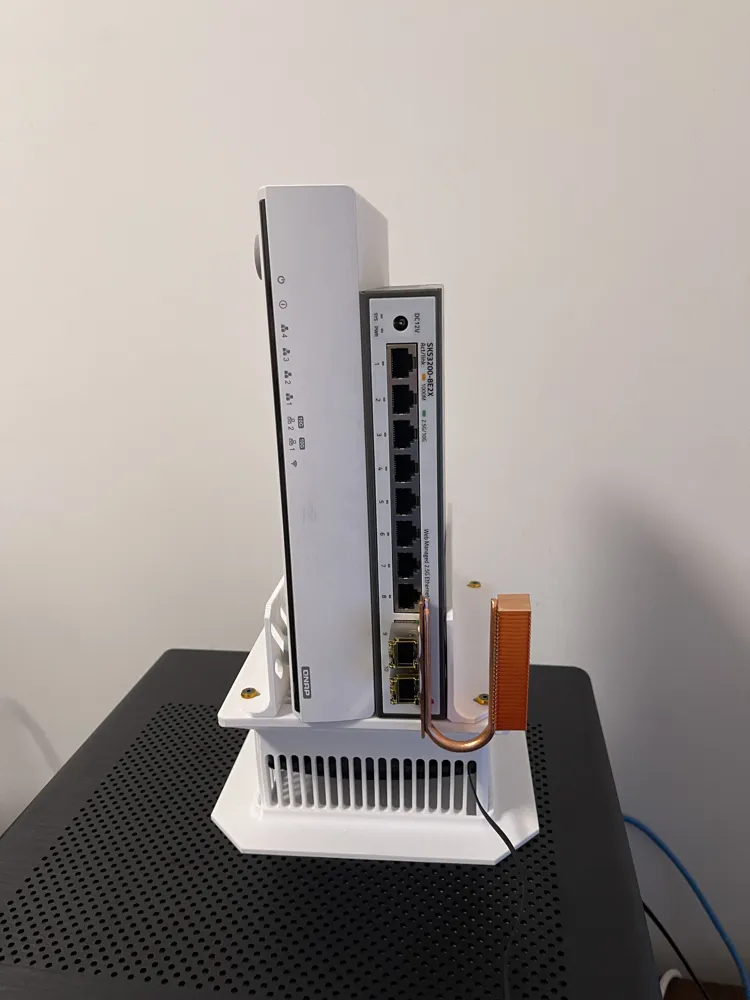

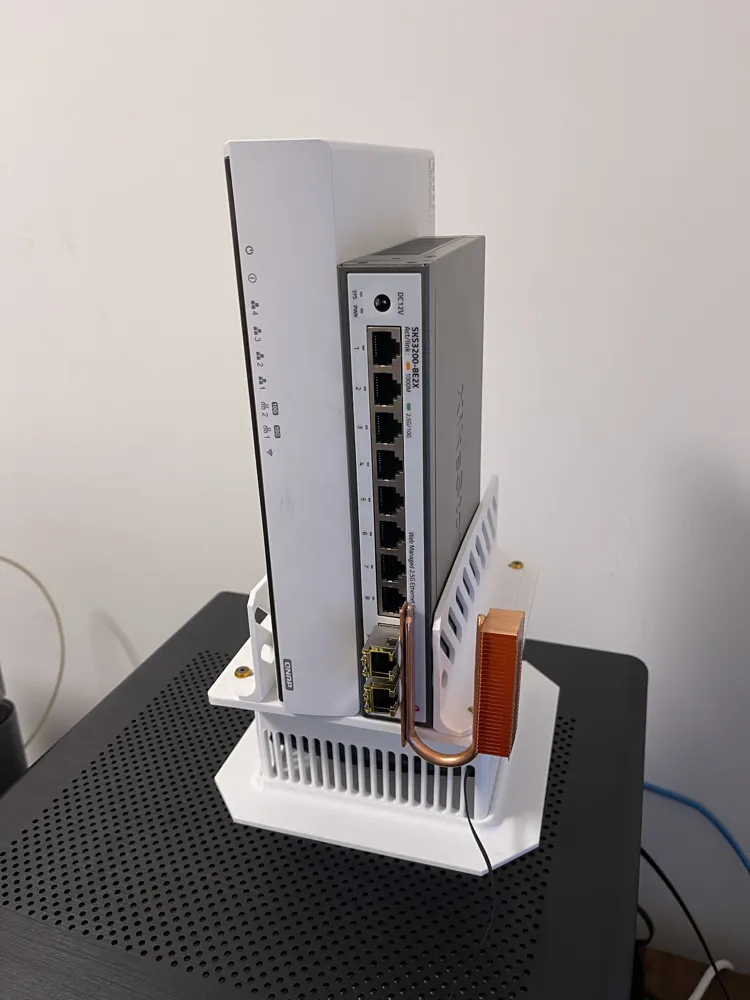

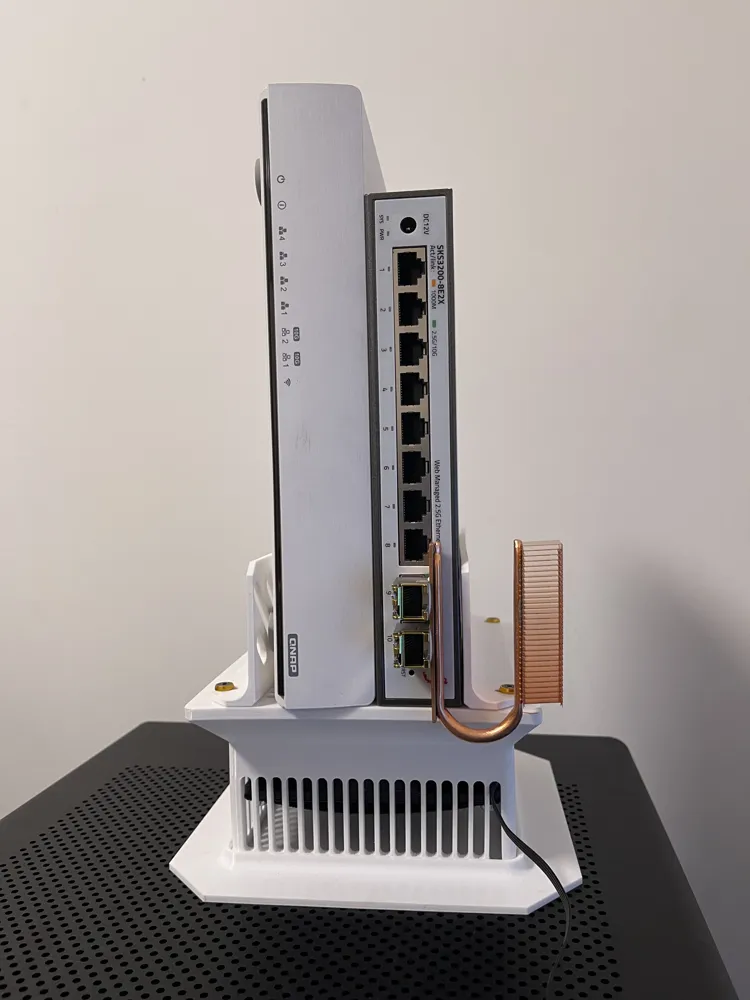

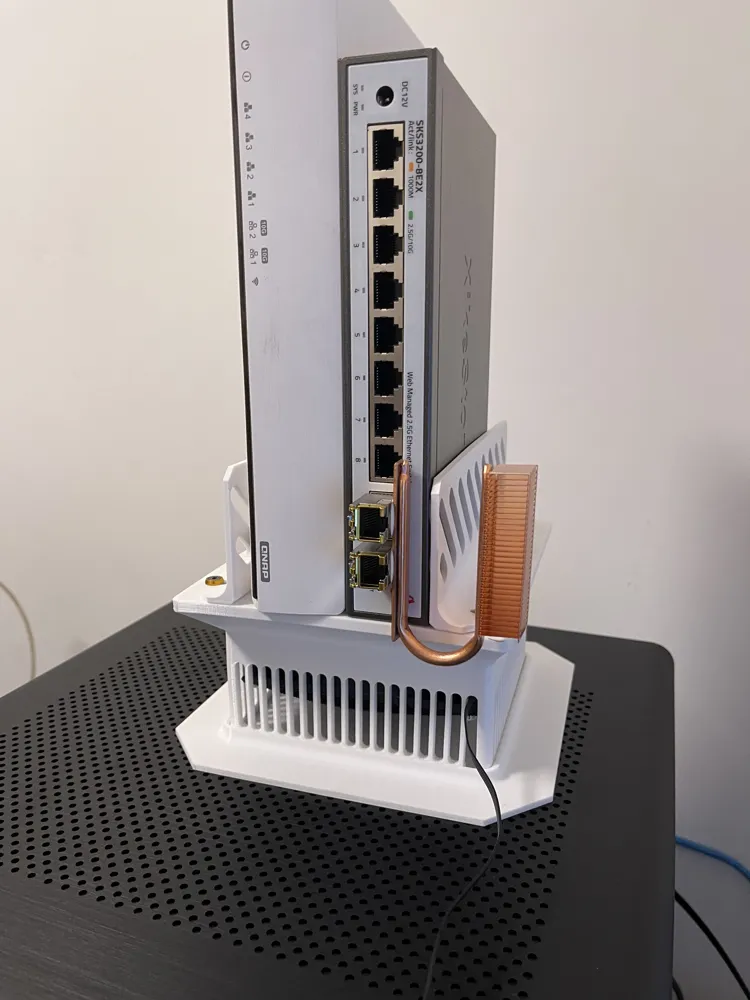

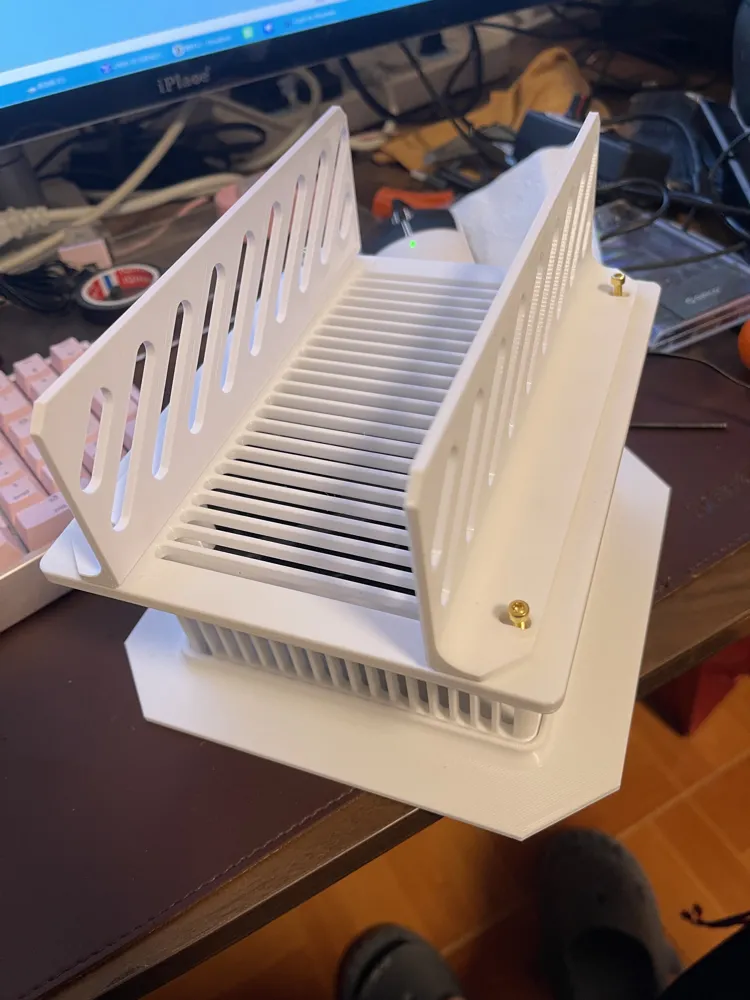

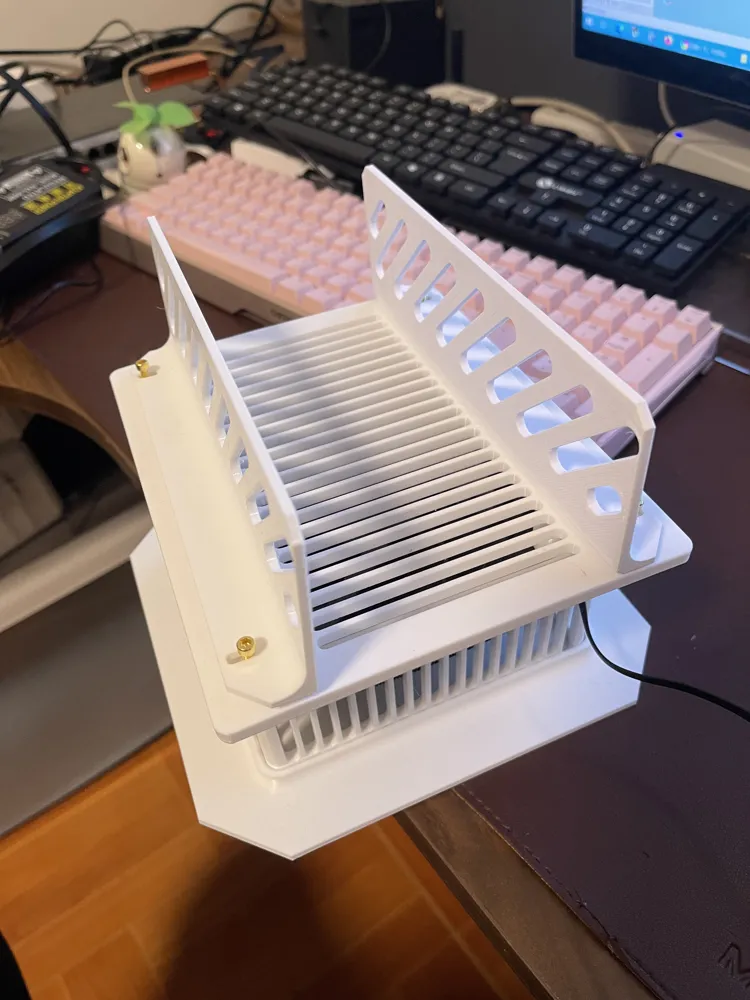

Primarily designed for 10 Gigabit Ethernet port cooling, utilizing a 120*25mm chassis fan as the power source; 4-pin connector, a 5V to 12V adapter cable can be purchased on Taobao; fan mounting holes are M4*35, upper branch bracket mounting holes are M3*8 with washers; threaded holes require tapping or reaming, or forceful tightening is also acceptable, do not use copper materials or other soft bolts. The base is an open-style slot, the upper mechanism is not fixed. The router is a QNAP QHora-301W, and the switch is a XCK 8+2 lightly managed switch.
