Temperature and Humidity Sensor DHT22 (AM2302) Case
IP Report
Print Profile(1)
0.2mm layer, 2 walls, 15% infill
Designer
23 min
1 plate
Open in Bambu Studio
Boost
38
117
14
4
247
154
Released
Description
Content has been automatically translated.

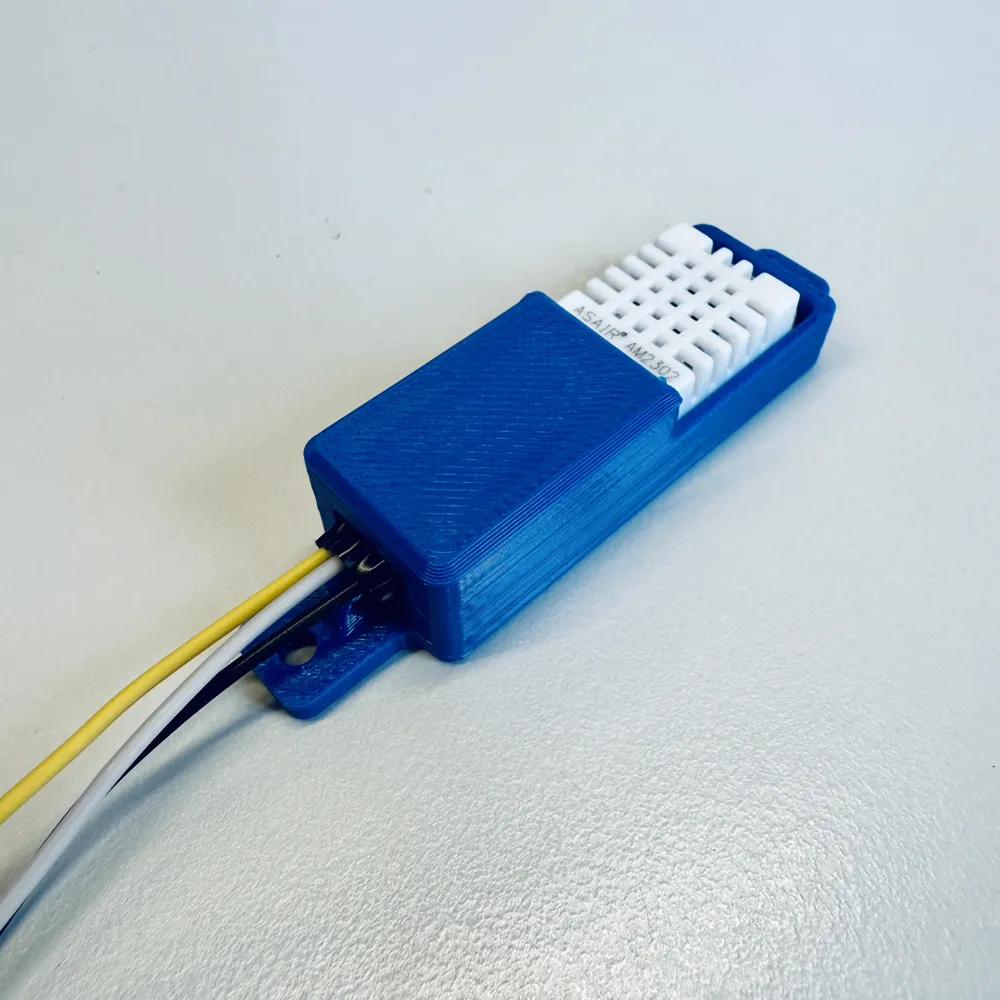

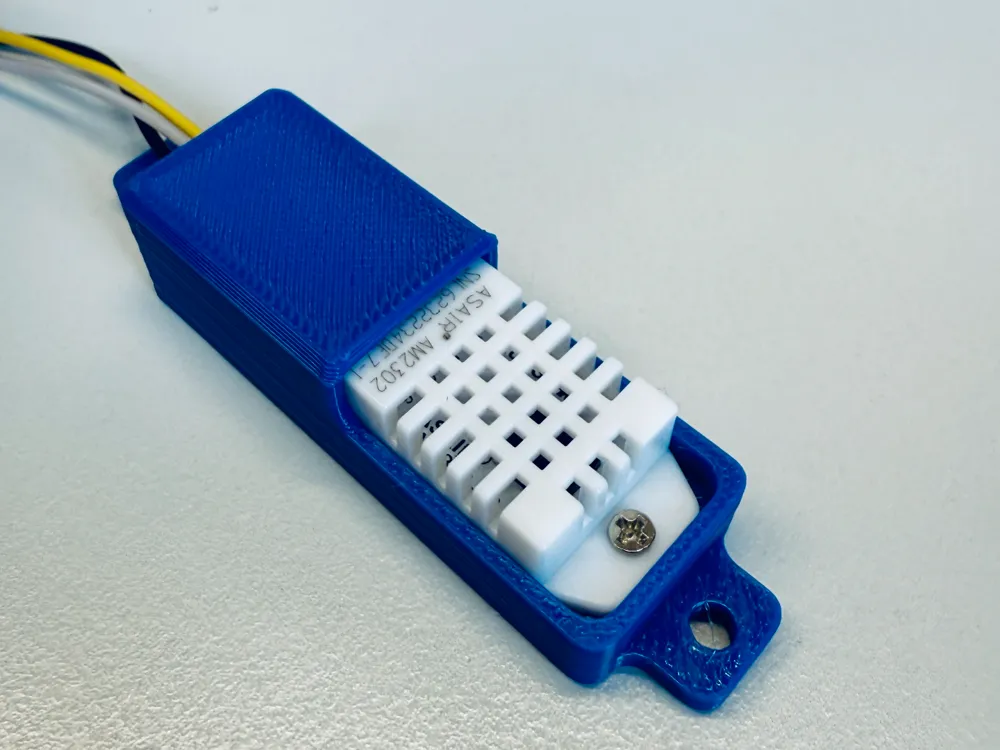

Here is a small case for the temperature and humidity sensor DHT22 (AM2302) module. The module is attached with a 2mm screw. The case has tabs for M3 screws at the top and bottom. The cable outlet is designed for standard single connectors. A small tab is also provided to allow for strain relief using a cable tie.
License
This user content is licensed under a
Creative Commons Attribution-Noncommercial-Share Alike
