Modular drip irrigation system set
Print Profile(1)
Description
Modular Drip Irrigation System – “AquaMod Drip Set” for Flower Pots, Raised Beds & Garden Plants
Boost Me (for free)
**🎁 Kindly boost me (it costs you nothing)!**
Your click helps me offer new designs for free. Thank you! 🙏
📦 Description:
This modular drip irrigation system is ideally suited for makers, gardeners, and anyone seeking efficient, water-conserving, and precise plant hydration.
Whether for balcony boxes, raised beds, houseplants, or a greenhouse – the AquaMod Drip Set provides unparalleled flexibility through interchangeable, 3D-printable components.

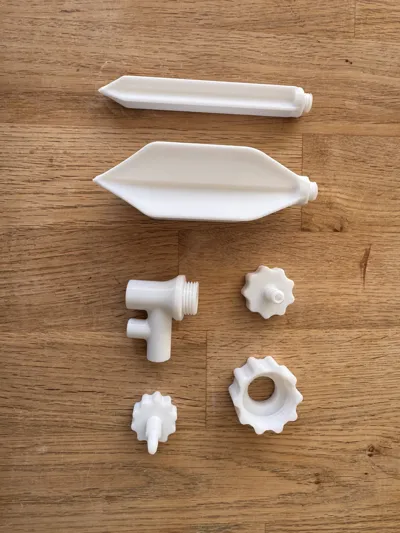

🔧 Set Contents:

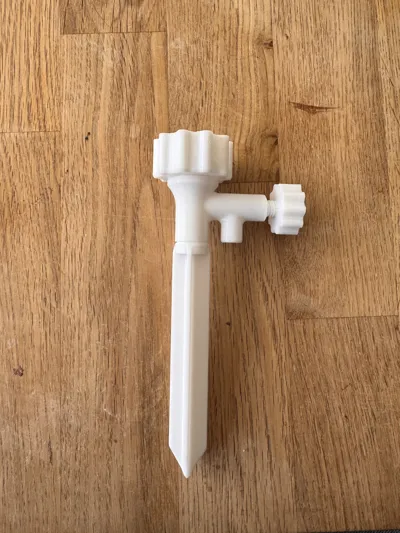

- 1x universal ground stake
- 1x drip emitter with flow control valve
- 1x PET bottle adapter
- 1x tubing connector (4/6 mm)
various additional accessories
All components are individually combinable and easily expanded or replaced – perfect for bespoke DIY gardening solutions.
🌱 Features:
💧 Targeted drip irrigation: Delivers water directly to the roots – ideal during periods of high heat or while on vacation.
🔄 Modular & expandable: Compatible with standard tubing systems or PET bottles.
🧰 Low-maintenance & robust: No adhesives required – all parts are precision-engineered.
🧵 Maker-centric design: Adaptable, expandable, combinable – ideal for inventive hobbyists.
☀️ Suitable for indoor & outdoor use (depending on the printing material).
📐 Technical Specifications:
- 🕒 Print time (complete set): approximately 3 hours 20 minutes
- 🧵 Wall thickness: 4 perimeters
- 🖨️ Layer height: 0.2 mm
- 🔩 Nozzle diameter: 0.4 mm
- ⚙️ No support structures needed
- ✅ Optimized for FDM 3D printers
- 📦 Recommended materials:
- PETG / ABS (for outdoor applications)
- PLA (for indoor use)
- Candle wax for lubricating the adjustment screw
💡 Tip for larger containers:
If using a single dripper to water a larger pot:
➡️ Place a piece of cotton cloth in a star pattern, radiating outwards from the drip point, into the soil.
This facilitates better moisture distribution throughout the pot, reaching a wider root zone – eliminating the need for extra nozzles or tubing!

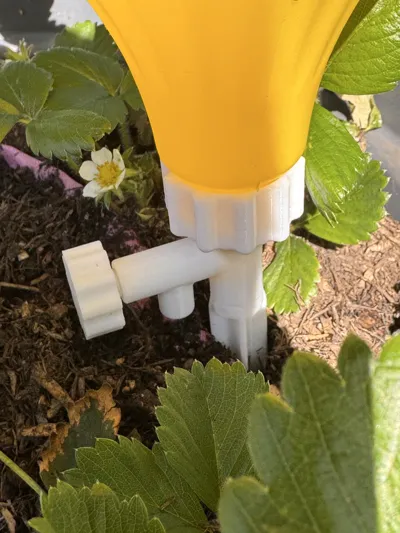

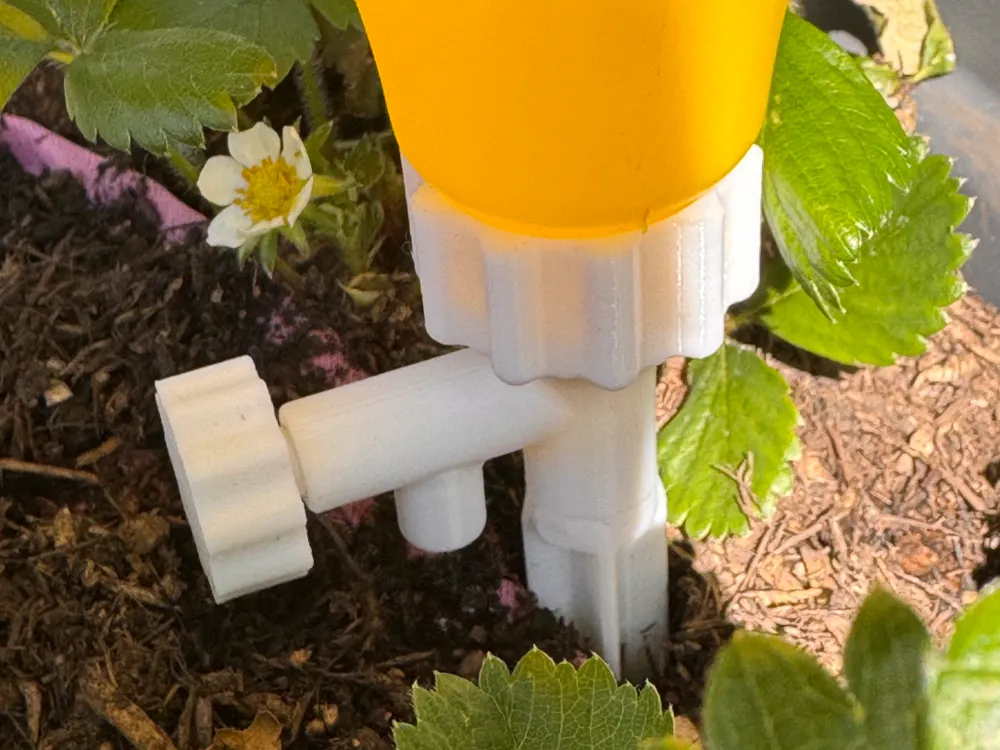

🔧 Note on using with PET bottles:
When using the system with a PET bottle,
➤ create a small vent hole at the top of the bottle
to prevent a vacuum and ensure even water flow.
Boost Me (for free)
**🎁 Kindly boost me (it costs you nothing)!**
Your click helps me offer new designs for free. Thank you! 🙏
License
You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.
