Skadis/Racka filament rack A1 Mini compatible
Print Profile(2)
Description
Membership
If you like my designs and would like to support me a membership would be AMAZING! This will also give you a commercial license to sell prints of all my designs
Boost Me (for free)
If you like my designs a boost or a follow would be appreciated

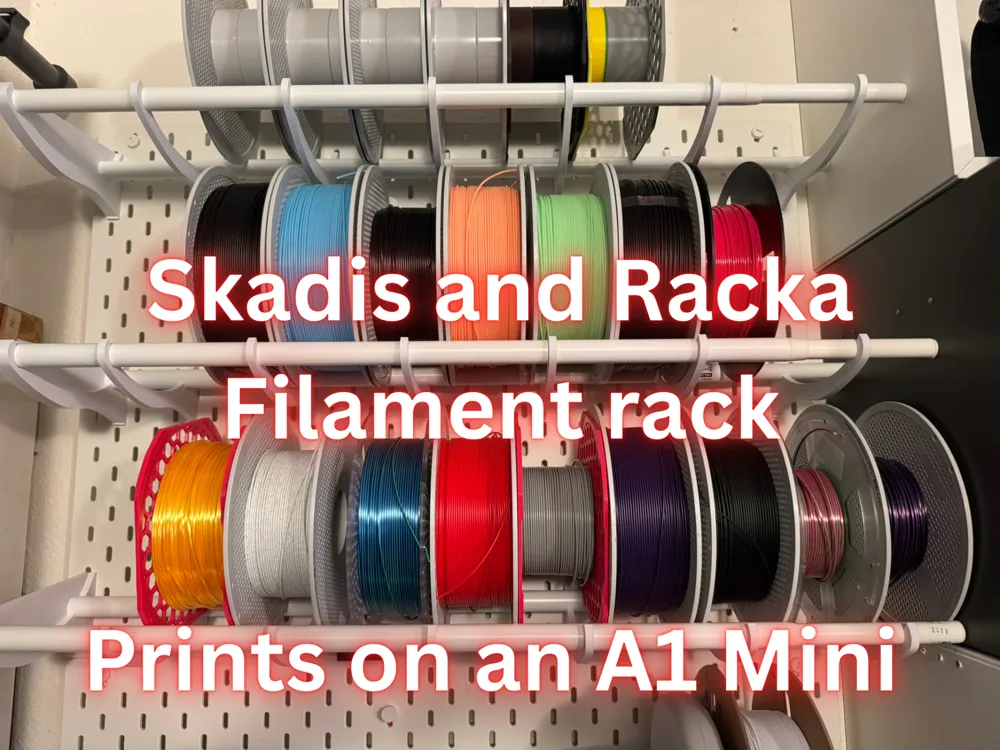

Lightweight, strong, and carefully designed filament rack for Ikea Skadis using Racka curtain rods.

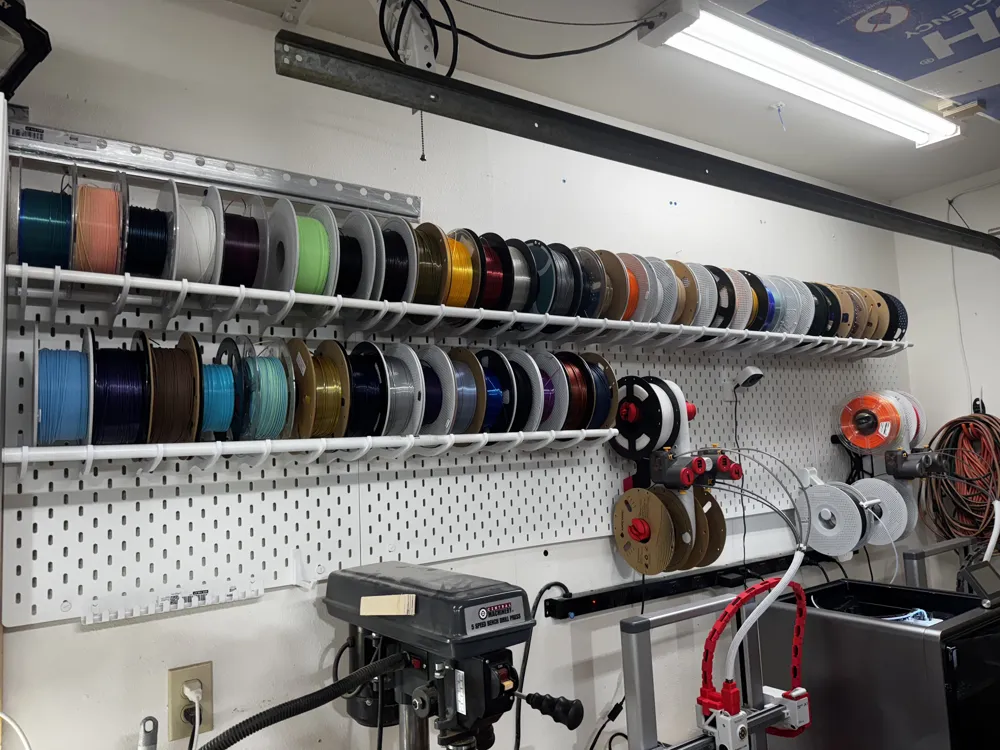

The Skadis is ubiquitous, but racka is overlooked. its a $3 curtain rod and can be used in combination with these shelf brackets to store up to 36 spools of filament on a single Skadis panel! Make sure your panel is REALLY well secured to the wall!

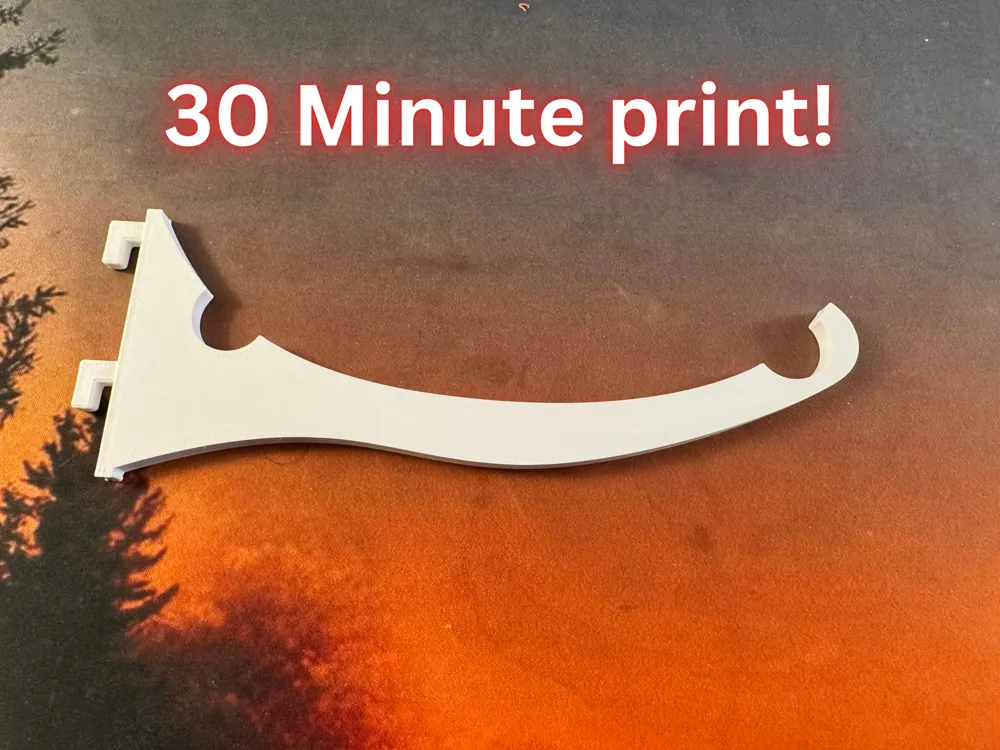

These shelves are quick to print (30 minutes ish) and can fit on an A1 mini.
Features:

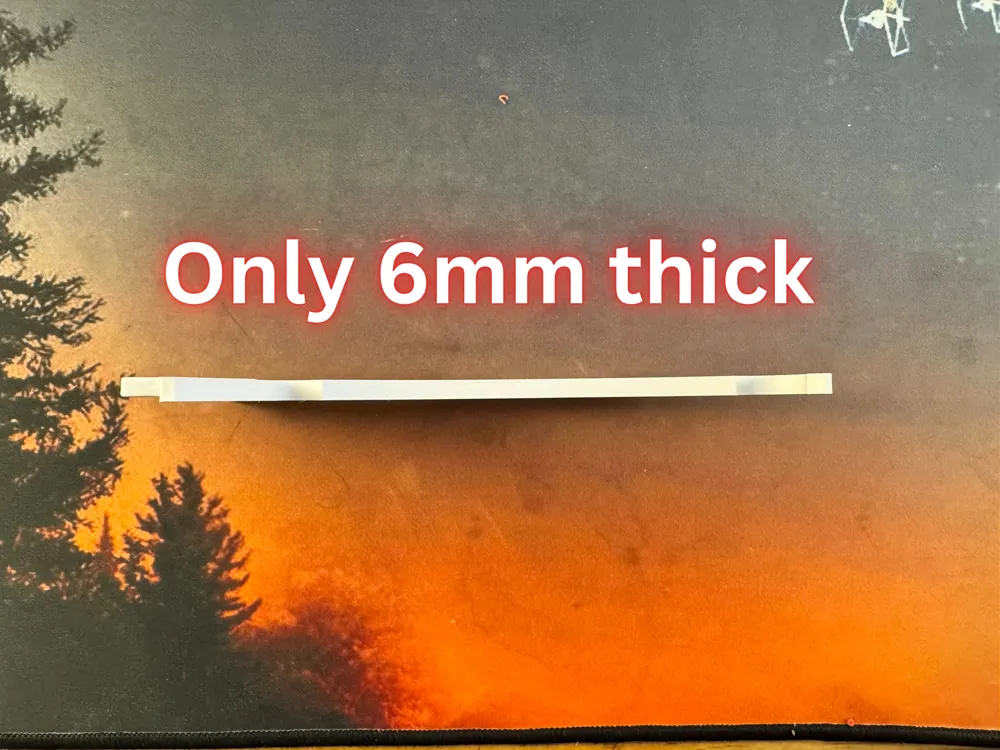

- Small in size, but strong in groups
- A1 Mini compatible

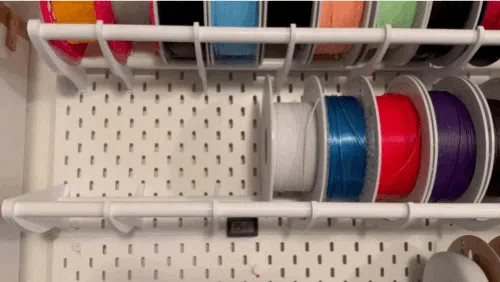

- Does not interfere with spools sliding left and right
- Optional endcaps with anchors to prevent spools from sliding off the shelf, and the rods from slipping out of a bracket
- maintains level even when inner rod is exposed. 17mm bracket provided in the profile.
- no supports
I recommend printing in PLA if your environment supports it. PETG seems to sag more since its flexible. I haven't tried other types. I recommend one bracket every 5 slots in the skadis at least.
