Drill guide add on
Print Profile(2)
Description

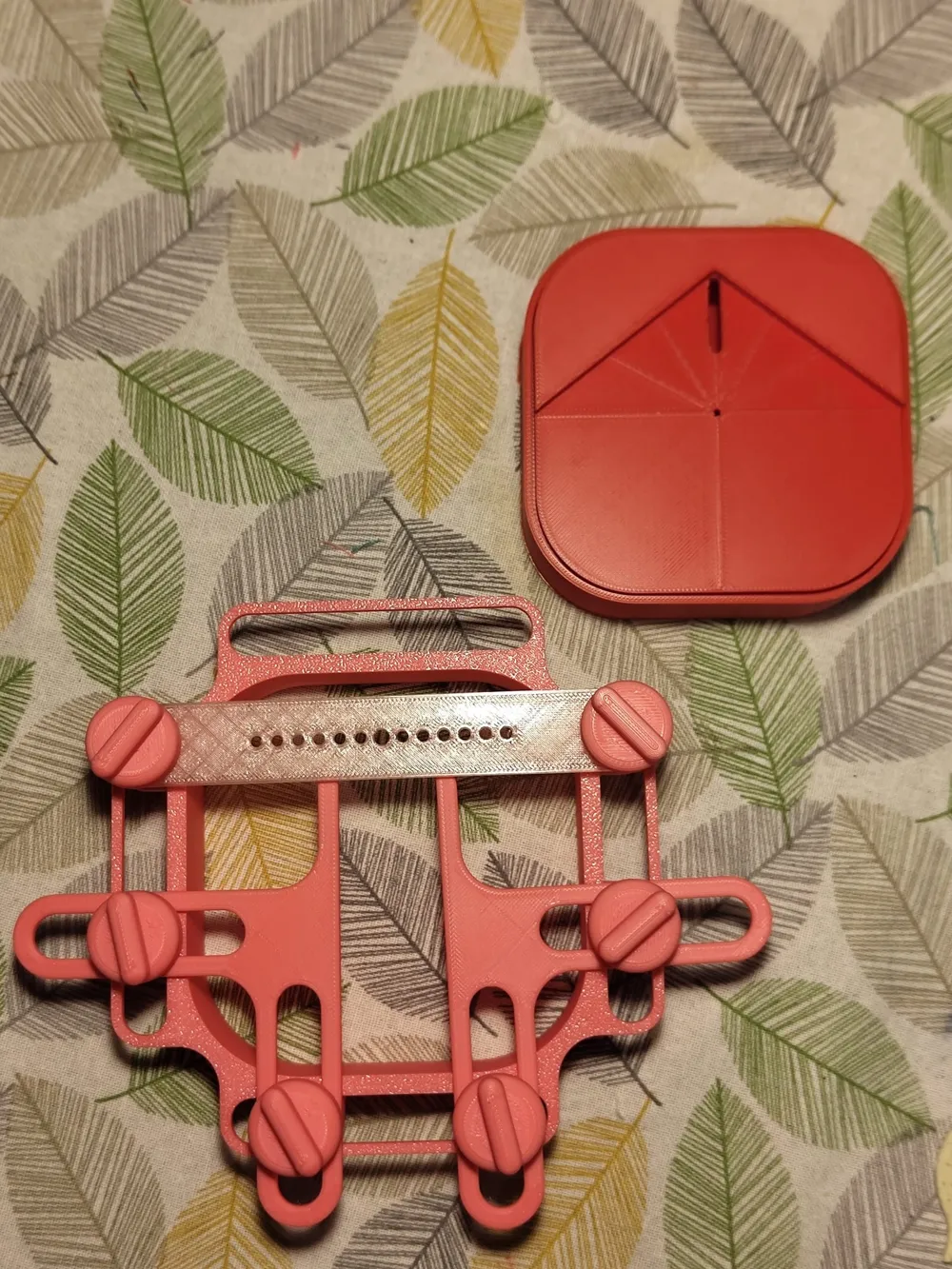

Add-on for the original polymer clay earring drilling guide – designed to expand functionality while staying 100% compatible with the original tool!
This is an add on for our previous uploaded Drilling guide: https://makerworld.com/es/models/1142812-drilling-guide-for-polymer-clay-earrings#profileId-1147921

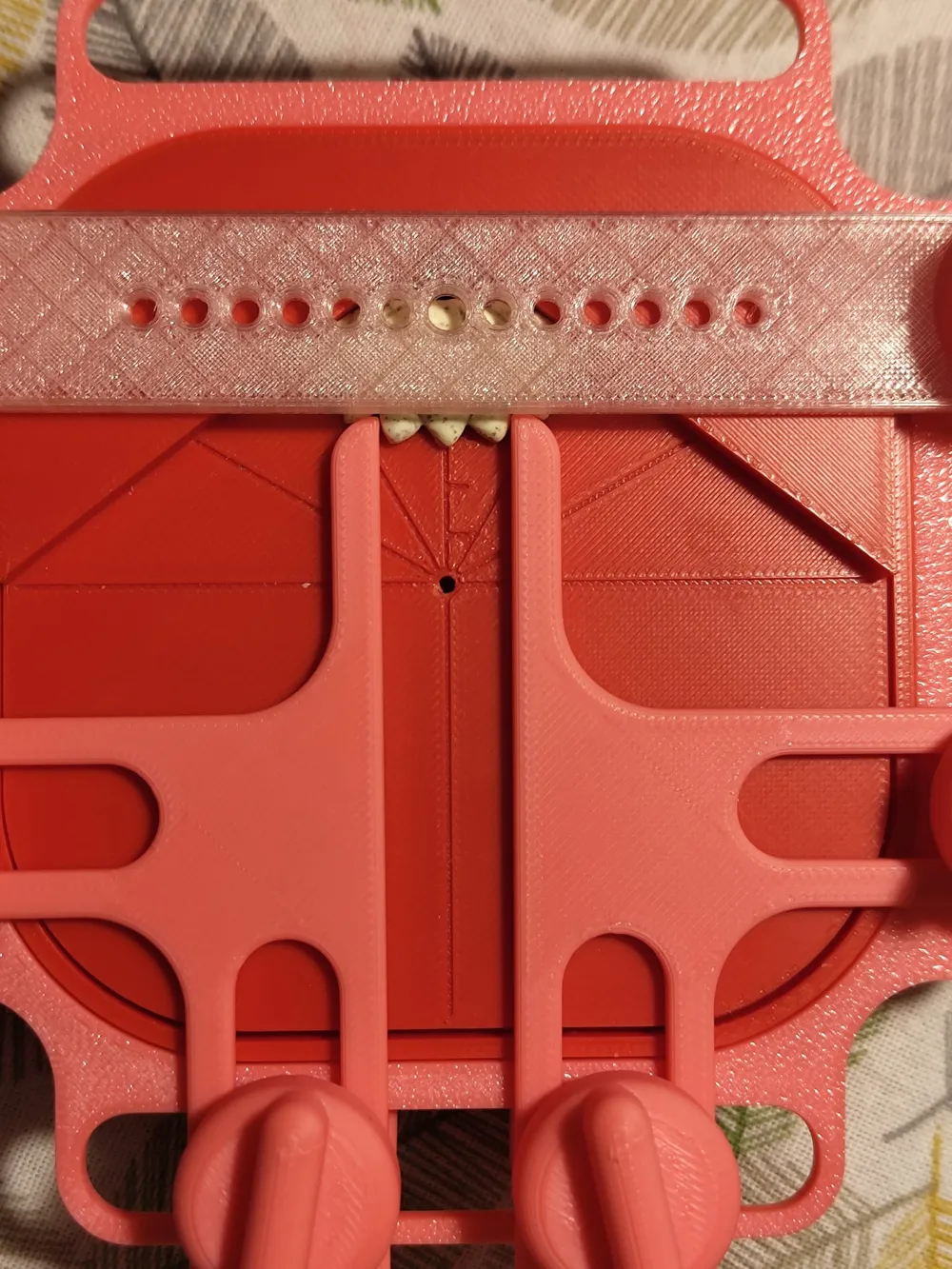

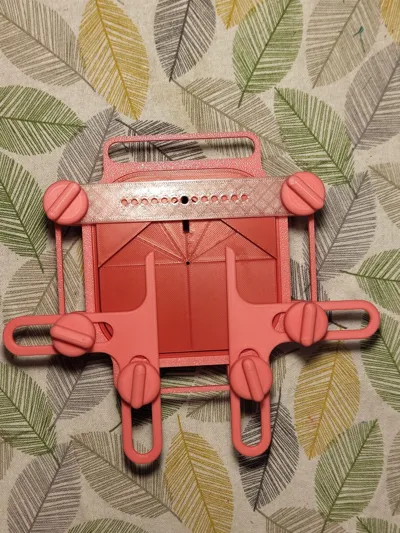

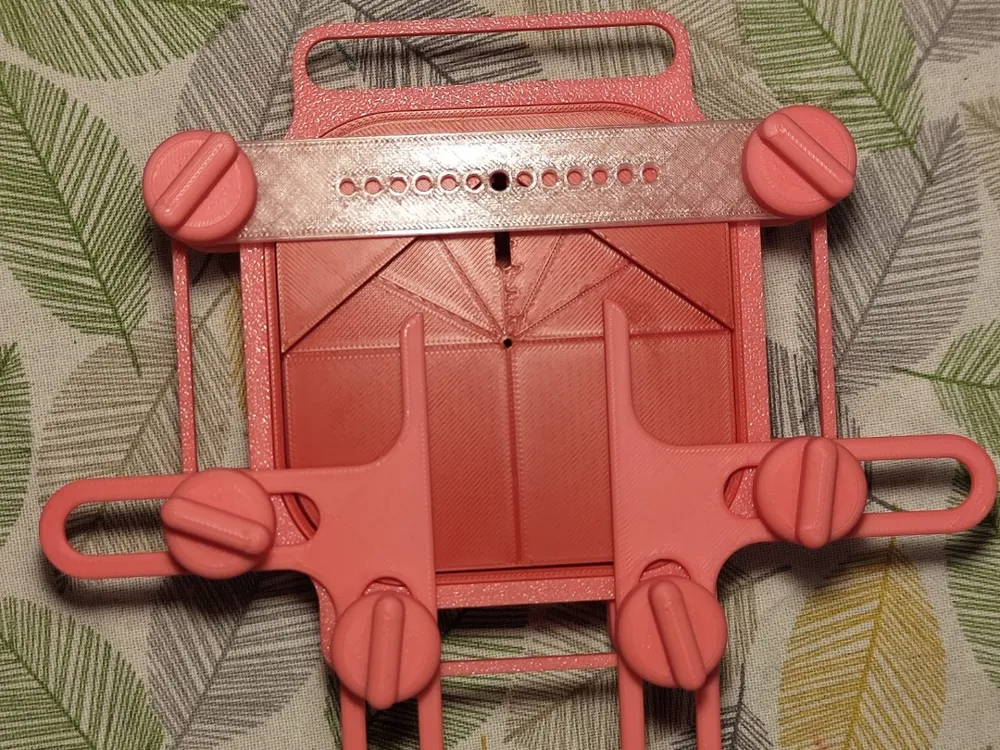

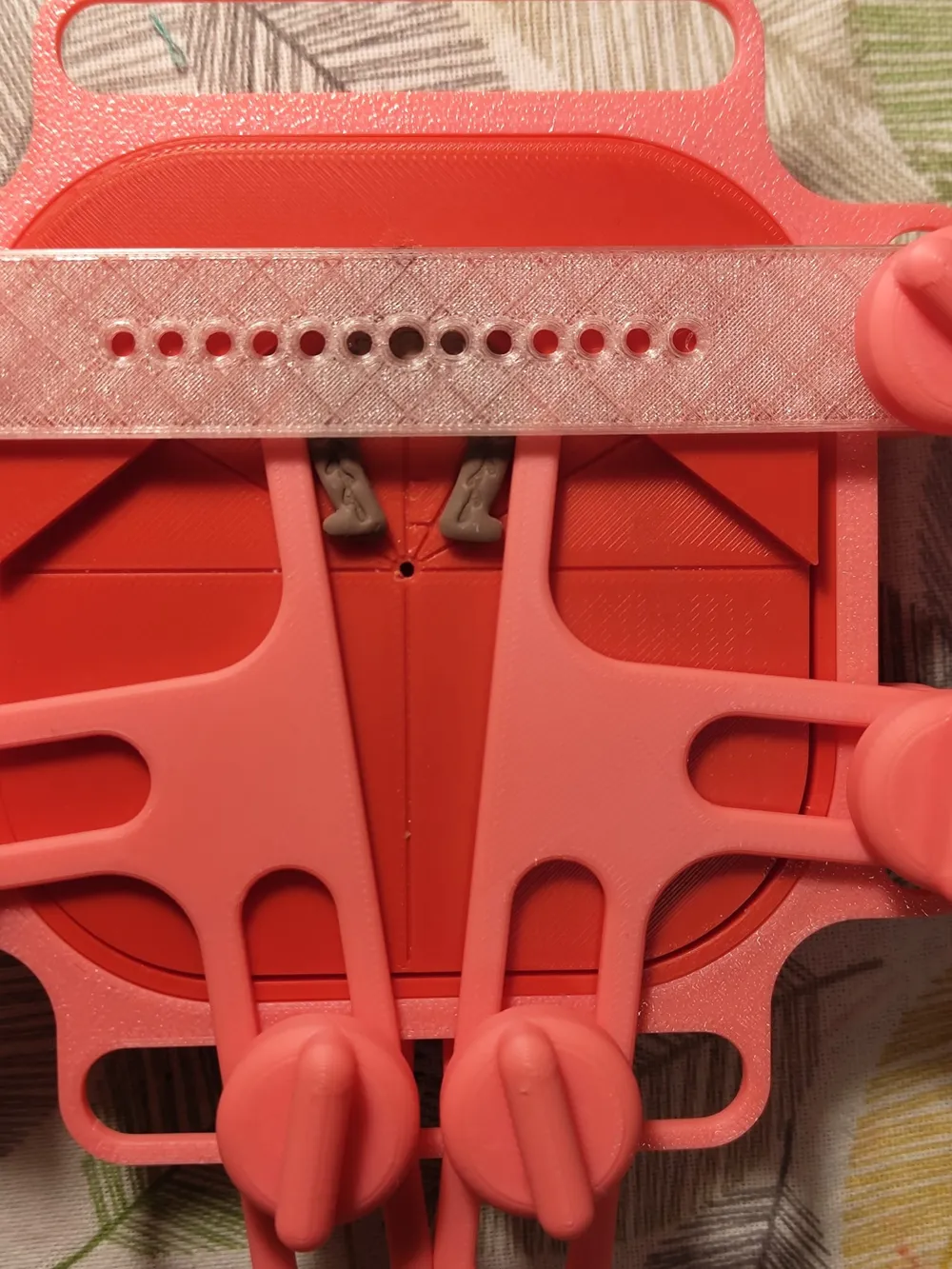

This attachment introduces horizontal and vertical fixing guides to securely hold your piece in place, along with a drilling guide extension for more precise results. It's optimized to reduce filament usage (only the screws require supports).

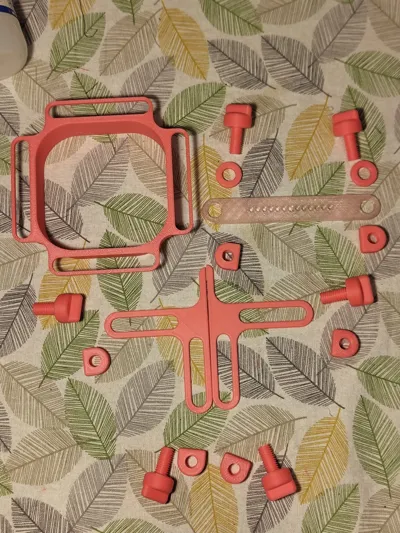

Included in this add-on:

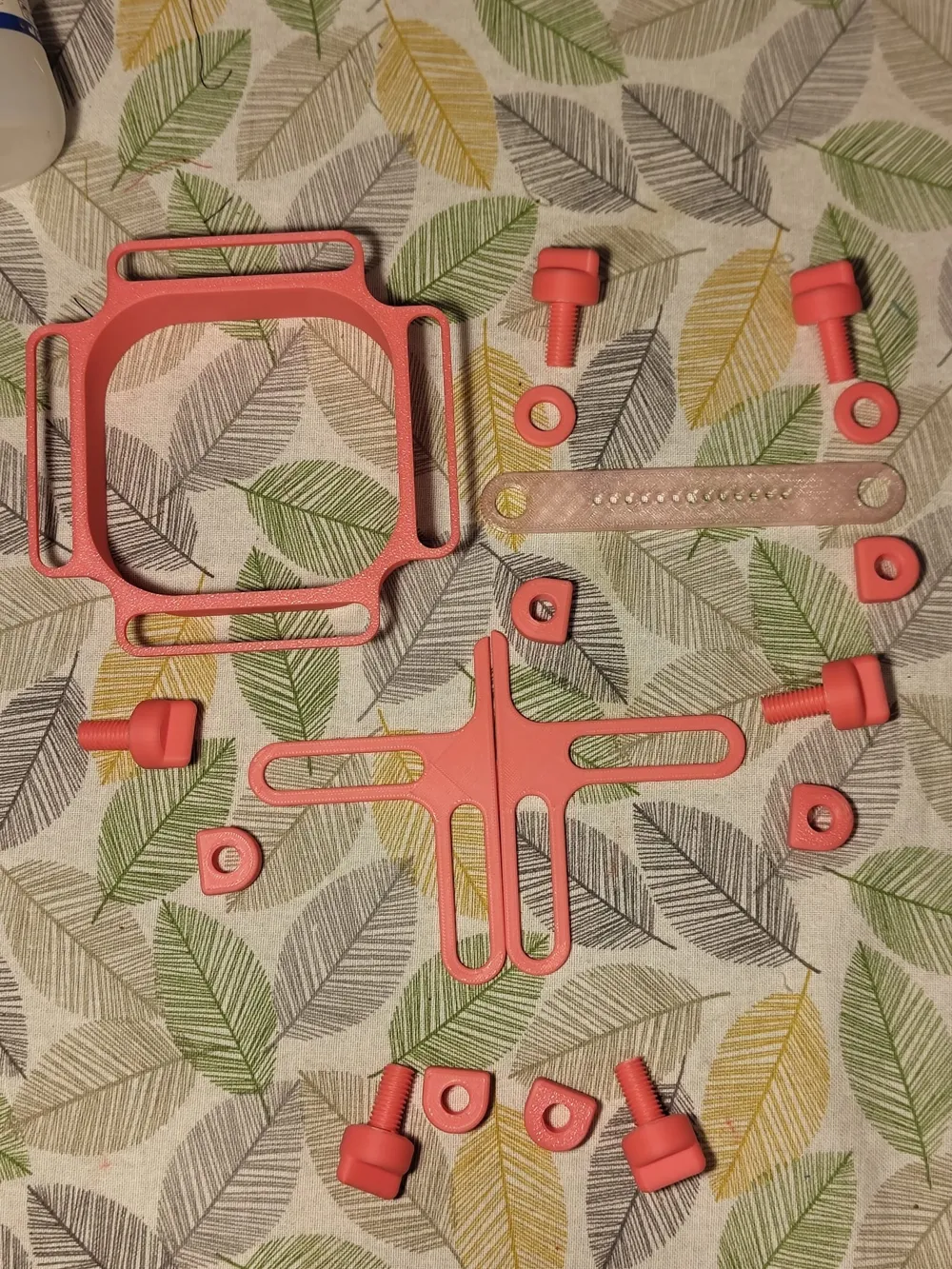

🔩 Easy-grip screws, 🥏 washers, and 🧷 D-shaped nuts for a smooth and secure assembly.
- Screws insert from the top.
- D-shaped nuts are placed underneath, with the flat side facing inward so they lock against the wall and don’t rotate.
- The side supports (with D-shape) feature a small handle for easier tightening.
- For the drilling guide attachment, add a washer between the base and the guide to slightly raise the height.
Photos

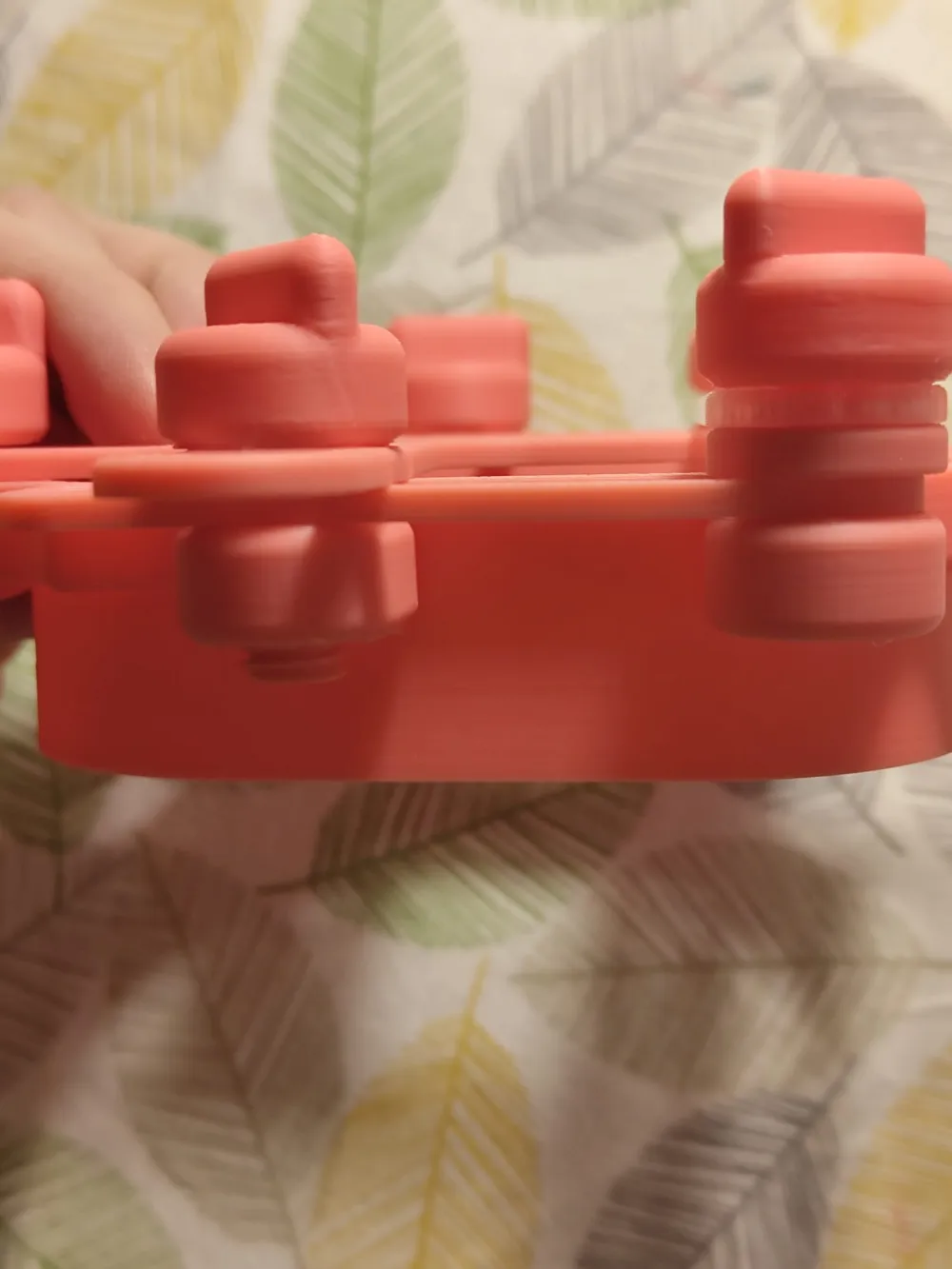

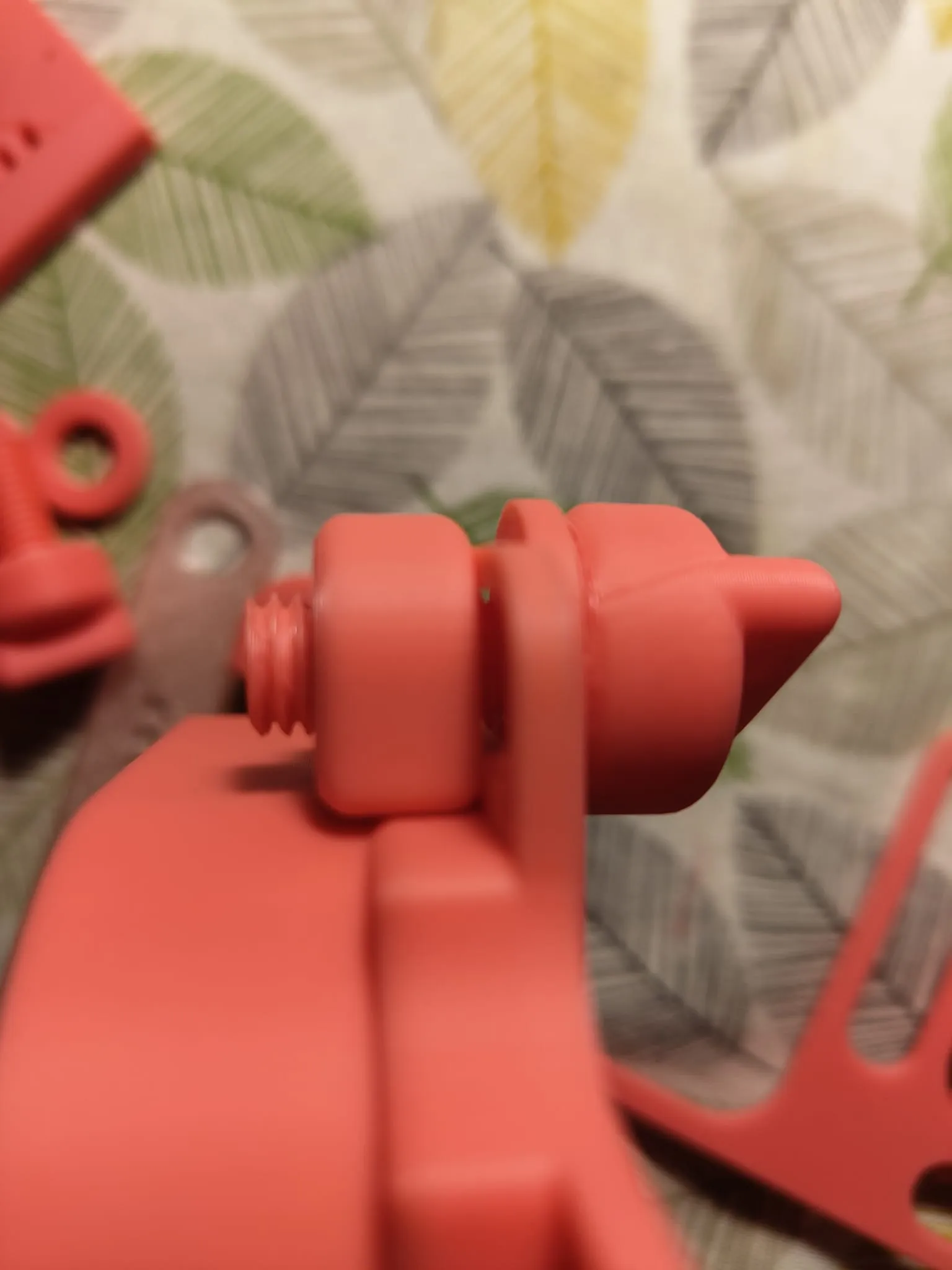

This is for the L guides: Screw on top and D shaped screw on the bottom of the add on:

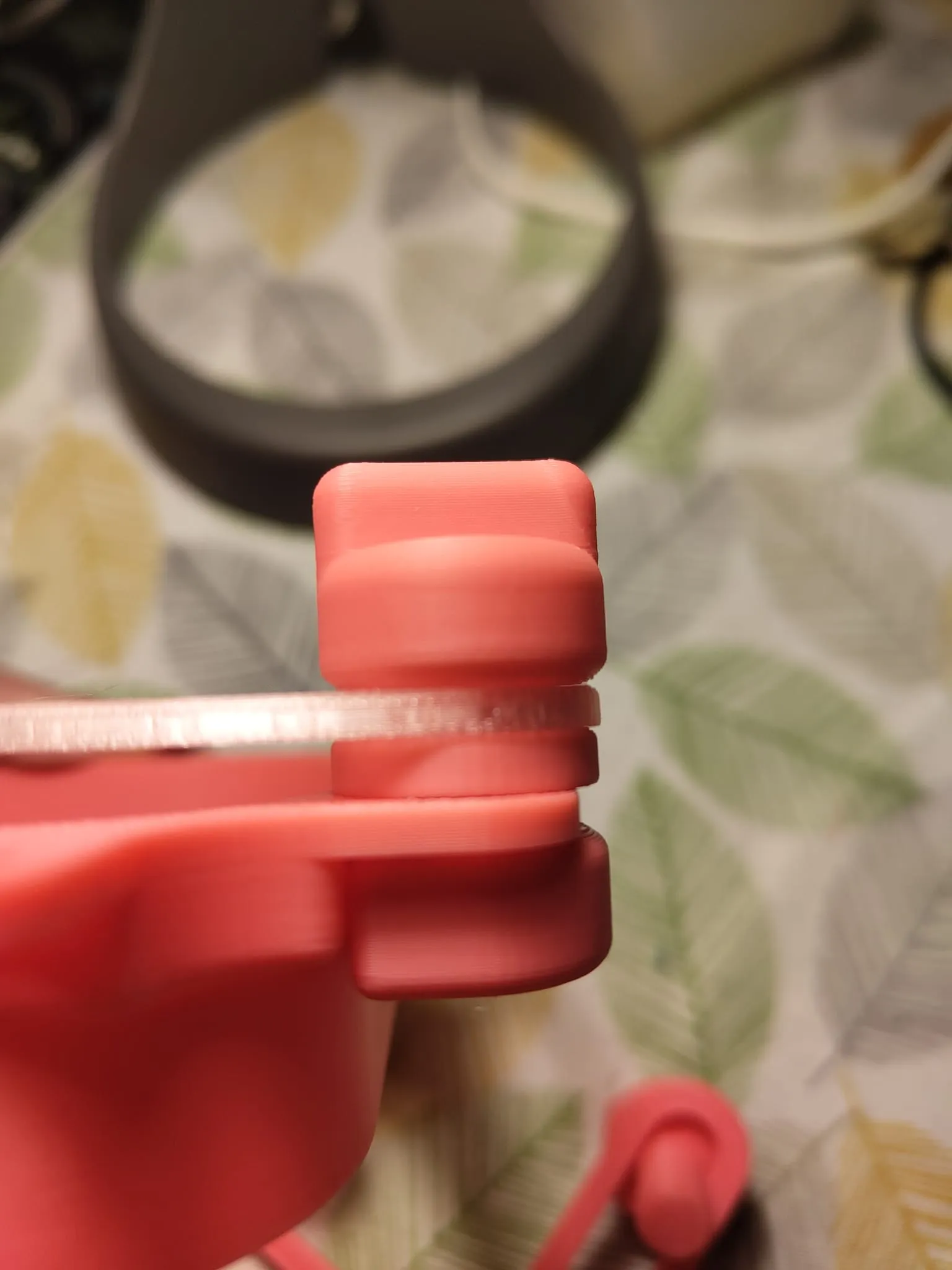

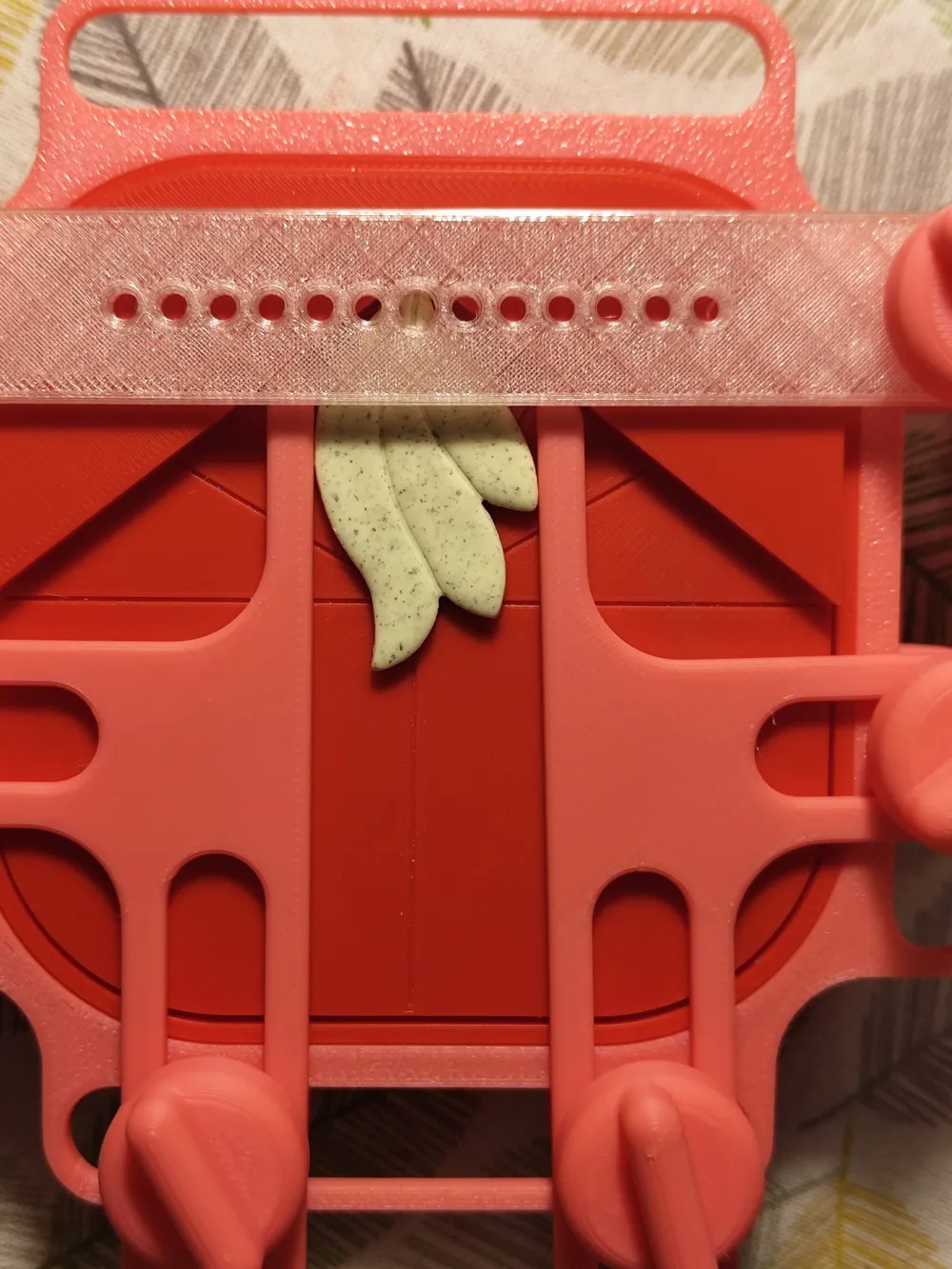

This is for the Drilling guide: Screw on top, washer between the drilling guide and the add on, and D shaped screw on the bottom of the add on:
This add-on improves stability, control, and precision without sacrificing print efficiency!
