071 Yimengshan Ship 1:2000

If you are interested in my other designs, you can browse my homepage or collections  IKEA Skadis and accessories   Modular storage box  1:2000 boat model 1:700&1:350&chibi versions Daily necessities 3D printing related Toy

The Yimengshan warship (hull number 988) is China's independently developed Type 071A amphibious transport dock, 210 meters long, 28 meters wide, with a displacement of nearly 20,000 tons

It can transport a standard marine battalion of 800 marines and 20 armored vehicles, and accommodate two large or four small hovercraft. Two Z-8 helicopters can be parked on the flight deck, and the hangar can hold up to four Z-8 helicopters

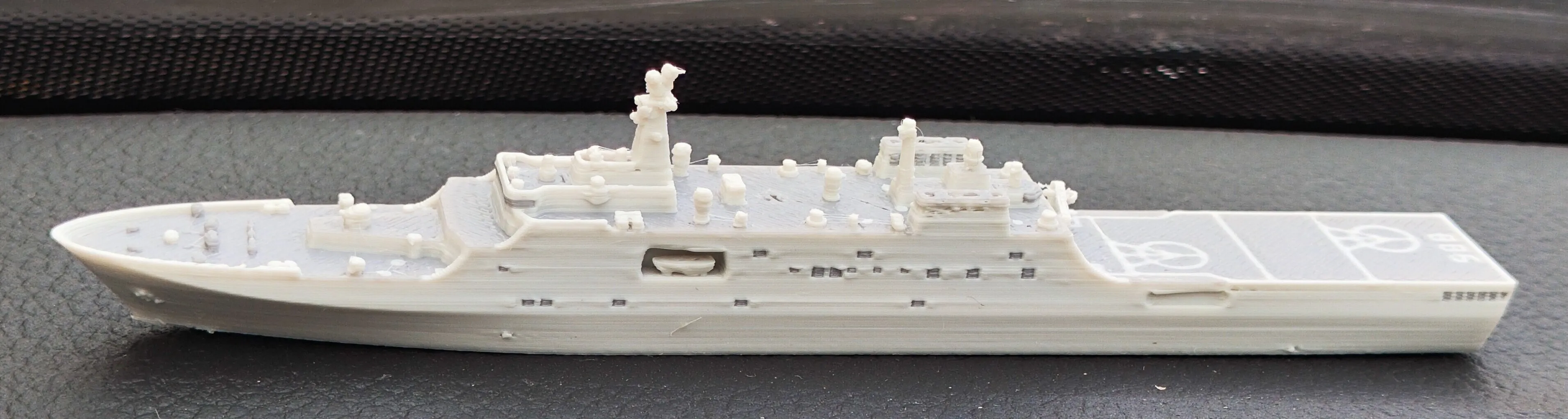

The model is approximately 105mm long, at a scale of 1:2000. Like my other ship models, details will be rendered as much as possible within the printable range

I verified printing with a 0.4 nozzle. Using a 0.2 nozzle or scaling up to 200% can also reveal more details

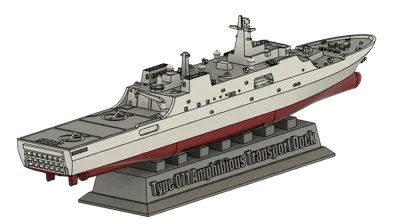

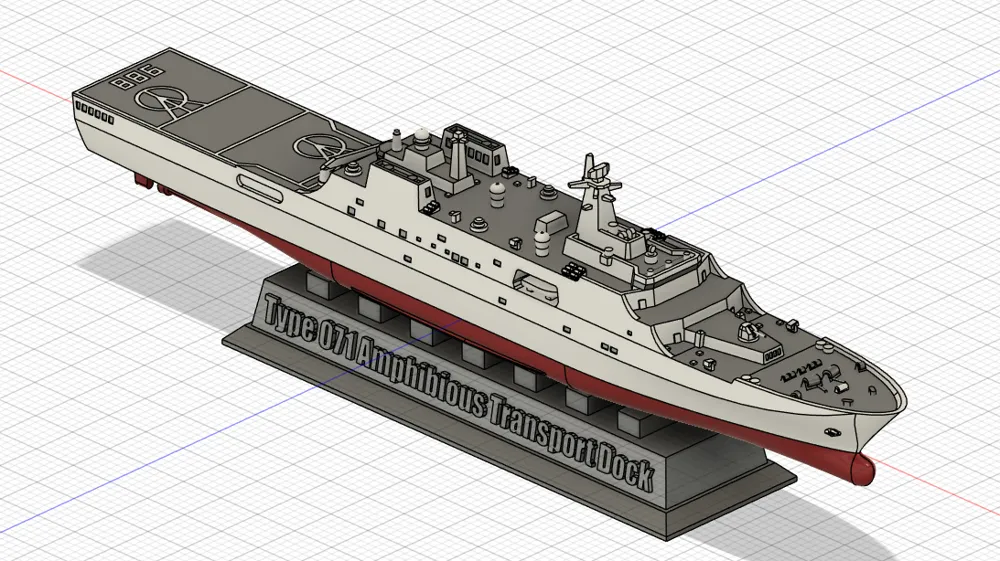

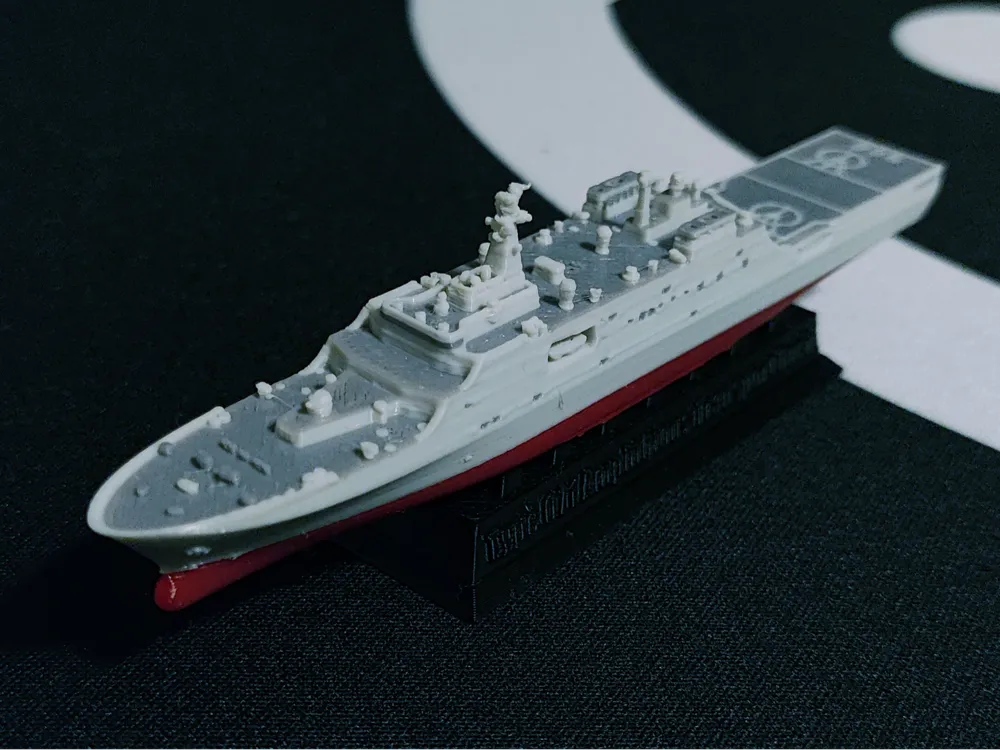

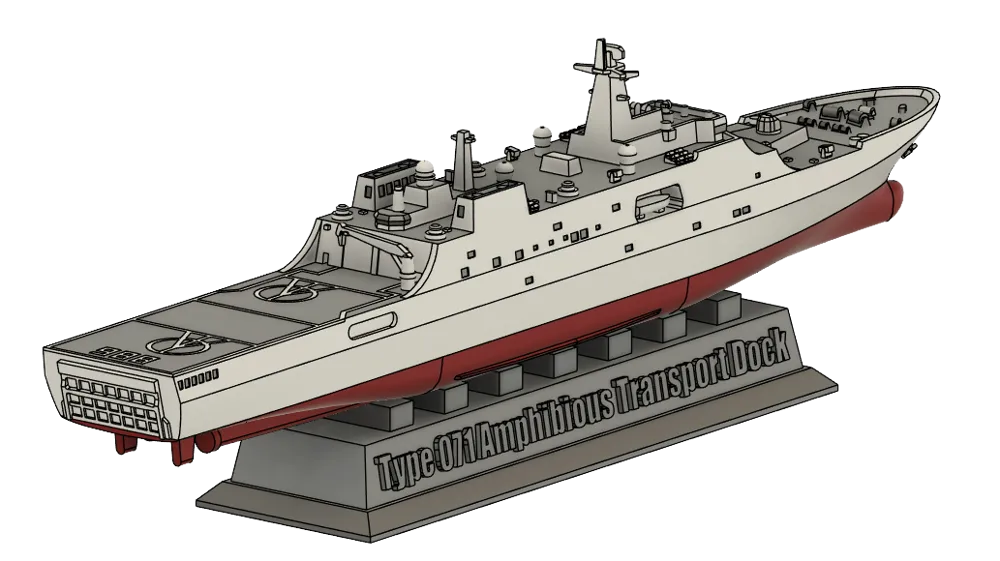

The hull base and stand are still provided. You can choose between a waterline model or a full display piece. Two 4x2mm magnets are installed on the hull and base. Pay attention to magnet polarity during installation

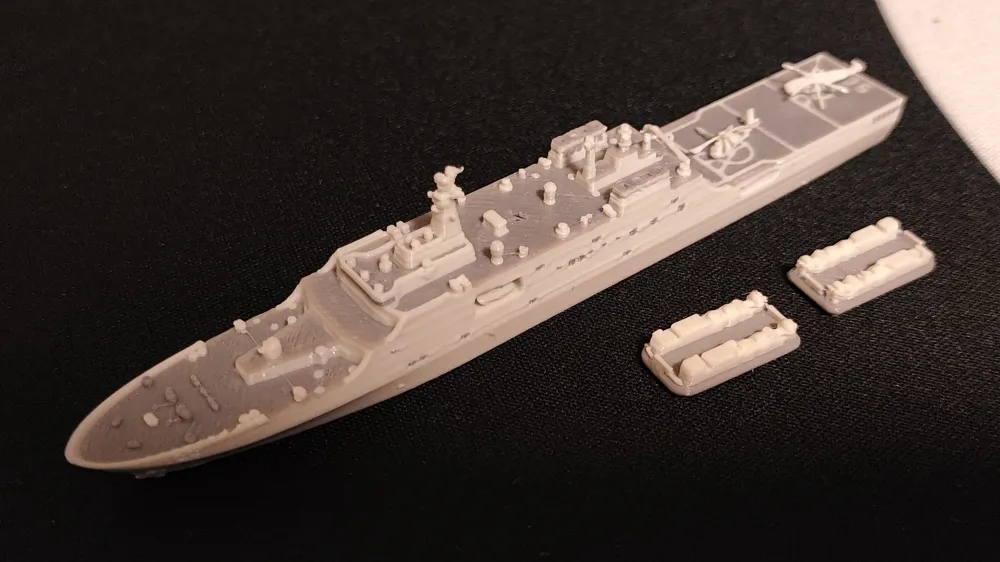

You can also print the Z-8 helicopter and Wild Horse landing craft models I provided with the Sichuan ship model to complement this piece😁

2025.9.30

Fixed a minor bug. Now both the dual-color and single-color print profiles include 8 ships, but the hull bodies are identical, only the hull numbers differ, so you can choose to print your preferred one

998 Kunlunshan 999 Jinggangshan 989 Changbaishan 988 Yimengshan 980 Longhushan 987 Wuzhishan 986 Simingshan 985 Qilianshan
