Traeger P.A.L. (PAL) Pop-And-Lock Accessories

Customize your new Traeger pellet grill and griddle

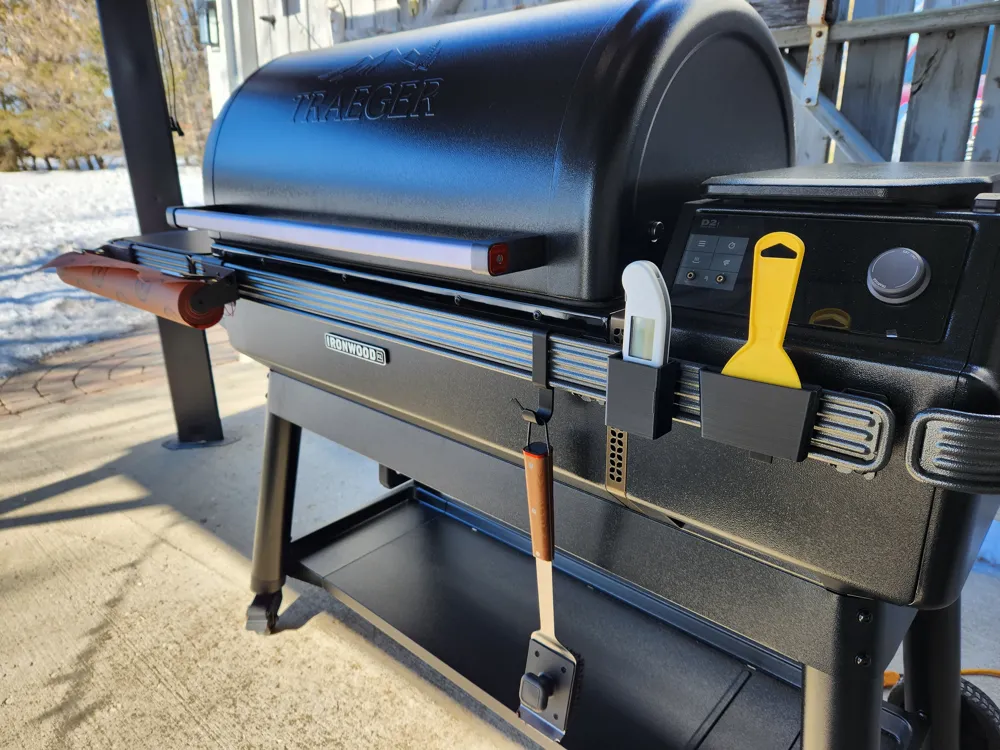

These are printable accessories for the new Pop-and-Lock (P.A.L.) system on the most recent Timberline, Ironwood, and Flatrock grills from Traeger. They clip on just like the original accessories.

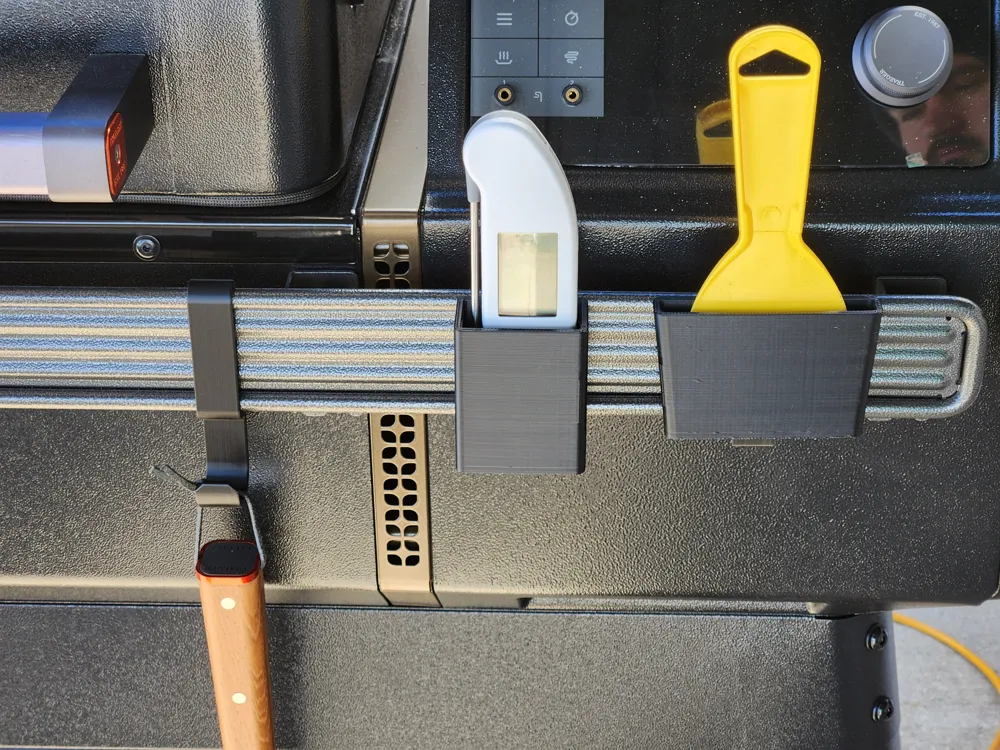

Accessories:

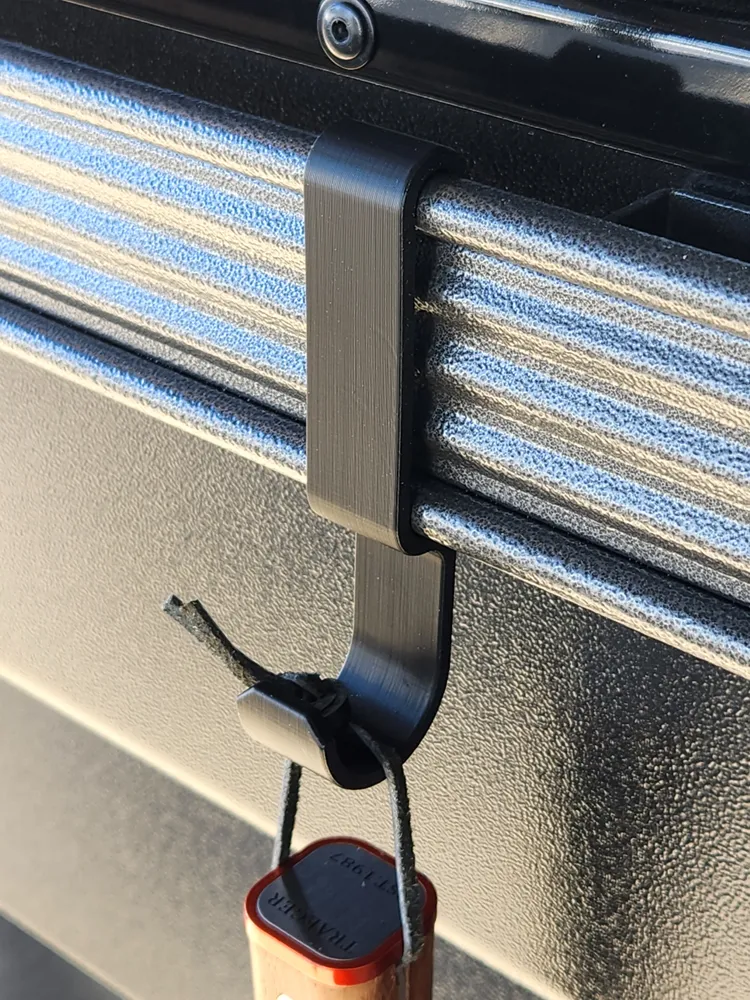

• Hook - Like the accessory available for purchase from Traeger. Only requires the one printed part.

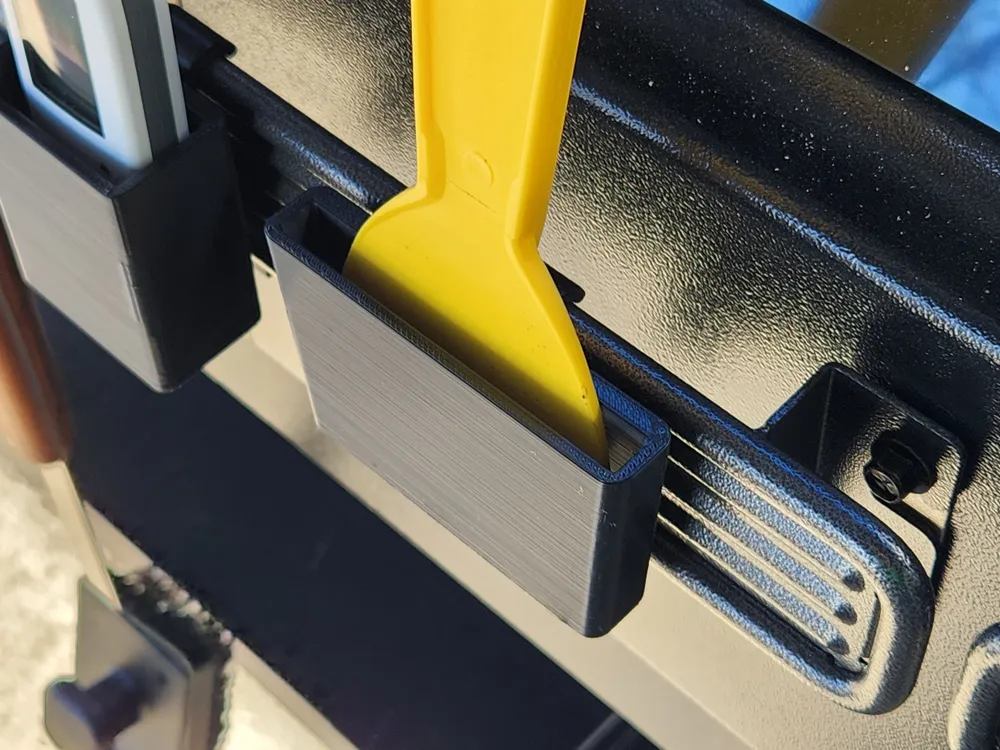

• Scraper (Putty) Holder - A small bin to hold a plastic putty knife/scraper up to 3.7" wide. It requires the P.A.L. - Scraper Holder and P.A.L. - M4 Clip (single) printed parts.
• Thermapen Holder - A small bin to hold a Thermapen One or equivalent instant-read thermometers. It requires the P.A.L. - Thermapen Holder and P.A.L. - M4 Clip (single) printed parts.
• Storage Bin - Similar to the one available for purchase, but only about half the length. It requires the P.A.L. - Storage Bin and P.A.L. - M4 Clip (double) printed parts.

The holders and bin have openings in the bottom for water and grease to drain out of.

Printing:

• All parts can be printed without supports, rafts or brims.
• I have printed some parts with a 0.4 nozzle and some with a 0.6 nozzle (I got impatient), and both work well.
• As the pellet grill/griddle will (assumingly) be exposed to the sun a lot, I recommend printing the parts in ASA, if possible. Otherwise, PLA, PETG, or ABS will also work.

Assembly:

• Everything except the hook requires M4x8 bolts and nuts to assemble (M4 Clip (single) needs 2, M4 Clip (double) needs 4).
• Place the nuts in the attachment part (holders or bin) and screw the bolts in from the backside of the clip.

Other accessories:

Although I will add other accessories in the future if I make them, should you need a specific one and want to make it yourself, here are the important measurements:

• Holes for the bolts are spaced 25mm apart on-center (vertical and horizontal).
• The material thickness of the holders/bin on the side attached to the clip is 5.6mm, with a countersunk of 2.9mm for the nut (this will work with an M4x8 bolt).

If you design your own accessory based on this template, please upload a remix so that we have a growing collection of P.A.L. accessories :)

Update 12/26/2023: Fixed storage bin to have the cutouts for the nuts on the correct side. Thanks to Flyrocket!

Update 10/29/2025: Added STEP file of the clip to customize and make your own attachements.
