Keychain - customizable label - magnet - 2 colors

This 3D model is a versatile, customizable keychain designed for dual-color printing, compatible with an AMS (Automatic Material Switching) system or manual filament swapping. The keychain features a sleek design with a 10x3 mm rounded hole to accommodate a magnet, adding functionality for magnetic attachment. The model includes two plate options: one with a single-line text and another with a two-line text, allowing for personalized messaging.

Key Features:

• Dual-Color Design: Print in two colors using an AMS for seamless color transitions or manually pause at the designated layer to swap filaments for a striking two-tone effect (add pause to layer #31).
• Magnet Slot: Includes a 10x3 mm rounded hole, perfect for embedding a magnet to enhance utility (add pause to layer #43).
• Customizable Text: Easily modify the text to personalize your keychain:
  1. In the object tree, locate text_shape.
  2. Right-click and change its type from "Modifier" to "Part."
  3. Edit the text by right-clicking and selecting "Edit Text" or using the toolbar text button.
  4. After customization, revert the text back to "Modifier" in the object tree to finalize.
• Two Plate Options:

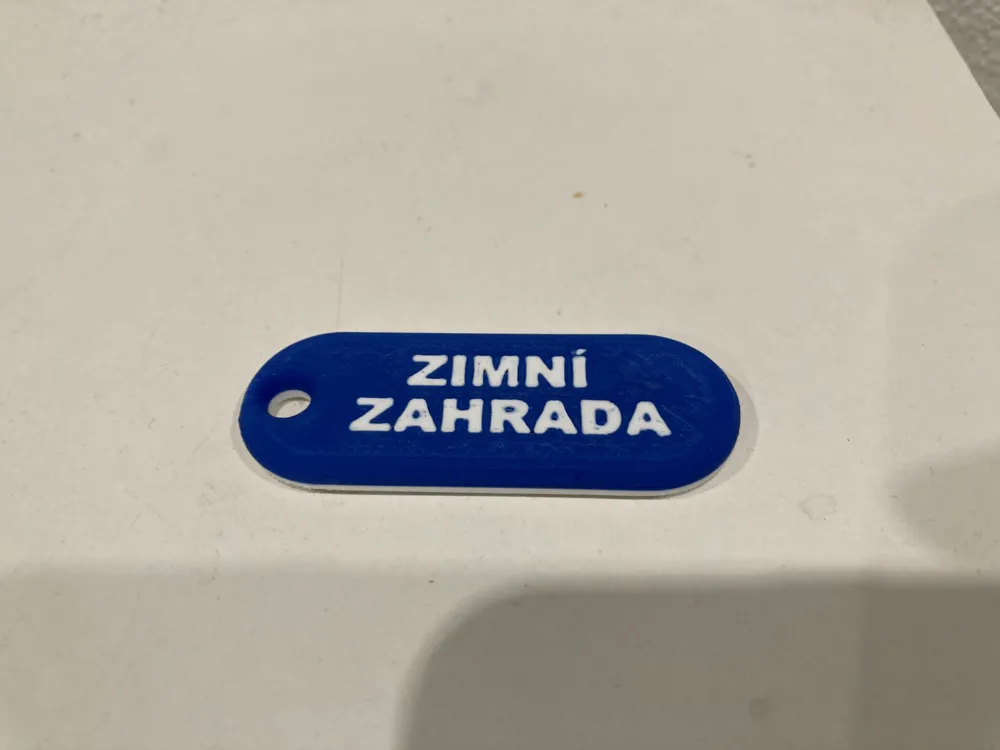

  • Single-Line Plate: Ideal for short names or phrases.

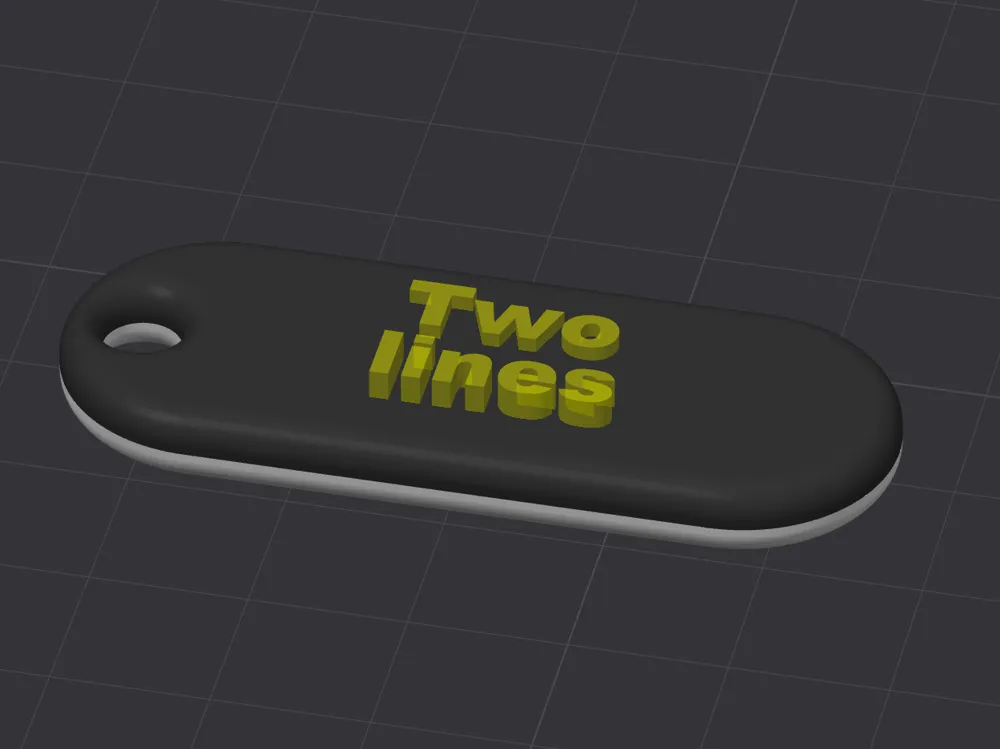

  • Two-Line Plate: Perfect for longer messages or dual-line designs.

Recommended Print Settings:

• Layer Height: 0.08 mm for fine detail and smooth surfaces.
• Initial Layer Height: 0.16 mm for strong bed adhesion.
• Ironing: Set to "Topmost Surfaces" to ensure a polished finish on the keychain’s top layer.
• Wall Generator: Use "Arachne" for optimized wall structure and improved print quality.
• Prime Tower: Not required, reducing filament waste and print time.

This keychain model combines functionality with customization, making it an excellent choice for personal use or small-scale production. Whether you're creating a unique gift or a branded item, this design offers flexibility and ease of use for 3D printing enthusiasts.

Parametric model here on OnShape: https://cad.onshape.com/documents/5f28c63b2400ed3ca728cd89/w/7af732a3a668cde9192a8840/e/55a9ce8d7dcf506bce3f36ea?renderMode=0&uiState=67f90f718a2e156df4a4e38c
