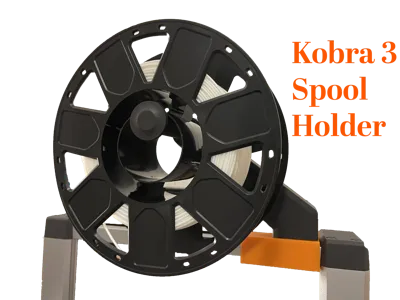

AC K3 Spool Relocator Bracket + Clip

What made me develop this? I originally tried to print TPU on the AC K3 but prompted me to print on an external spool holder that they provided which was located at the back of the printer that slid into the designated spot.

Changelog: 1.1 (3/5/25):

Updated the model to be easier to put into the slicer, also added a bambu print profile as previously, the raw files were ajoined which was a mistake on my end, apologies for the inconvenience.

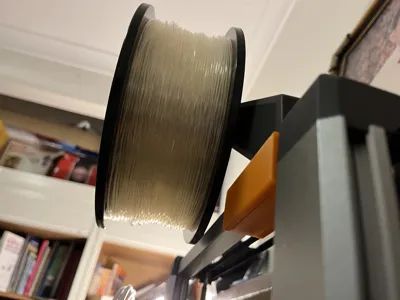

The problem with this design was heavily flawed, as soon as the print tried to calibrate the build plate automatically it would immediately hit on the spool which was definitely an issue with their original design. I've designed a bracket clip that uses the original parts that were provided with the machine and created a flush fit that slides seamlessly into the frame and uses a single clip to lock with ease. The original spool bracket just slides in tightly onto the printed clip and can be locked/unlocked with one clip. I've personally tested this for a few days and it doesn't move at all when mounted.

Please remember when adding/removing a new spool, you may want to use vibration compensation again to recalibrate the machine after adding/removing a spool.

If you want to revise on my design, you can download the fusion file and modify as you please but when uploading; please credit me is the only thing asked for.
