WLED Glow Tube LED lamp
Print Profile(1)
0.2mm layer, 4 walls, 10% infill
Designer
2.5 h
1 plate
Open in Bambu Studio
Boost
69
198
4
0
88
6
Released
Description
hi, ive designed my version of neopixel glow tube.
all you need :
- power supply
- esp32 with instaled WLED

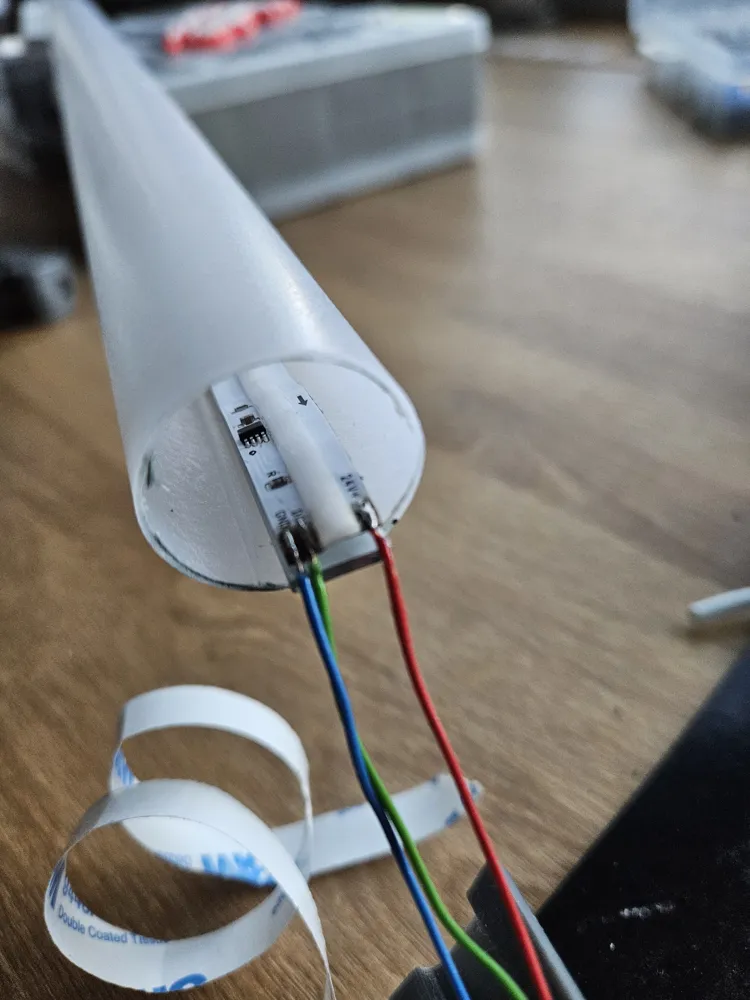

- addressable leds cob type (best for this project). eaven on the lowest brightness mode you will can't spot the individual leds! :D

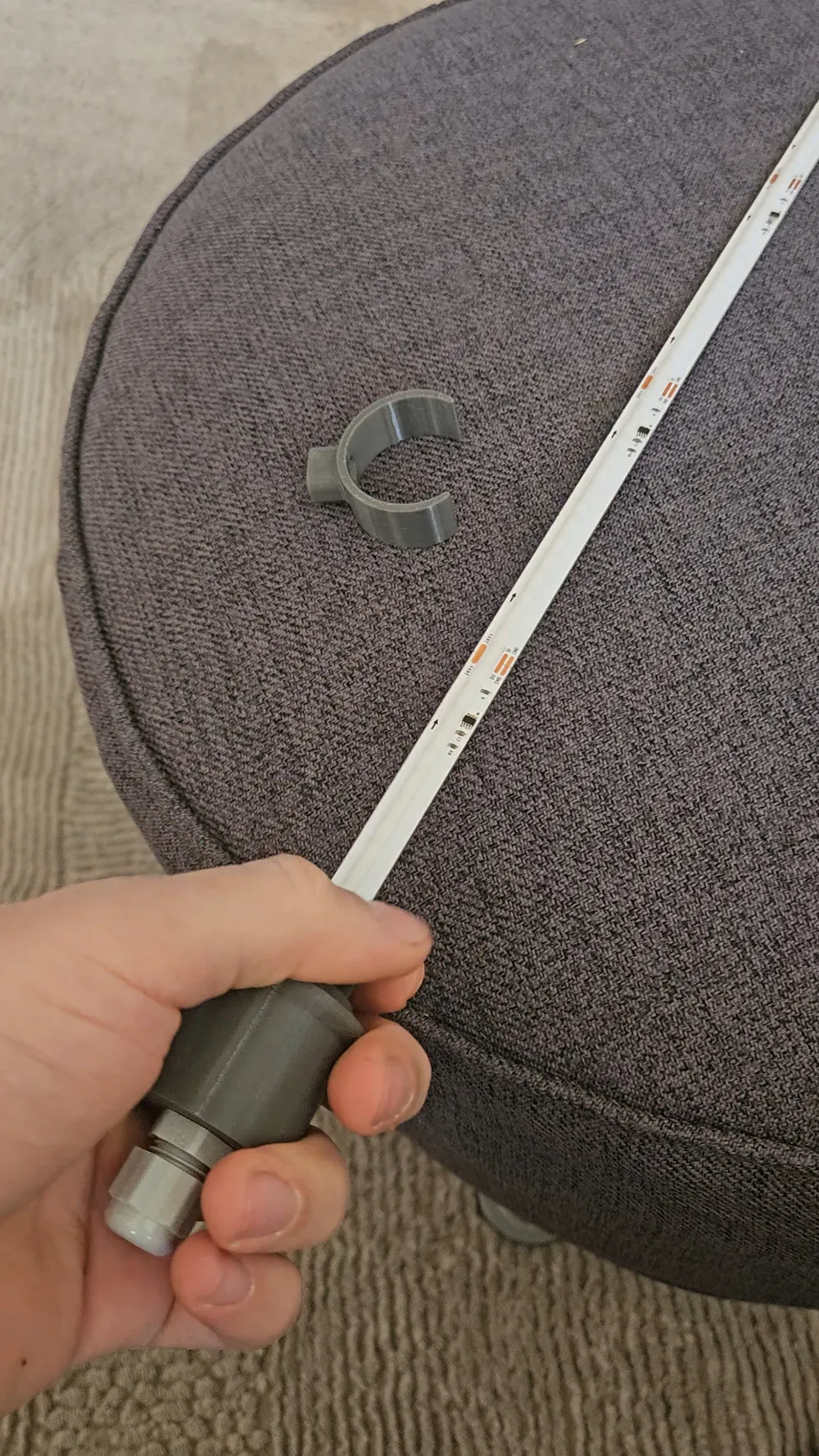

- 1m alu flat bar 10mm x2mm (used for heat dissipation form led's

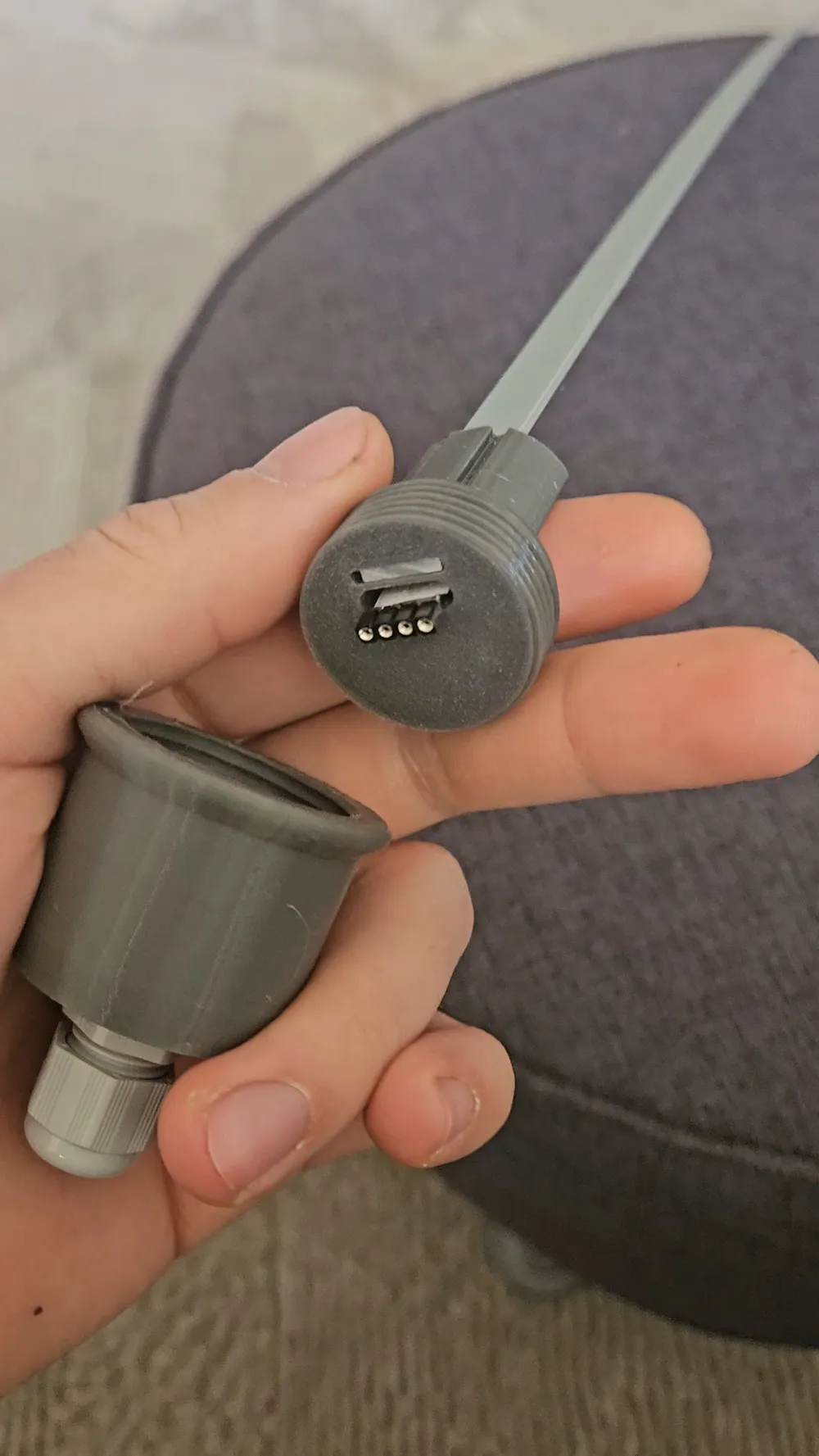

- hq goldpins
- used led glow tubes (plastic type 1'')
- pg7 cable gland
Boost Me (for free)
https://install.wled.me/
