Post Mate
IP Report
Print Profile(1)
0.2mm layer, 2 walls, 15% infill
Designer
24.9 h
5 plates
Open in Bambu Studio
Boost
6
7
1
0
3
1
Released
Description

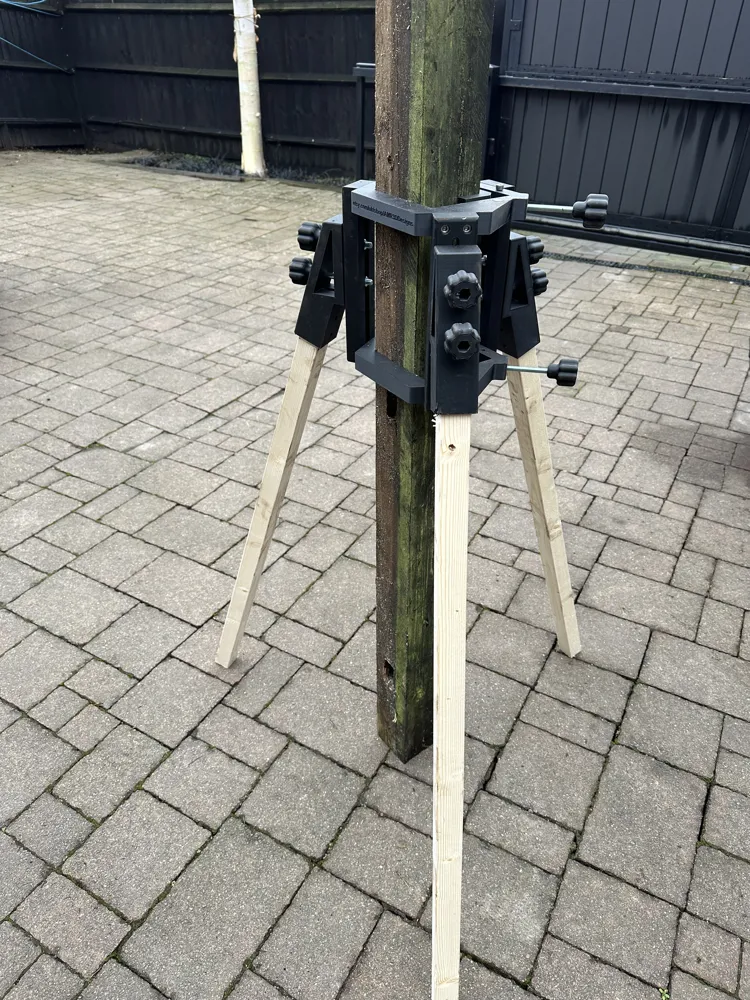

A simple tool to assist in the installation of fence posts from 44mm to 100mm in size.

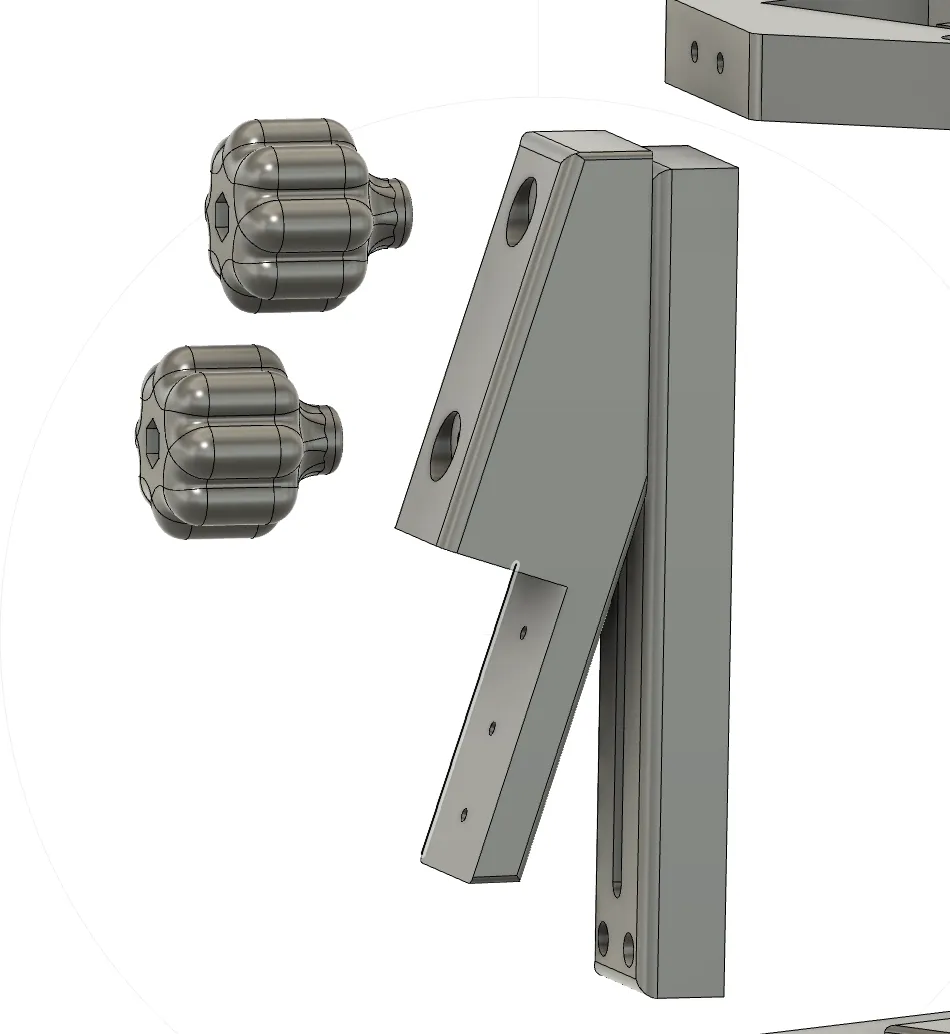

Attach 2" x 2"wooden legs to the leg mounts using small wood screws
Dig the hole (2ft recommended)

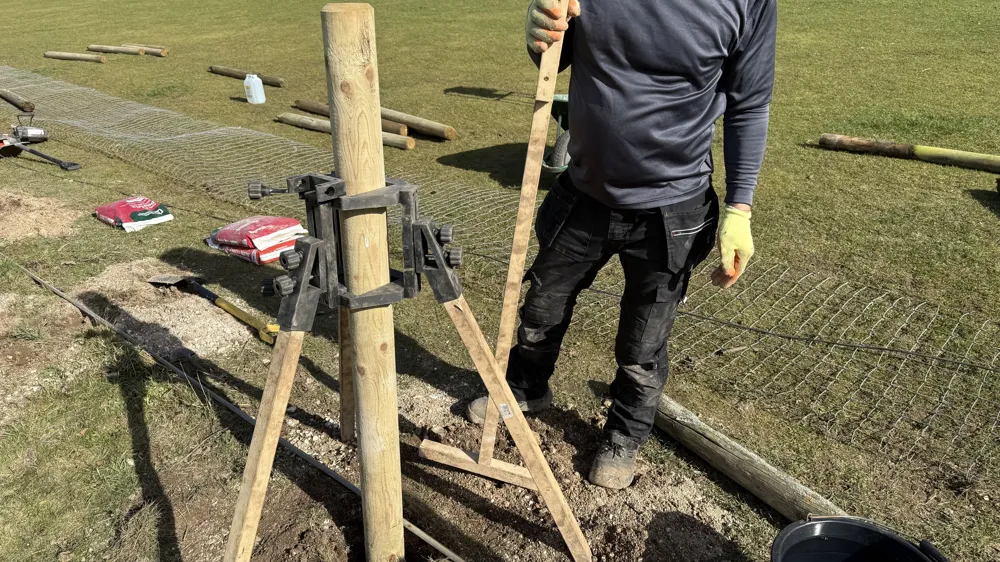

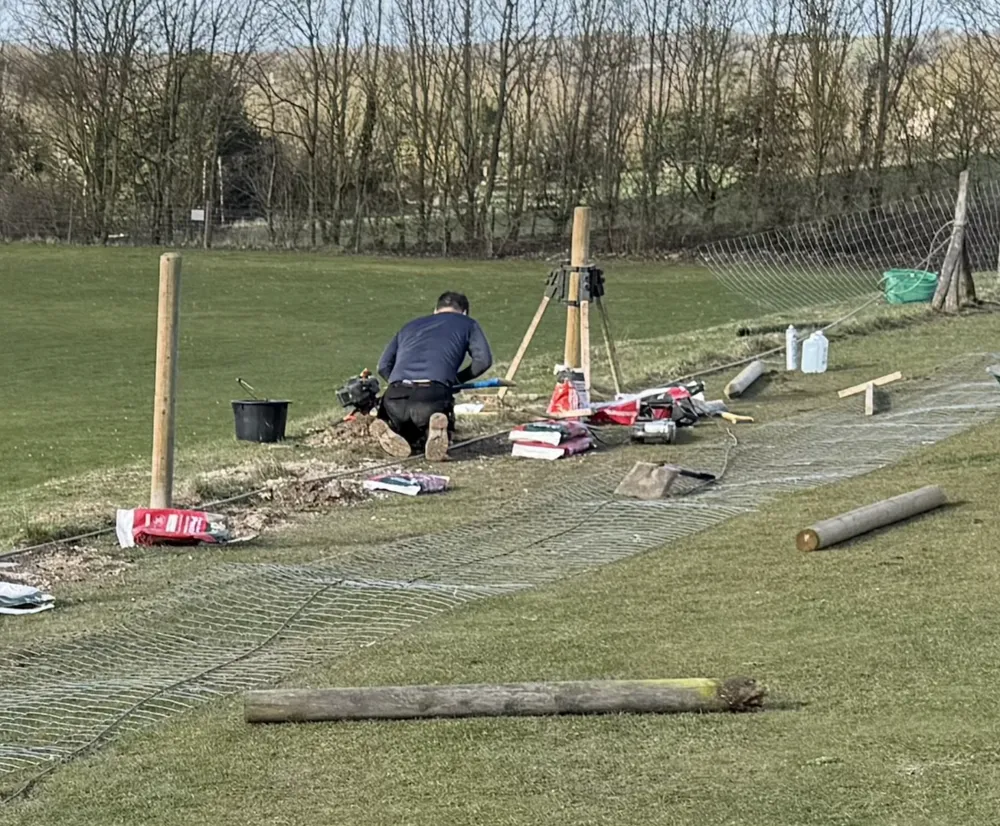

Place the Post-Mate tool over the hole

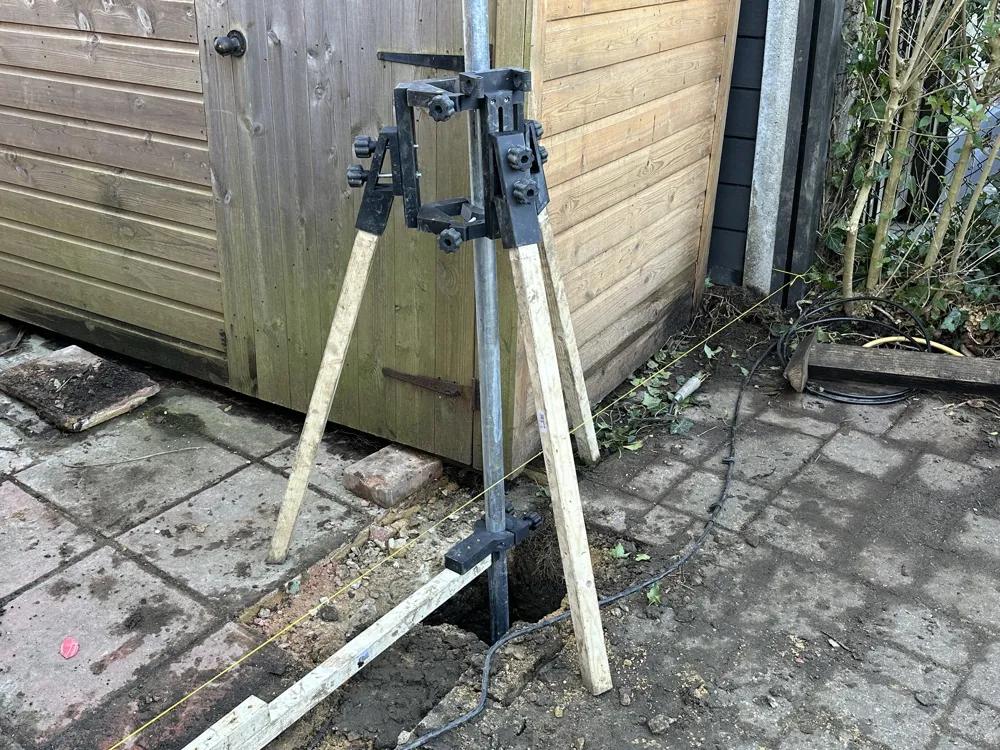

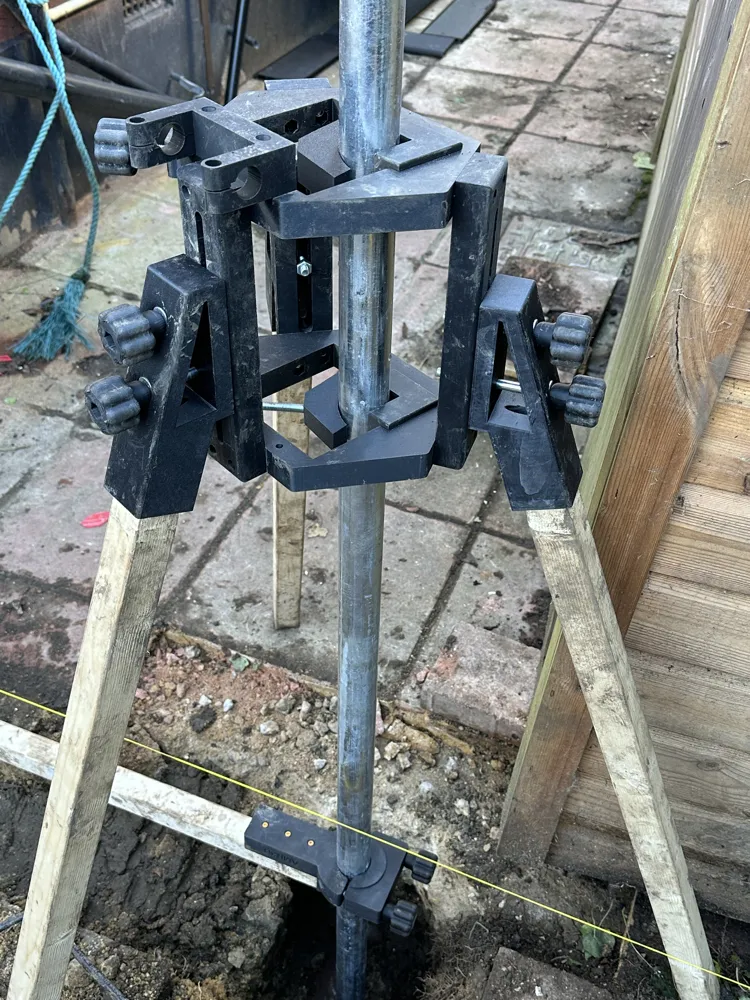

Insert the post and tighten the securing knobs so the post is held
Loosen all 6 leg mount knobs
Adjust the post-mate so the post is in the correct position and tighten the 6 leg mount knobs
The post is now securely held in place allowing you to complete the ground works as required

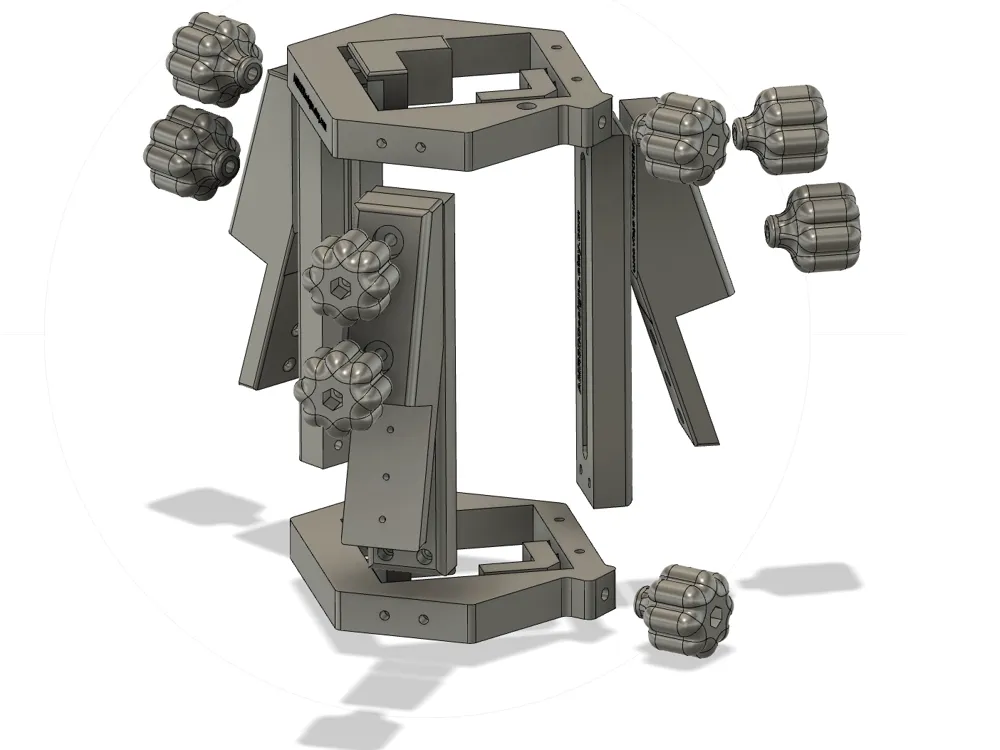

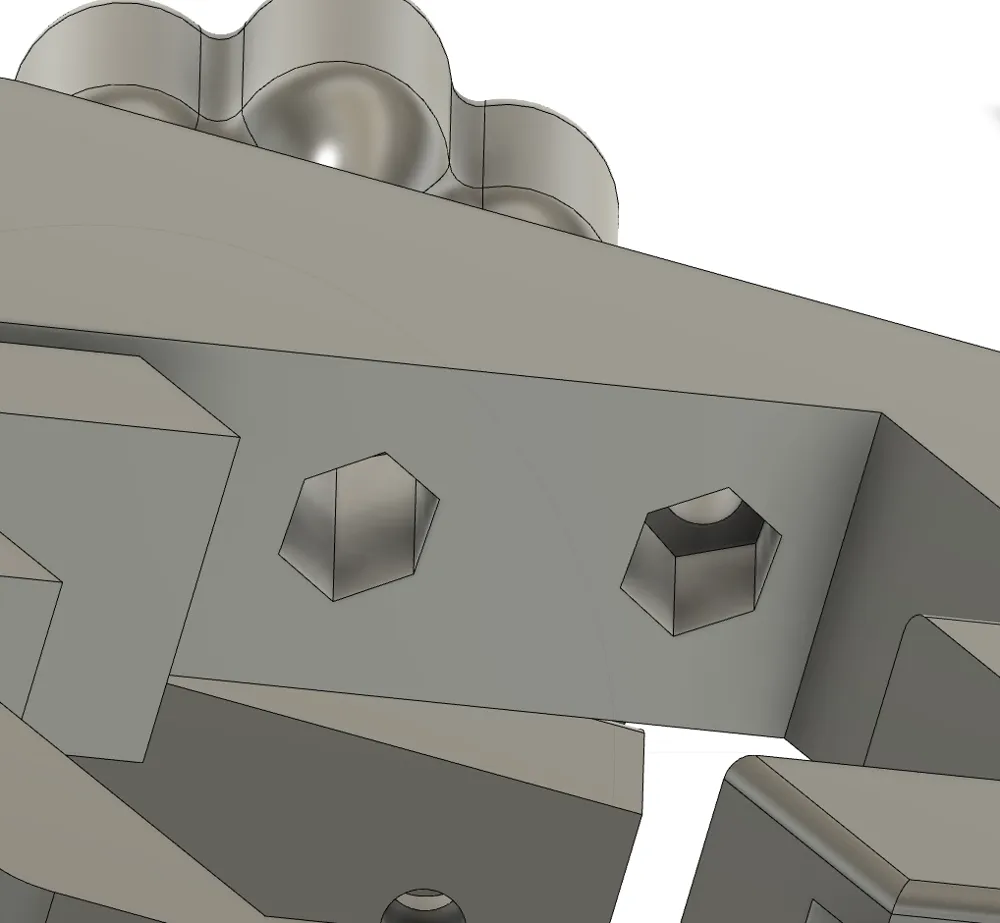

M6 Hex bolts, M6 Nuts, M8 Nuts and Bolts are required to complete assembly.
If you don't want to print, you can purchase the complete tool from my etsy shop via amr3ddesigns.etsy.com
Enjoy & happy fencing
