Mower Plate for Dreame A1 / A2 / A3

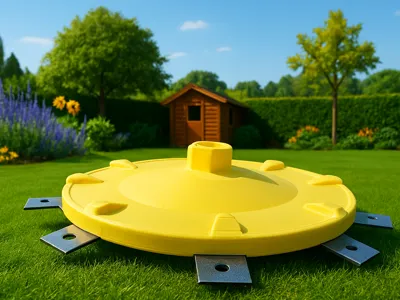

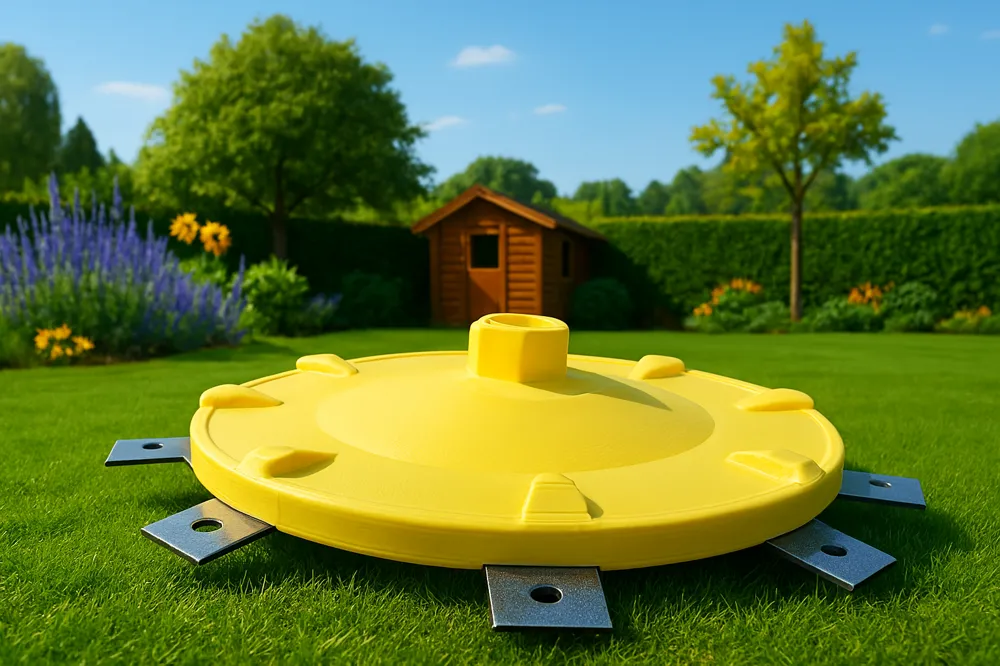

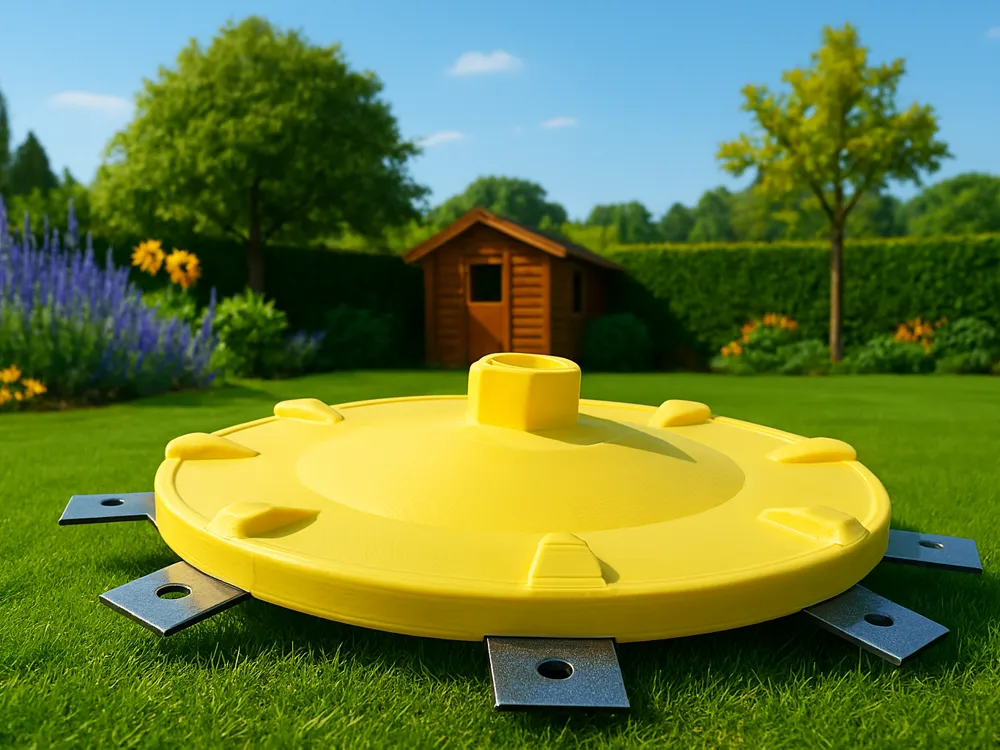

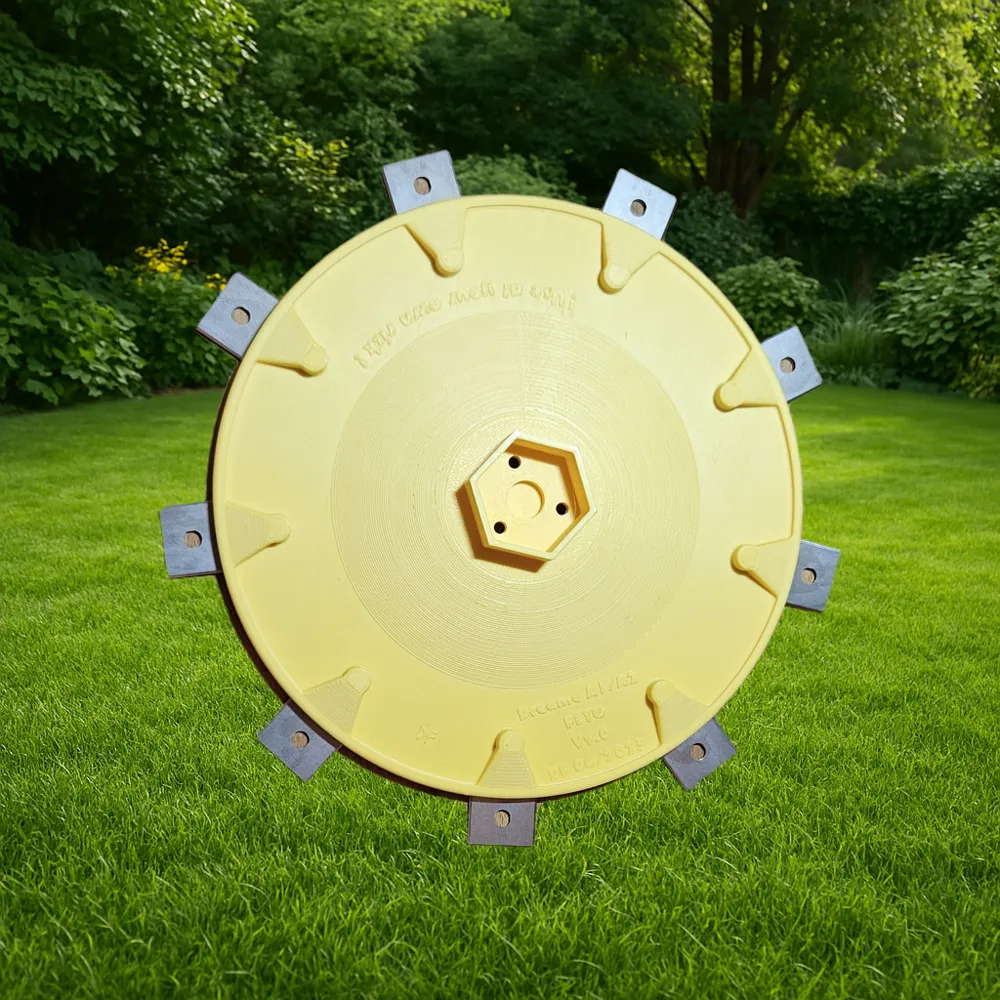

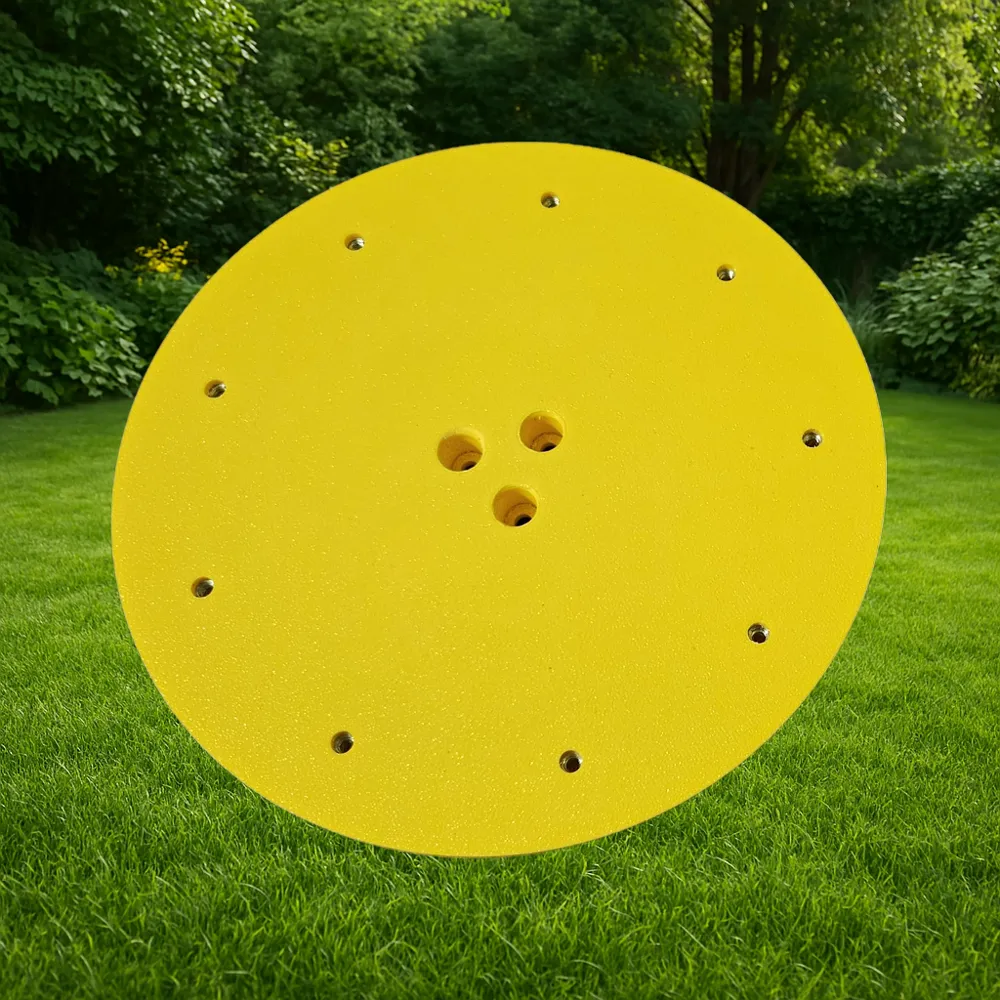

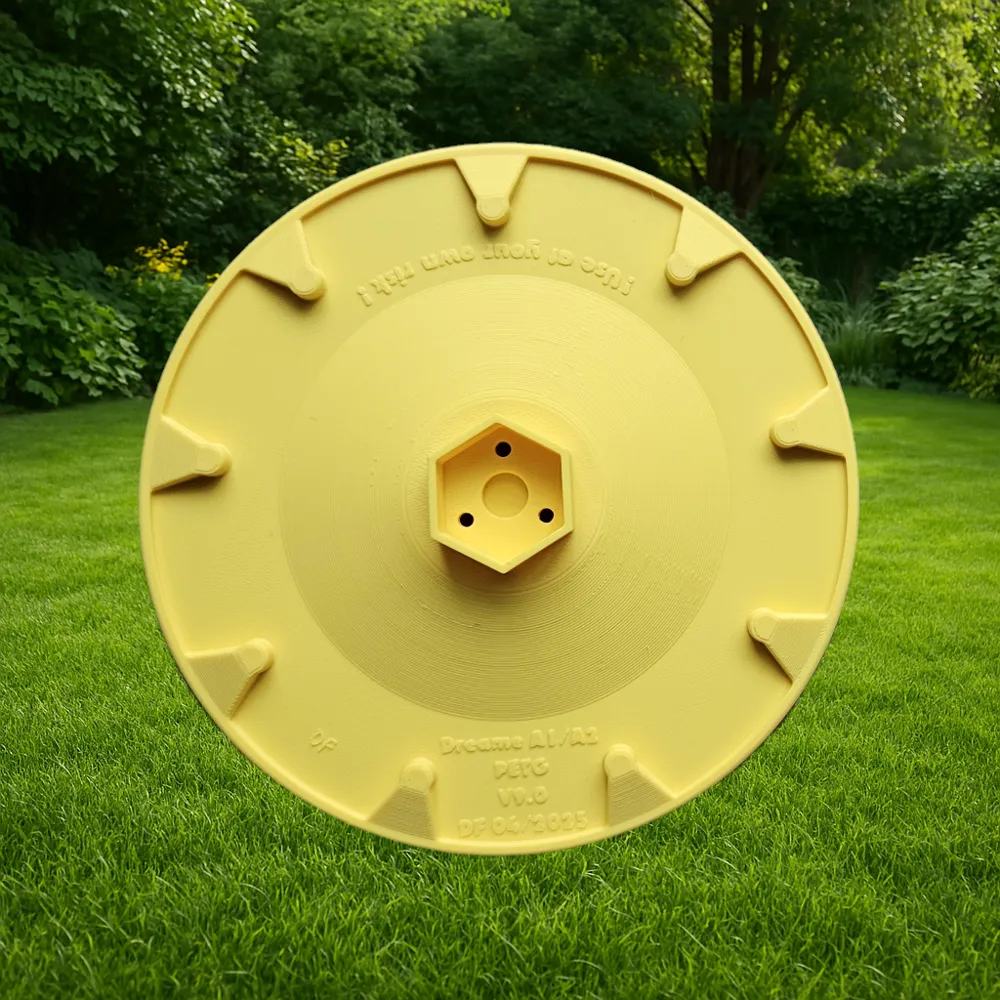

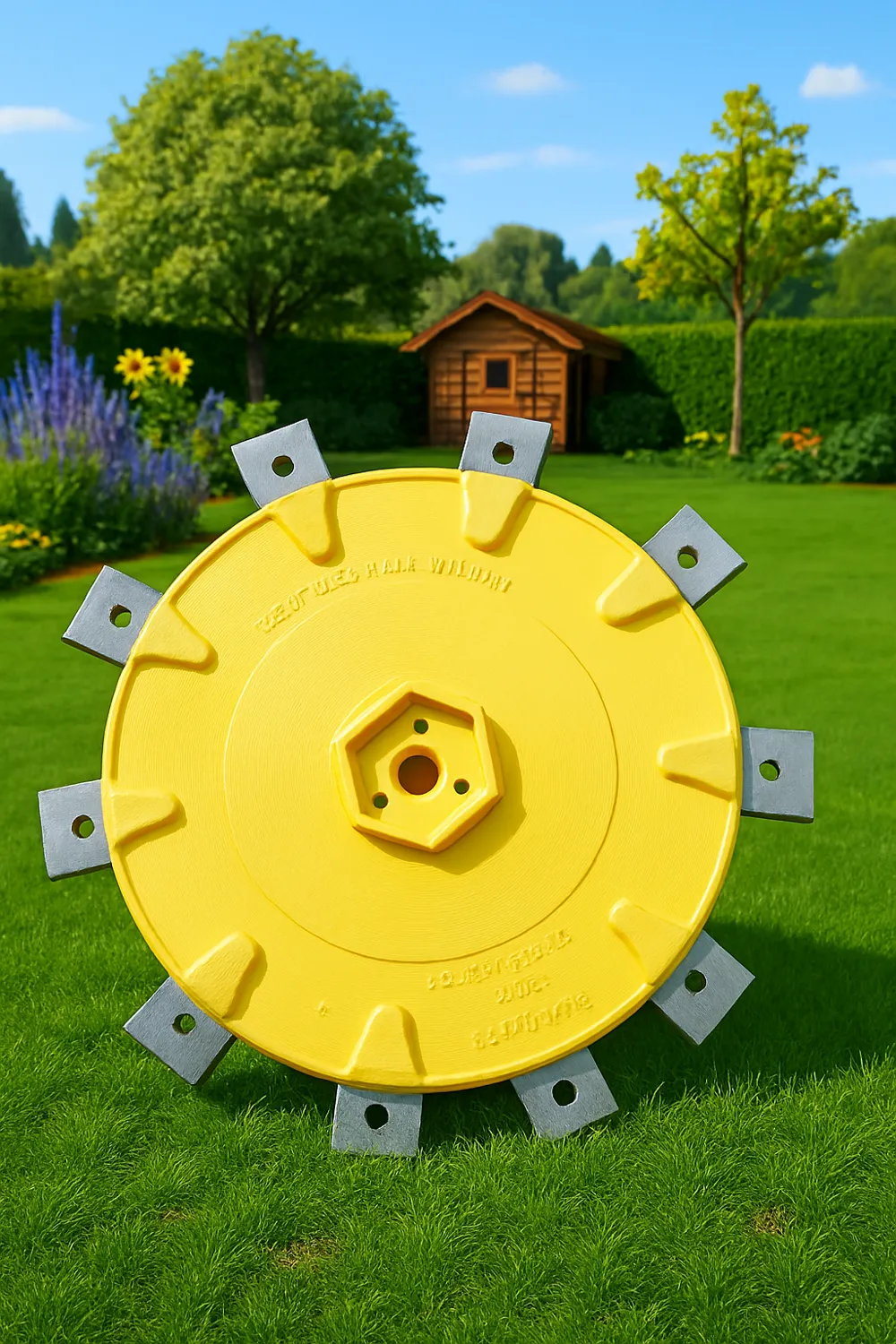

🛠️ Mowing Plate for Dreame A1 / A2 / A3 – 4 Variants for Maximum Flexibility

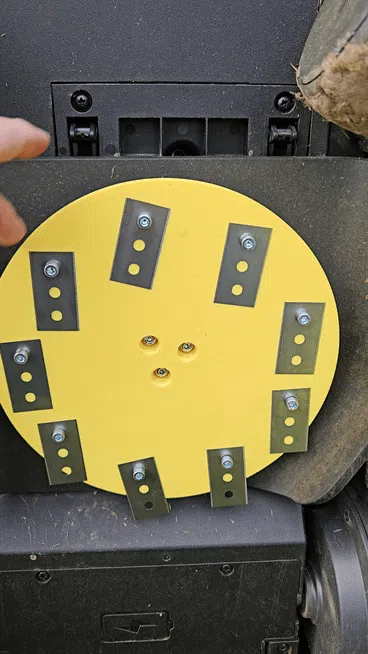

These custom-designed mowing plates for the Dreame A1 / A2 / A3 robotic lawnmower give you full control over your mowing results. You can choose between 6 or 9 blades – each available with movable or fixed blades. This allows you to optimally adapt the plate to your lawn conditions and mowing preferences.

🔄 Variants Overview:

🧩 Features:

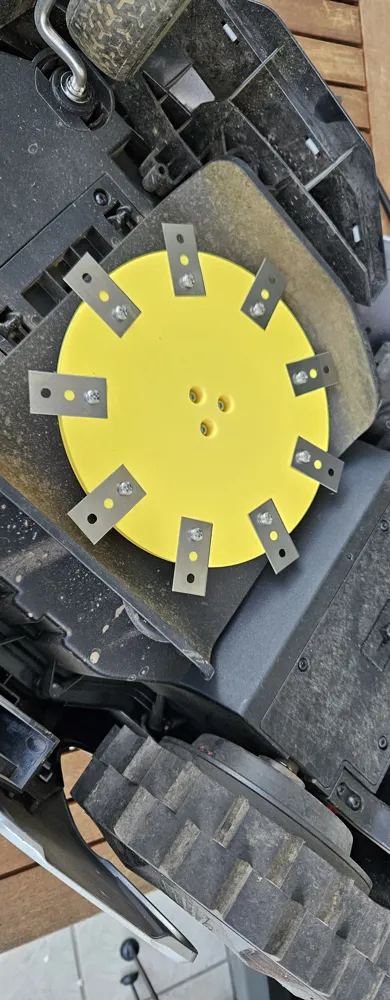

• Precisely fitting for Dreame A1 / A2 / A3
• Optimized for 3D printing (PETG or ASA recommended)

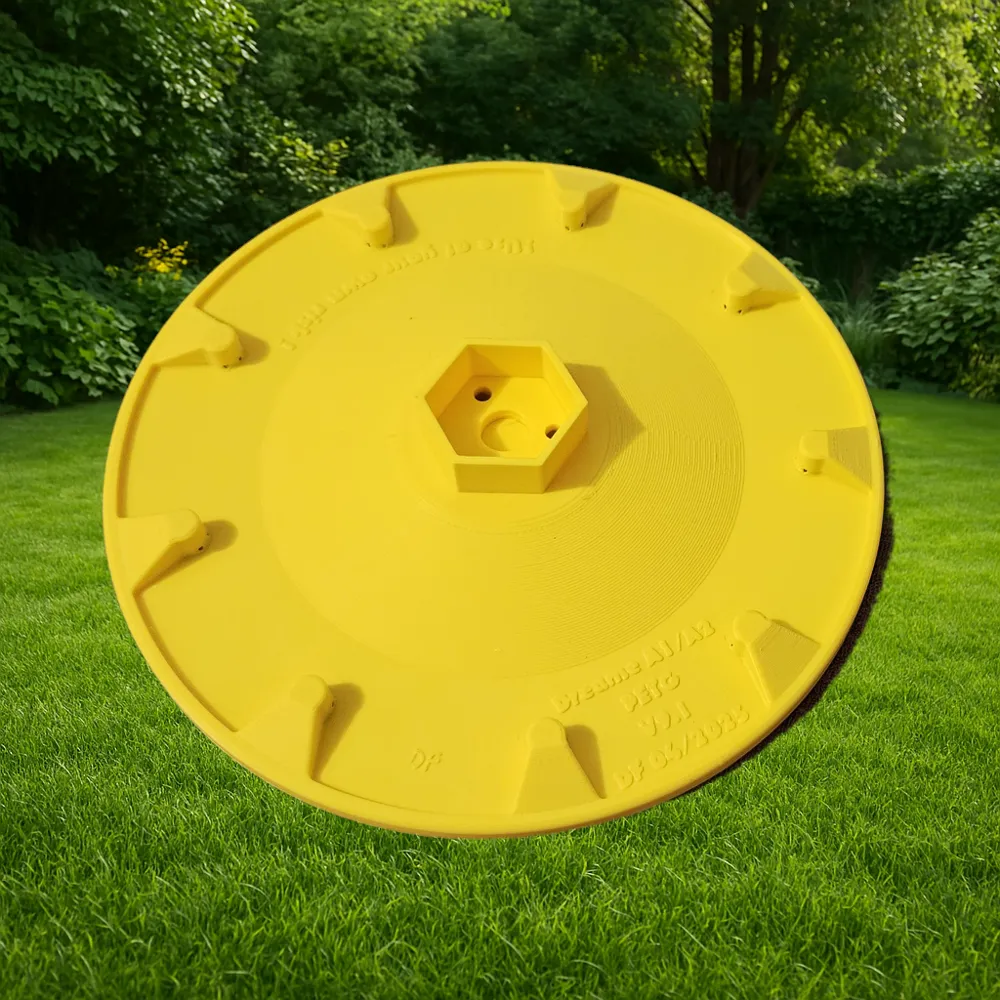

• Vx.1 printable without supports (pause in print profile to insert nuts)

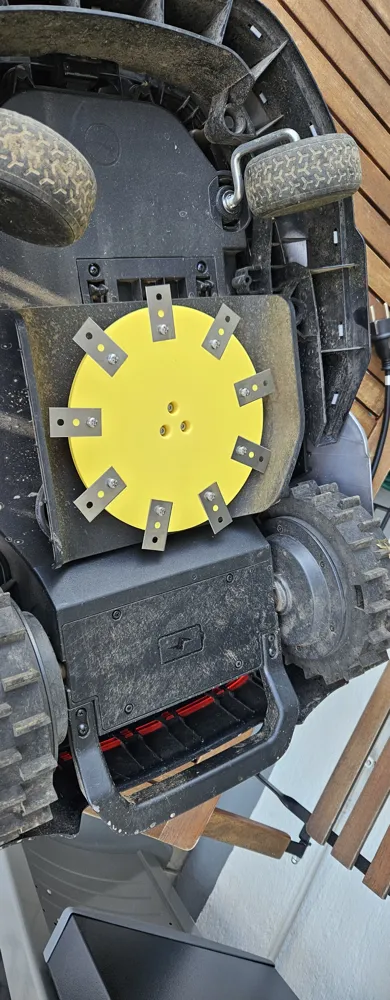

• Mowing plate can be attached with original screws

💡 Notes:

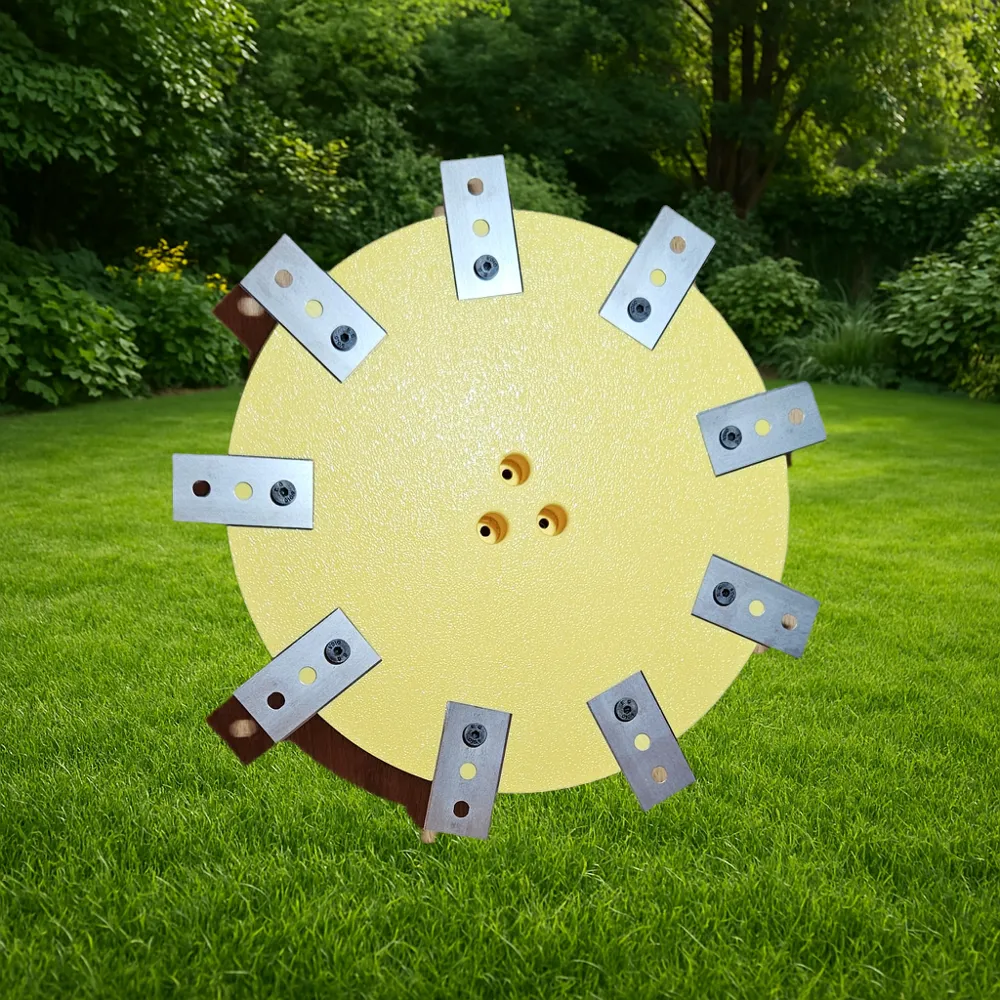

• The movable blades reduce stress upon contact with hard objects
• Fixed blades provide a particularly clean cut but are less forgiving

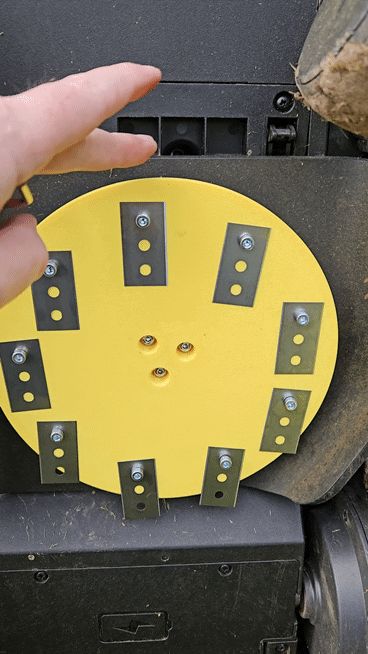

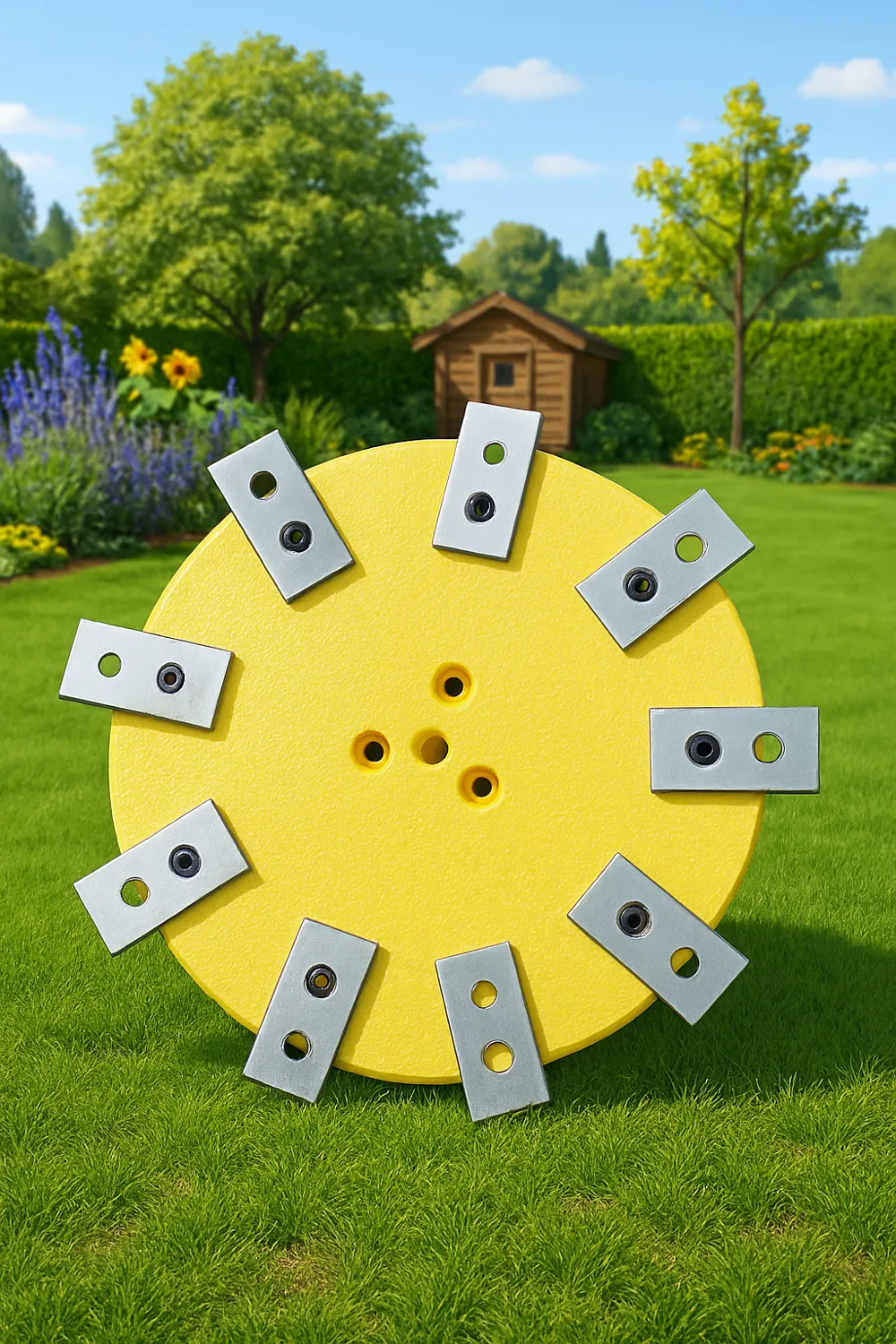

• The 9-blade version is especially suitable for fine ornamental lawns or frequent mowing

🧼 Application:

Simply assemble, insert blades, and start mowing. The variants can be swapped as needed – ideal for experimental makers and garden enthusiasts.

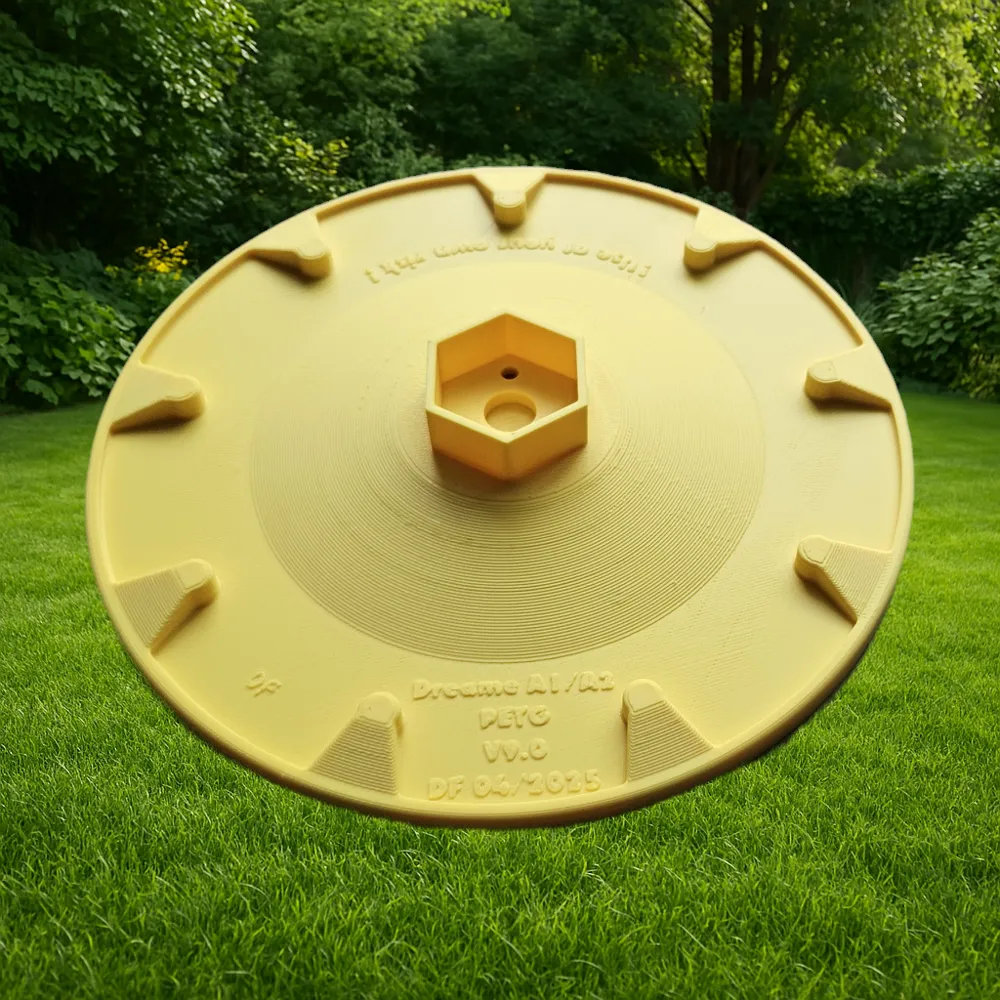

📦 Required Parts for Vx.0:

• 6 or 9× threaded inserts (Ruthex RX-M4x8.1)
• 6 or 9× ceramic hob blades (EDHIS 43 × 22 × 0.2 mm – Amazon)
• 6 or 9× M4×10 pan head screws with flange (stainless steel)
• 3× M4×16 cylinder head screws (stainless steel)
• 3× M4 washers
• 9 or 12× A4 spring washers (stainless steel)

📦 Required Parts for Vx.1:

• 6 or 9× M4 nuts
• 6 or 9× ceramic hob blades (EDHIS 43 × 22 × 0.2 mm – Amazon)
• 6 or 9× shoulder screws φ5 mm × M4 × 5 mm (Amazon)
• 3× M4×16 cylinder head screws (stainless steel)
• 3× M4 washers
• 3× A4 spring washers (stainless steel)
