Easy filament welder / splicer
IP Report
Print Profile(1)
0.2mm layer, 2 walls, 15% infill
Designer
10 min
1 plate
Open in Bambu Studio
Boost
12
50
4
0
100
52
Released
Bill of Materials
List other parts
- SiliconTube x 1: 1,6mm_inner_diameter
Description

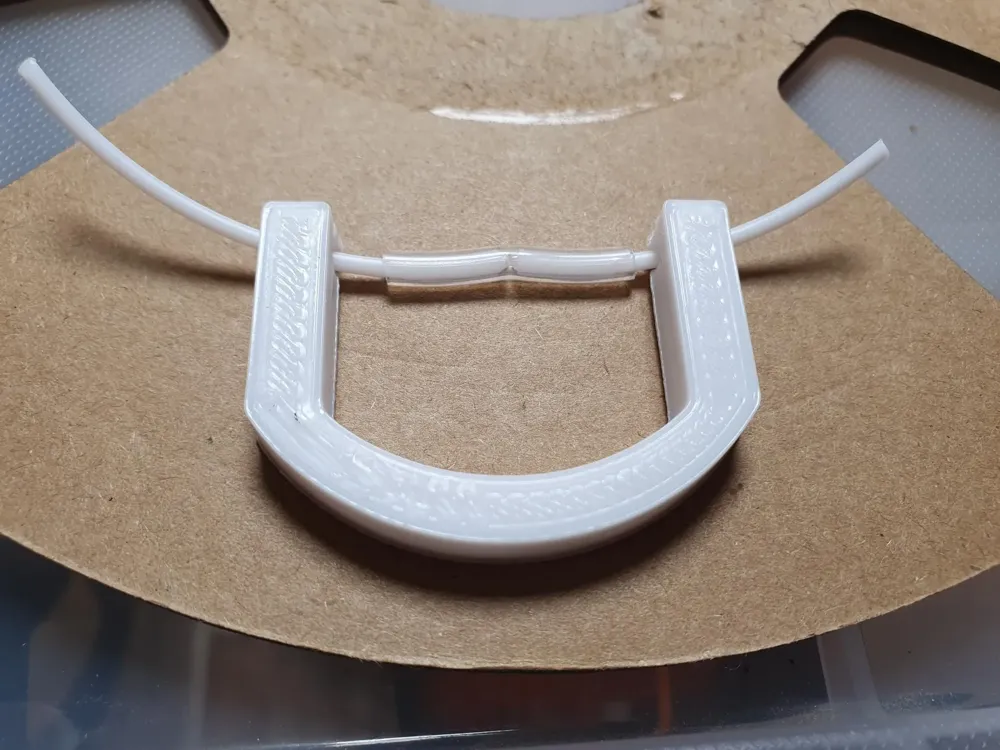

The jig us actially optional; the magic is the silicon tube! You need one with 1,6mm (1/16 inch) Inner diameter. The heat will allow it to expand a bit, coming close to 1,75mm.
You can do it without that jig, but it will help holding the filament while welding, like a 3rd hand.
After printing the jig, you may need to use a cutting knife to fine-tune the cutouts fitting for the filament.
Watch this video for the howto
