cover







Rocket Lower and Upper - Gray


Rocket Middle and Fins - Red


Rocket Engine - Silver


Mount (Shelf or Wall) - White


Customizagle Name Plate Option


Rocket Window (Open or Closed)

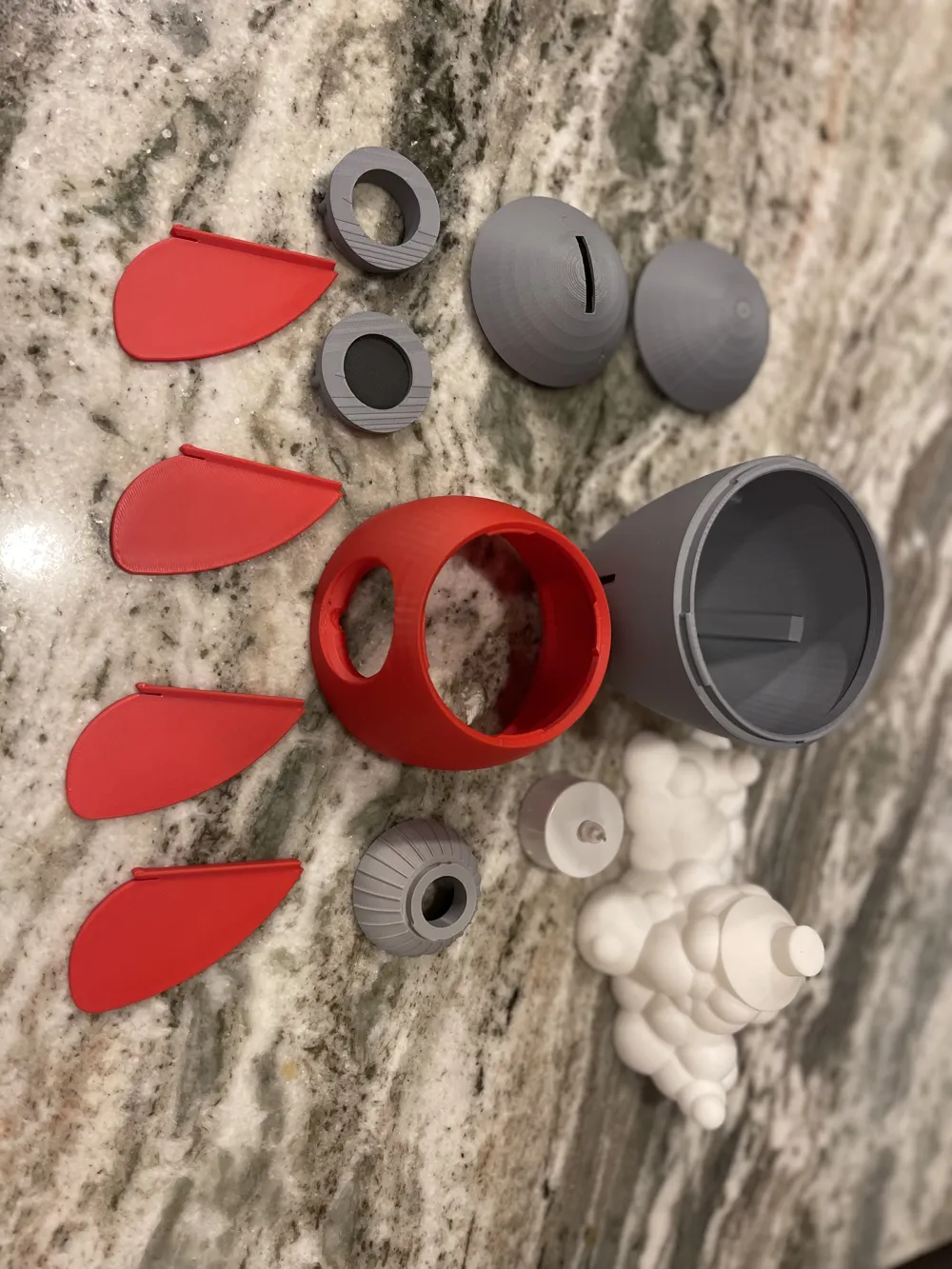

Rocket Toy Coin Bank (AMS optional)&nbsp;.2mm layer height, .4mm nozzleSome parts require supportsCan be printed on the A1 mini by breaking up the items on the plates. &nbsp;There are 2 options for tips (with and without coin slot opening)There are 2 options for rocket base (without personalization on plate 1, with personalization option on plate 5)There are 2 options for bases for display (for display on shelf, or display on a wall with single screw mount)There are 2 options for windows (open and closed)&nbsp;The only multi-color printing requirements that would need an AMS are for the personalization name plates on plate 5, and the closed window on plate 6, both are optional. There are multiple plates for name customization to make it easier. Select the one with the necessary number of letters and modify each to match the child&#39;s name. Currently I have it set up with plates with 3-7 letters as they fit best. A blank plate is also provided if you wish to customize your own.&nbsp;Filament Usage:Gray 105gRed 70gSilver 11gWhite 69gBlack 3g&nbsp;Assembly:Step 1 - The 3 main rocket body components simply twist and lock togetherStep 2 - Slide the 4 fins into place until they clickStep 3 - Snap the chosen window option into place (the small tab on the back side should face down)Step 4 - Twist on the engine bellStep 5 (Optional) - Slide the personalization plate into place starting at the bottom of the name plate slot on the lower body. The name plate has multiple small tabs on the back side that must be pressed in at the bottom of the slot and as the plate is slid upward. This allows the thin plate to conform to the curved shape of the rocket body. It may take a little persuasion but keeping pressure against the lower square opening in the long narrow track helps make it easier.Step 6 - You are finished and can display the rocket on the horizontal base or the wall mount.&nbsp;There is an opening under the white plume part to place a tealight. The flickering led tea lights do a great job of resembling an engine firing and making the plume light up softly.&nbsp;Please let me know if you have any questions or suggestions for improvement.&nbsp;Also, please share photos, especially if you use other color schemes or modify the design. I&#39;d love to see what you come up with.&nbsp;I hope you enjoy this fun project.

0.2mm layer, 2 walls, 15% infill

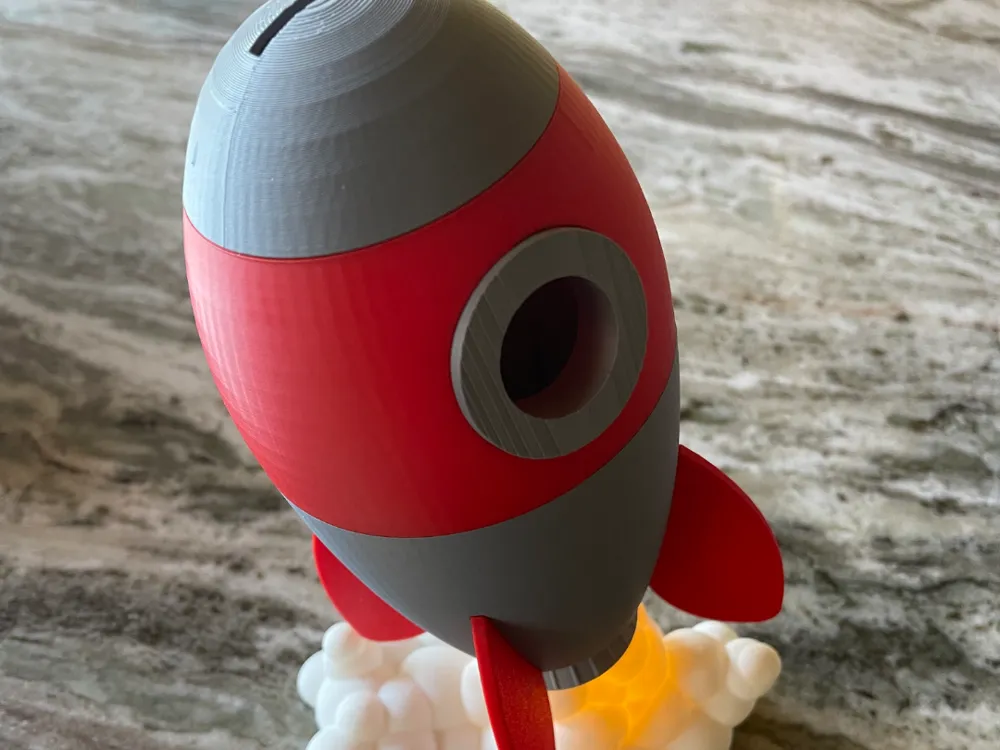

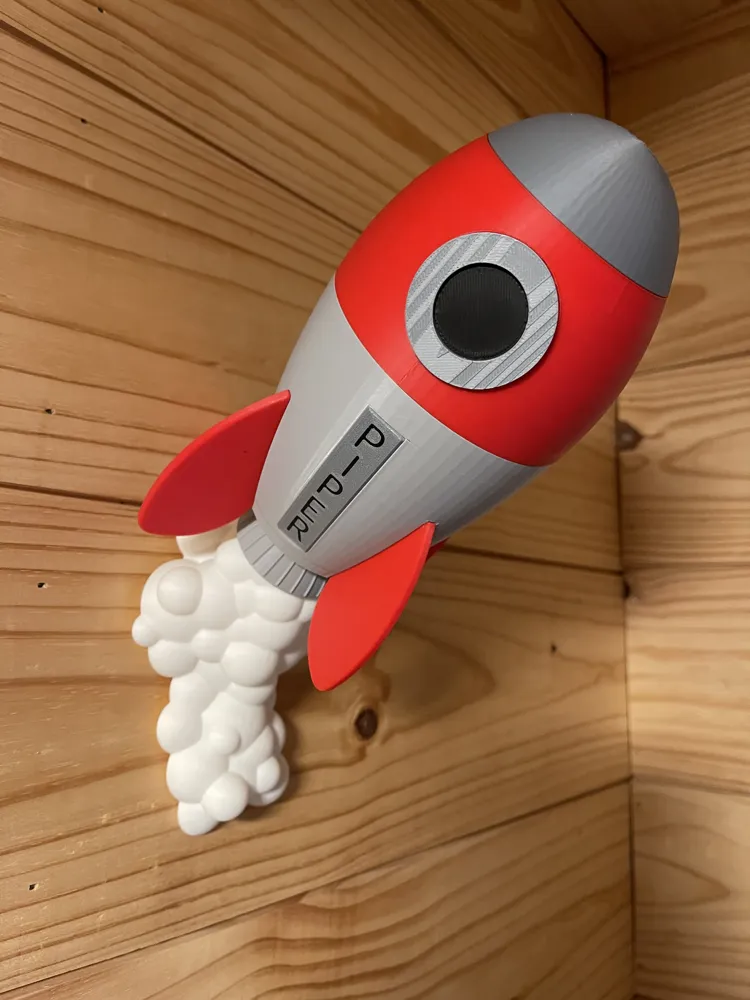

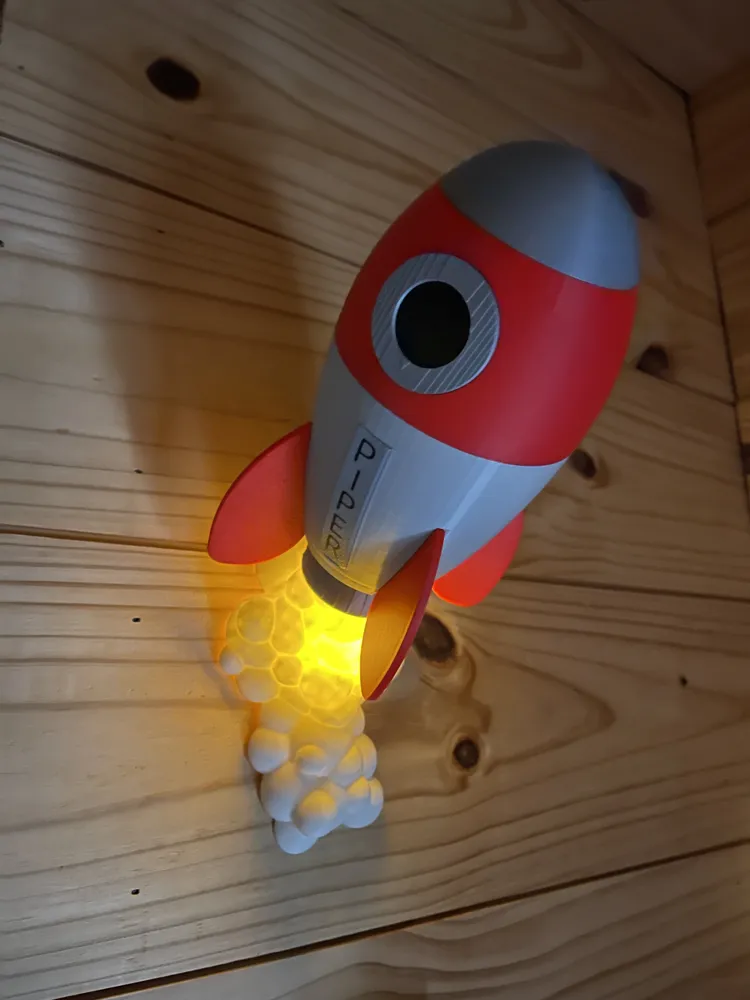

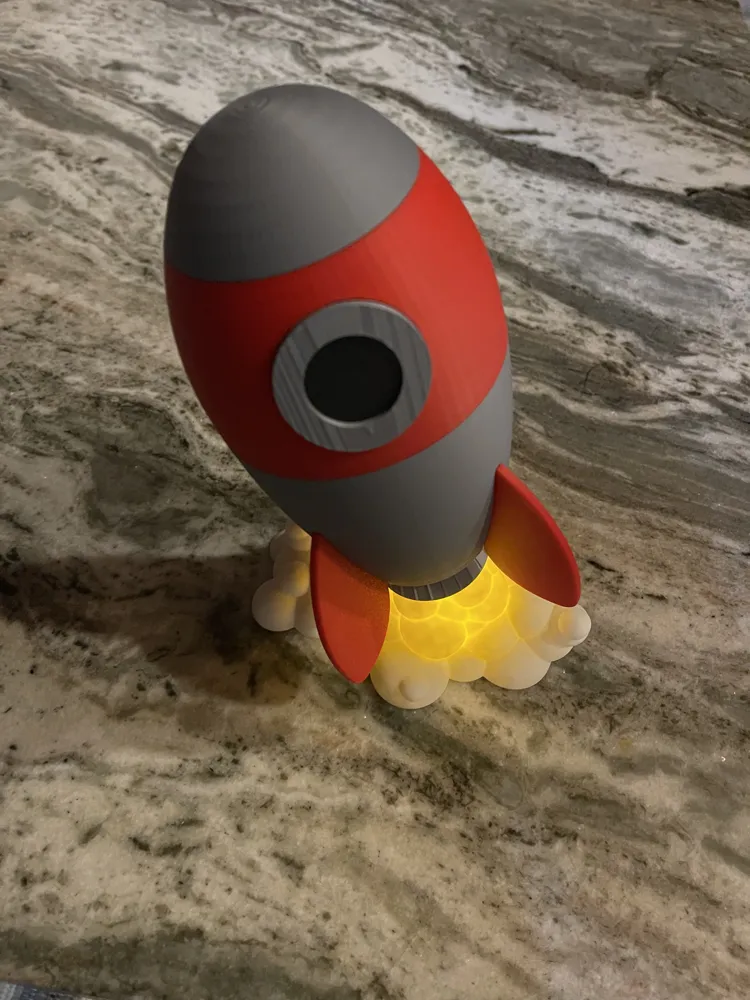

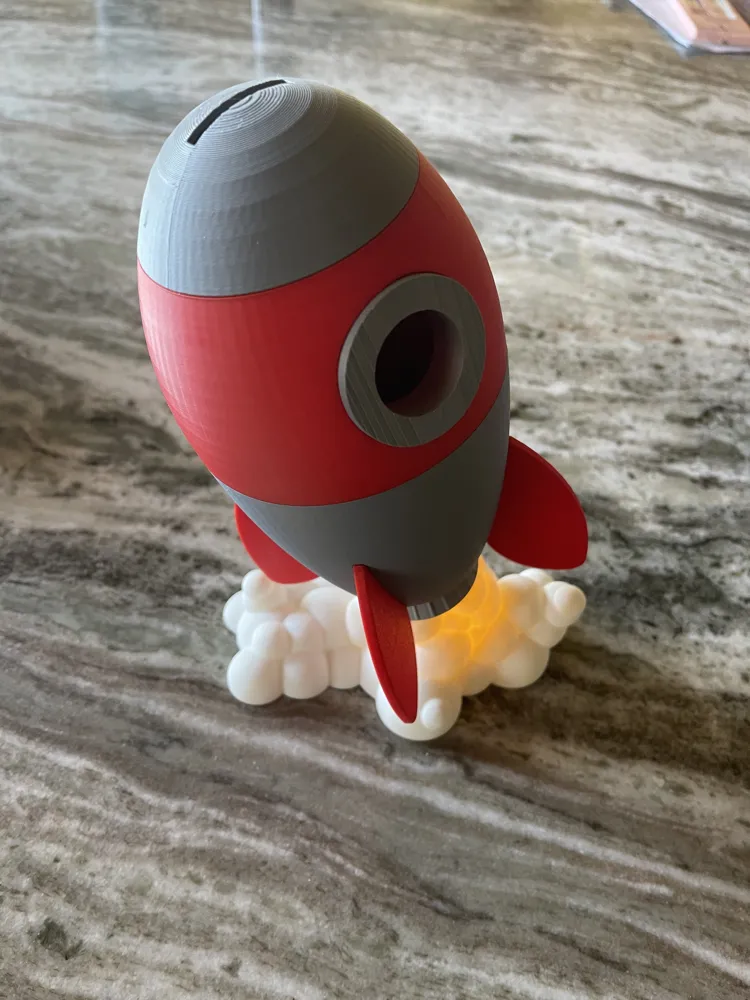

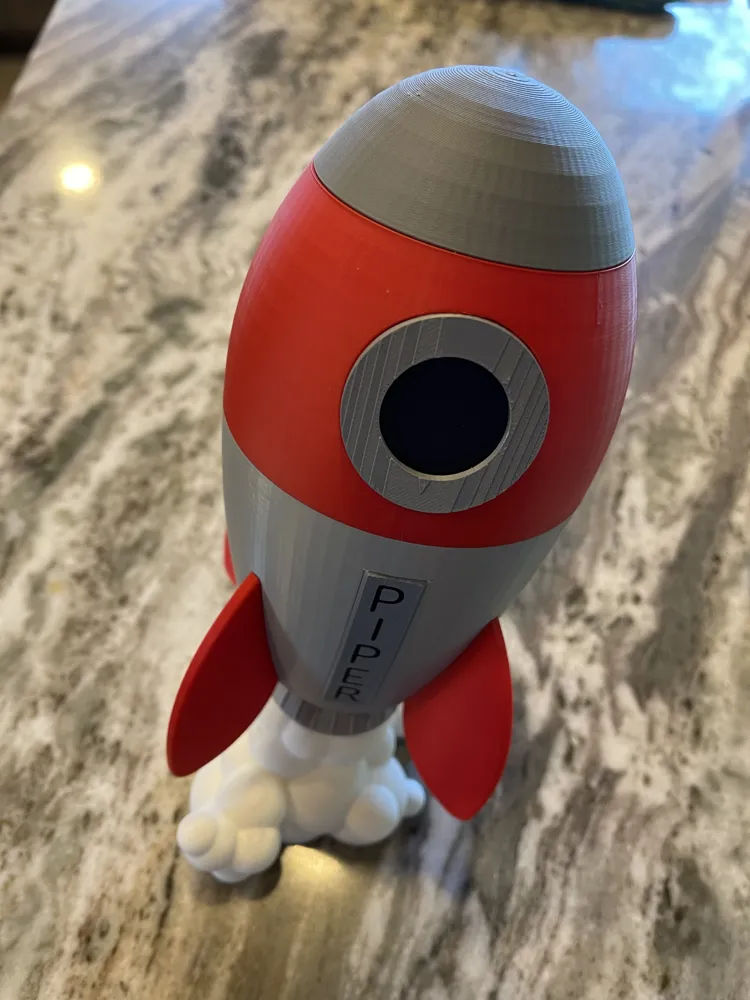

Rocket Toy Coin Bank - Fun snap together rocket toy that can be played with, used as a coin bank or other storage container. Can also be displayed and used as a night light with a tea light insert. Can be personalized up to 7 letters. Easy print, and all parts twist lock or snap together with ZERO glue or hardware required for assembly.&nbsp;Plates include various print options. One complete print takes about 265 grams of filament and almost 8 hours of print time.

Rocket Coin Bank / Container / Toy / Light
