DTS2.0-Dewalt ToughSys 2.0-Blank Bins-1 to 6 Grid
Print Profile(5)
Description
Blank Bins - Gridfinity - DTS2.0-Dewalt ToughSys 2.0

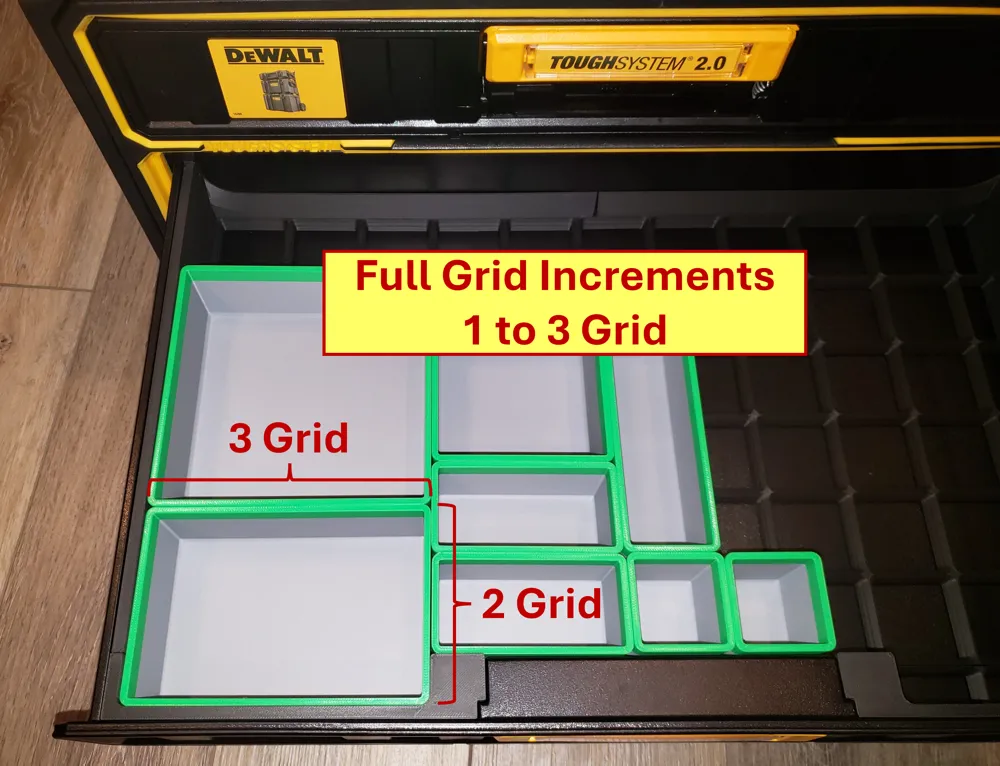

There is a model profile for all combinations of grid sizes 1 thru 3: 1x1, 1x2, 1x 3, 2x2, 2x3, 3x3, for A1M/A1/P1/X1/H2D.

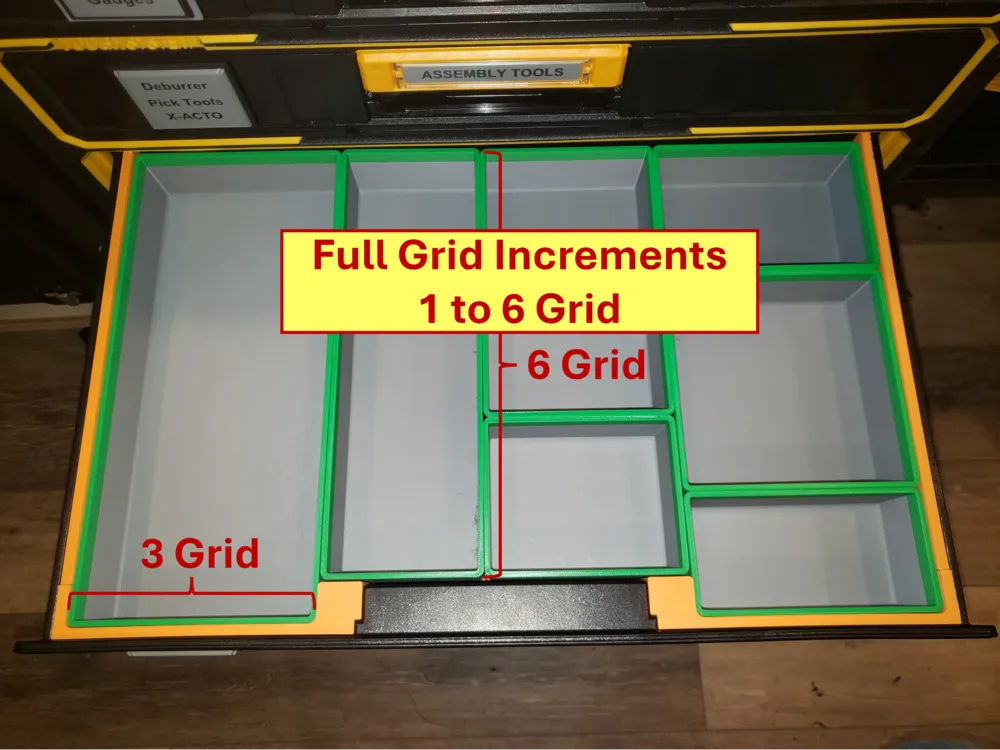

Updated - There is now a model profile for larger bins in combinations of grid sizes 3 thru 6 for A1M/A1/P1/X1/H2D. Note, the A1M profile only includes those that print can support. The H2D also includes a 3 x 6.5 bin to maximize the DTS2.0 grid to the left and right of the drawer latch.

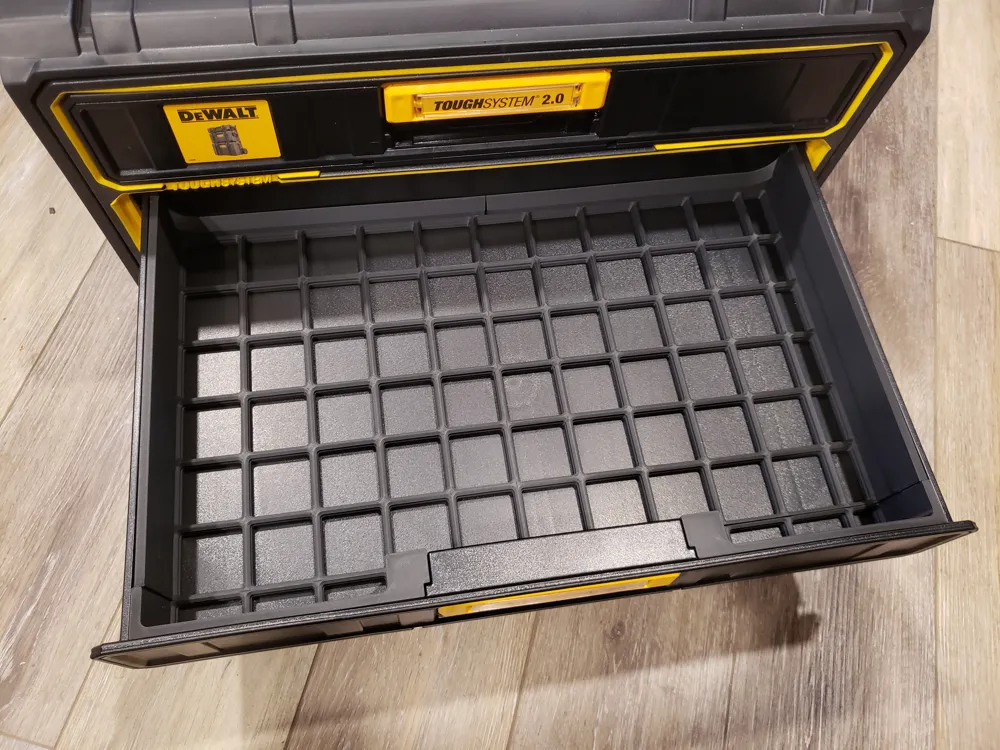

The bins are 51.25mm tall for proper fit to the DTS2.0 drawer using my Gridfinity grid model (linked below).

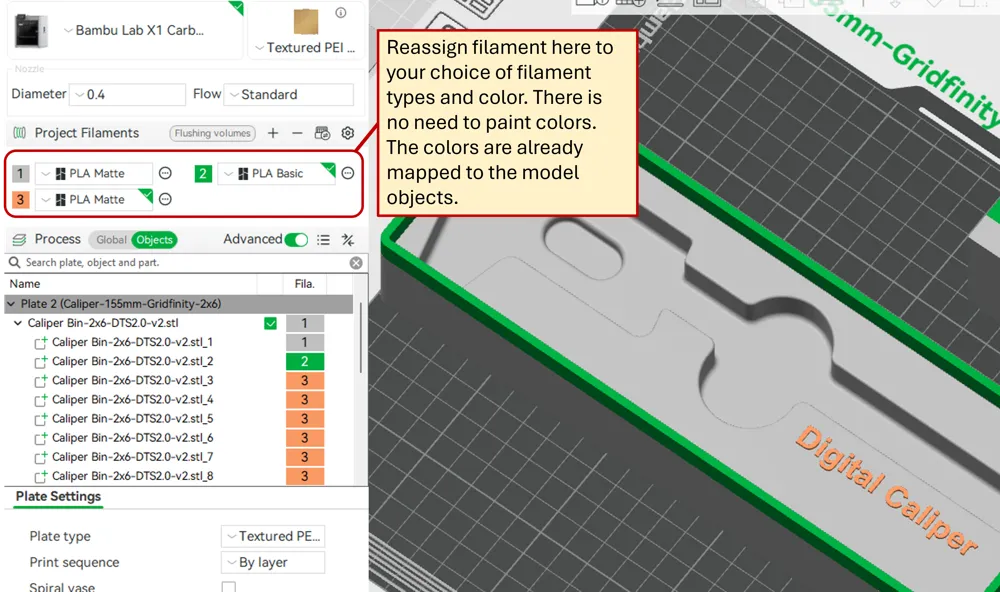

I've attached a graphic that explains how to change the colors quick and easy. Just reassign your chosen filaments and the model object will change to match those colors. No need to paint colors on the model.

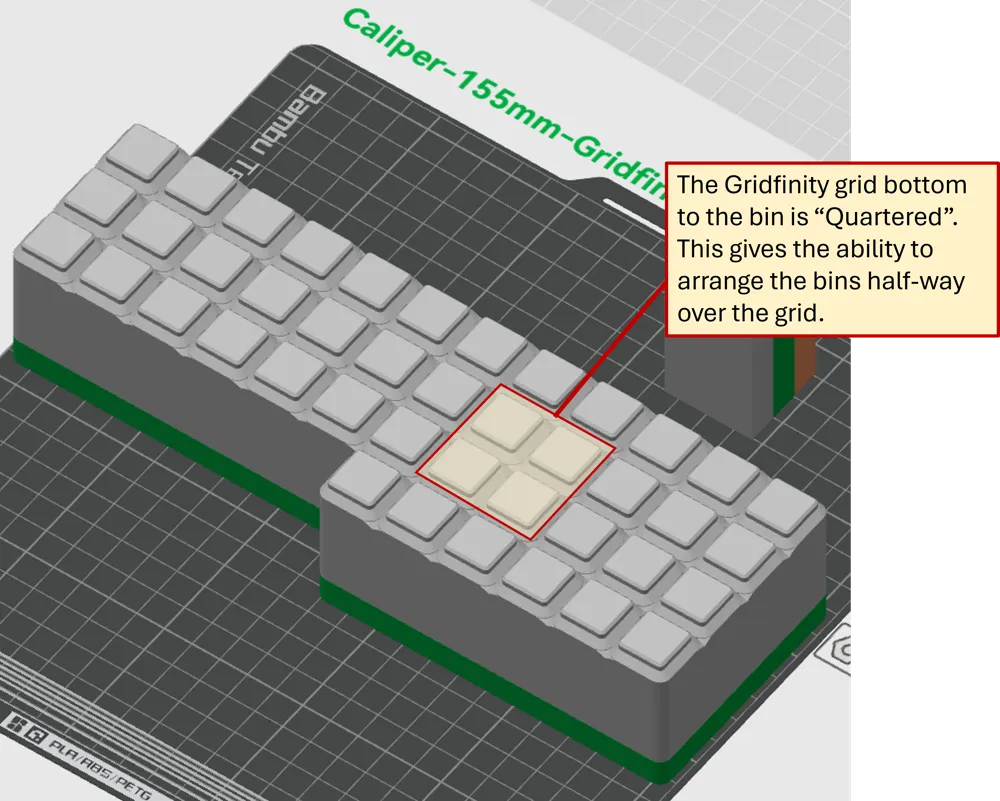

The bins Gridfinity base is “Quartered”. This design allows more flexibility in positioning your bins. See the attached illustration of the bin bottom.
Boost Me (for free)
If you find this model useful, consider sending a boost. This hobby is a college fund for my granddaughter. Thanks for your support!
