LIGHT SWITCH & SOCKET KIT – GIRA-COMPATIBLE
Upgrade the look, not the whole system
Looking for a sleek, modern design for your light switches and sockets—without replacing the entire electrical system? This kit is designed to be fully compatible with the older GIRA system inserts (pre-2024) and offers a cost-effective, stylish alternative to pricey OEM covers.
WHY THIS KIT?
• ✅ Compatible with legacy GIRA inserts (older than 2024)
• ✅ Cheaper than buying official replacements
• ✅ Fully redesigned – not replicas, but modern reinterpretations
• ✅ Modular setup: use as single units or combine up to 6-slot frames
WHAT’S INCLUDED

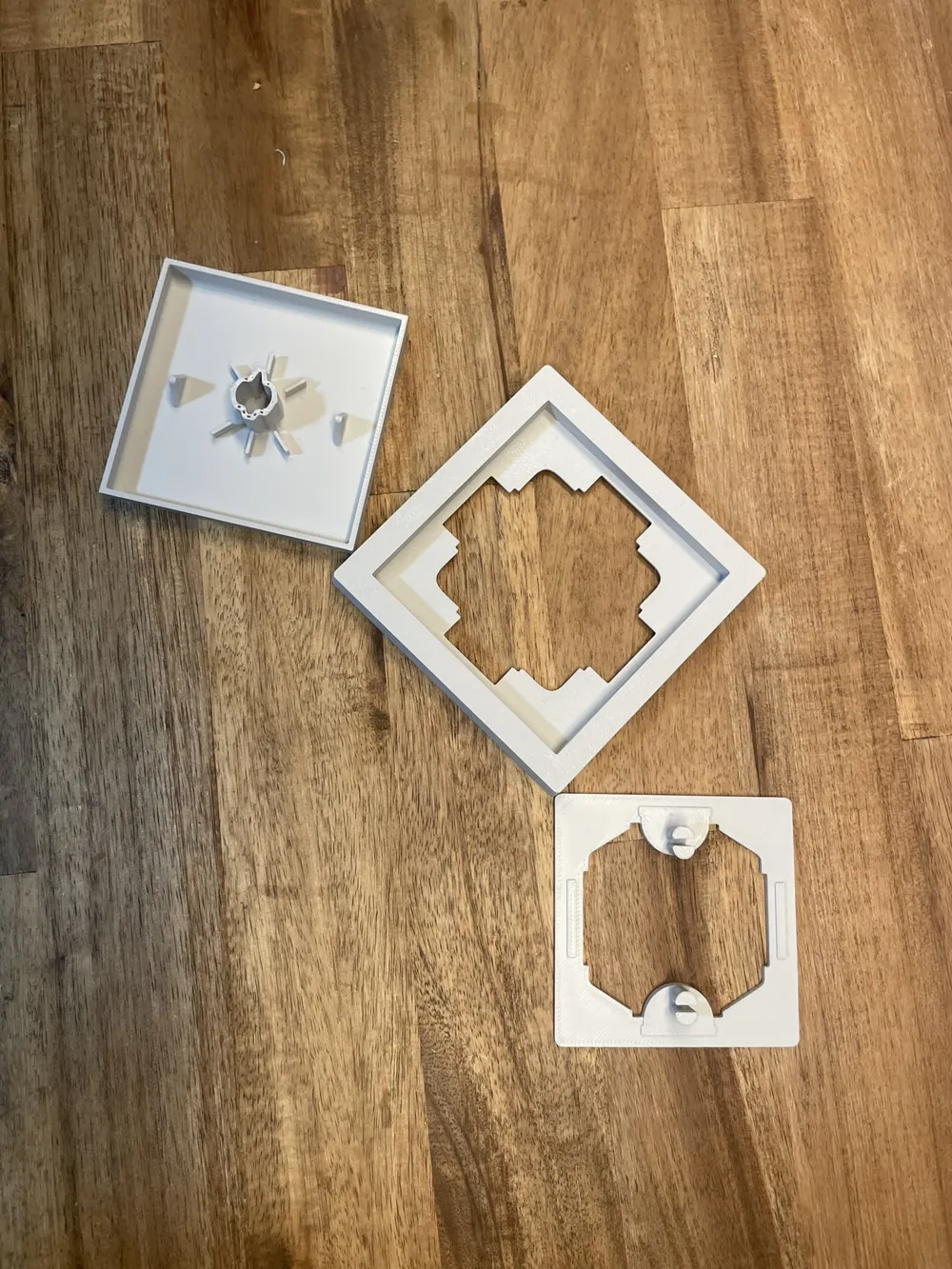

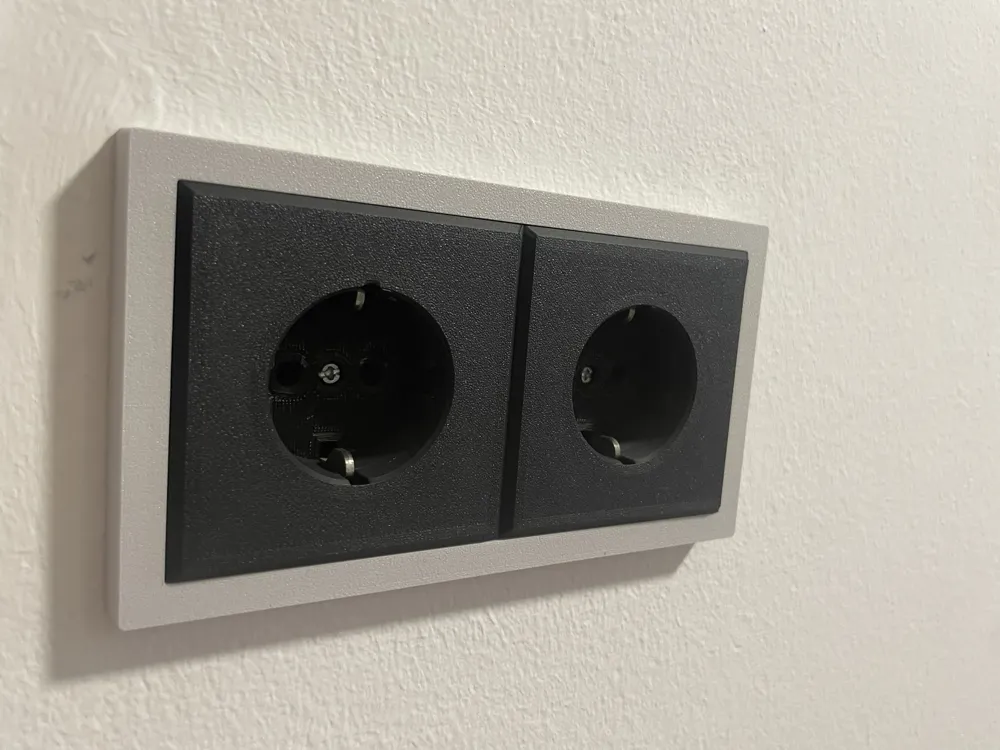

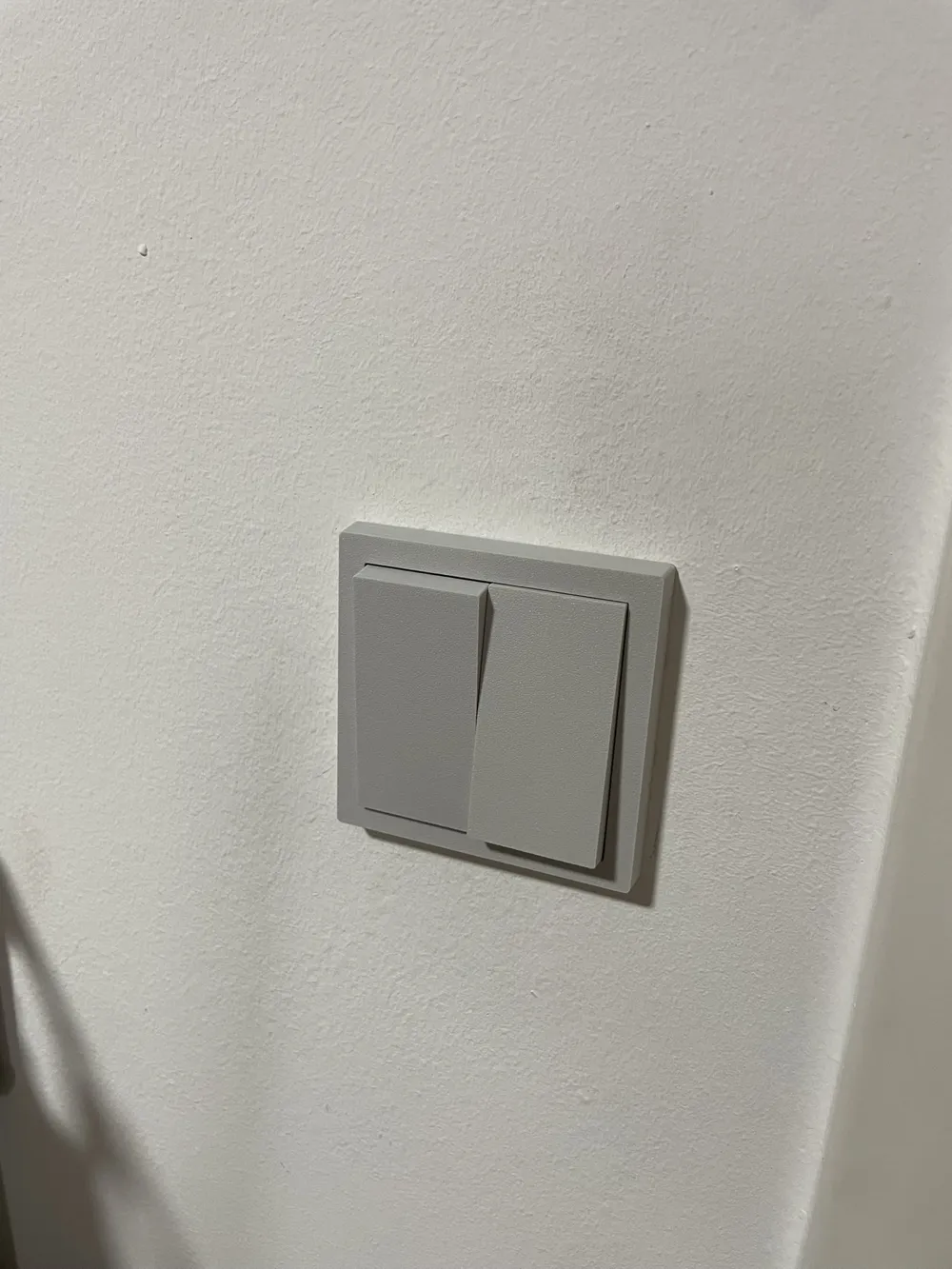

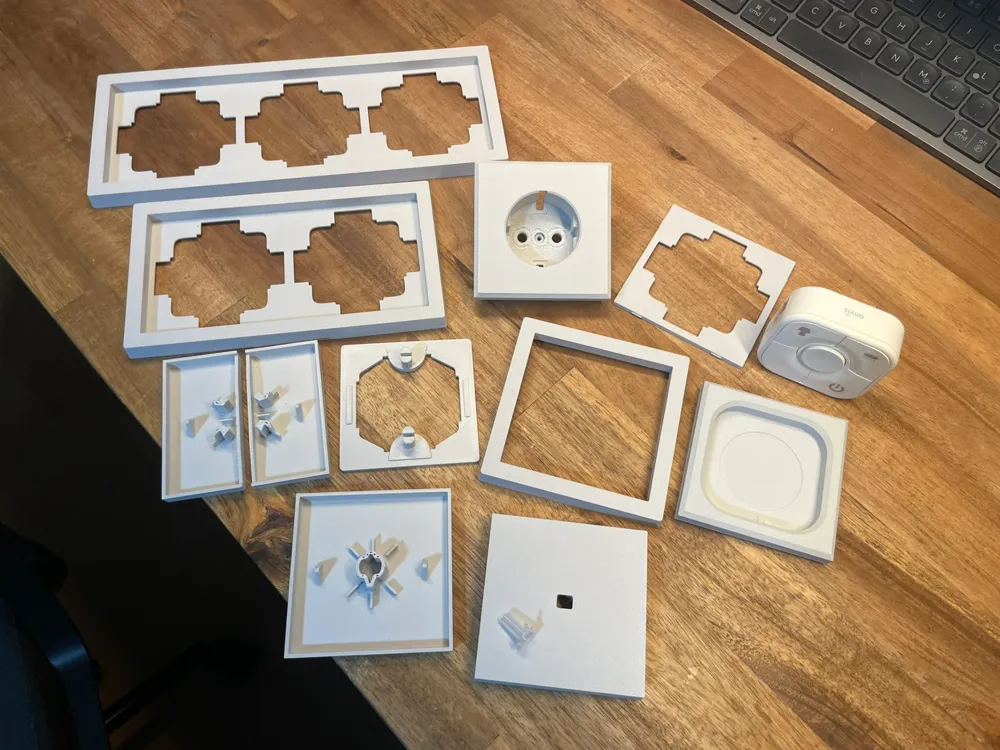

- Multiple switch and socket cover variants

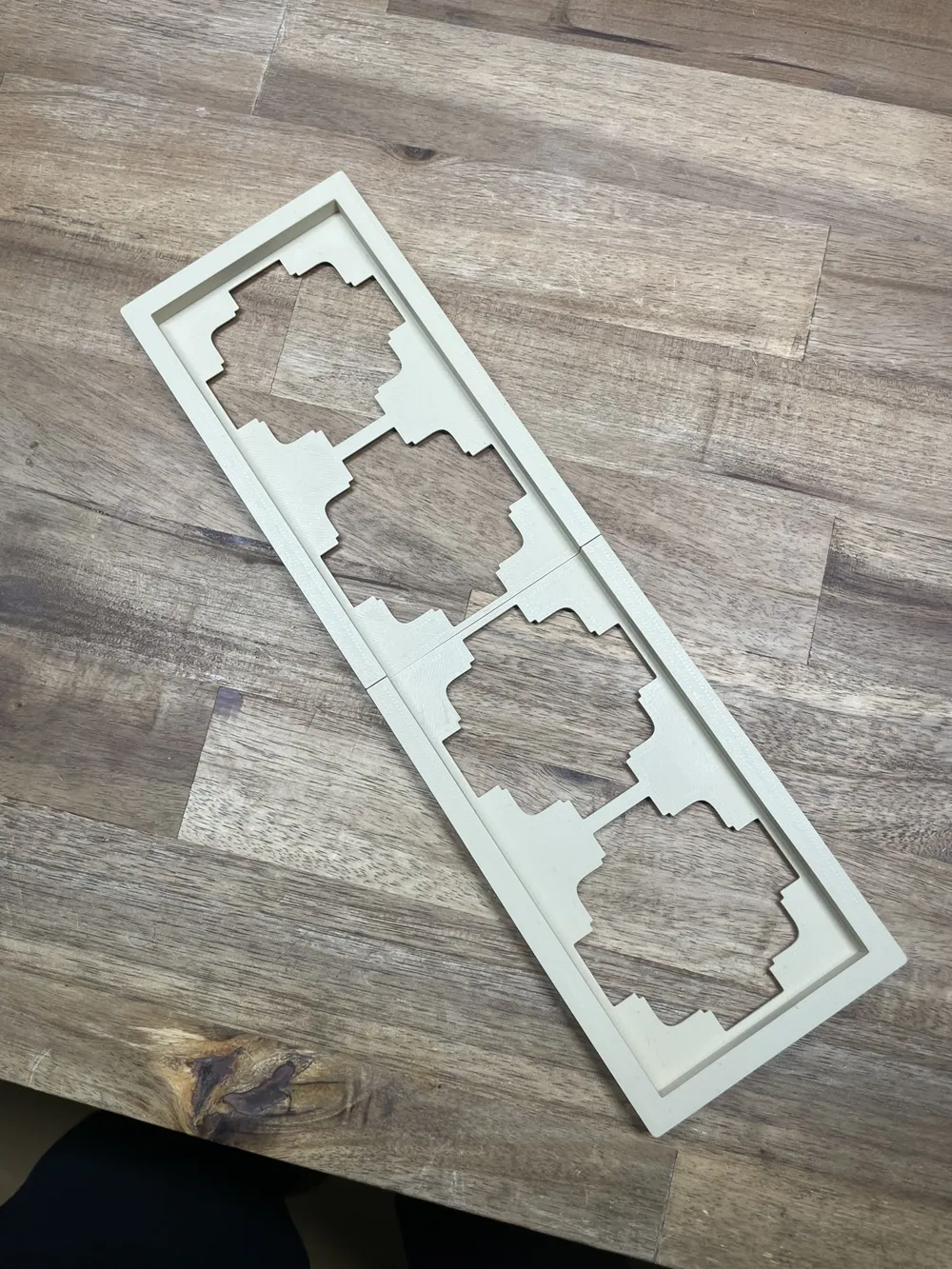

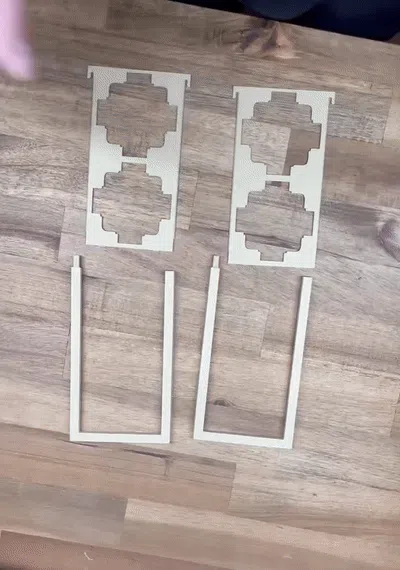

- Frames for 1–6-slot combinations
- Optional Onvis remote adapter (uses 6×2 mm magnets)
- Assembly-ready STL / 3MF files
- Snap-fit system – minimal fasteners required
RECOMMENDED PRINT SETTINGS
The provided printing profiles use:
• PLA for all parts, except:

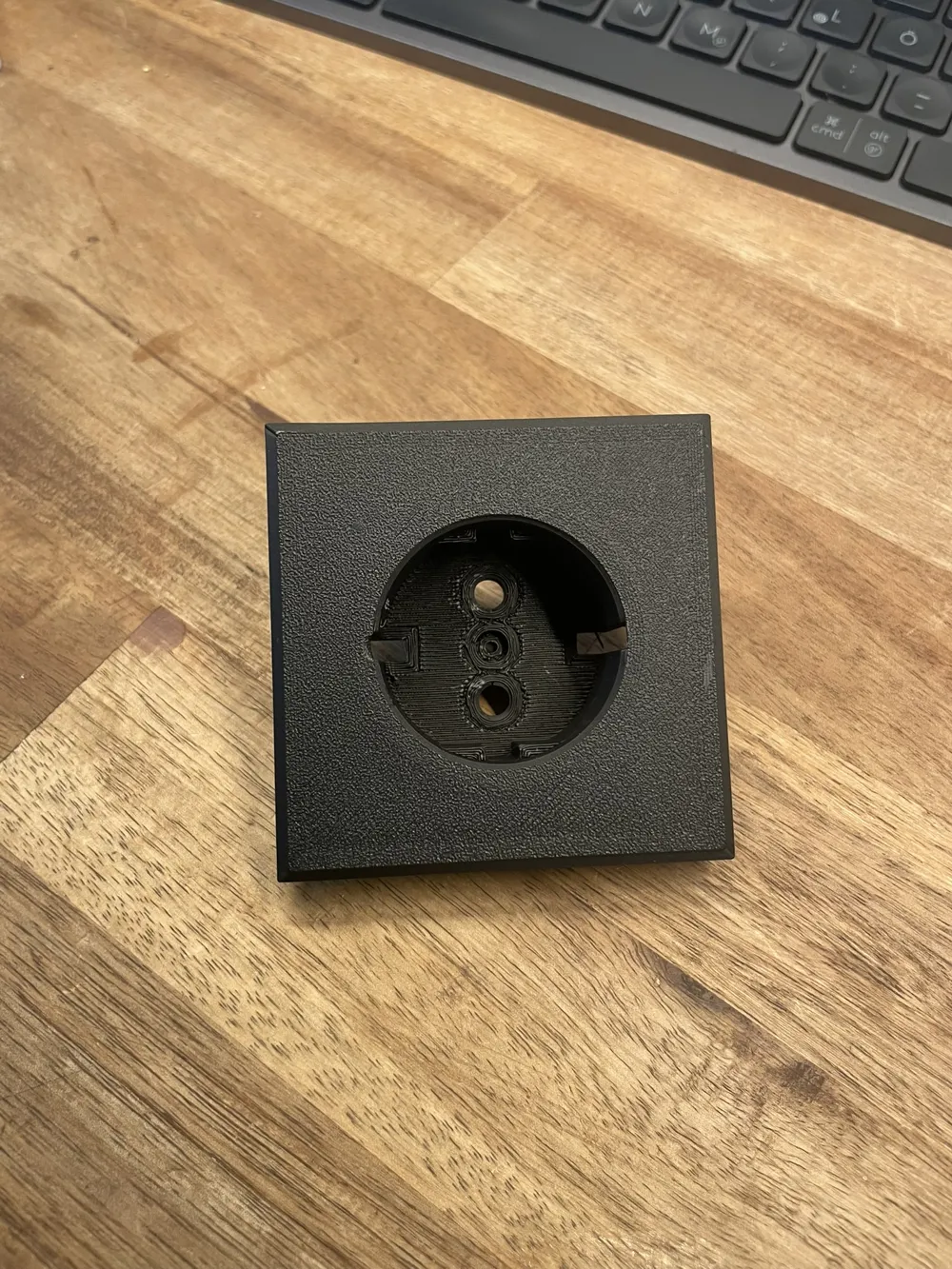

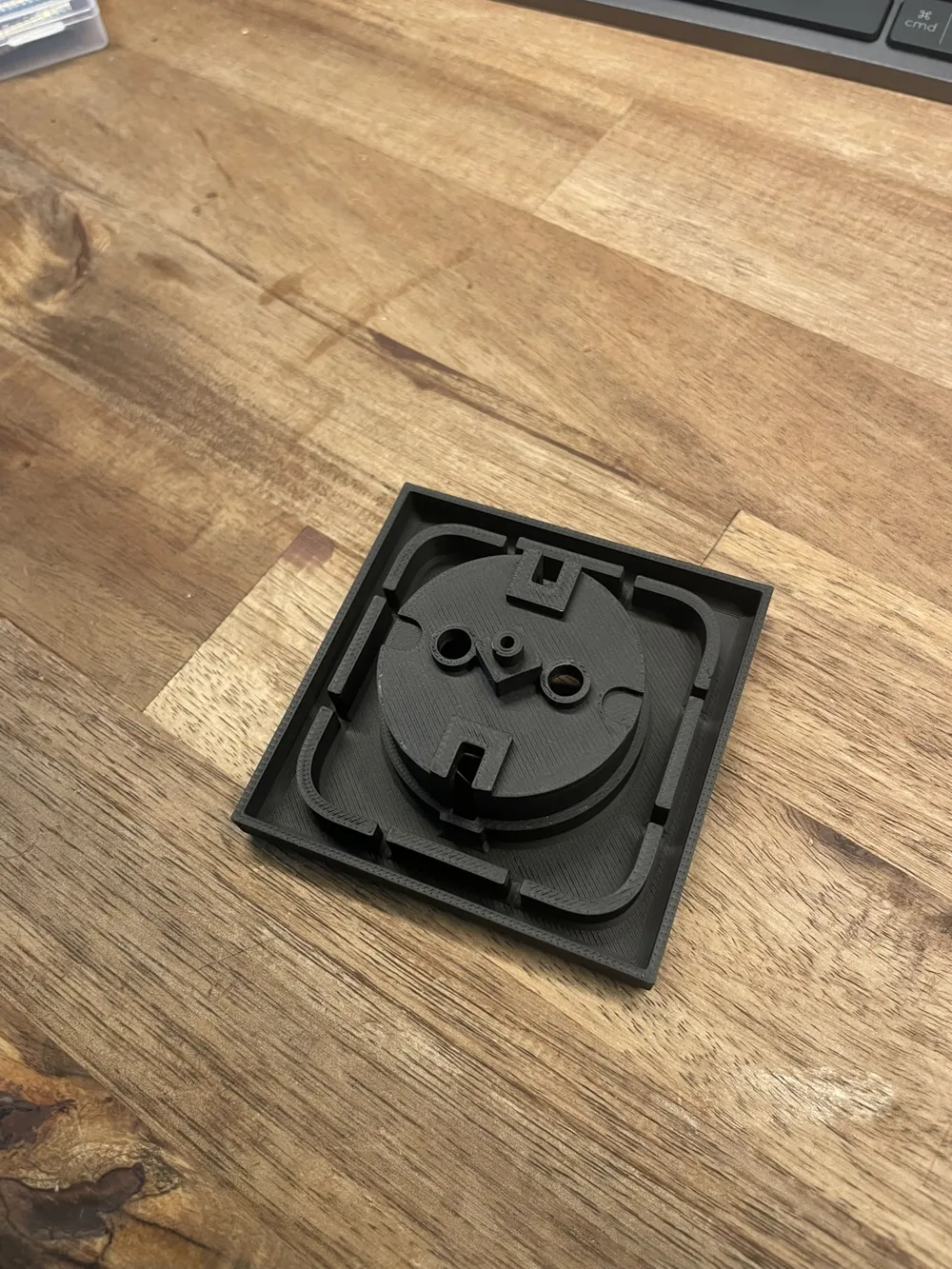

- Socket cover → Bambu PC FR (fire-retardant)
- LED diffuser → PETG transparent
Using the correct material is essential for function and safety—especially for any part in direct contact with mains voltage.
BEFORE YOU PRINT

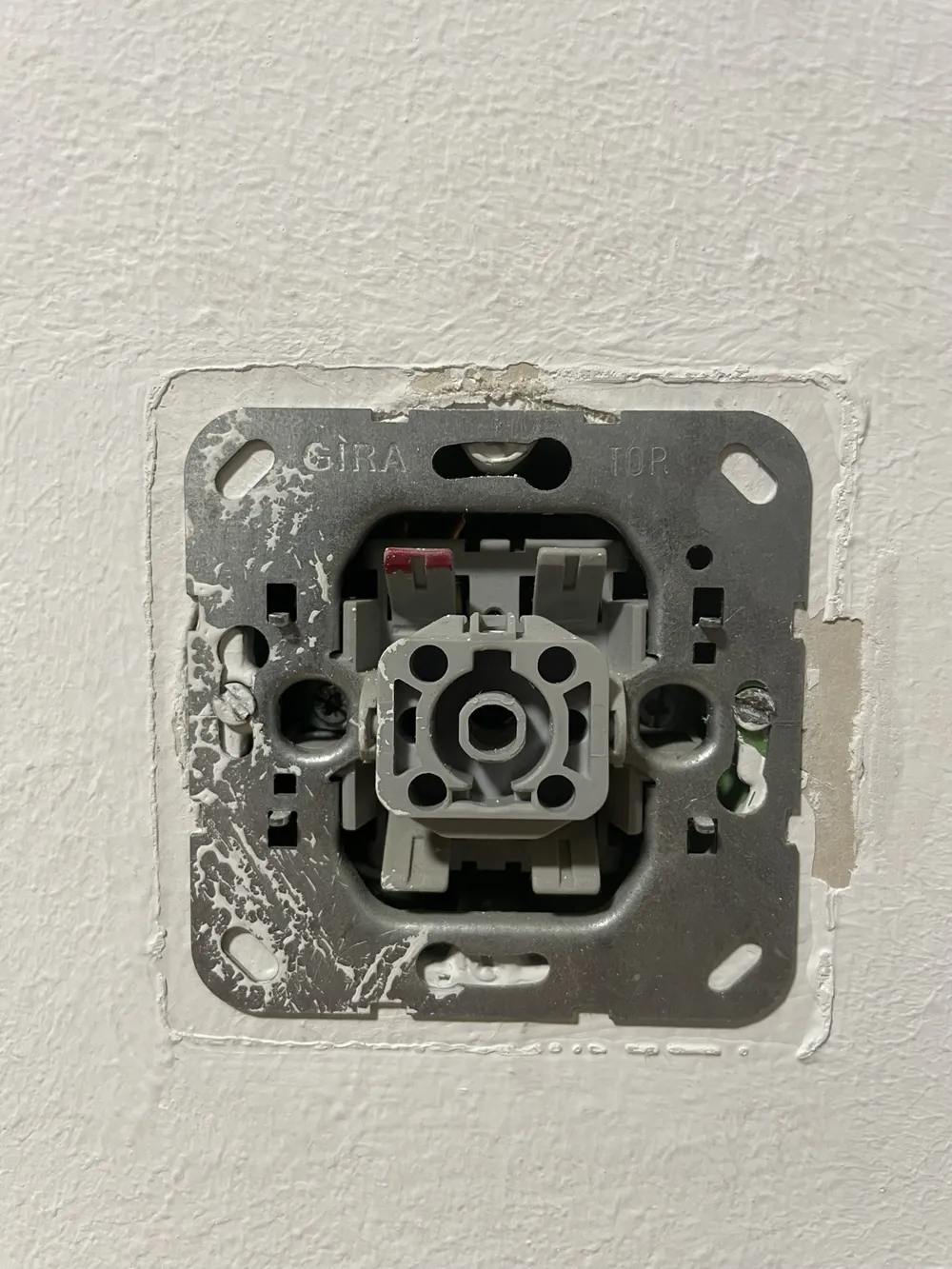

• Make sure you are using pre-2024 GIRA inserts
• Print one test unit before producing a full set
• When in doubt, consult an expert

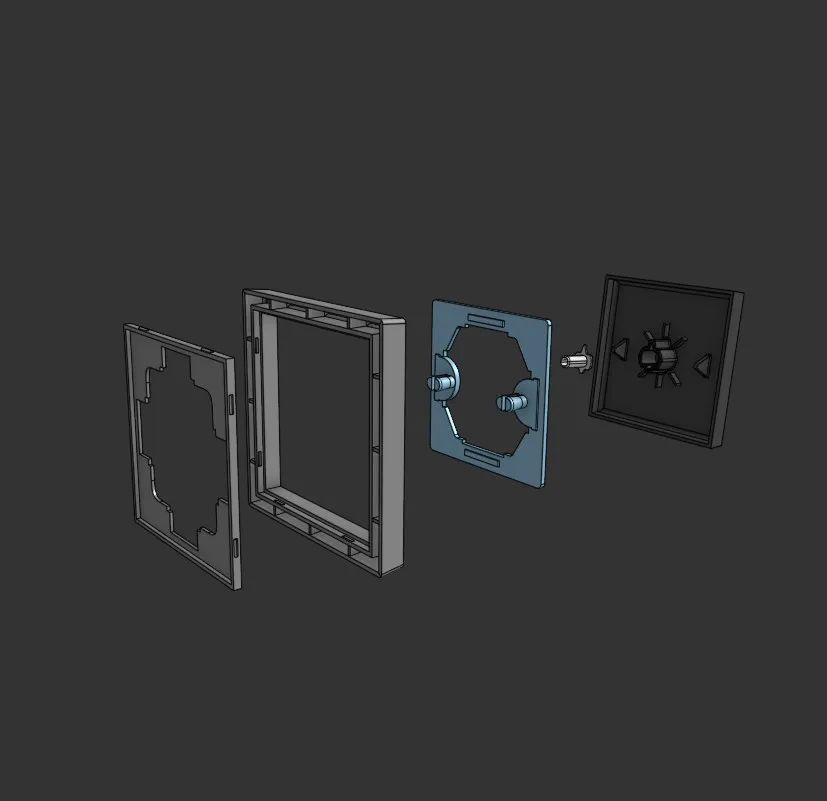

ASSEMBLY HIGHLIGHTS
• Snap-fit, tool-minimal assembly
• Supports Onvis Remote (magnets not included)
• Modular compatibility: 1 to 6-slot frames
IMPORTANT SAFETY NOTICE
⚠️ Electrical safety is critical!
- Only a qualified electrician should handle installation
- These are independent replacement designs, not official GIRA parts
- Use at your own risk — improper installation can cause fire or electric shock
This project blends clean design with smart practicality.
I’d love to see your builds — share your make if you install it!
