Precision_shaft_90mm_long x 1: 4mm + Silicon Sleve or 8mm without Silicon Sleeve
PET_Window x 1: If you want the Clear window (129mm x 84mm x0,5mmthick)

Description

Hi everyone,

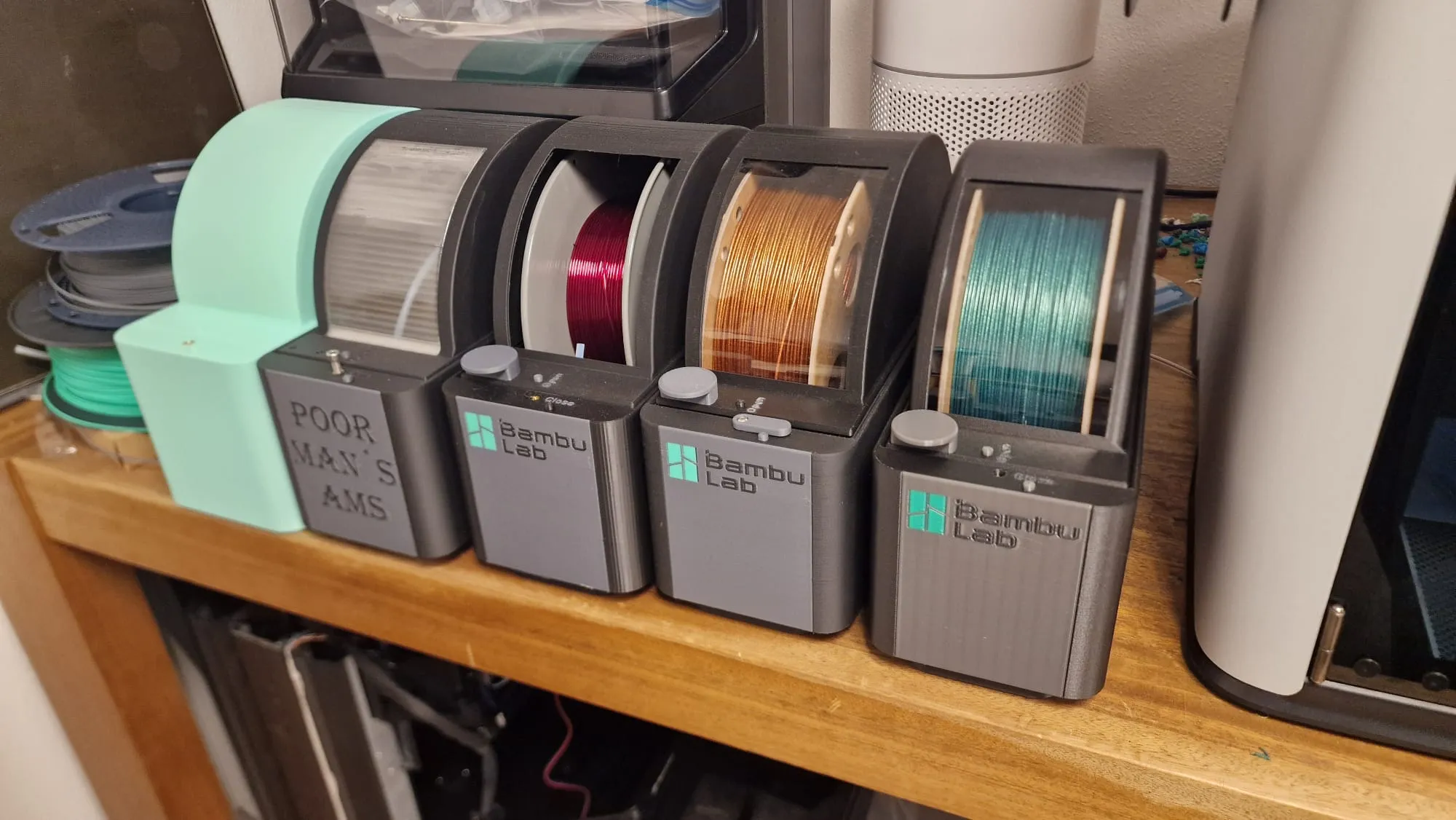

i just bought the H2D but really didnt like the location of the side spool.I wanted to place my fifth Filament on the Top, instead of using the Filament mount of the H2d on the Side. For that reason, i designed a Filament Container based on the Design of the Original AMS 2.
So after a few iterations and helpf of my friend and great Designers MeisterEdel @ https://makerworld.com/de/@MeisterEdel and Laurens from 3D-Printiverse @ https://www.printables.com/@3DPrintiverse . I´ve finalized the BambuFil Box for Bambu Printers (Prusa Version on Printables @ https://www.printables.com/@Surfalex2000/models )

Since this is my FIRST Model i uploaded to Makerworld, i hope you can BOOST my model.

Boost Me (for free)

Please BOOST my first model so i can follow with my Designs for the Bambu series!

You can it out in this 2 Videos:

You can check it in this Video:

There are 2 Versions available in the File.

2 Containers for 2 different Bearings (12 and 22mm)
2 Different Covers. With and without Window. You can try to print a PETG Window, but i like it more buying a small 0,5mm PET sheet, and Cutting it with sciccors.
Links to additional Hardware :
PET Sheet: https://www.amazon.de/dp/B01LWBUR51?ref=fed_asin_title

Steel Shaft 4mm (you need to shorten it): Amazon Link

Aluminum Shaft 8mm(you need to shorten it): Amazon Link

Pneumatik PTFE Connector: Amazon Link
