Best Festool Systainer SYS3 Latch/cover

Enhanced T-loc for Festool Systainer SYS3 Toolbox

Overview

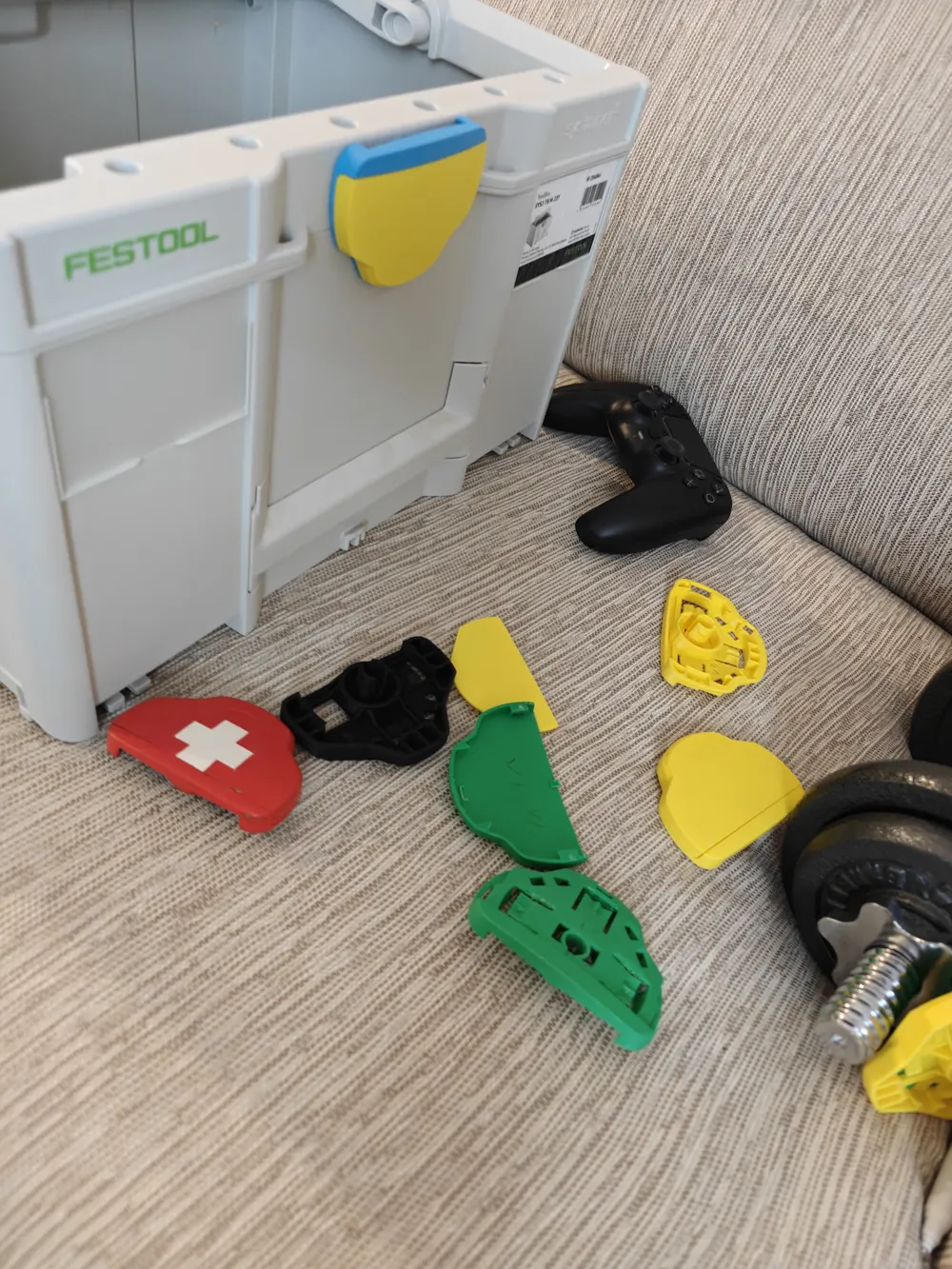

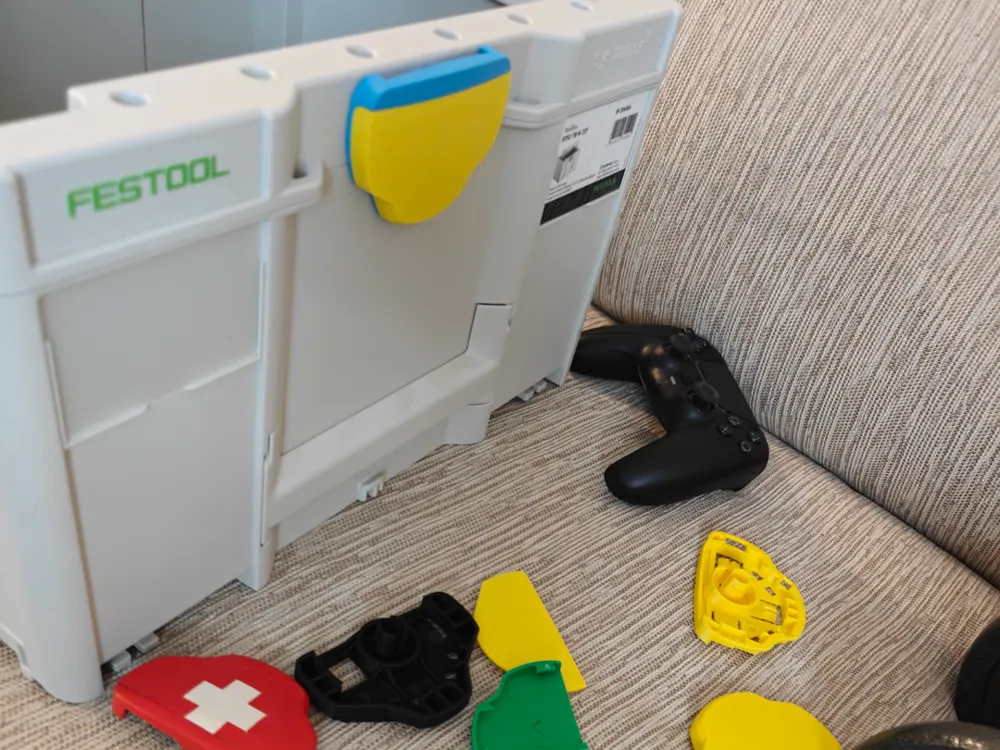

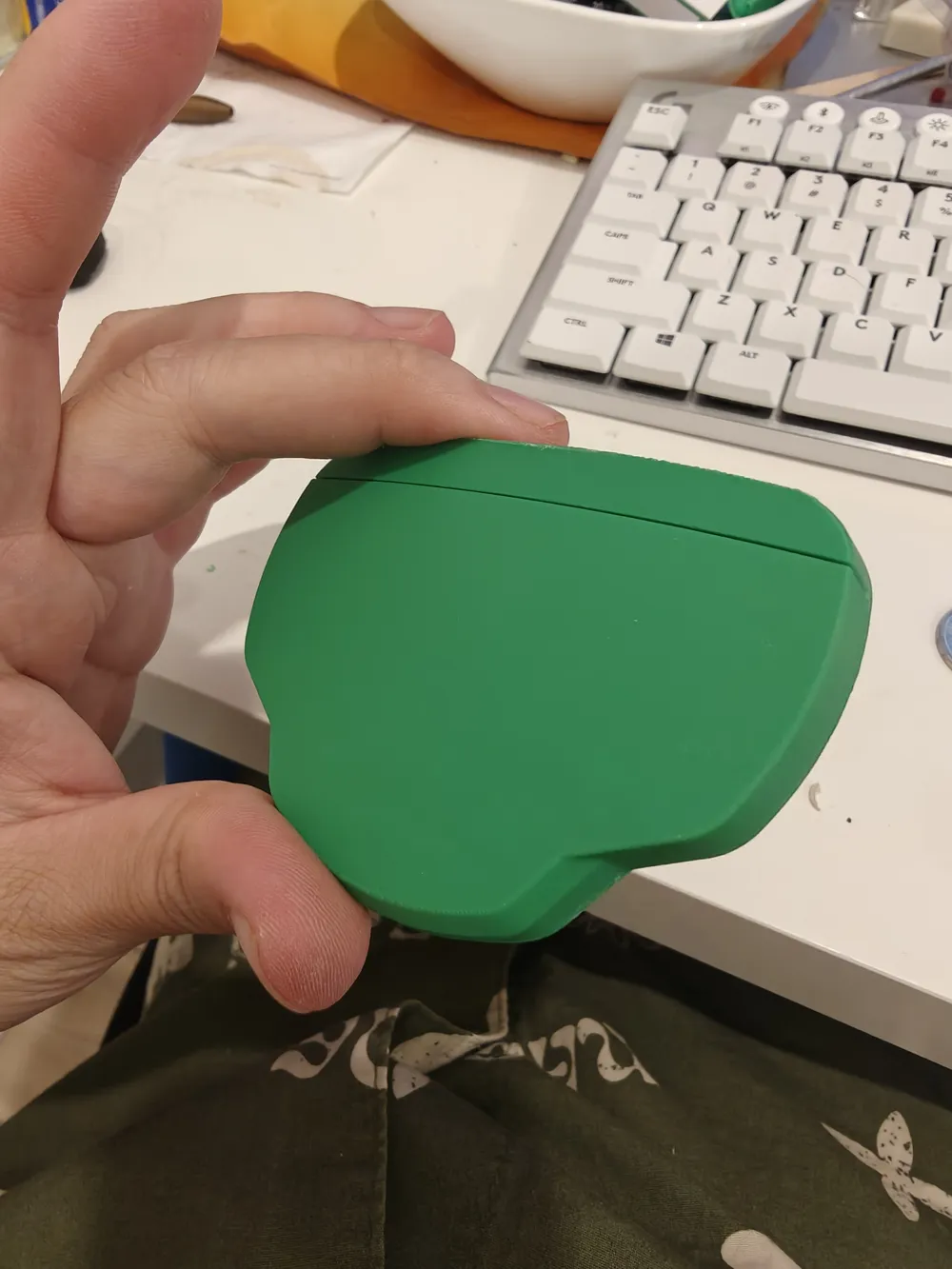

This 3D-printable T-loc locking component is custom-designed for the Festool Systainer SYS3 toolbox. It delivers a secure, smooth connection, boosting functionality. Built with precise SYS3 dimensions for perfect compatibility, this improved design takes reliability to the next level.

Updated V5: further improved the click when rotating, updated support while printing for easier removal.

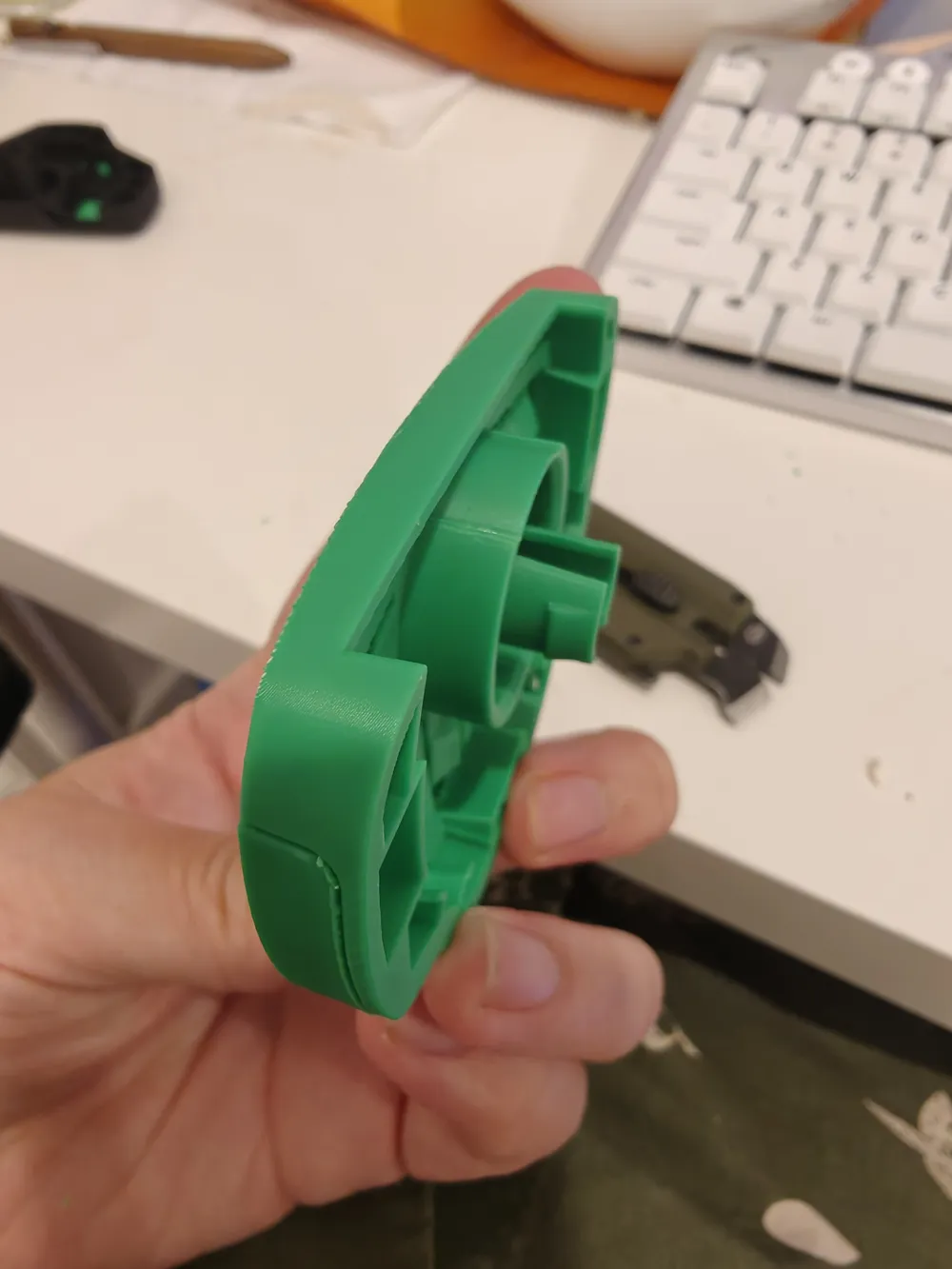

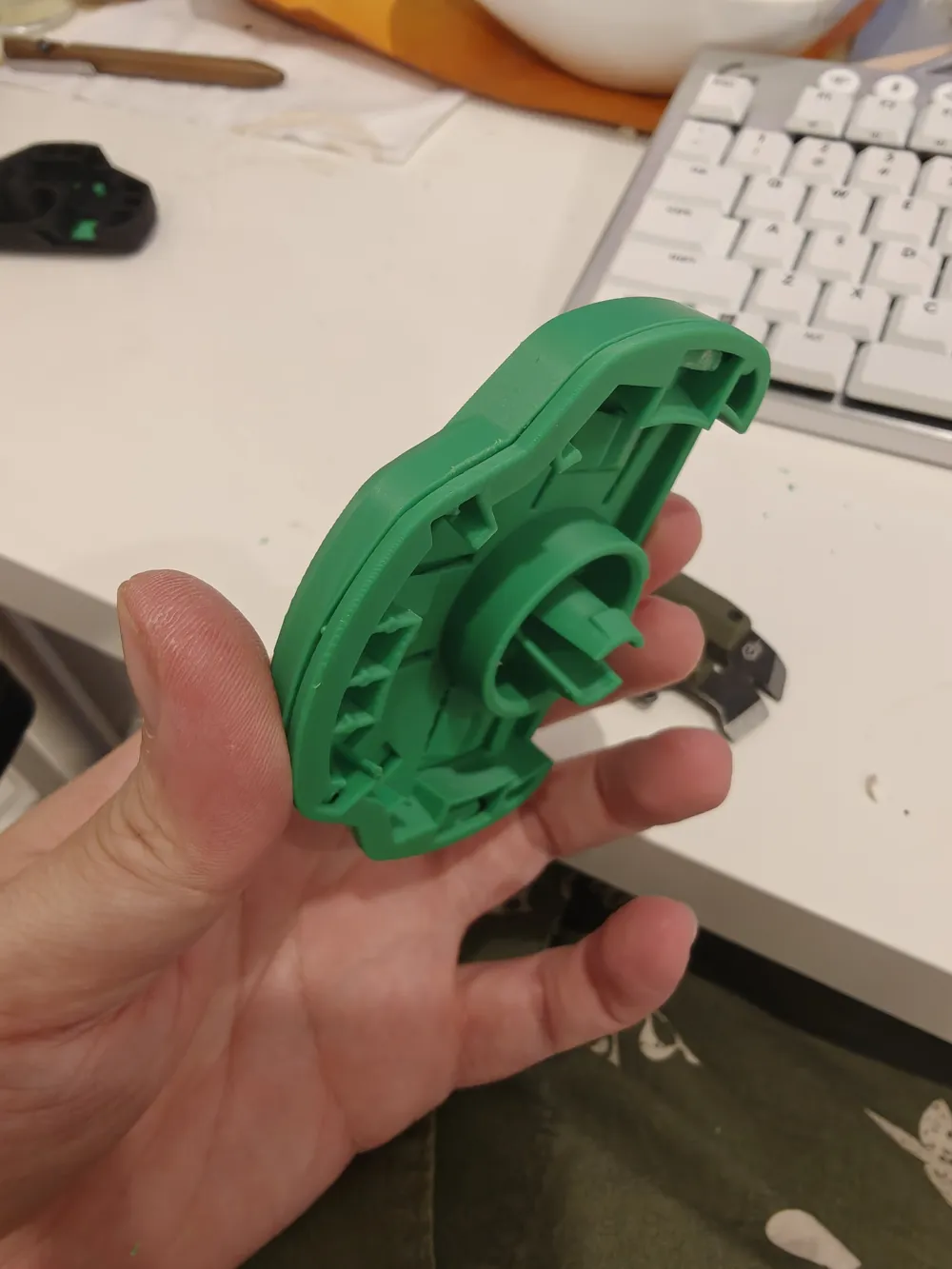

Updated V4: The raised latch arbour tab nib bites better with the box.

Updated V3: optimized latch arbour tab, more tolerance when printing with different settings , easier to snap into the box. Also updated the “clicking tab” to make clicking more obvious when rotating.

Updated V2: changed some corner profile radius for the original 3mf file, for better line-up.

Design Features

• Re-Engineered Connection Points: All snap-fit bevels redesigned for smoother engagement, with right-angle fixes to eliminate installation issues.
• Precision Micro-Adjustments: Extensive tweaks to dimensions and angles for perfect fit and enhanced functionality.
• PLA-Optimized Durability: Structural upgrades tailored for PLA compatibility, ensuring flexibility and strength under repeated use.
• Sleek and Functional: Seamlessly matches the SYS3 toolbox aesthetic while pushing performance to the limit.

3D Printing Settings

• Orientation: 45-degree tilted layout to maximize connection point strength.
• Supports: Custom supports protect critical details and ensure surface quality, designed for easy removal.
• Recommended Settings:
  • Layer Height: 0.12 mm for a smooth surface while keeping print time efficient.
  • Infill: 15%, optimized for elasticity and strength, ensuring durable, flexible parts.
  • Material: TPU recommended for AMS printers for superior flexibility; PLA also performs excellently.
  • Printer: Compatible with most FDM printers (e.g., Ender 3, Prusa i3).
• Tips: Ensure strong bed adhesion and remove supports carefully to preserve fine details.

Files Included

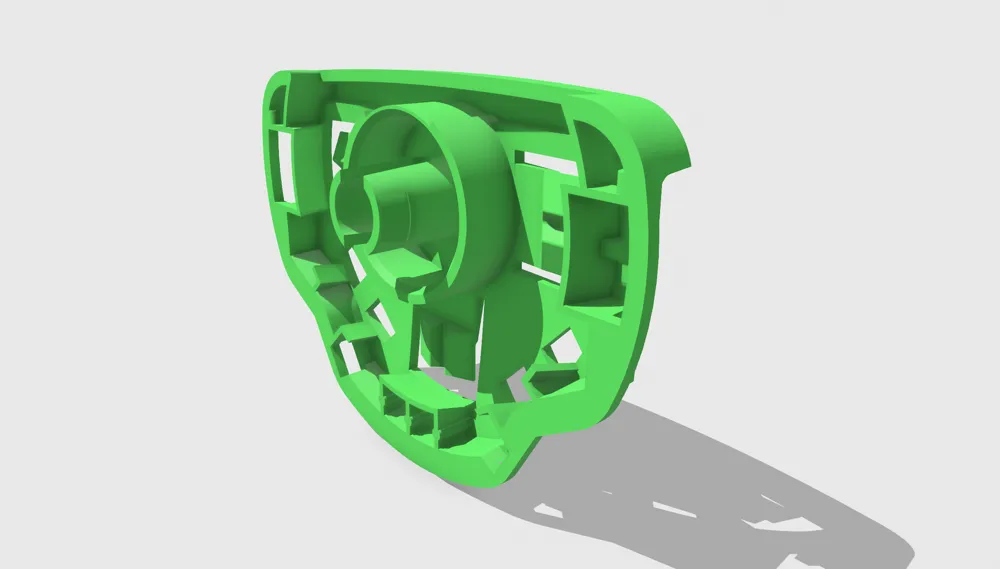

• 3MF file for the T-loc component, optimized for various printer setups with pre-configured print settings (Cura/PrusaSlicer).

Notes

• This is a third-party accessory for Festool Systainer SYS3 toolboxes, not an official Festool product.
• Share your feedback or printed results! Let me know how it performs on your printer or with different materials.

License

• Licensed under Creative Commons Attribution-ShareAlike 4.0. Modify and share freely, but please credit the original design.

Tags

#Festool #Systainer #SYS3 #T-loc #Toolbox #3DPrinting #FunctionalPart #Tools

Happy printing, and I can’t wait to see your results!
