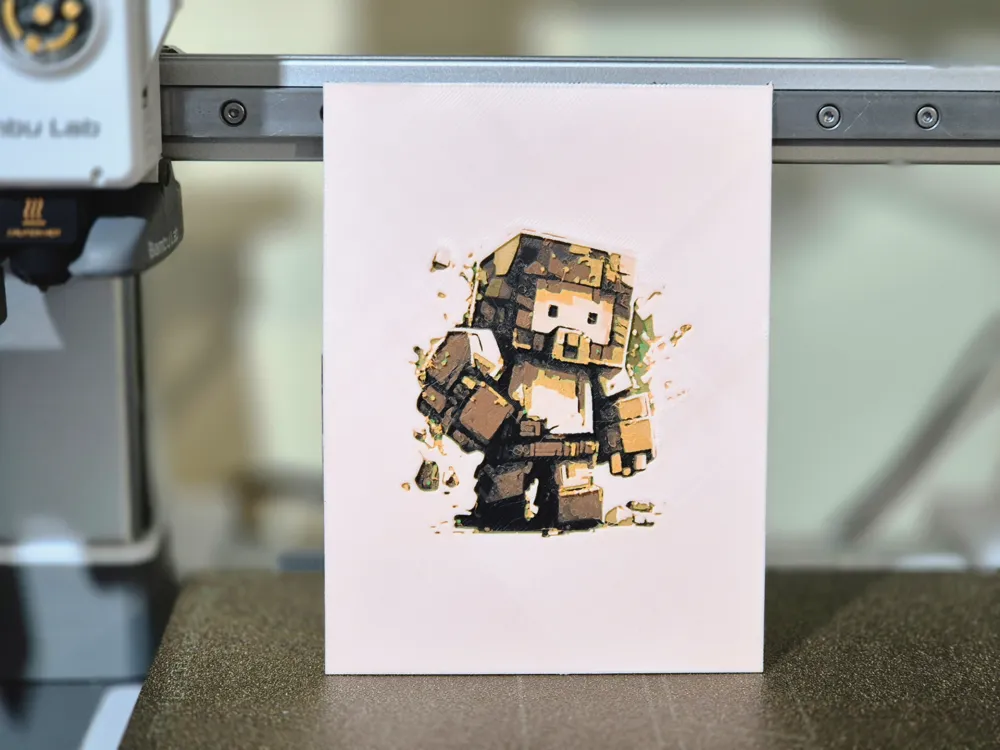

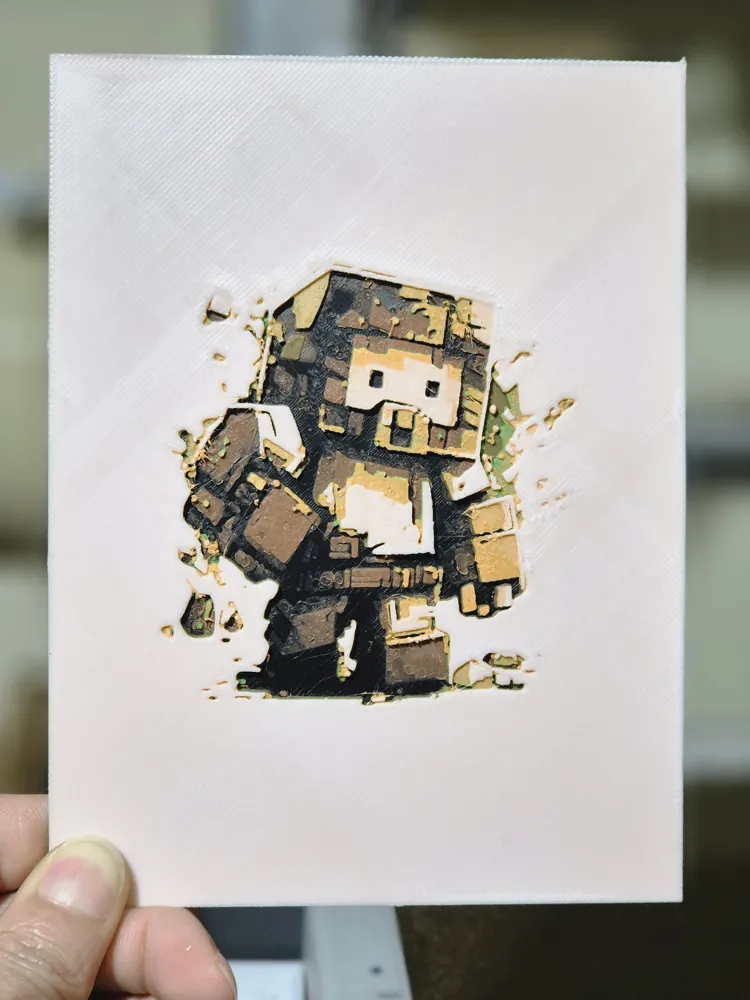

The Little Miner: A HueForge Tribute

Printing Instructions

For Bambu Printer Users:
The included .3MF file comes pre-configured with all the necessary settings for Bambu printers or Bambu Studio—simply load and print!

For Non-Bambu Printers:
Use the provided .STL files and follow the settings outlined below.

Multi-Color Printing (AMS Users):

If you only have one AMS unit but your design uses more than 4 colors, follow these steps:

1. During printing, once the first color finishes, pause and remove that spool while the next color is being used.
2. Replace it with your 5th color in the same AMS slot.
3. In your slicer, assign the 5th color to the correct AMS slot to ensure smooth transitions.

Manual Filament Swapping (Non-AMS Users):

If you don’t have an AMS:

• Insert pause commands at the appropriate layers.
• Unload the current filament and load the next color when prompted.

Print at 100% infill with a layer height of 0.04mm with a base layer of 0.2mm

The Model is 112.5x150mm in size
You may print at higher layer heights below the Min Depth of 0.52mm
The Max Depth is 2.3mm and the Actual Depth is 2.2mm

Filaments Used:
    PLA BambuLab Matte Charcoal Transmission Distance: 0.6
    PLA BambuLab Basic Brown Transmission Distance: 2
    PLA BambuLab Basic BambuLab Green Transmission Distance: 2
    PLA BambuLab Matte Mandarin Orange Transmission Distance: 3
    PLA BambuLab Matte Ivory White Transmission Distance: 3.5
This print uses 5 unique filaments

Swap Instructions:
    Start with Charcoal
    At layer #10 (0.56mm) swap to Brown
    At layer #20 (0.96mm) swap to BambuLab Green
    At layer #30 (1.36mm) swap to Mandarin Orange
    At layer #40 (1.76mm) swap to Ivory White for the rest.


Let us know if you run into any issues—happy printing!
