Electronic Component and Soldering Tool Storage with Integrated Fume Extraction
Print Profile(1)
Description

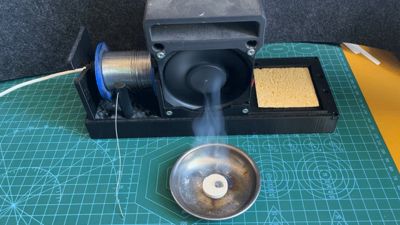

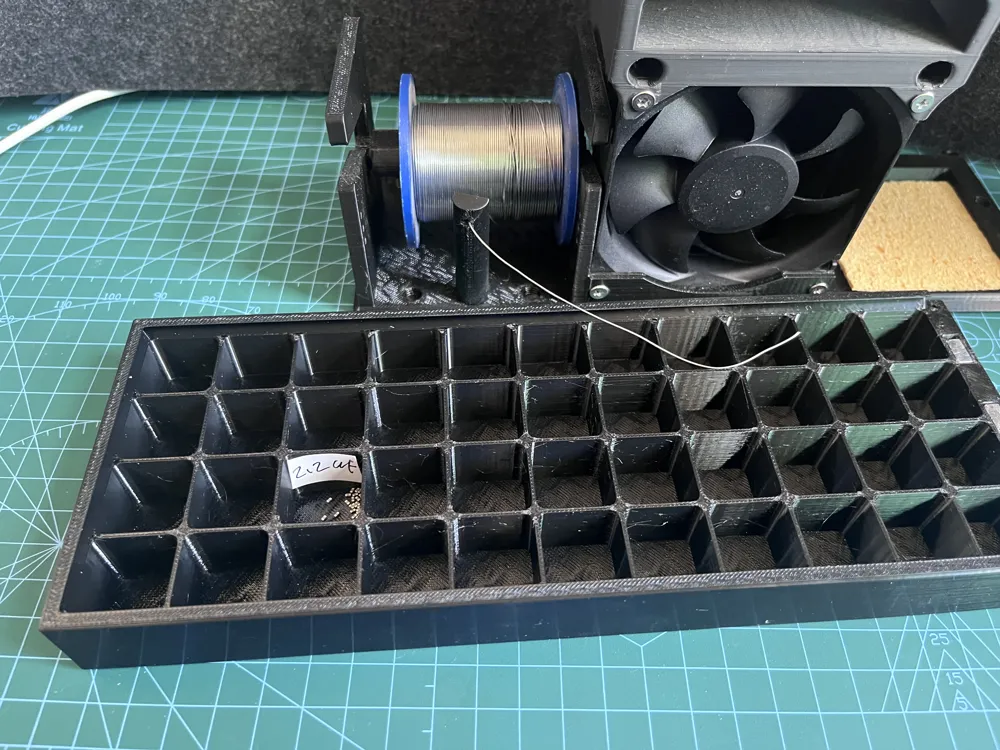

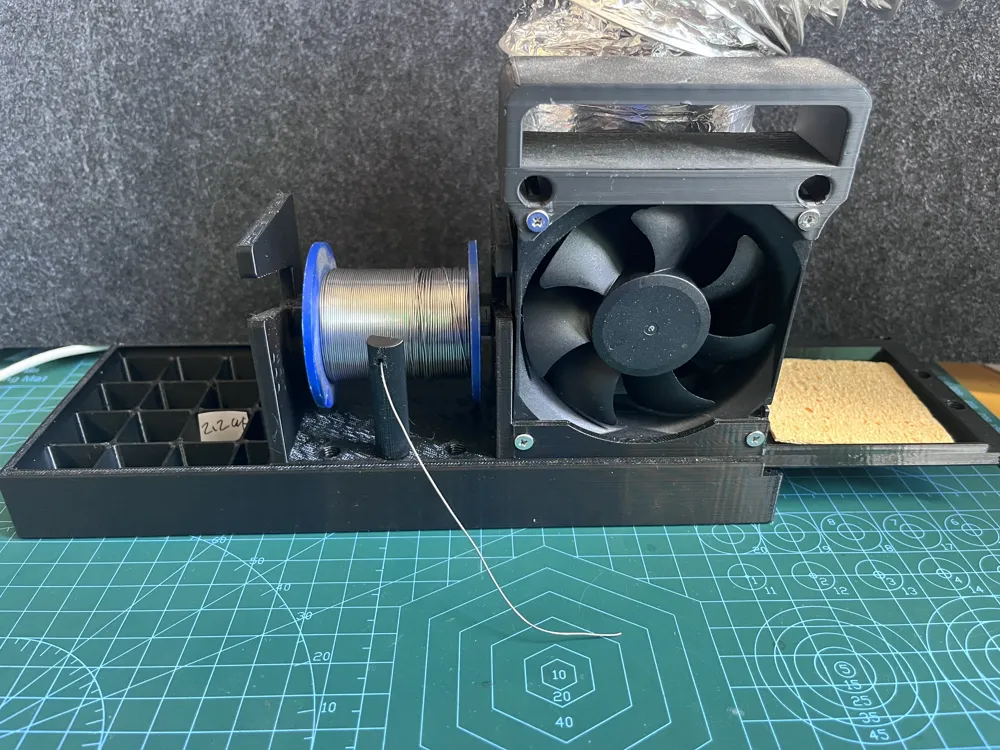

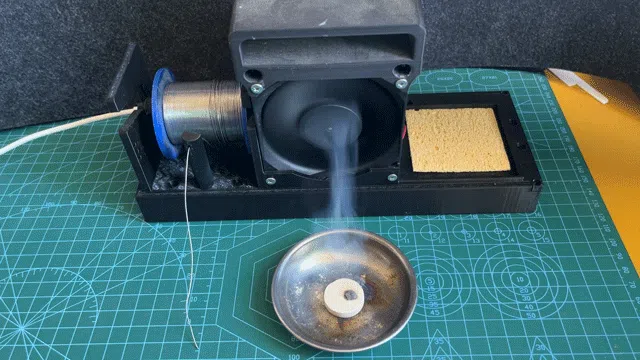

This is a model for an electronic component storage box with fixed auxiliary soldering tools

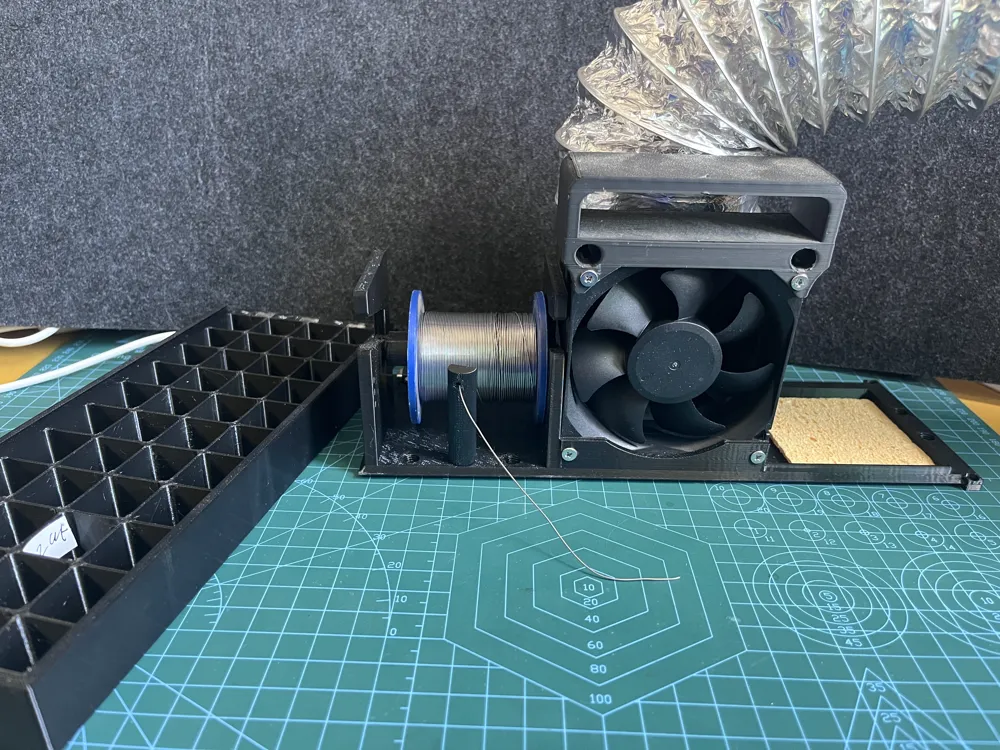

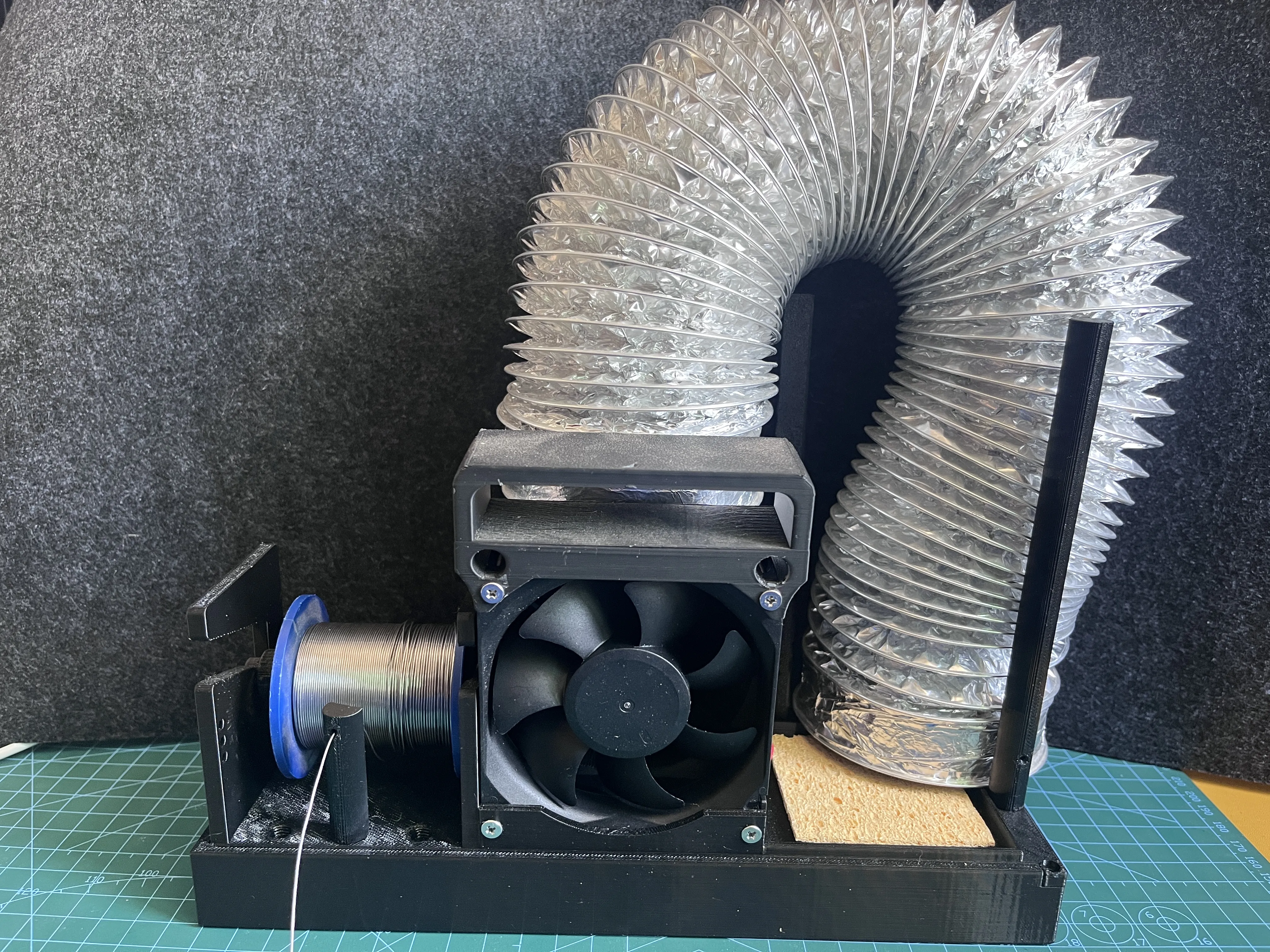

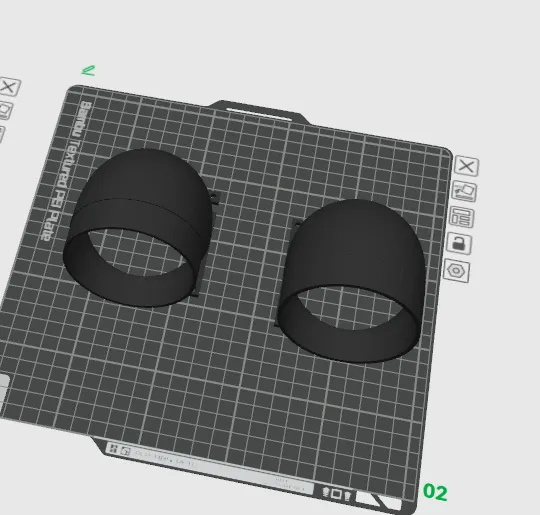

The fume extraction uses an 80mm fan and an 80mm extraction tube. The two models in the tray are used to connect the fan to the extraction tube; one is a 79mm adapter and the other is an 80mm adapter. Print one according to the tube you purchased (requires 4 M3 screws and 4 M3 nuts for fixing; screw length: 6mm + nut thickness + fan thickness; a slightly longer length is preferable to allow for error).

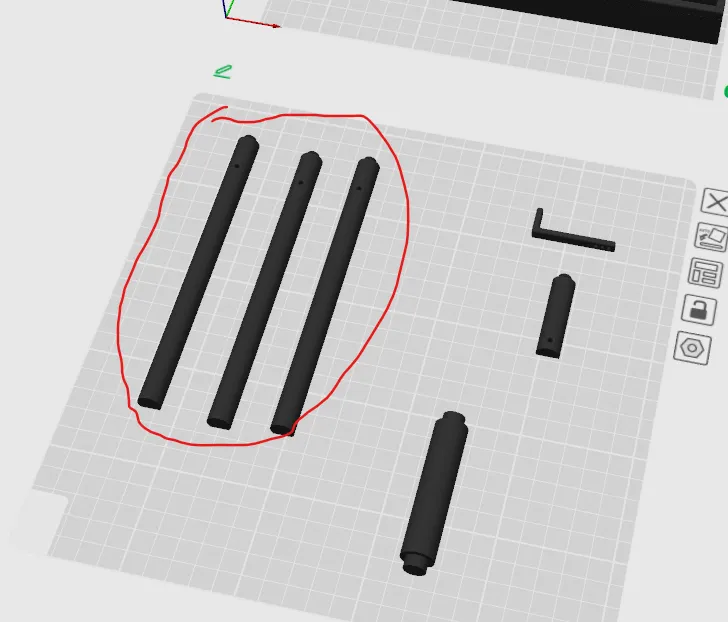

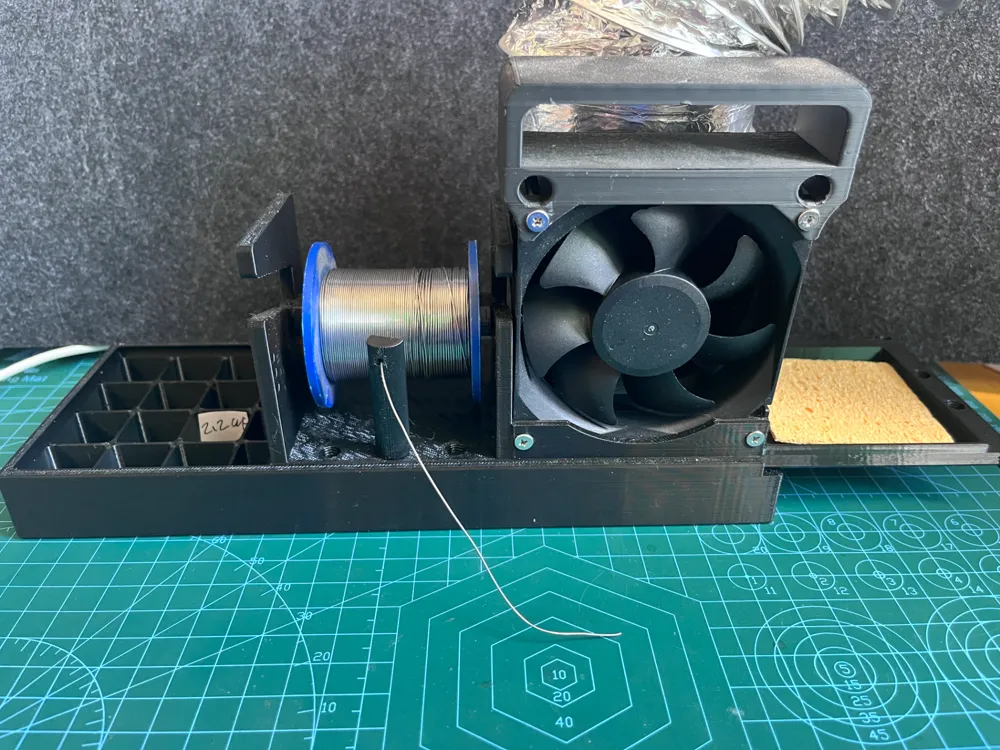

These three are for auxiliary fixing of the extraction tube; you can choose whether to print them according to your needs; see the image below for the effect.

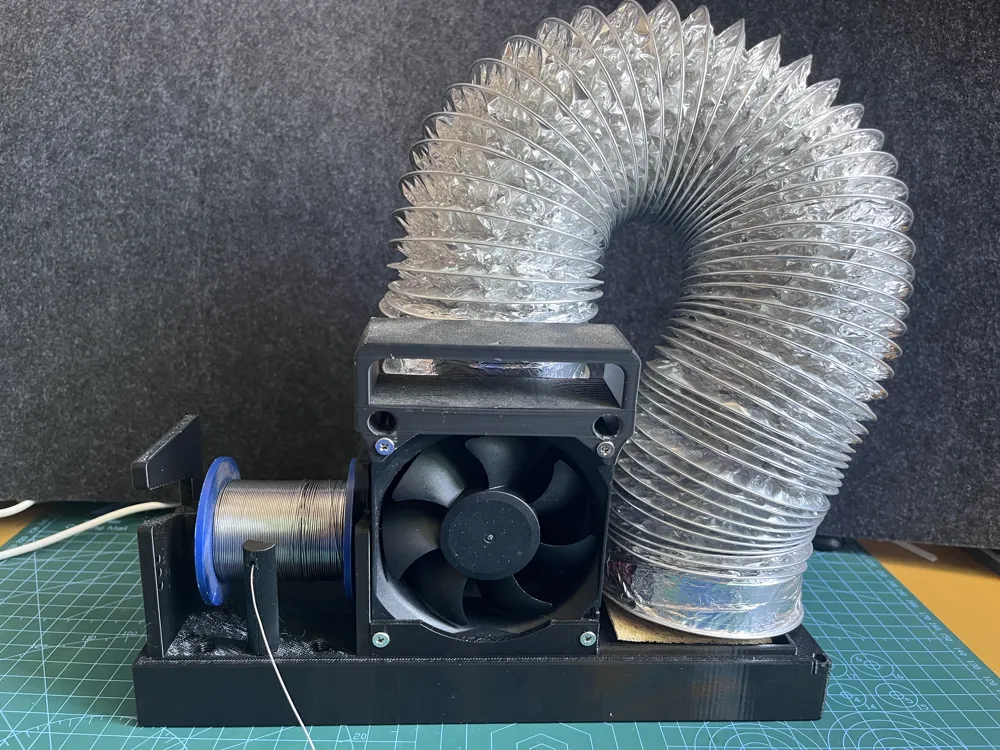

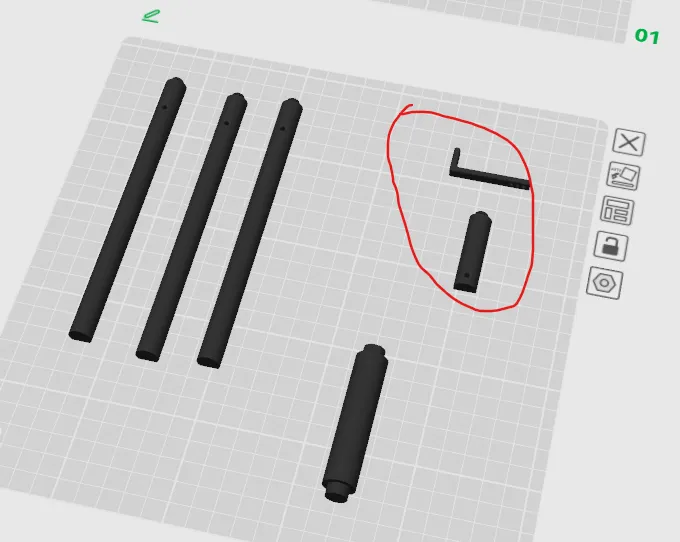

The two models in this tray are for solder wire output. The straight one can be directly screwed onto the fixture, as shown in the image above; the L-shaped one needs to be fixed to the side using an M3 screw. Print only one.
The last straight printed part in the tray is for solder wire fixing and must be printed.
