Makita Power Tool Multi-Battery Series-Parallel Bracket (for two, four, and six batteries)
Print Profile(1)
Description
This model's design draws inspiration from Parkside X20 Battery Pack 6x by DAVID HOLEČKO - MakerWorld, to whom we express our gratitude. For detailed assembly instructions, please refer to the accompanying document. The model utilizes the following components:
1: XT60E-F (Fasteners: Two sets of M3*10 countersunk screws and nuts)

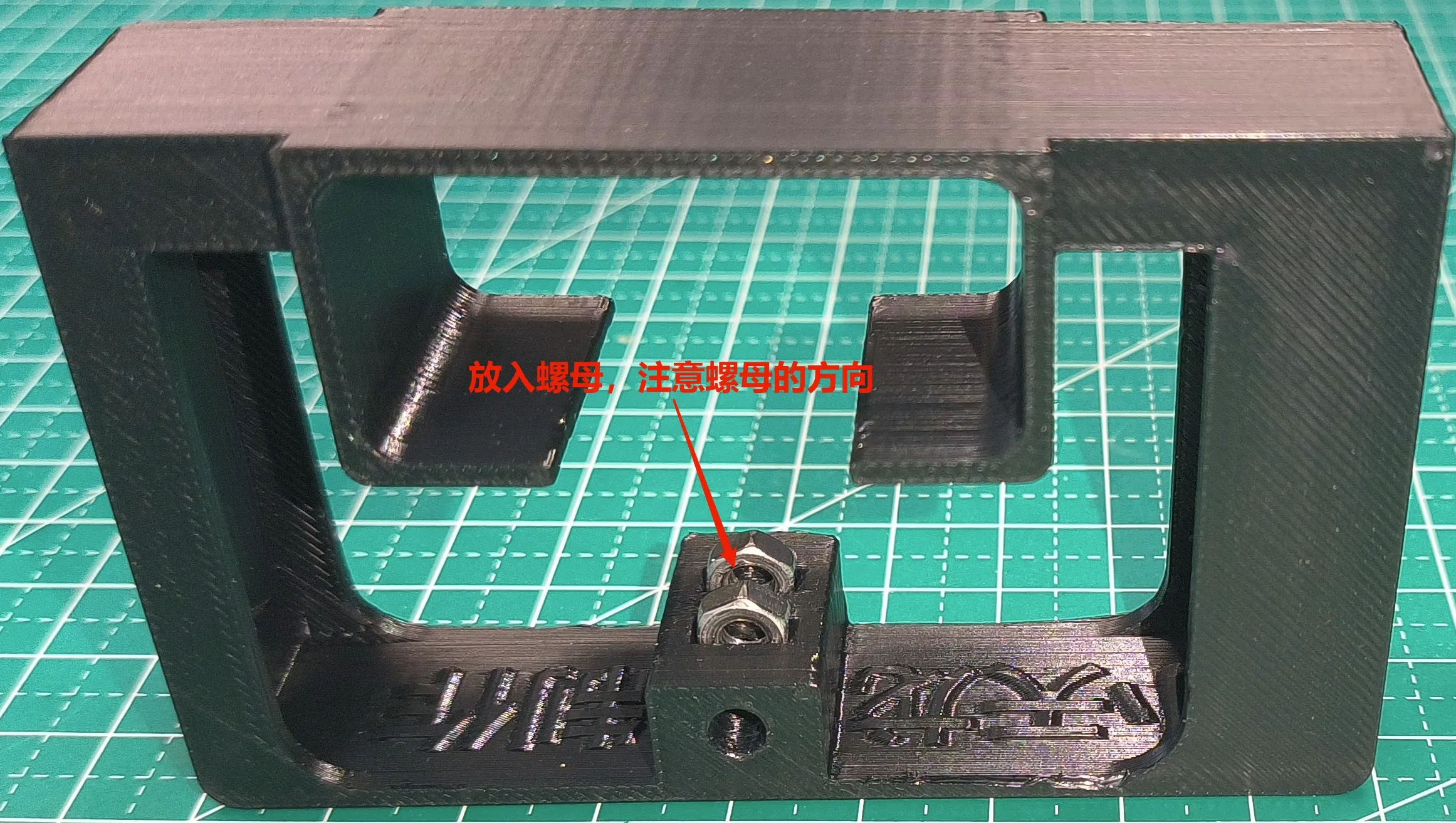

2: M4*16 countersunk screws and nuts (Two or three sets per power receptacle)
See images:

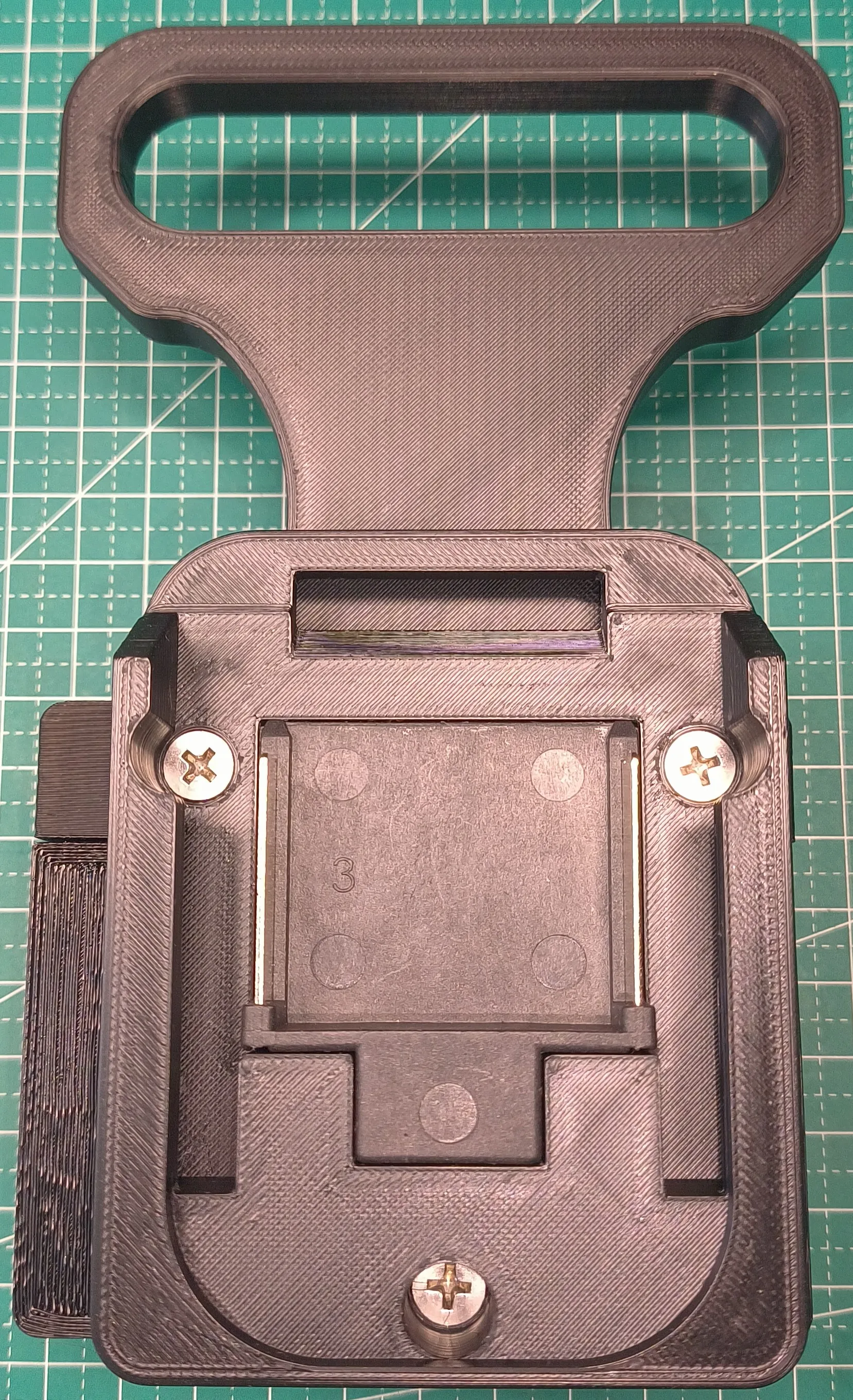

Following user feedback regarding loose power receptacle screws, the model has been updated to include an additional set of M4*16 countersunk screws and nuts. This addition is optional, depending on preference. See images below:

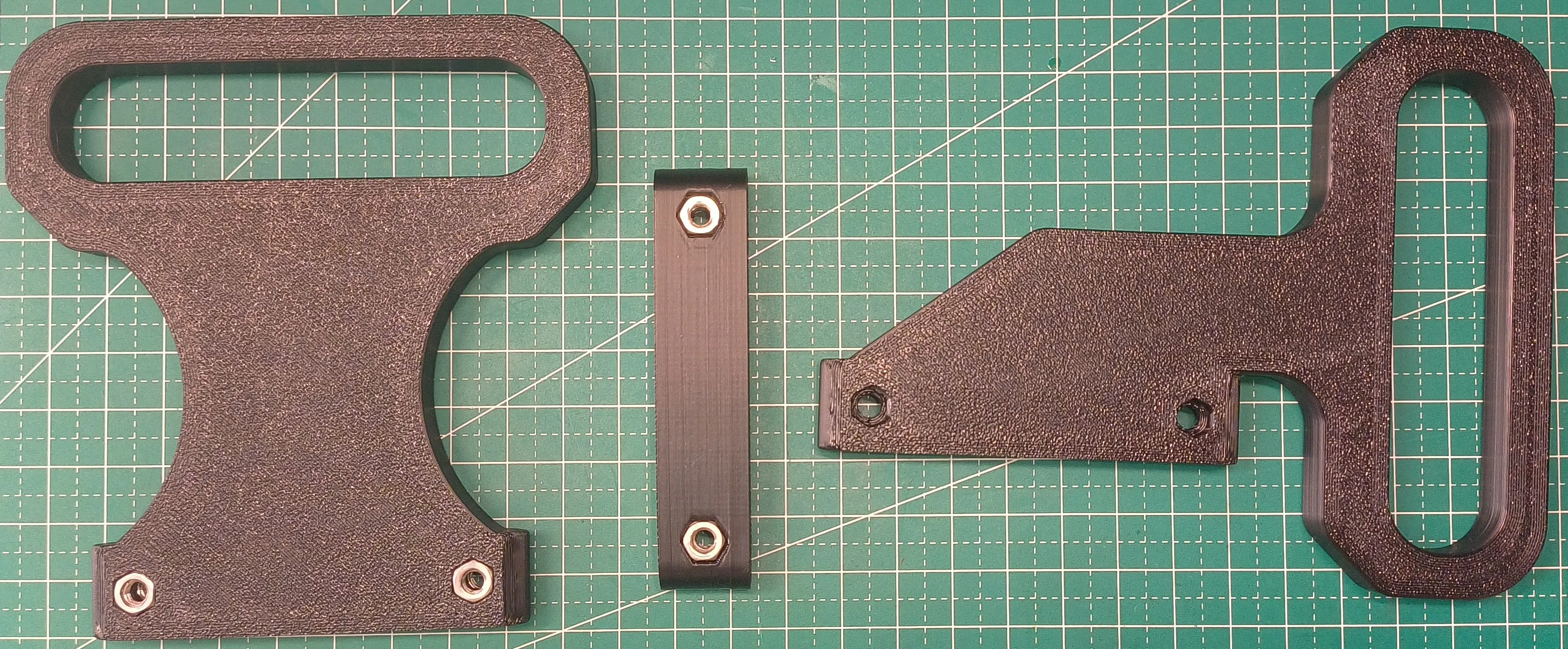

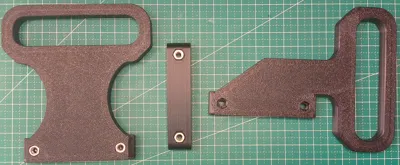

Two handle designs are included; choose your preferred option. See image:
Please note: Removing supports from the cable channel after printing can be challenging. Exercise caution to avoid damage. We hope you enjoy the model and appreciate your support!
