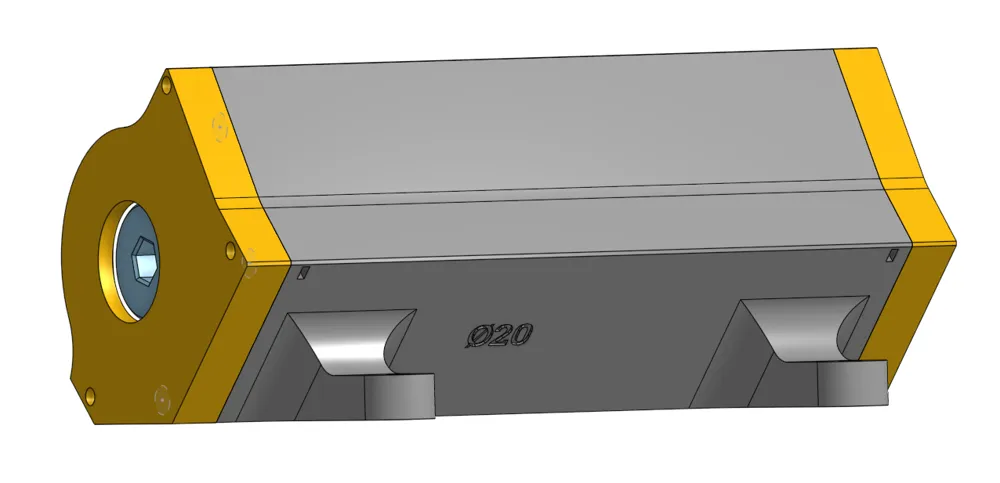

Boilie Roller 20mm (RollBall)
Print Profile(1)
Bill of Materials
- Ball bearing 6208 (id40 od80) x 2:
- Threaded shaft M8x300 x 1:
- Nut M8 x 2:
Description
This is boilie roller for Ø25mm balls.
You need two ball-bearings (outside diameter 80mm / inner dia. 40mm / Width 18mm) //for example: SKF 6208 or anything cheeper
2x M8 nut, 6x M3 nut, 6x M3x18 DIN 912 screw, 1x threaded rod M8x~300mm

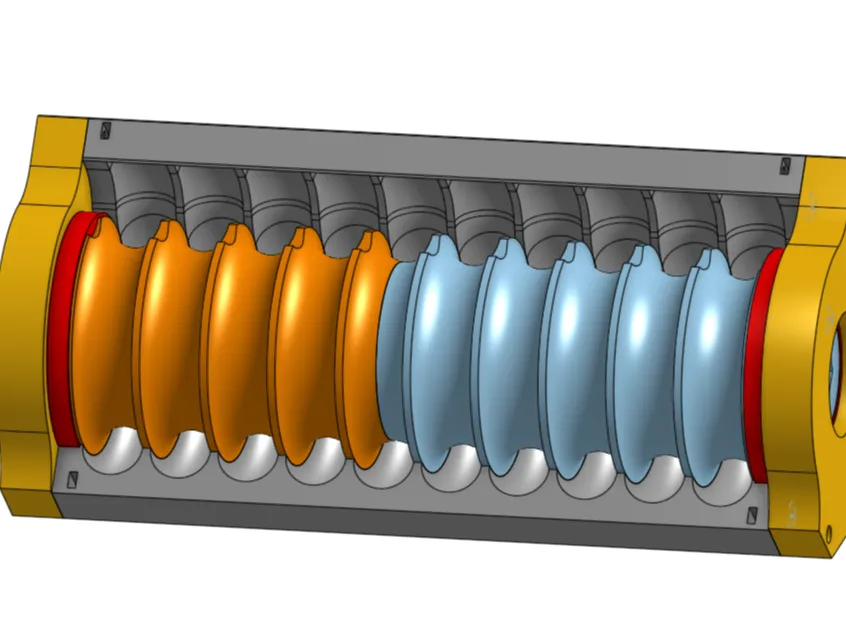

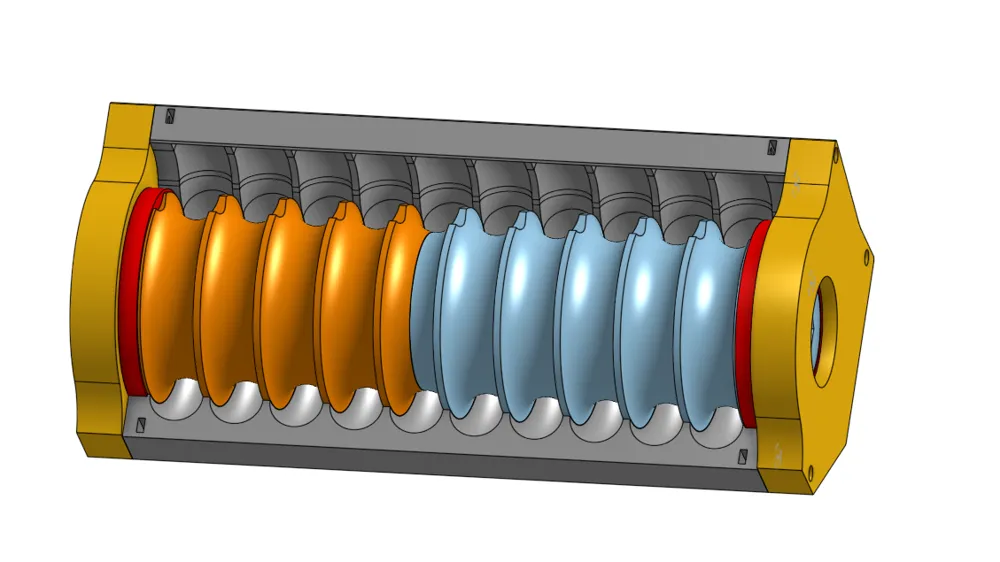

cylinder is from two parts for printer fit
for better assembly print 4x pin Ø10 (in print files)
For drive you can simple use cordless drill. :)
