H2D ONLY.

NOTE!

There is now an addon for a second 4 in 1 adapter available here:

https://makerworld.com/en/models/1460293-addon-for-h2d-4-in-1-adapter-with-spool-holder#profileId-1522592

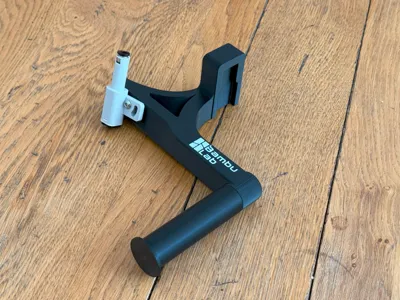

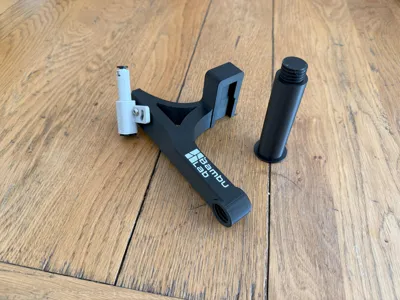

This replaces the existing Bambu supplied spool holder for the H2D.

The bracket is designed for the 4 in 1 adapter.

I realise the placement isn't suitable/ideal for some uses, I use it for the non AMS side, connected to a dry box.

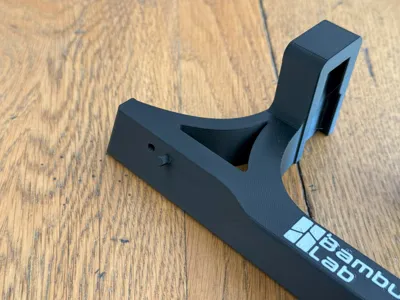

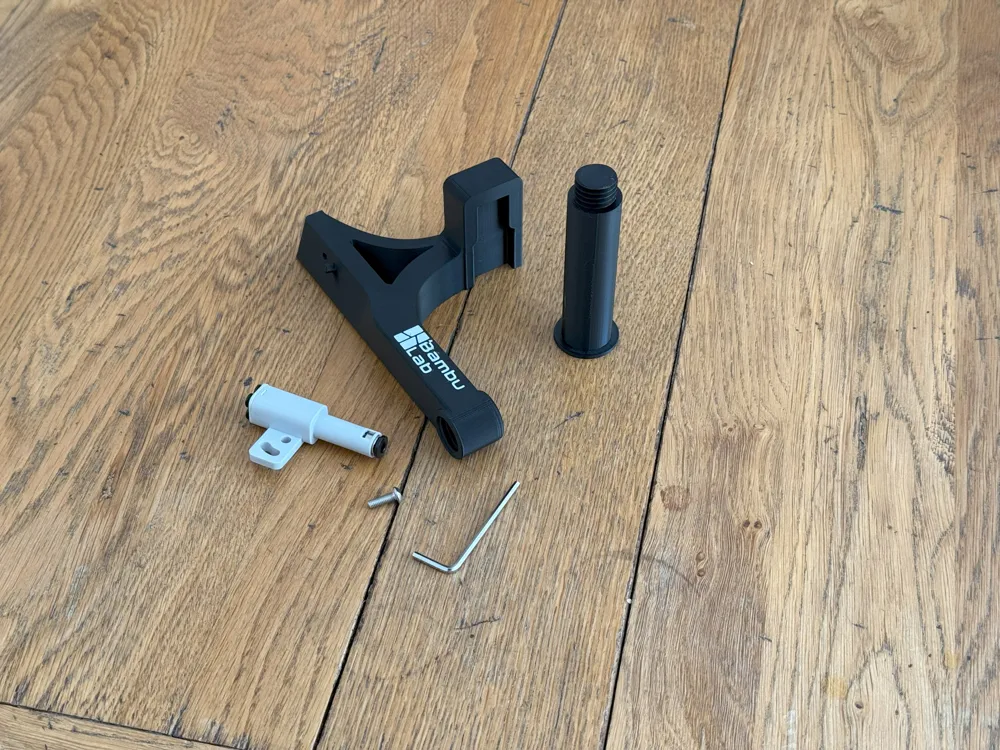

You will need 1no. M4 machine screw with 11-12mm of thread.

The spool should be placed so that it will turn clockwise.

I would not recommend tightening the spool holder too much because it will break.

I used Gyroid infill at 20%, PETG.

I had some problems with the PTFE tube bending from the 4 in 1 adapter (especially with the addon) into the H2D. This tool solved the problem completely for me:

https://makerworld.com/en/models/1575719-bambu-4-in-1-adapter-ptfe-guide#profileId-1657816
