Gridfinity 2x2 Bins with Latching Lids v1.0

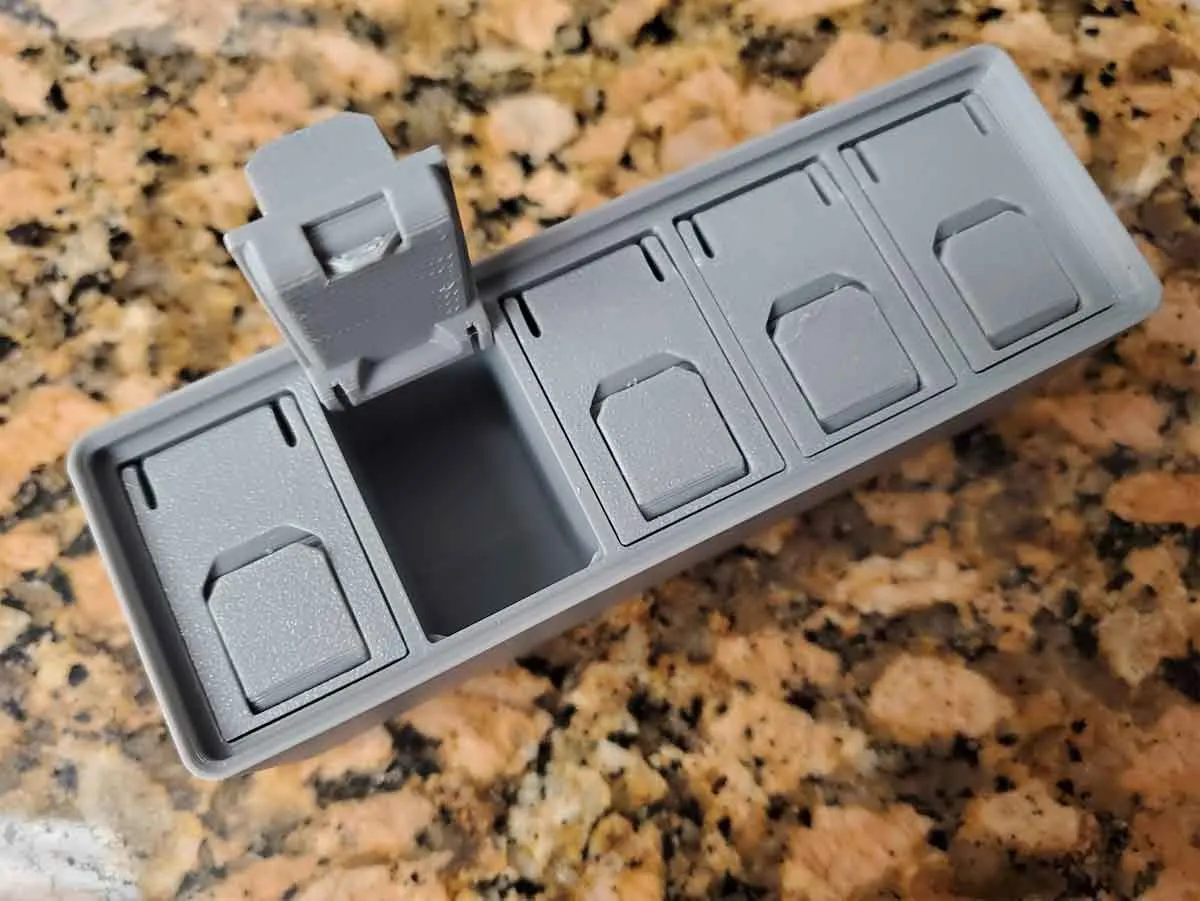

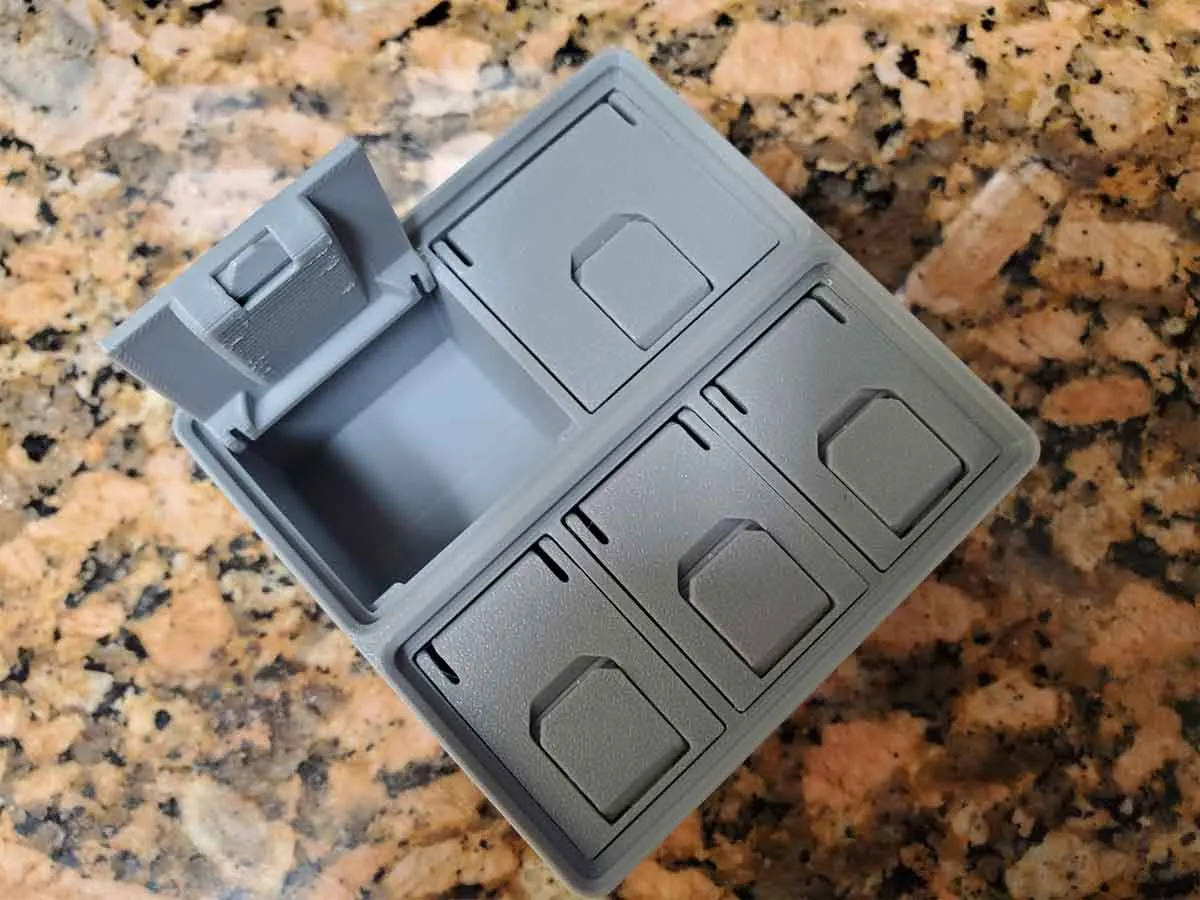

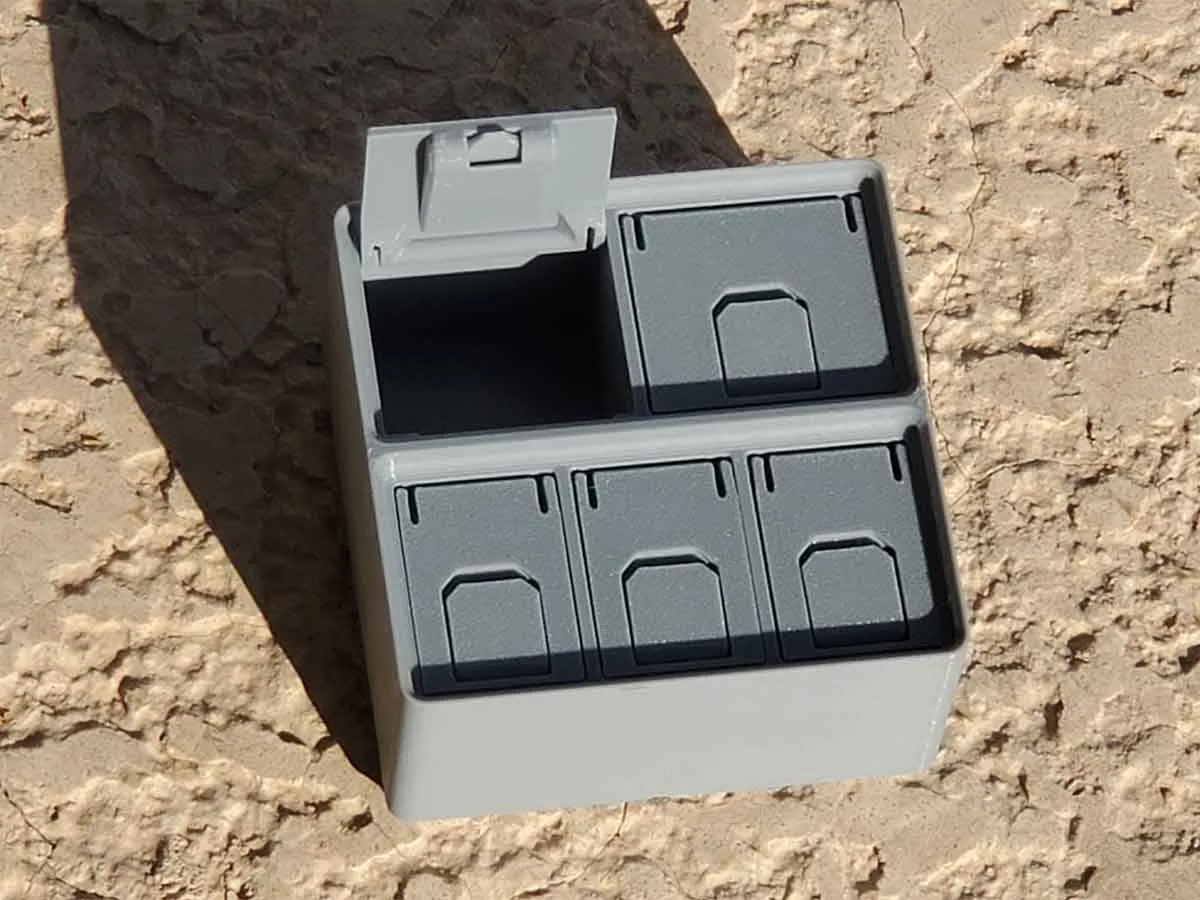

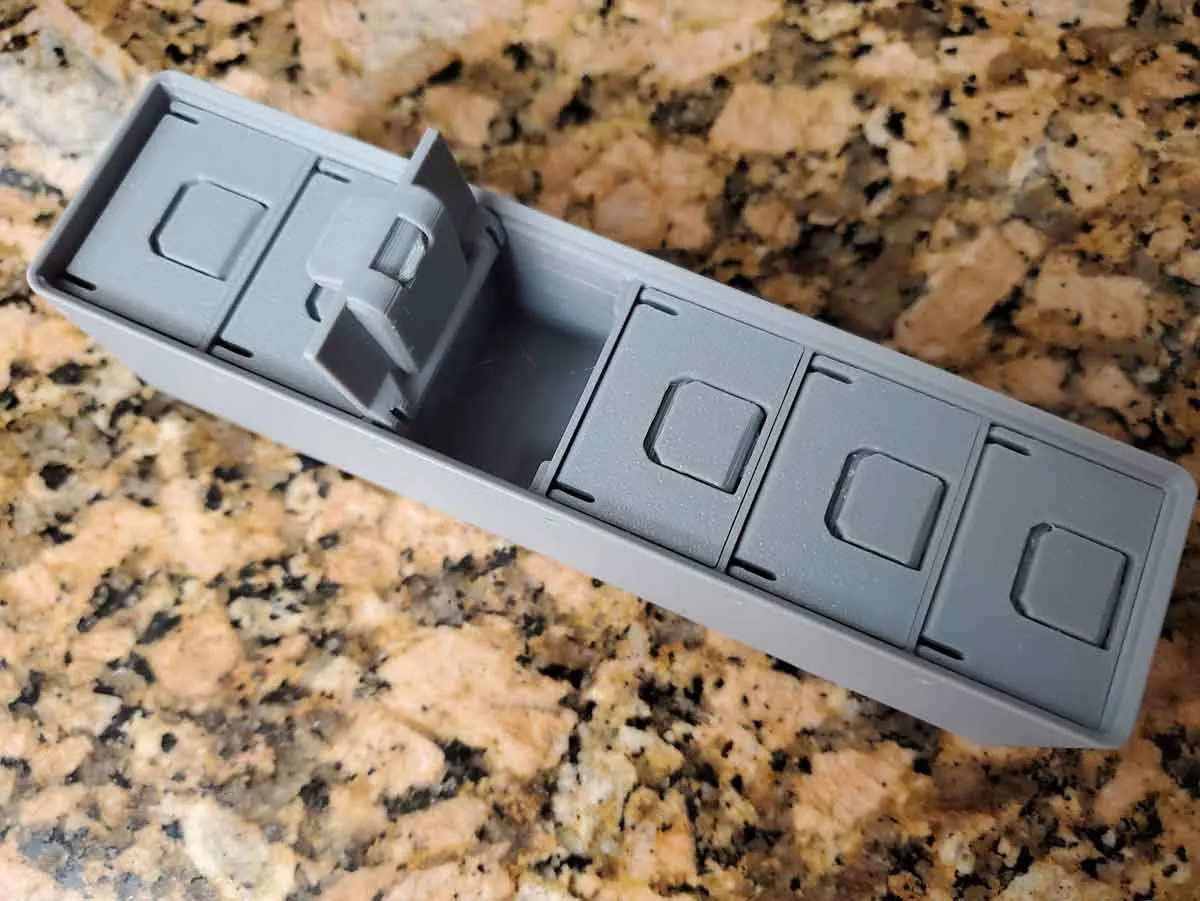

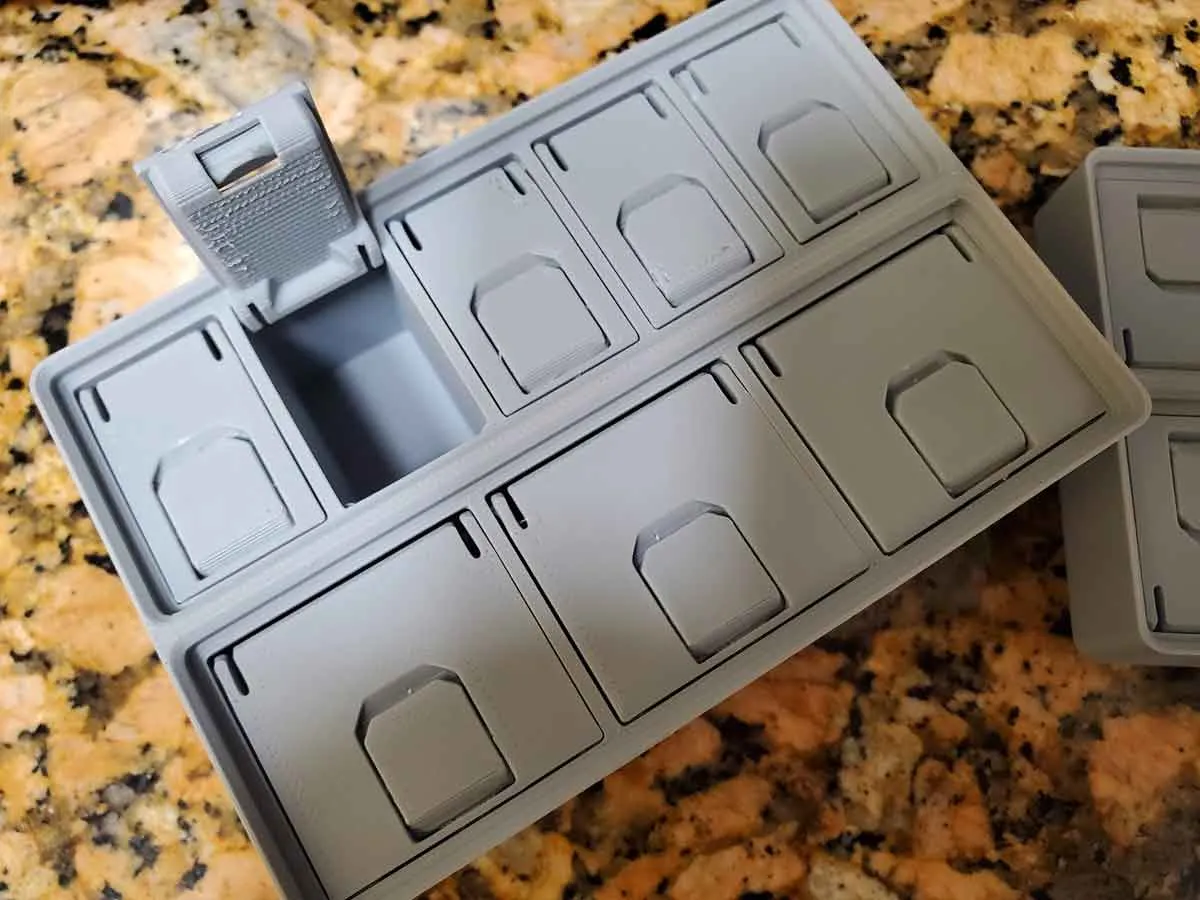

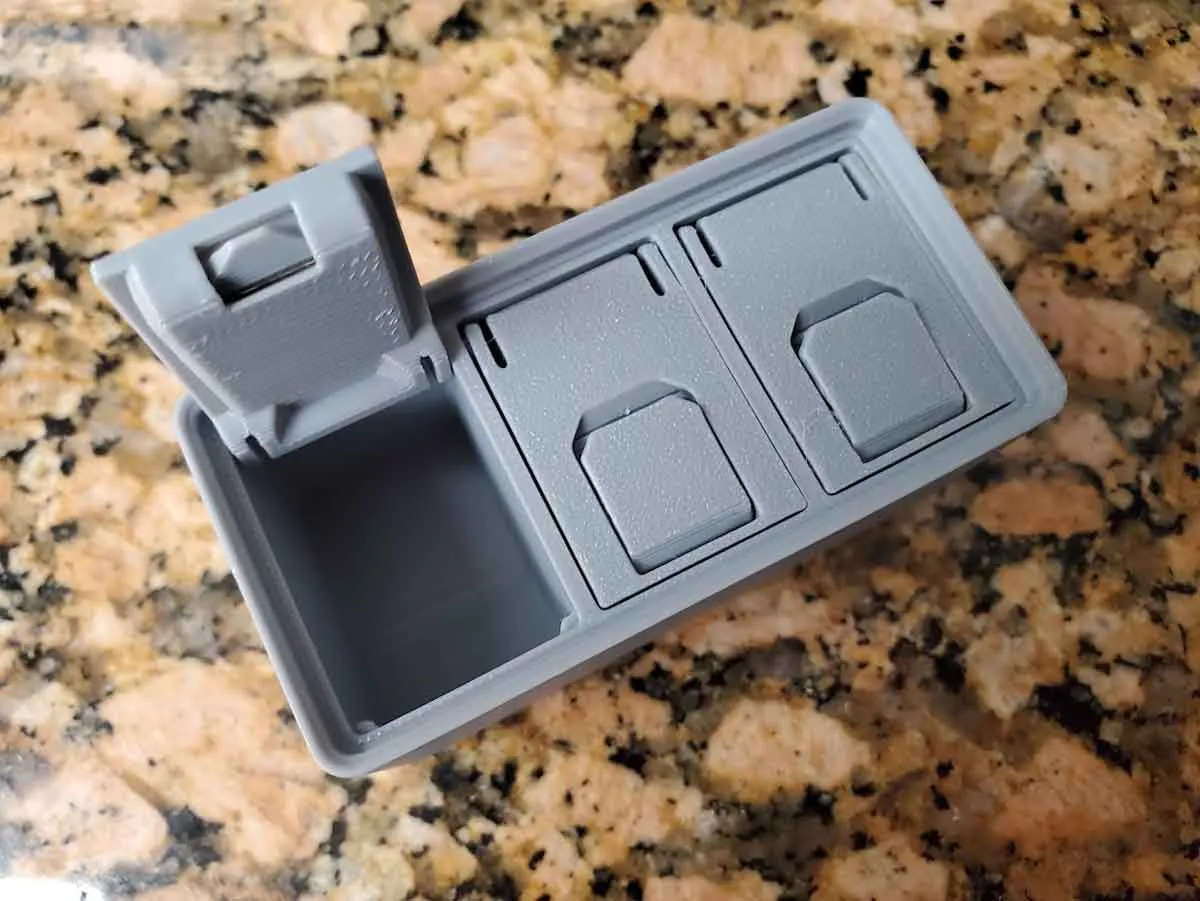

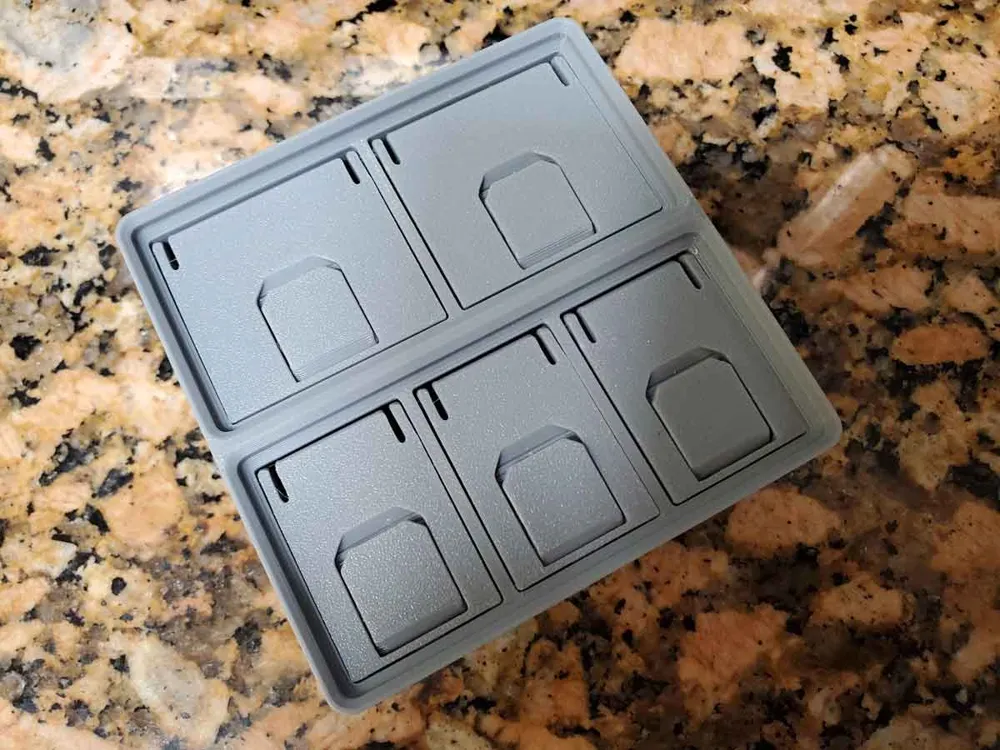

These are 2x2 Gridfinity Bins with latching lids, and the following features:

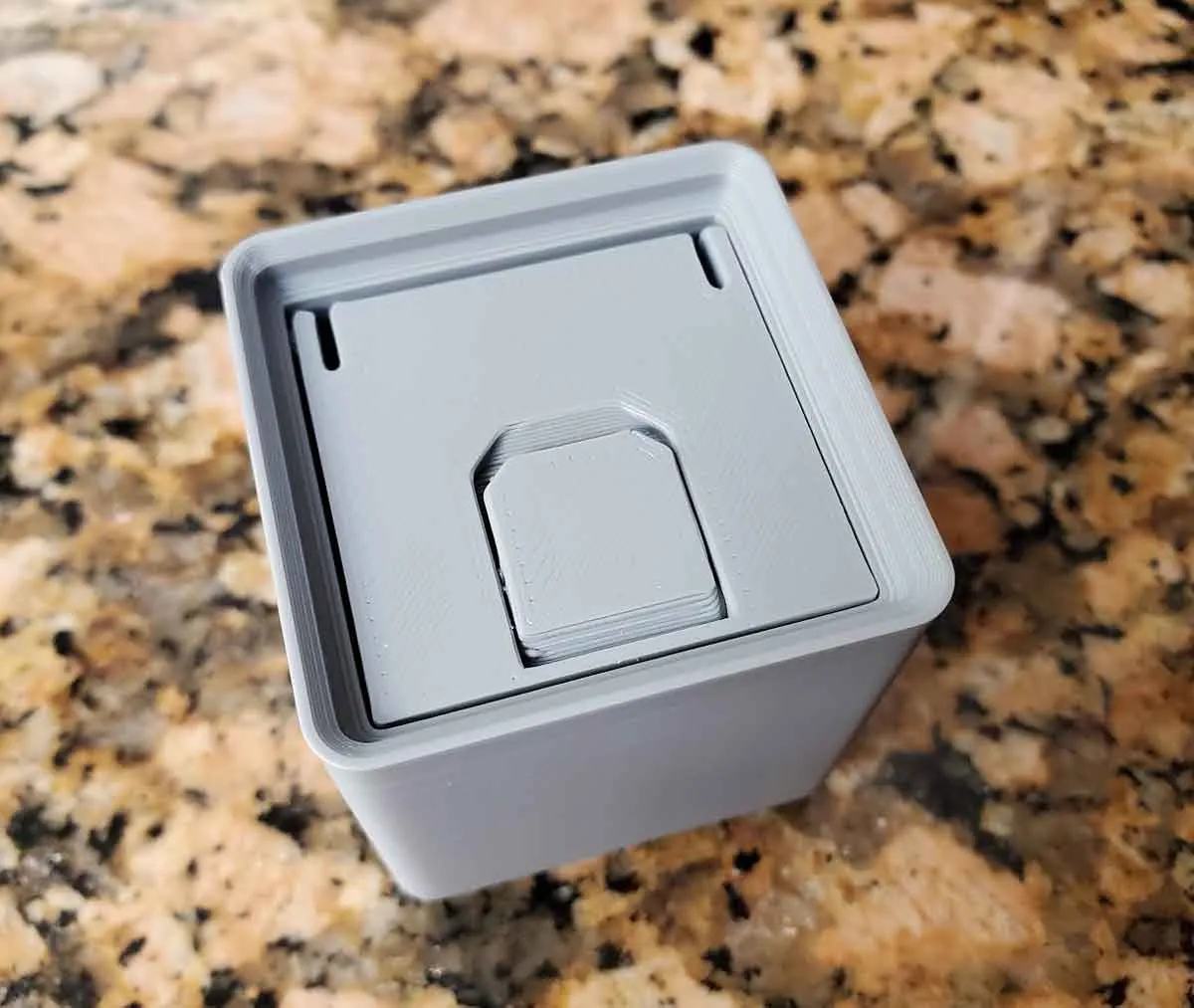

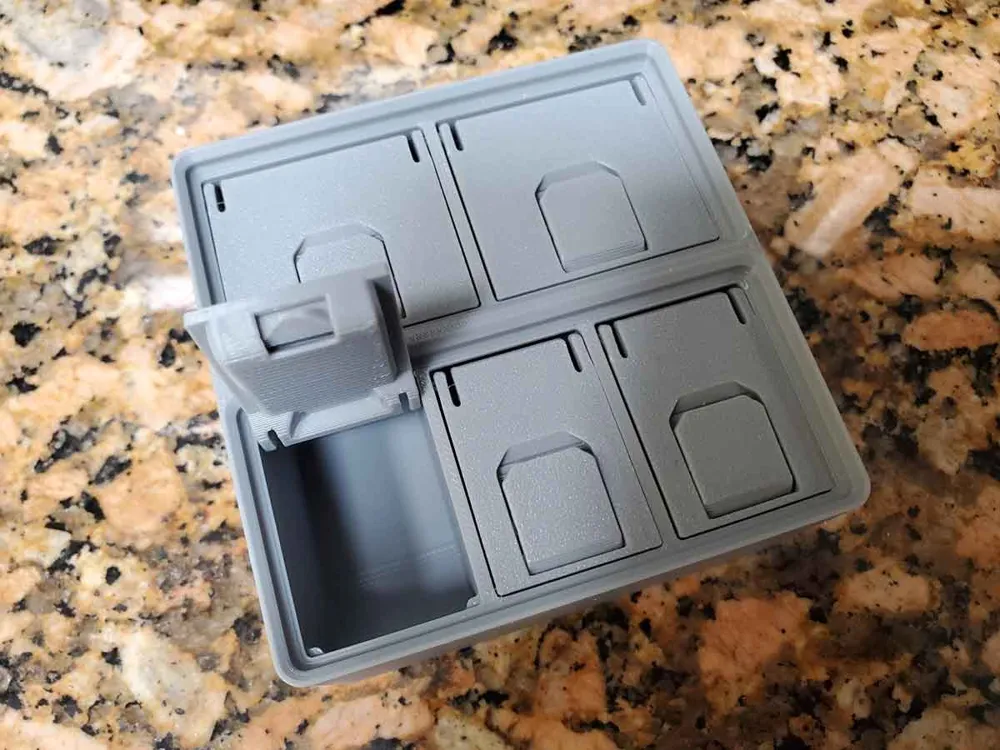

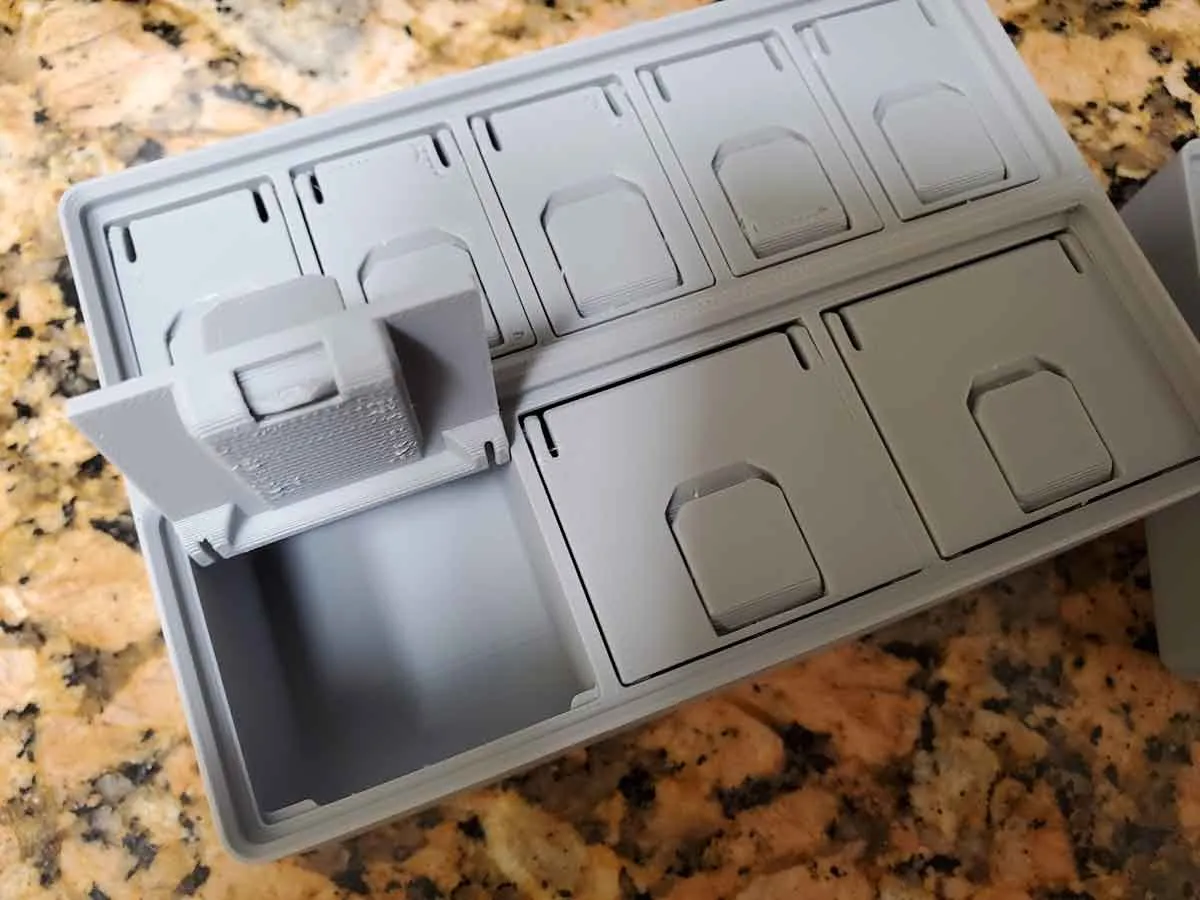

• The covers have latching tabs, and are intended to prevent the migration of tiny parts between the bins, when used in a case.

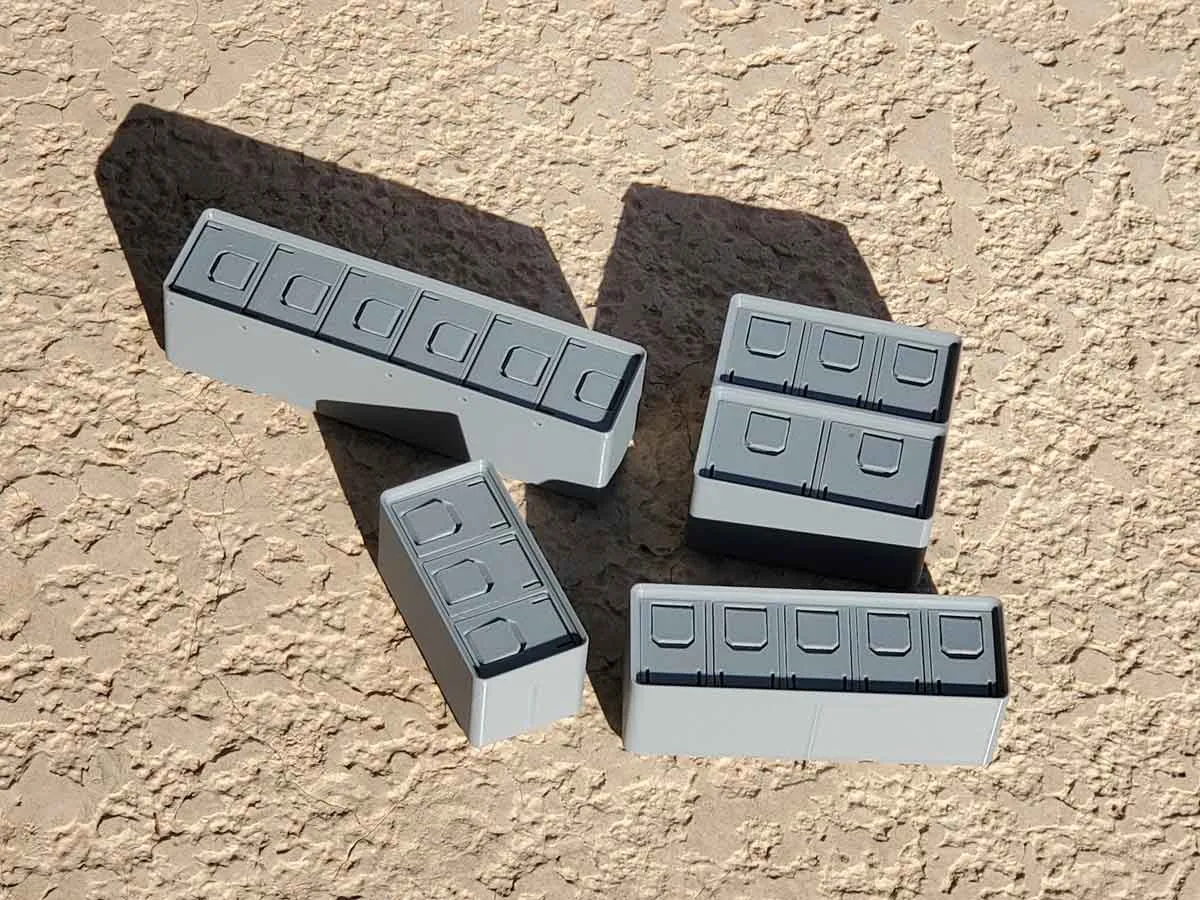

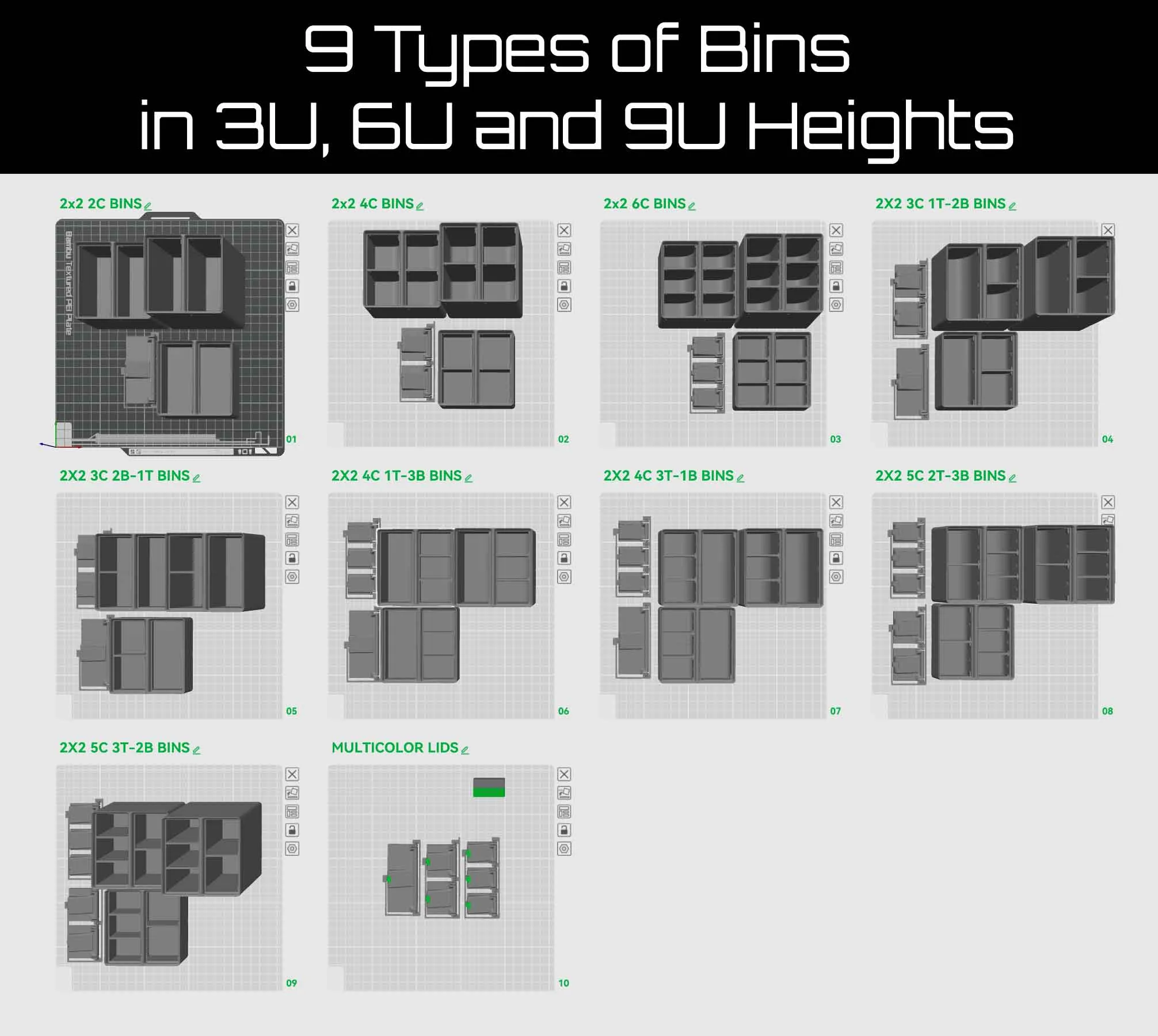

• There are 1, 2, 3, 4, 5  and 6 compartment versions (with two versions of most sizes).
• The bins are available in 3U, 6U and 9U heights.
• The doors on the bins have room for a 9mm wide Brother P-Touch Label.
• 3MF set up for single and multicolor printing options.

The latches will be stiff when they come off the printer, so I recommend using a spudger or flat screwdriver to pop the tabs free the first few times.  They should be cycled a half dozen times to loosen them up if they seem too tight.  The lids can be printed with 2 colors, and even using PLA and PETG, though certain combos may be tighter than others.  I printed mine in PLA, and they seem about right after the latches are opened and closed a few times.


To assemble, just align one of the hinge pins with the hole in the bin, and then rotate the other up and into position until it snaps in place.

These print without supports, and the 3mf is set up with all the parts, so you can remove any that are not needed.  There is an optional non-latching lid also provided, in case you do not need the latching function.
