Power and HDD LED

An accessory for my build. Check out my post!

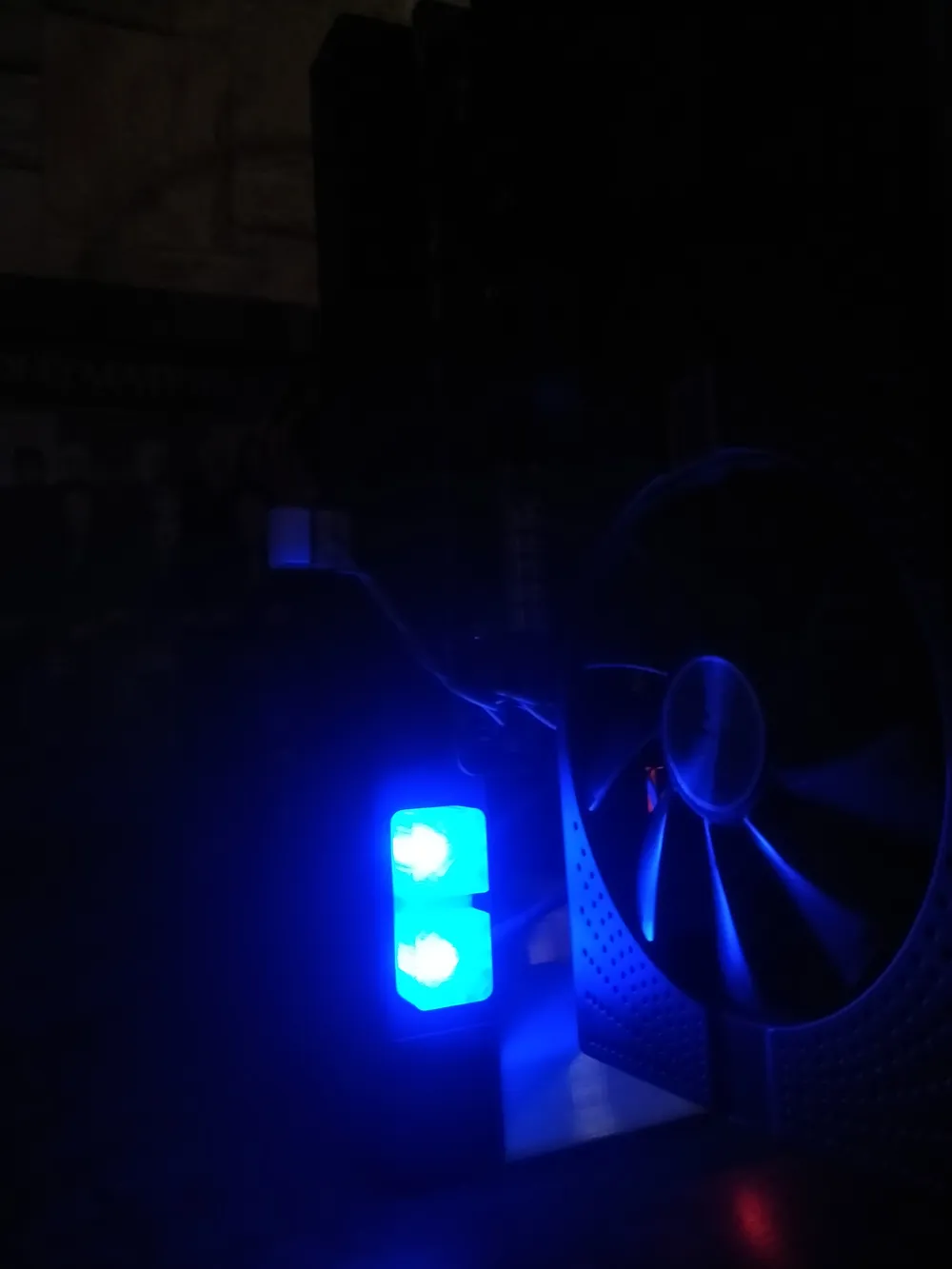

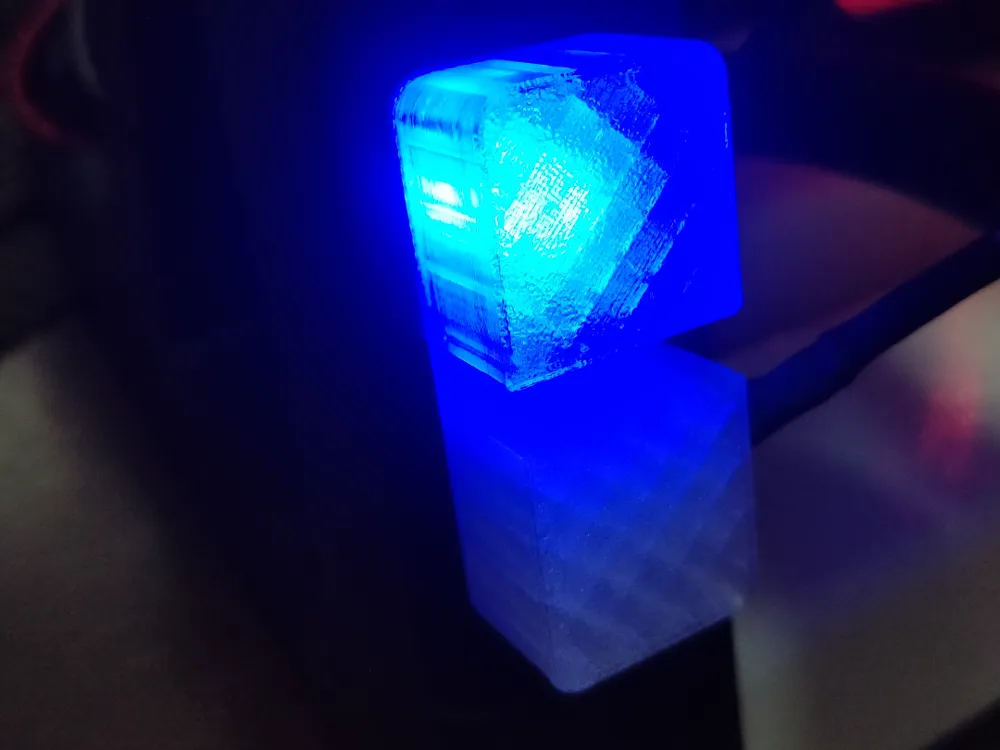

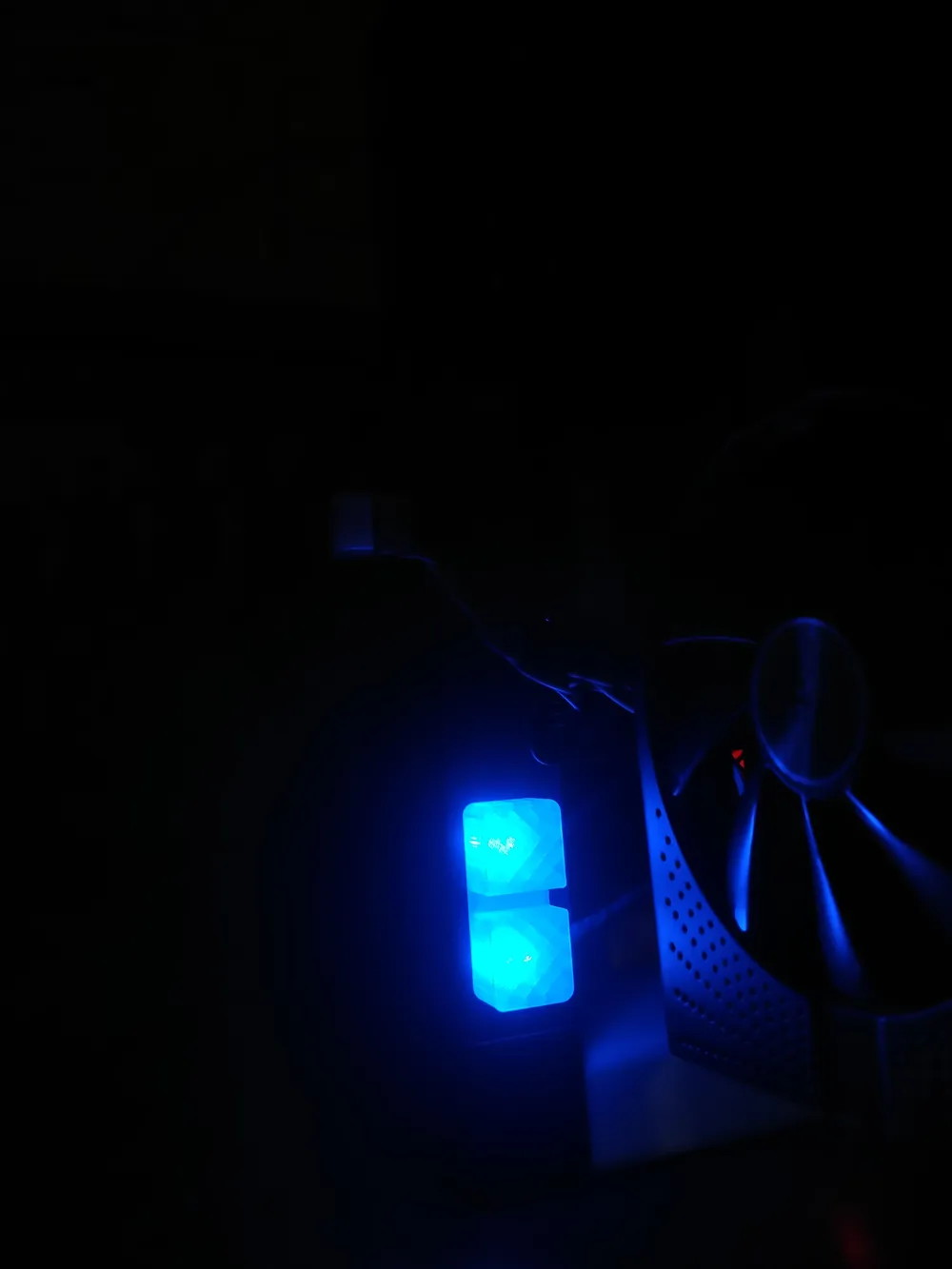

Power and HDD Led cover or casing for my open case pc (MATX).

===================================================================

Important, please take note :

1. Print with transparent material (PETG or PLA).
2. You can always customize the Sparse Infill Pattern to your liking (Stock = Grid)
3. Ensure that your mobo JFP1 pins provides 5 Volts or this will results in the use of different types of resistor. Check your mobo specs or you'll end up with dead LEDs.

For LED :

1. Use 2 regular 6mm LED (colour of your choice or both blue as mine)
2. 330 ohm resistors soldered at each anode (+) X 2
3. Some heatshrink tubes to tidy it up
4. Glue (Optional, my LEDs just stuck in there)

Notes :

330ohm resistors works with most LED colour.
