Description

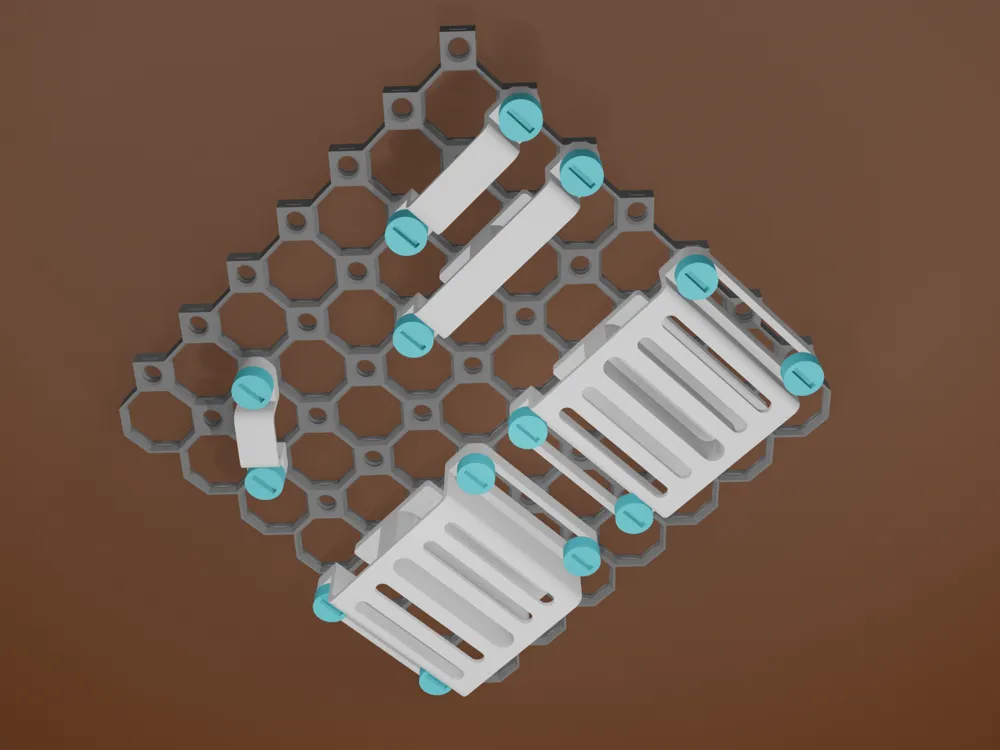

I designed these multiboard accessories for a filament efficient print, as well as a quick assembly.



I recommend to print the screws with a high infill (I never went below 60 %), to prevent failure under stress.



The cable management may not be the prettiest, but it is simplified and filament efficient.

You can easily reroute and rearrange your underdesk cable management, which was my primary objective.

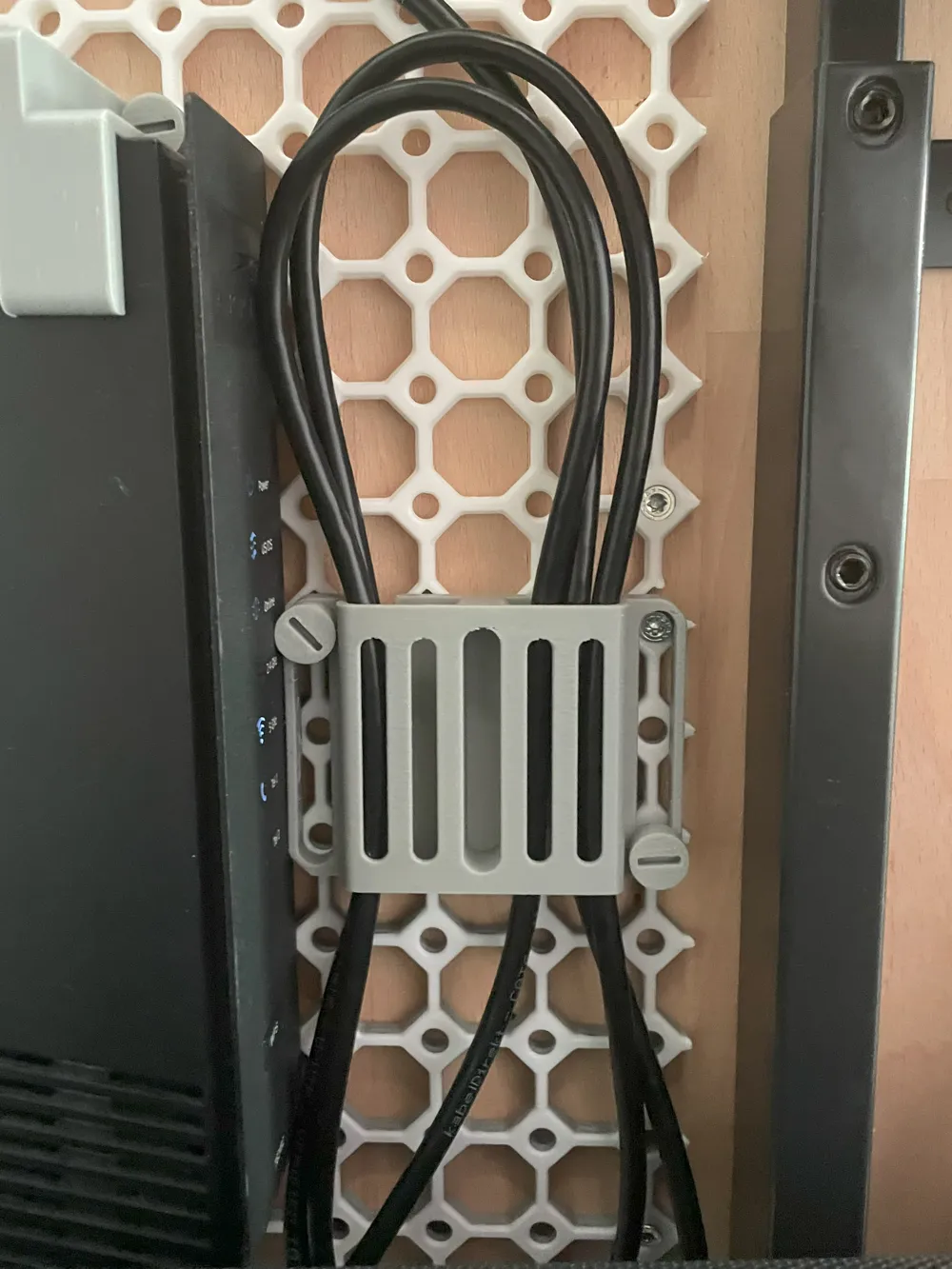

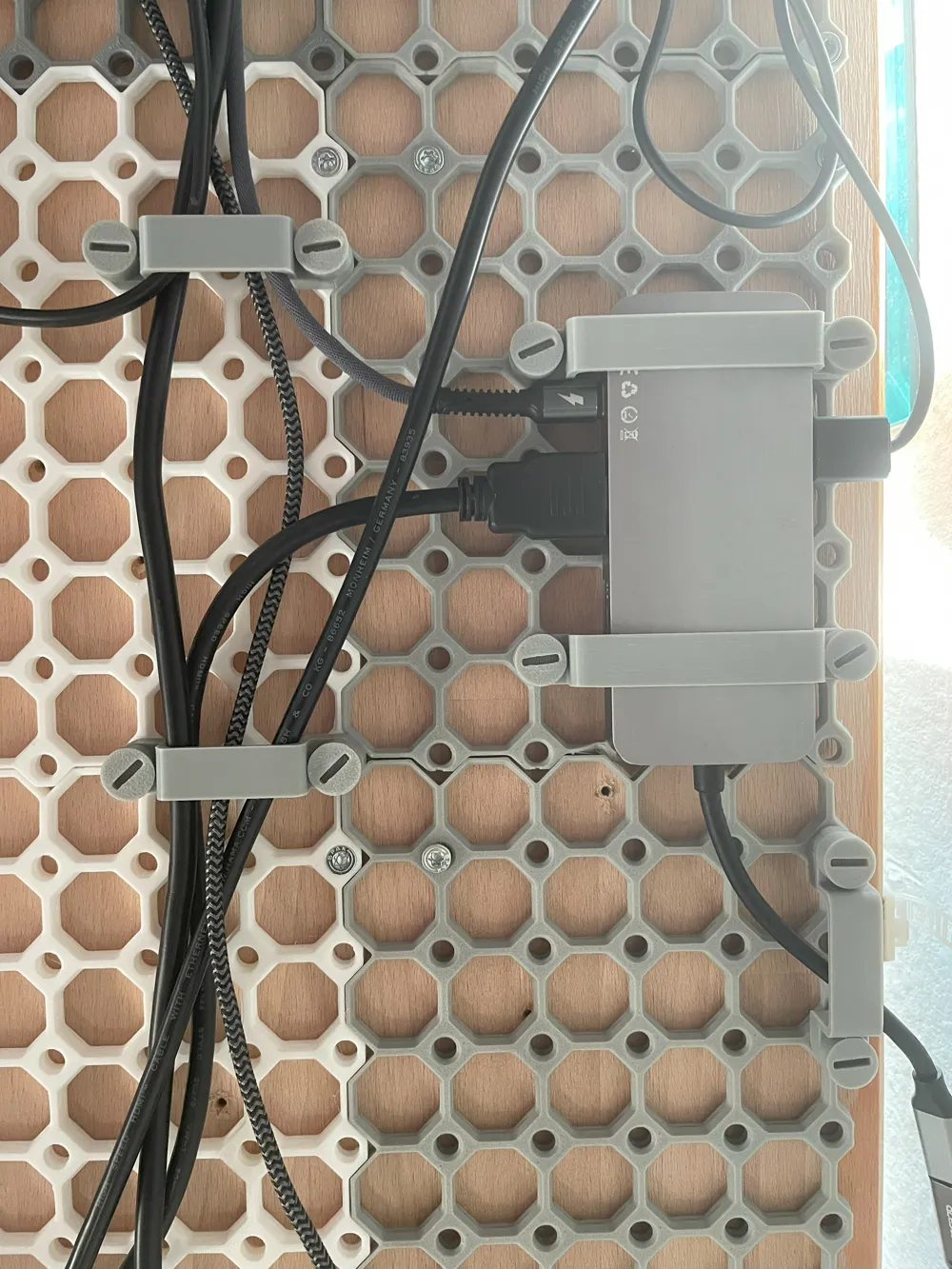

You can easily organize all your cables with the three small clamps. The two bigger ones are a bit more filament consumptive, but can you help immensily if you need to organize long excess cable length.
