22LR AR Front Charging Handle
Print Profile(1)
Description

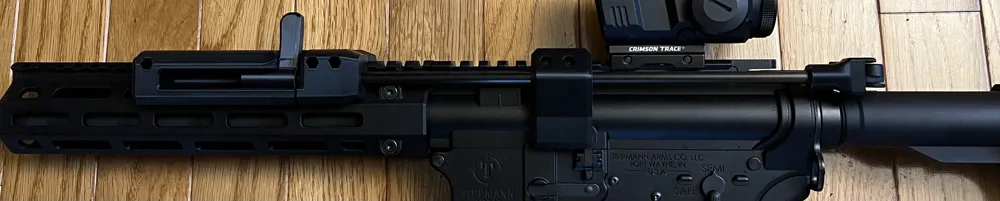

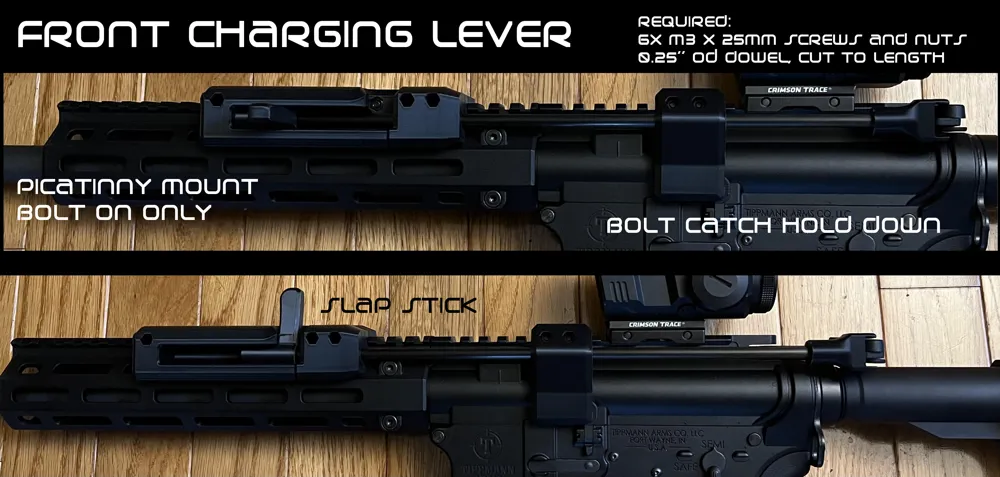

This is a front charging handle design for 22LR AR patterned rifles
It is designed to bolt directly onto the top picatinny rail, no rifle modifications required
This front charging handle is similar to the MP5 slap stick design
The middle support piece also acts as a bolt close hold down
This model requires some additional hardware:
6x M3 x 25mm screws and nuts
0.25" OD dowel cut to length
The dowel length will need to be cut specific to your placement
I prefer to use carbon fiber tube from amazon, used for RC planes - its cheap, light, and strong
Do not glue any of the components together. the dowel should be loose through all pieces so that the handle can twist freely
No rifle modification is required - this should simply bolt on
See model below standard AR patterned rifles (longer charging stroke)
https://makerworld.com/en/models/1361736-ar-front-charging-handle#profileId-1406594
