Battery to USB
Print Profile(1)
Bill of Materials
- Powerbank x 1:
- Alimentatore USB x 1:
Description

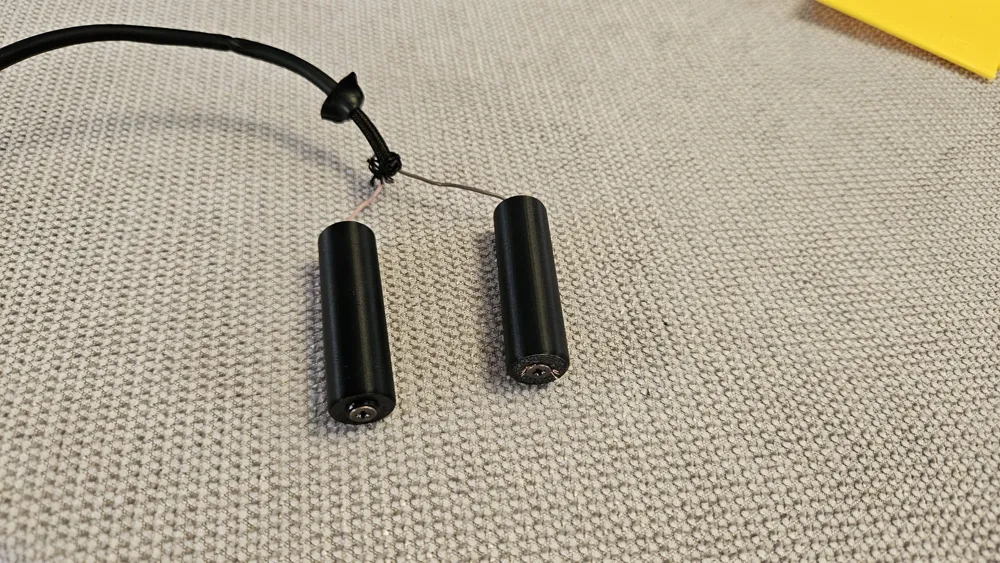

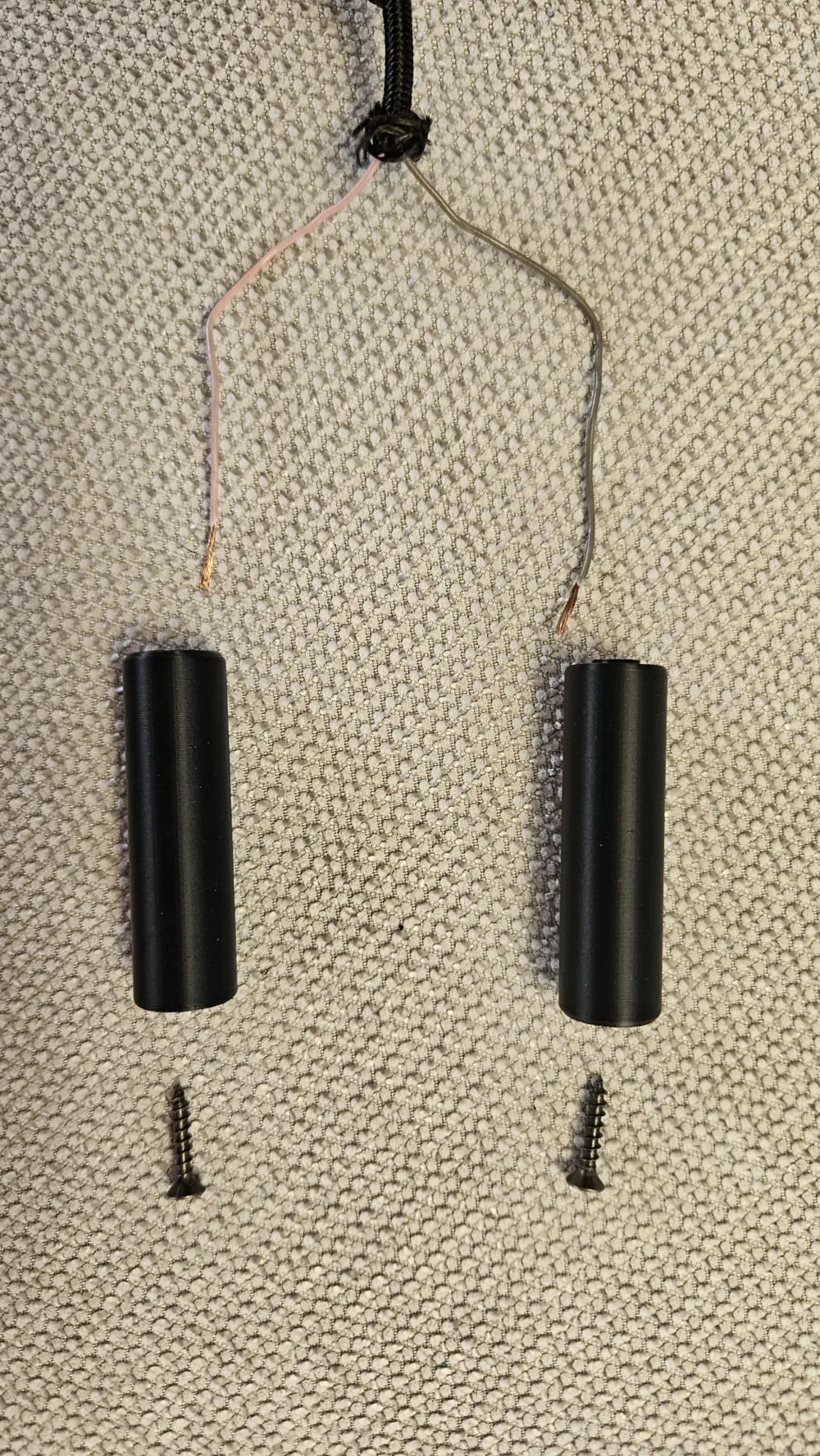

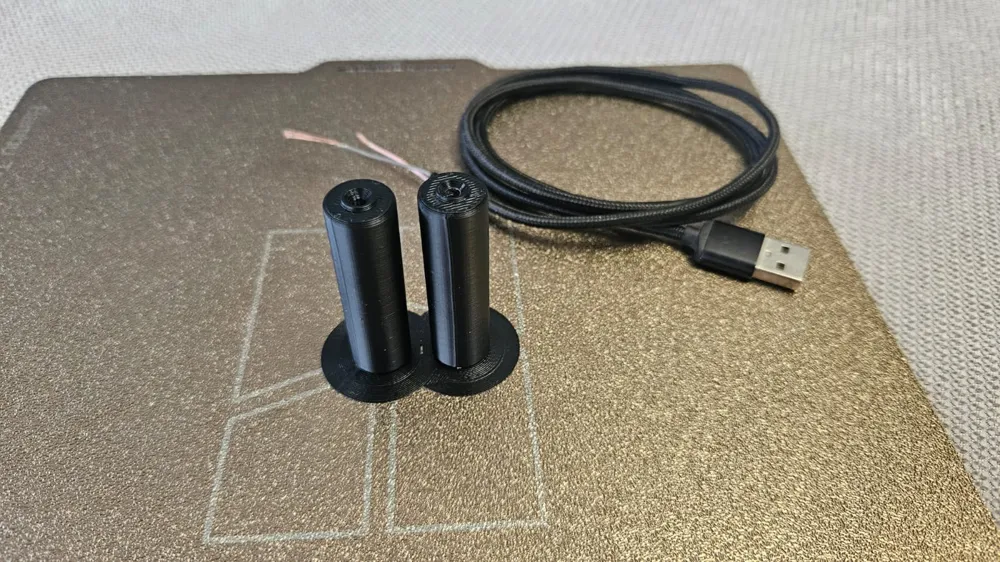

To assemble this, you will need two self-tapping M3 screws and a USB cable, one end of which must be cut.

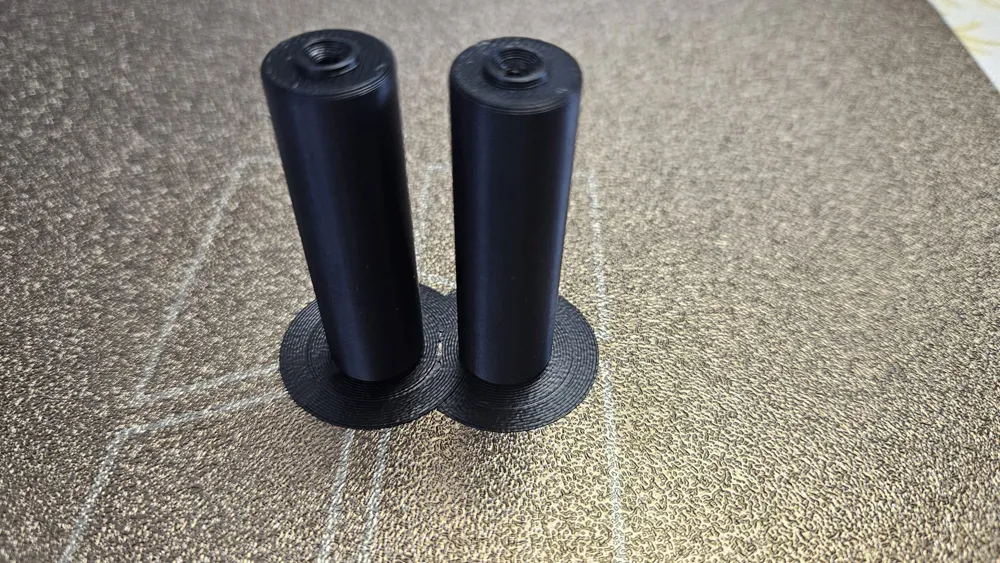

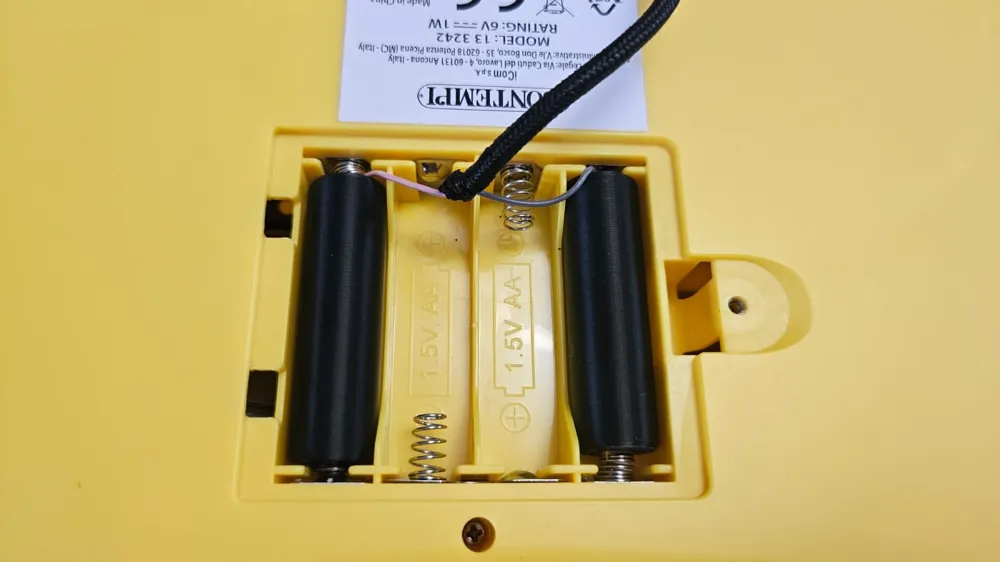

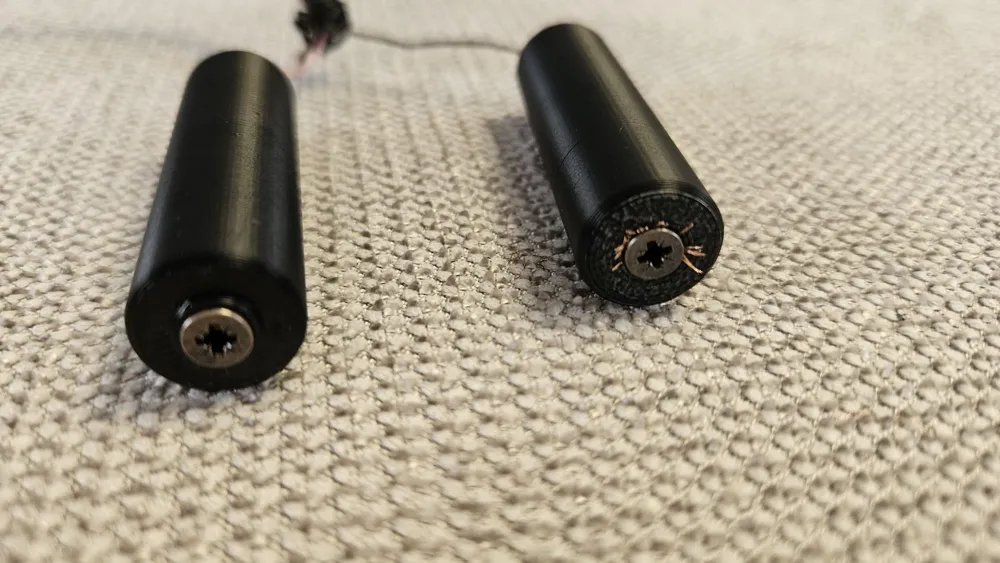

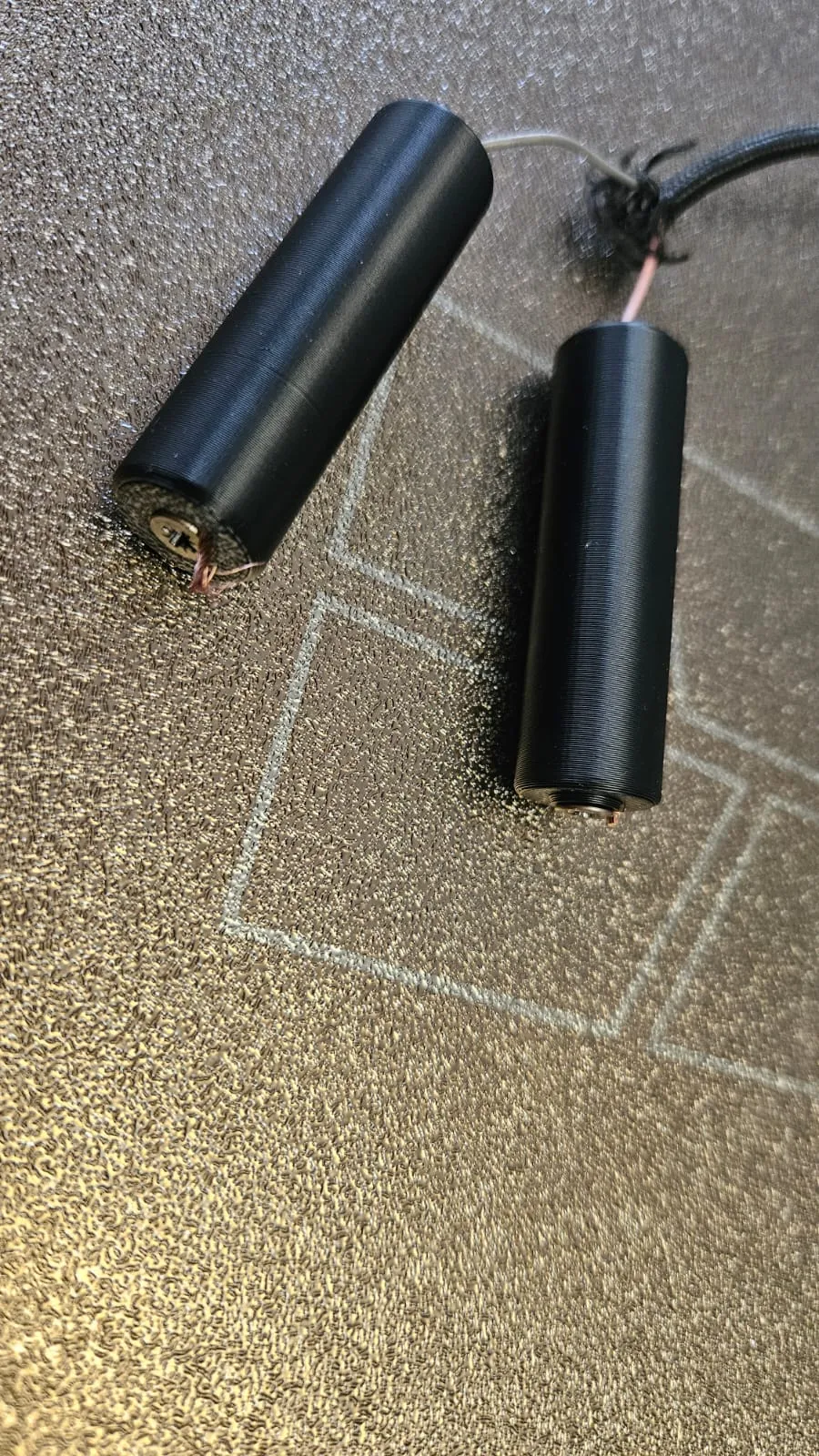

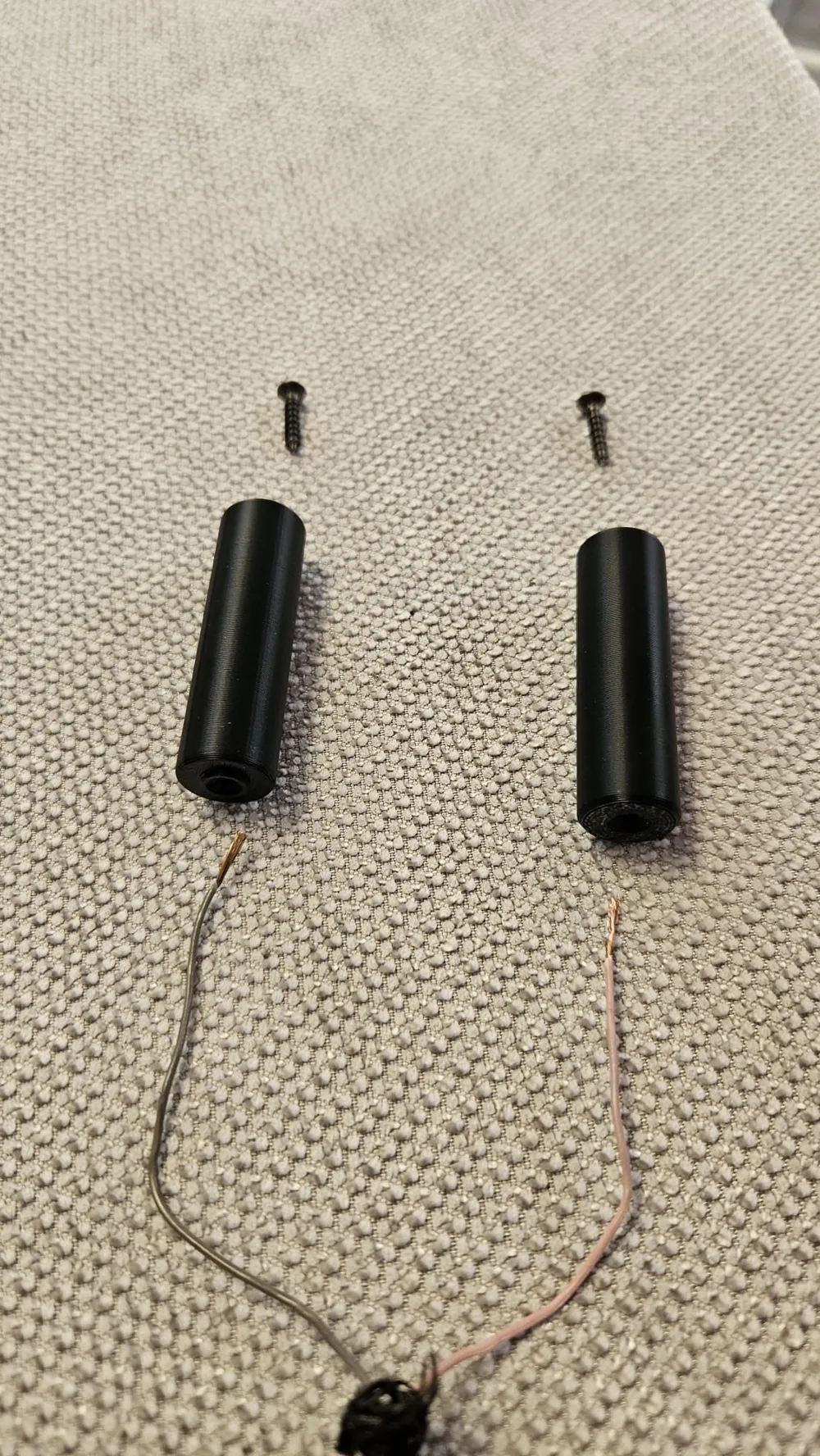

After printing, insert the red wire from the battery base, guiding it out of the tip, and tighten the screw while pinching the wire. Repeat this process for the black wire, but with the battery reversed.

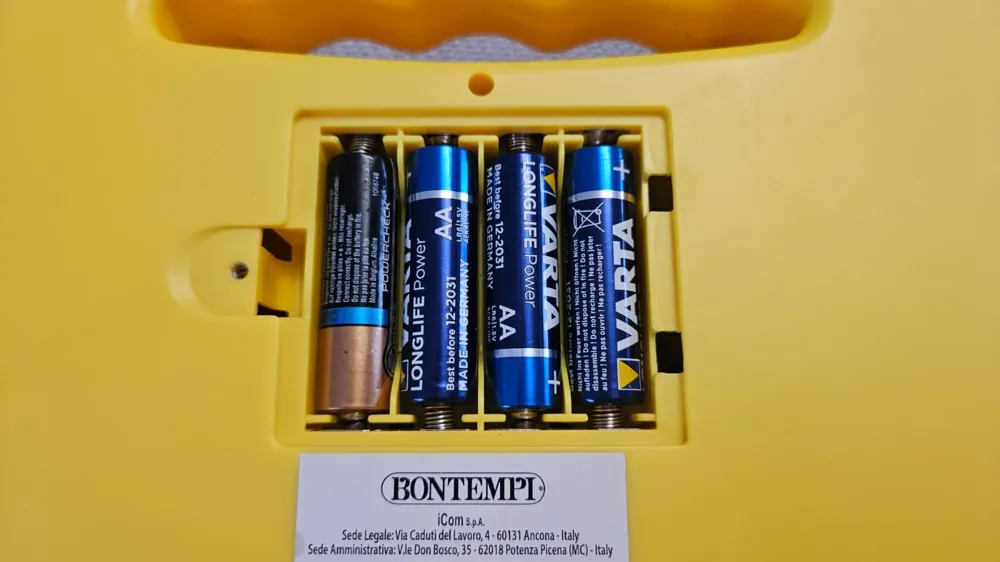

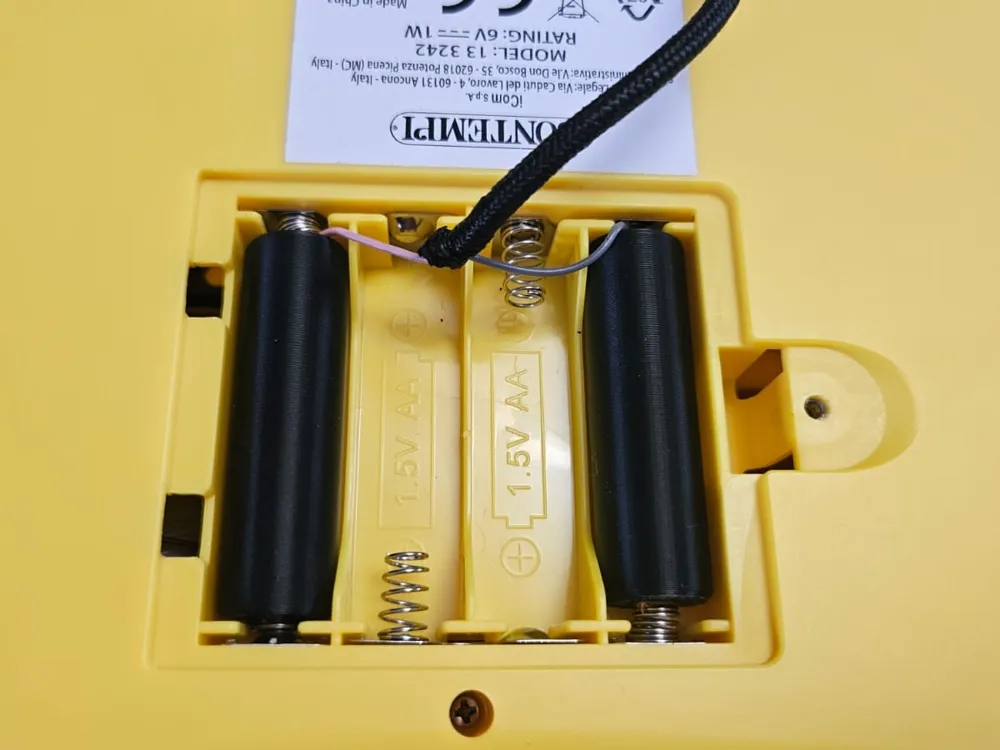

The output voltage will be 5V, but it functions correctly even as a replacement for battery packs of four 1.5V AA batteries; packs of three batteries also work without issue. However, exercise caution when using packs of two batteries as the voltage would be significantly higher!!! In such cases, you must add a resistor or voltage regulator. Alternatively, you can connect it to a transformer with voltage regulation, eliminating the need for USB.
