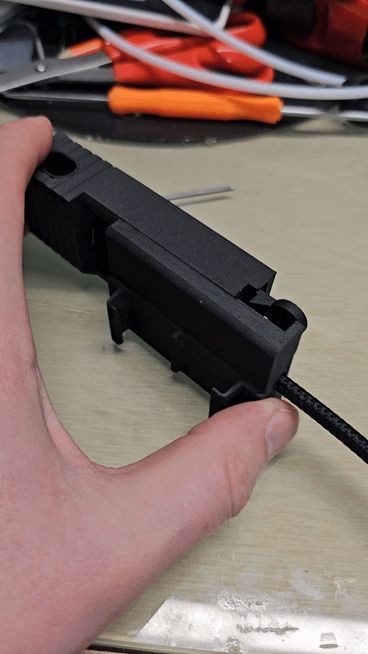

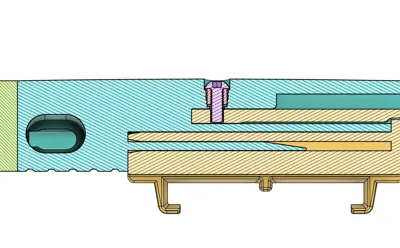

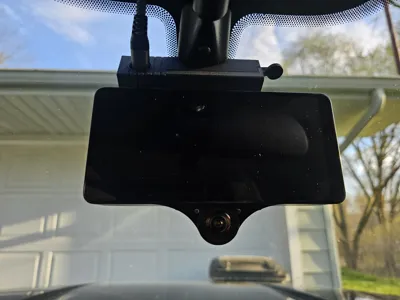

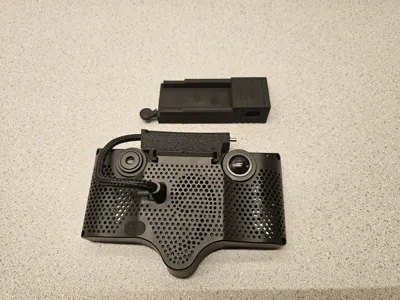

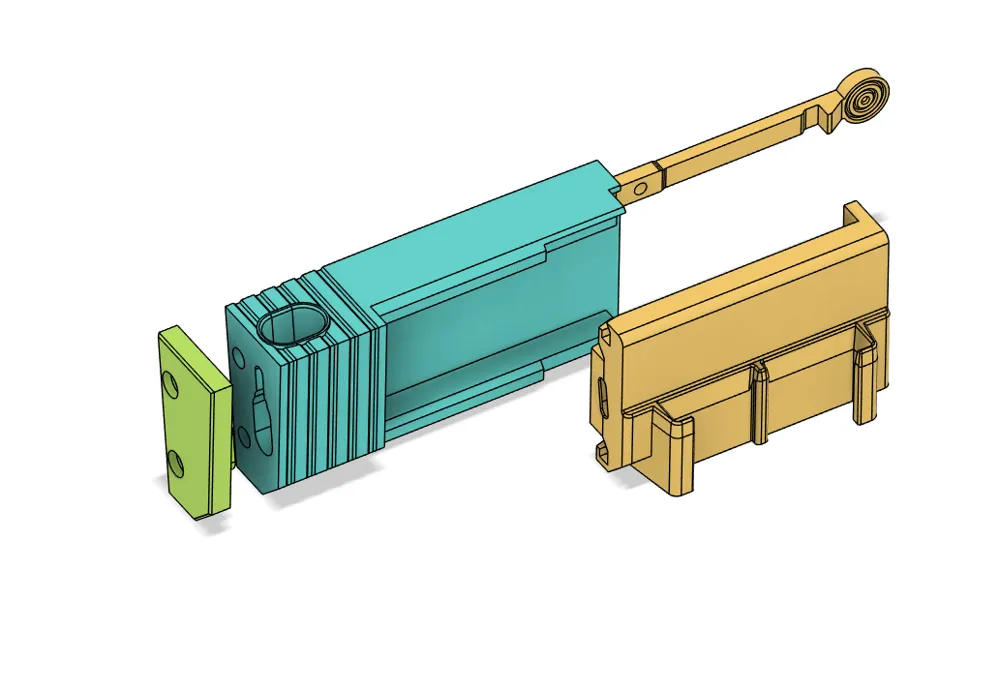

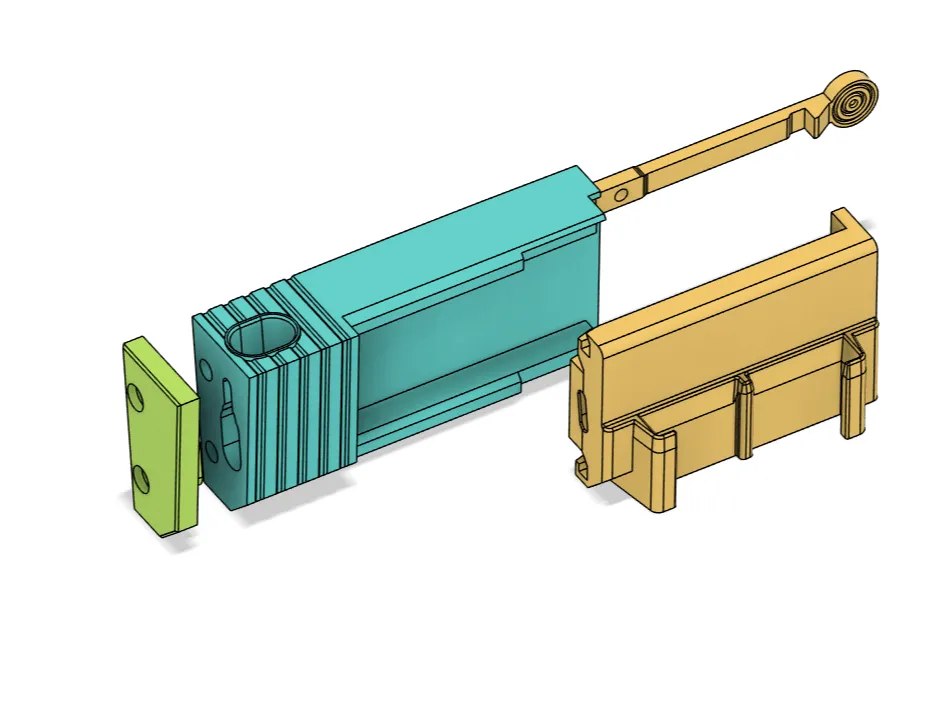

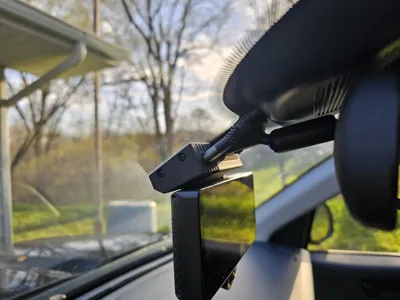

Comma 3X Quick Release Dock!
UPDATE!!!
Added plate for standard angle mount

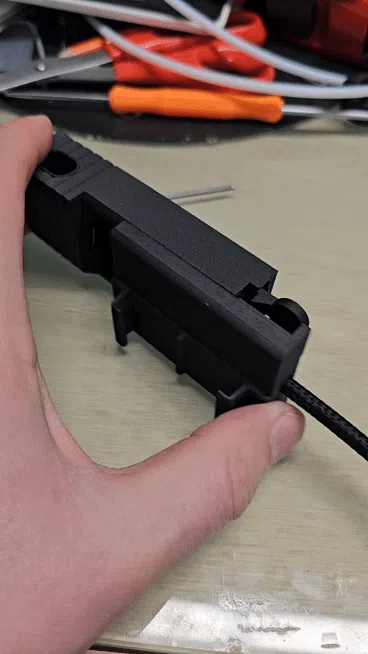

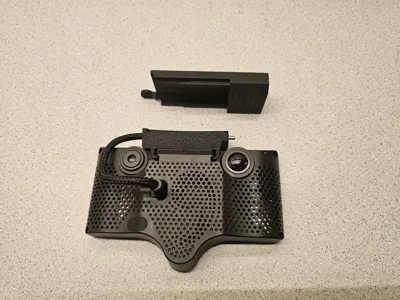

I don't like leaving my Comma 3X in my car and it is a pain to remove/install it on the supplied mount. So, here is my take on a quick release mount.

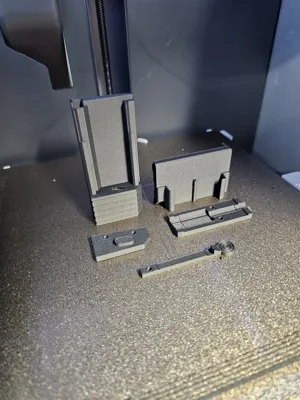

Print with ASA, ABS or PETG. Something that can withstand high heat in a car. I used ASA-CF.
Links for the parts I used.
USB-C cord (M to F)
https://www.amazon.com/gp/product/B09Y8775XB/ref=ox_sc_act_title_3?smid=A1ZDBO4AK54PM6&th=1

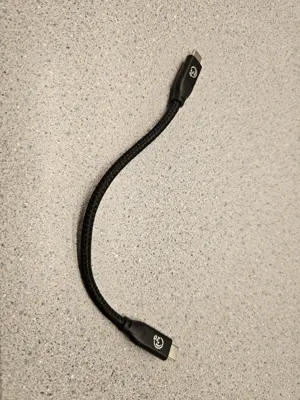

USB-C cord (M to M)
https://www.amazon.com/dp/B0D12J6JHH?ref=ppx_yo2ov_dt_b_fed_asin_title&th=1

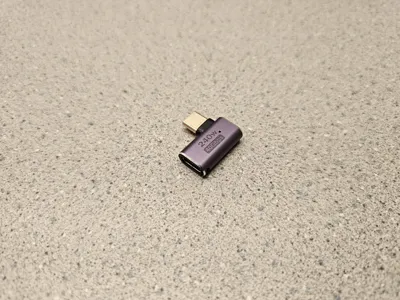

USB-C right angle (M to F)
https://www.amazon.com/dp/B0BVHZG31X?ref=ppx_yo2ov_dt_b_fed_asin_title&th=1
M3 screws

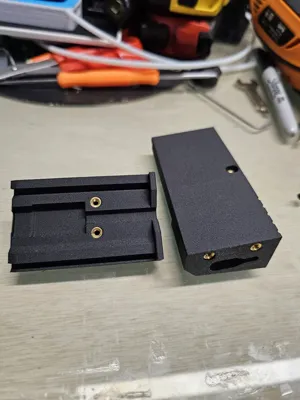

M3 inserts
