2* 3.5inch HDD Tray for 10inch (1u) + Activity LED
Print Profile(2)
Description

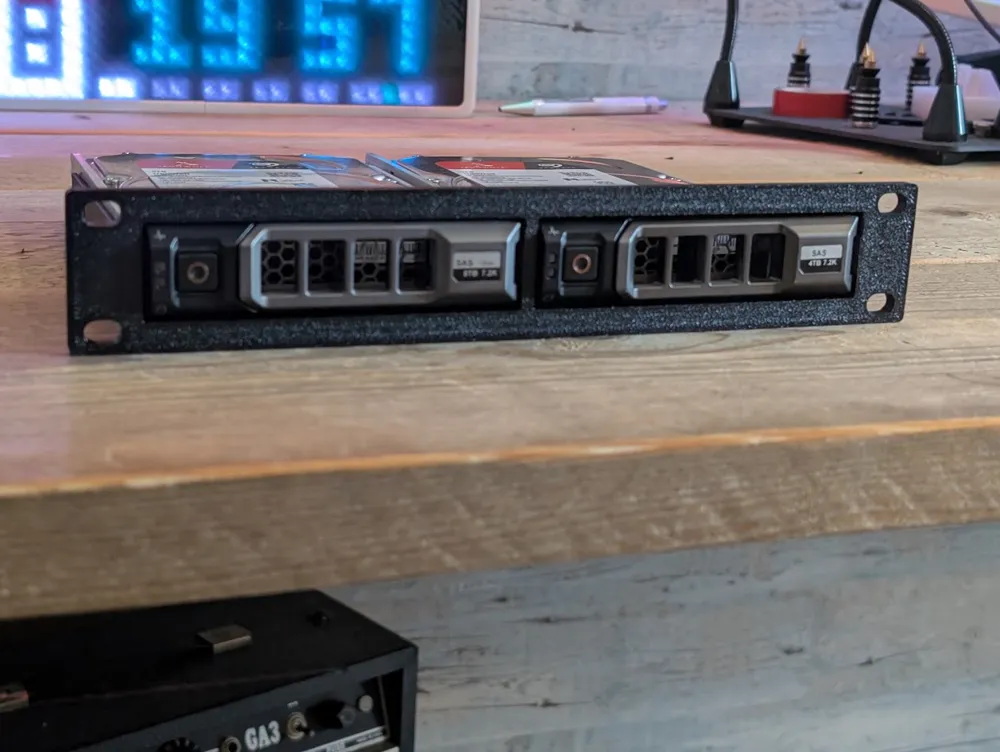

2* 3.5inch HDD Tray for 10inch (1u)

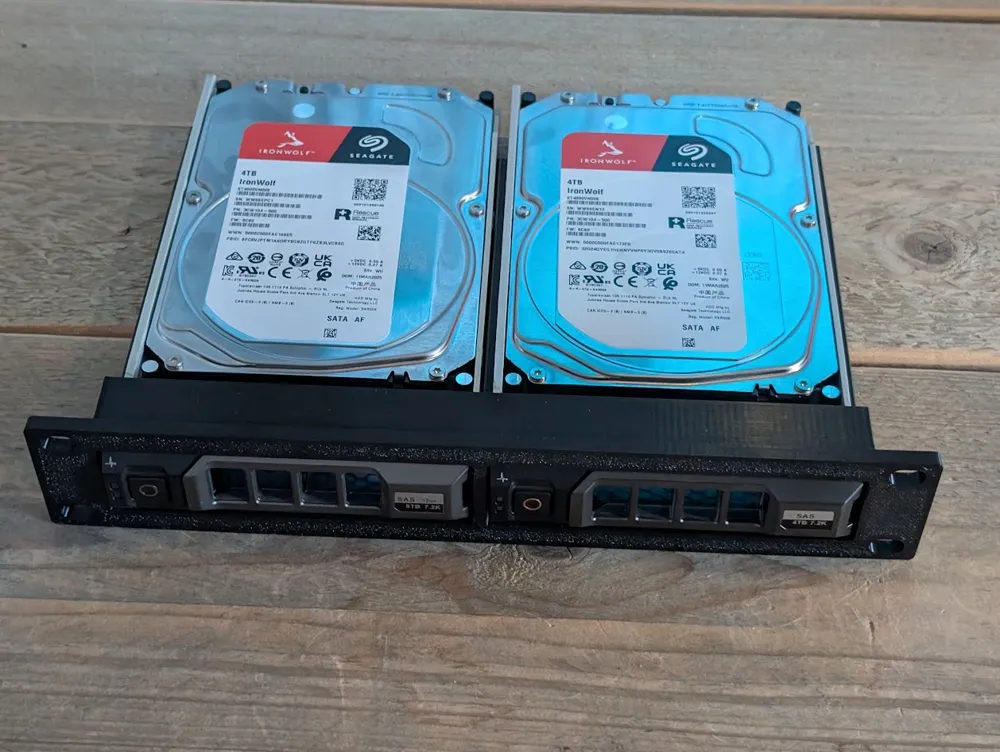

For the 10 inch NAS / homelab i'm building, i'll be using 2* [3.5inch 4TB HDD's]
Hardware:

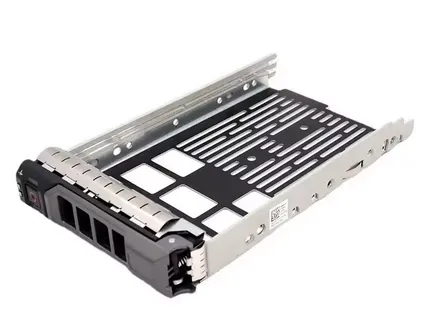

i'm using 2 of these 3.5 inch HDD Trays i got from AliExpress (Hard Disk Caddy voor Dell PowerEdge)

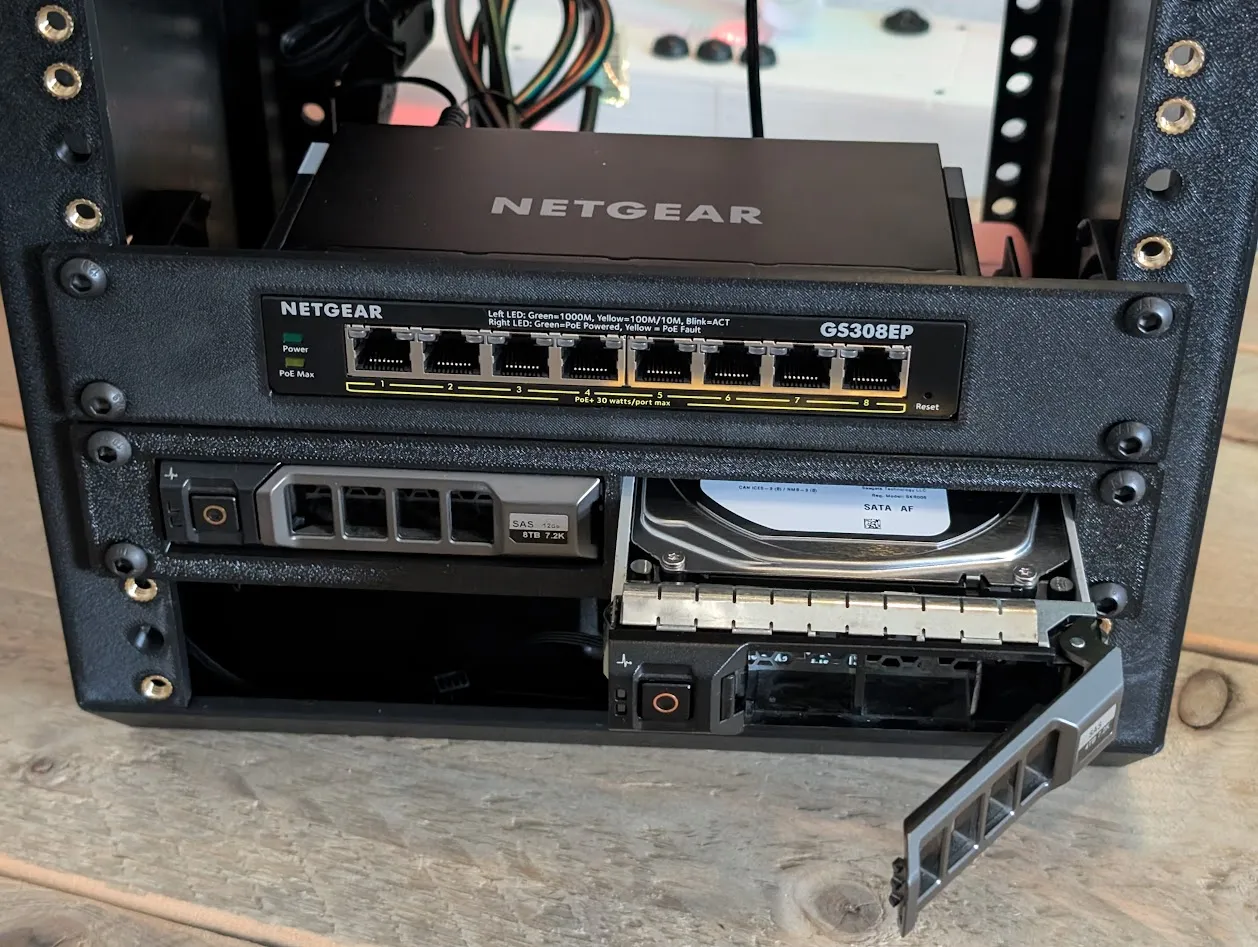

When pushing the button. The handle pops out which is securing or extruding and slide the caddy with HDD from the housing.
These caddy's provide for airflow, a secure fit and makes it easy for the HDD's to eject.
Boost Me (for free)
If you like my design, gift me 12 points for free!
In the second print profile i included an LED housing for the HDD Activity LED's which you can find on most Motherboards.

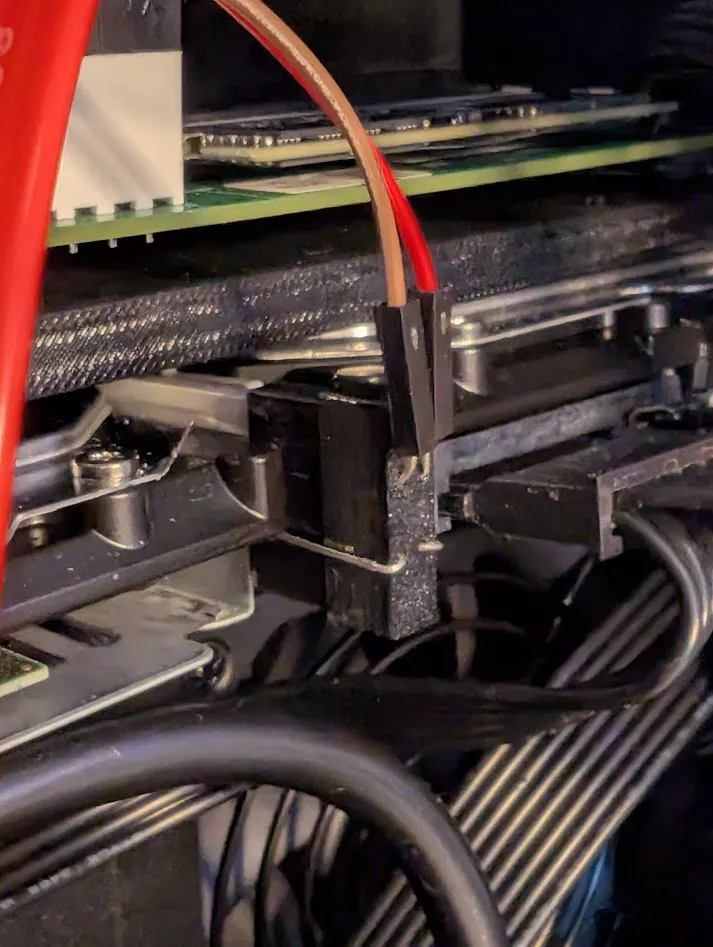

((Back side of caddy))

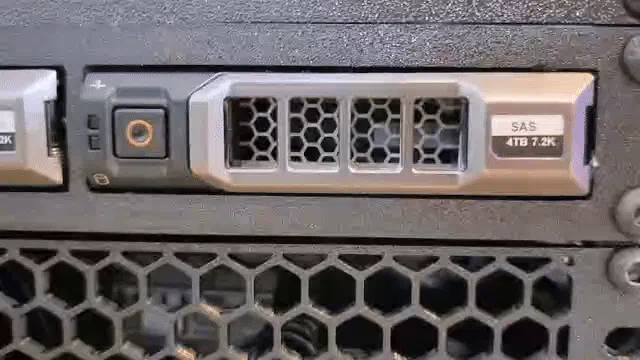

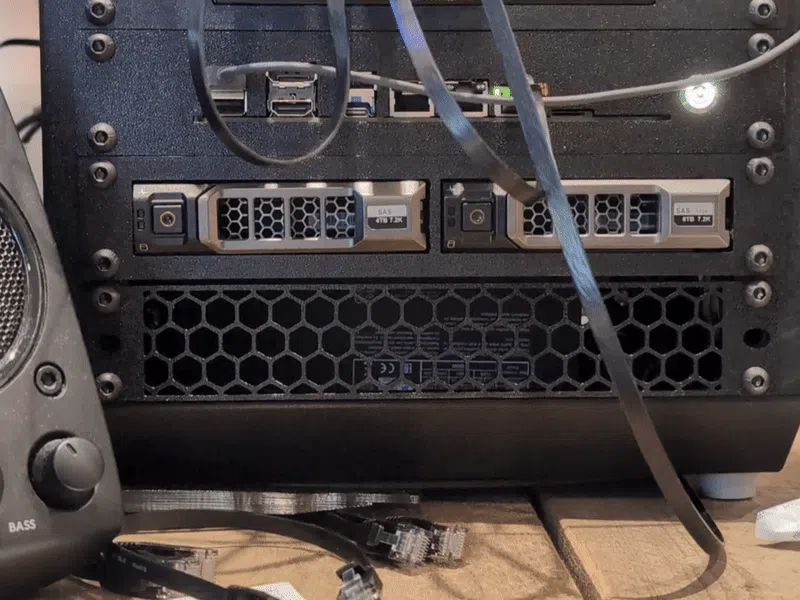

See this GIF as an example of the result on the front of the caddy

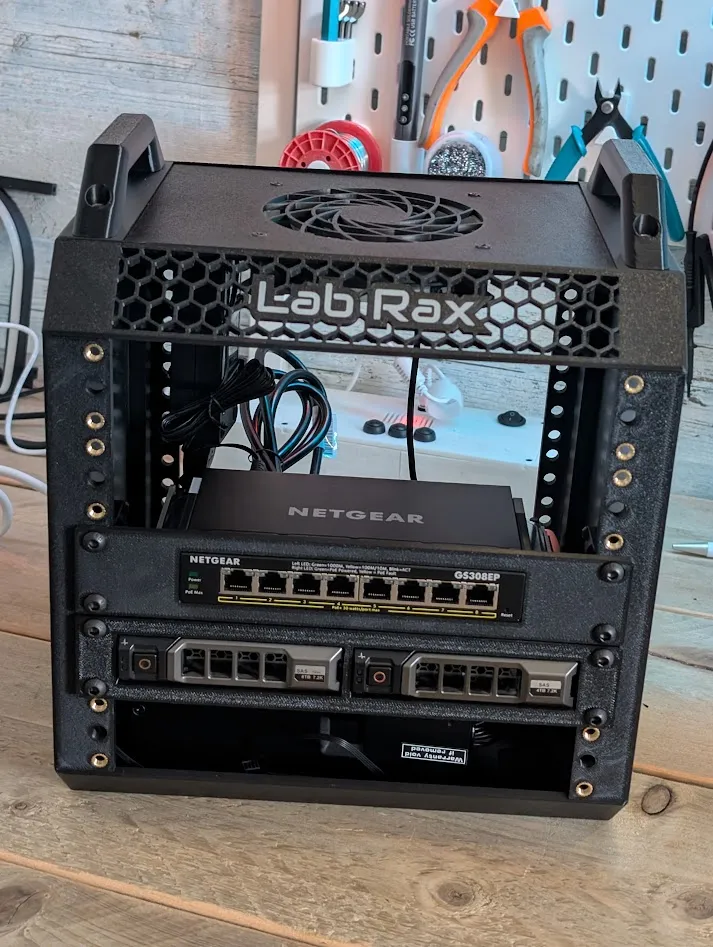

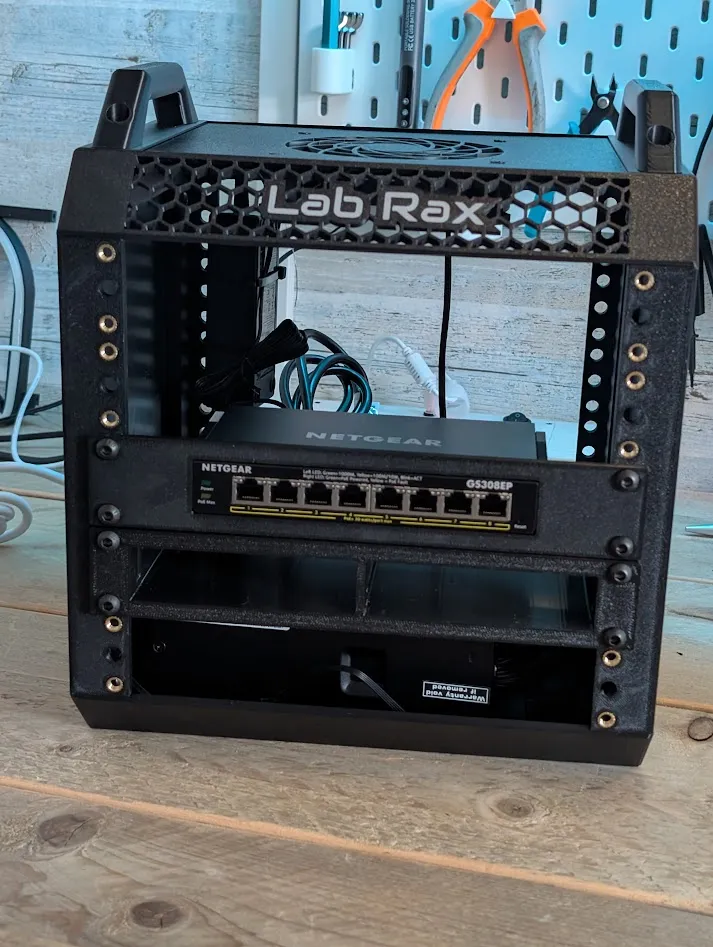

The 10 inch Rack i'm using is “Lab Rax 10" Server Rack - 5U” by @mklements
