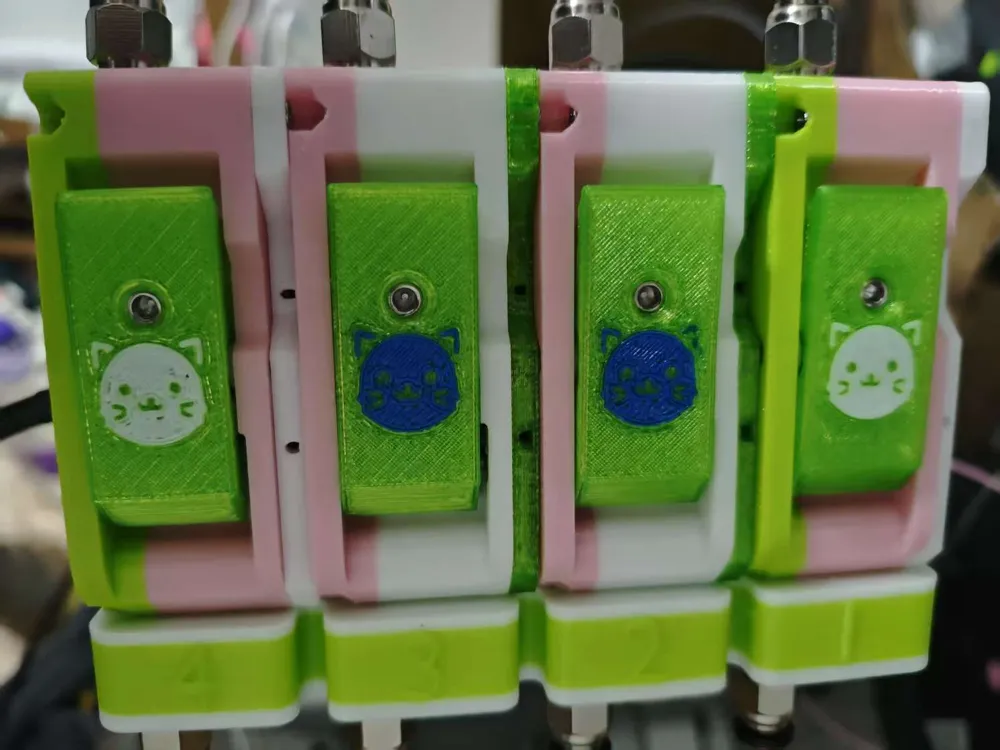

BMCU 370+ Clutch & Ball Bearing Version
(This version is based on the bmcu130 design, with firmware version 0.2)

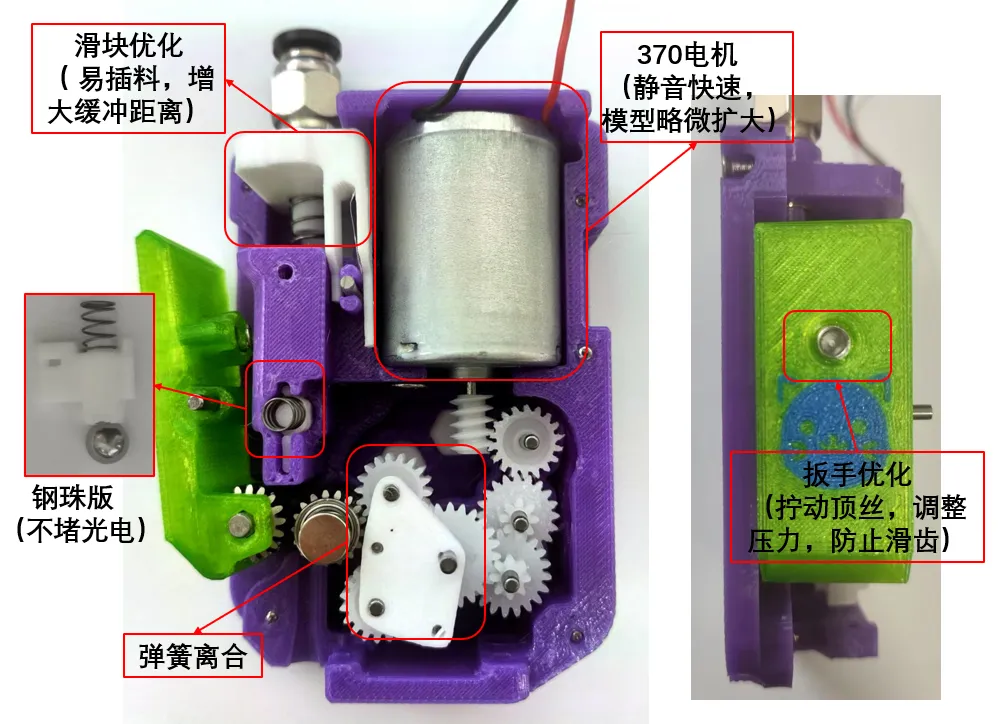

Accommodates 370 motors; utilizes a spring clutch; features an optimized slider (anti-clogging), and extended buffering;

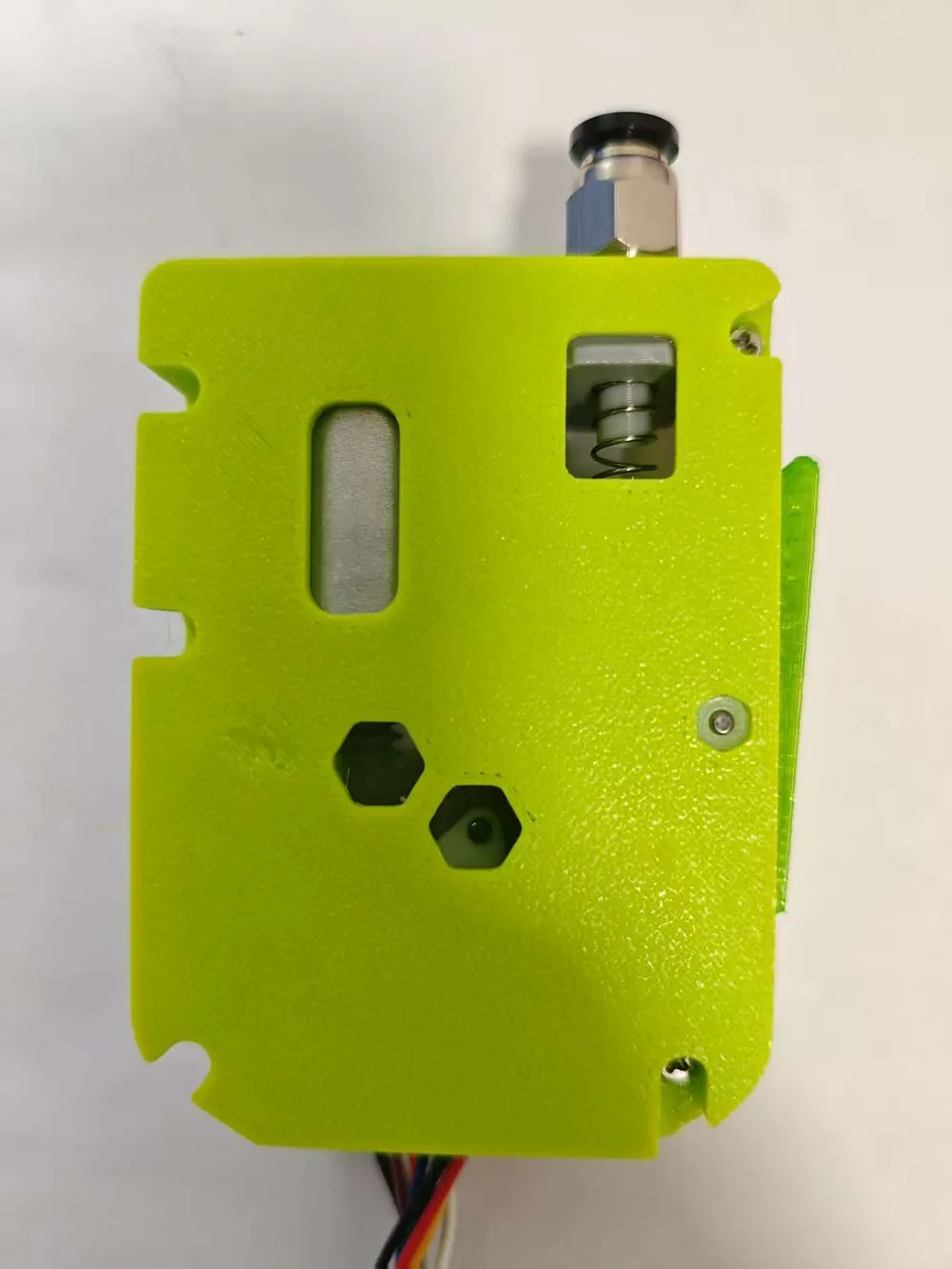

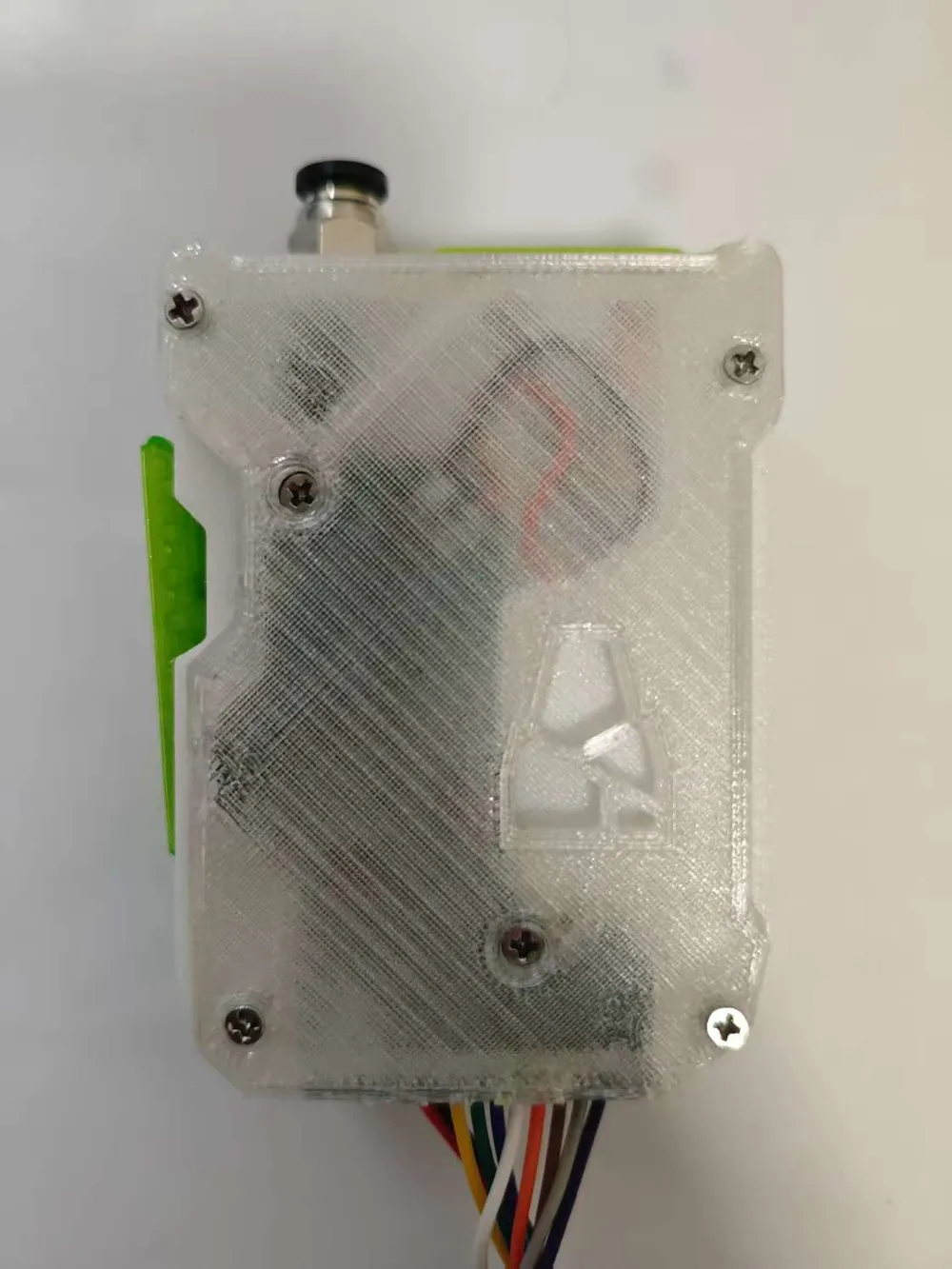

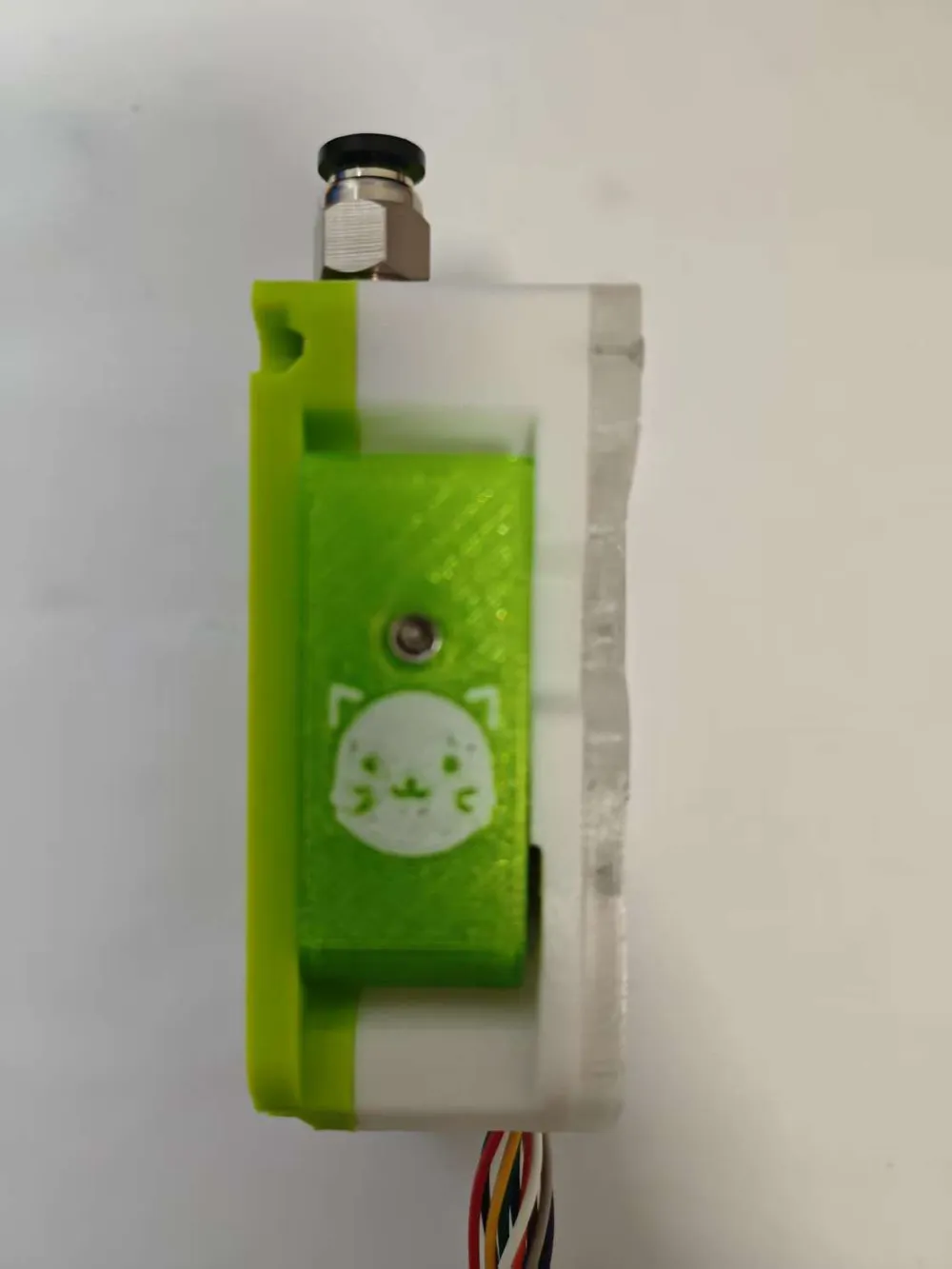

The lever incorporates a setscrew for pressure adjustment, preventing slippage; the structure is upgraded to a ball bearing design, completely resolving debris clogging the optical sensor; the model base bracket has been redesigned, allowing direct firmware burning and component removal without disassembling the base.
Easy-to-remove bracket and base model: https://makerworld.com.cn/zh/models/1185398-bmcu370chi-he-gang-zhu-ban-di-zuo-he-zhi-jia-xu-fe#profileId-1255841
Required additional and modified parts: 4 x 370 motors (10mm shaft length); 8 x M3X5 countersunk screws (for motors); 4 x M5X5 pointed setscrews (for lever); 4 x 182A gears; 4 x 0.2X3X5 springs (clutch); 4 x 0.5X6X15 springs (slider); 4 x 0.3X4X5 springs (ball bearing retainer); 4 x 5mm ball bearings.
Related accessories can be purchased on Xianyu by searching for “浴火重生YUAN”
Installation tutorial:
Boost Me (for free)
Testing this model was challenging, your support is appreciated!
