Lars' Autodarts Camera System + LED Ring
Print Profile(4)
Description

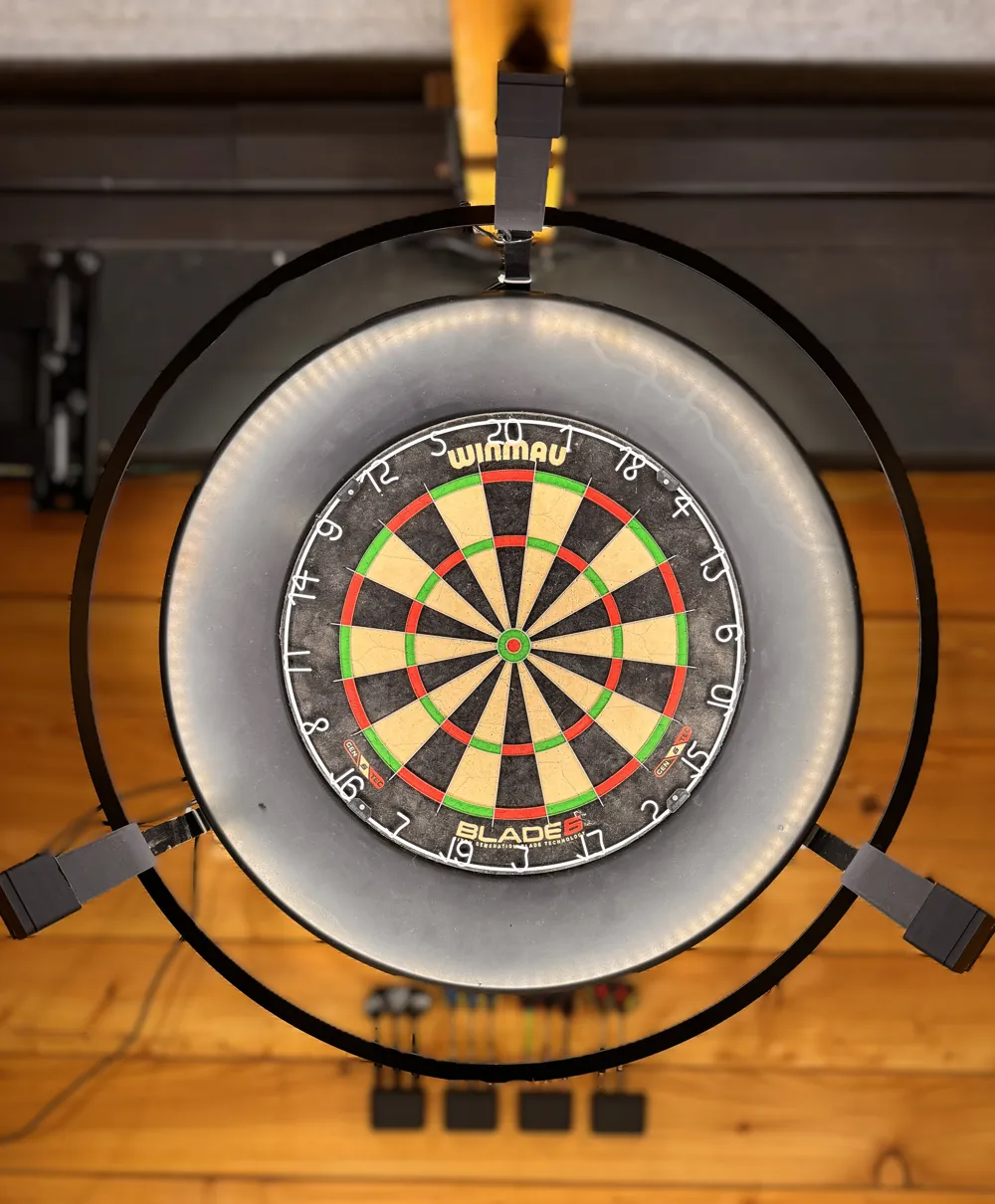

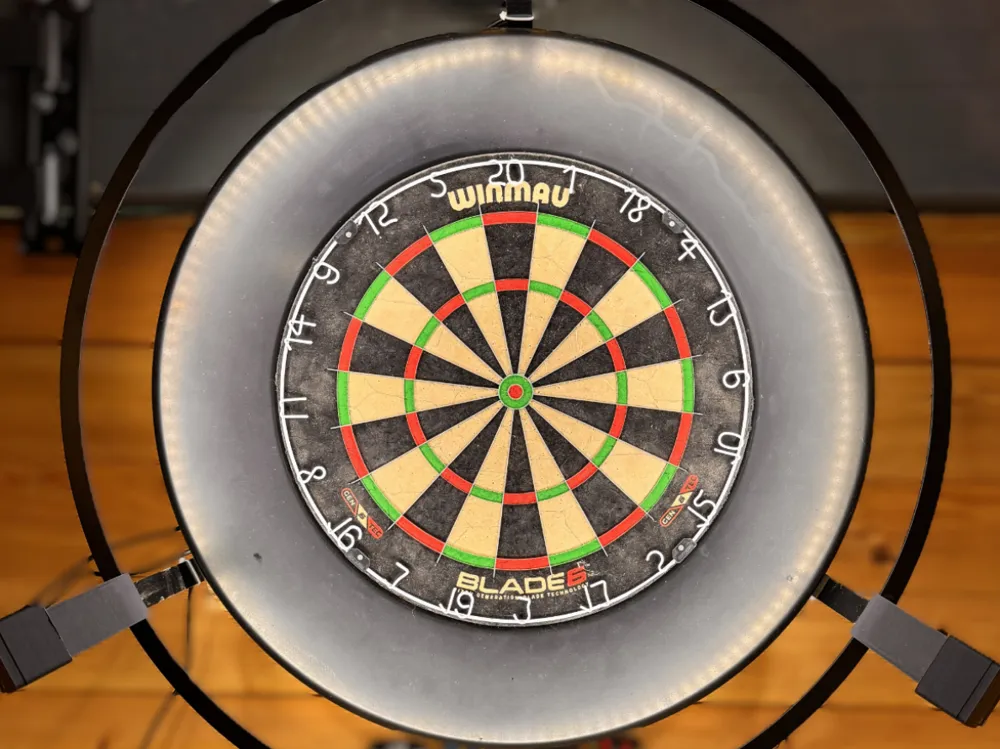

This is the original Lars Autodarts setup, including the integrated LED ring.
Profiles:
- Profile 1: LED ring with camera arms for standard camera modules such as HBV and GXIVision.
- Profile 2: LED ring with camera arms for larger camera modules (38x38 mm), such as DECXIN.

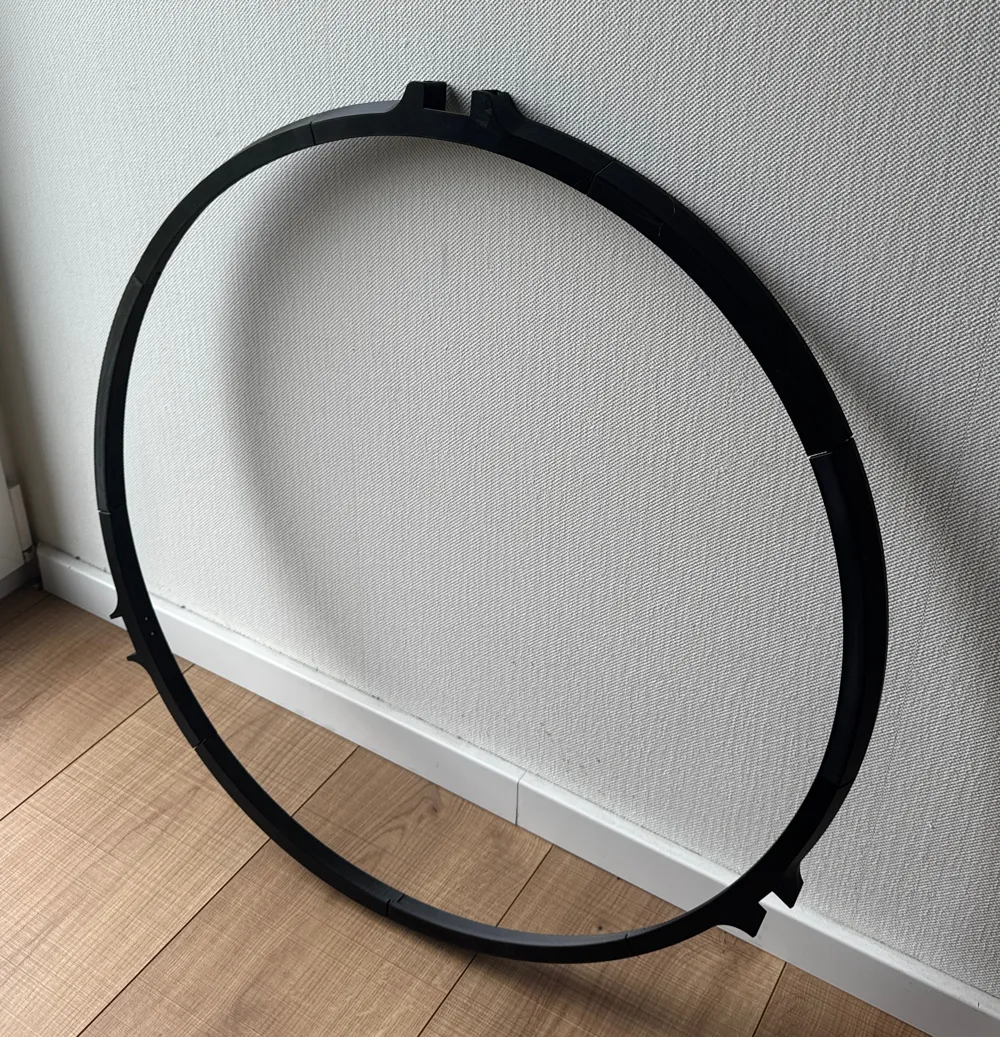

- Profile 3: LED ring only (no camera arms).
- Profile 4: Build plate with modular and standard camera arms (suitable for setups with existing lighting, e.g., WINMAU Plasma ring).
Setup Requirements
If you only have a dartboard:
- LED ring with camera arms (Profile 1 or 2)

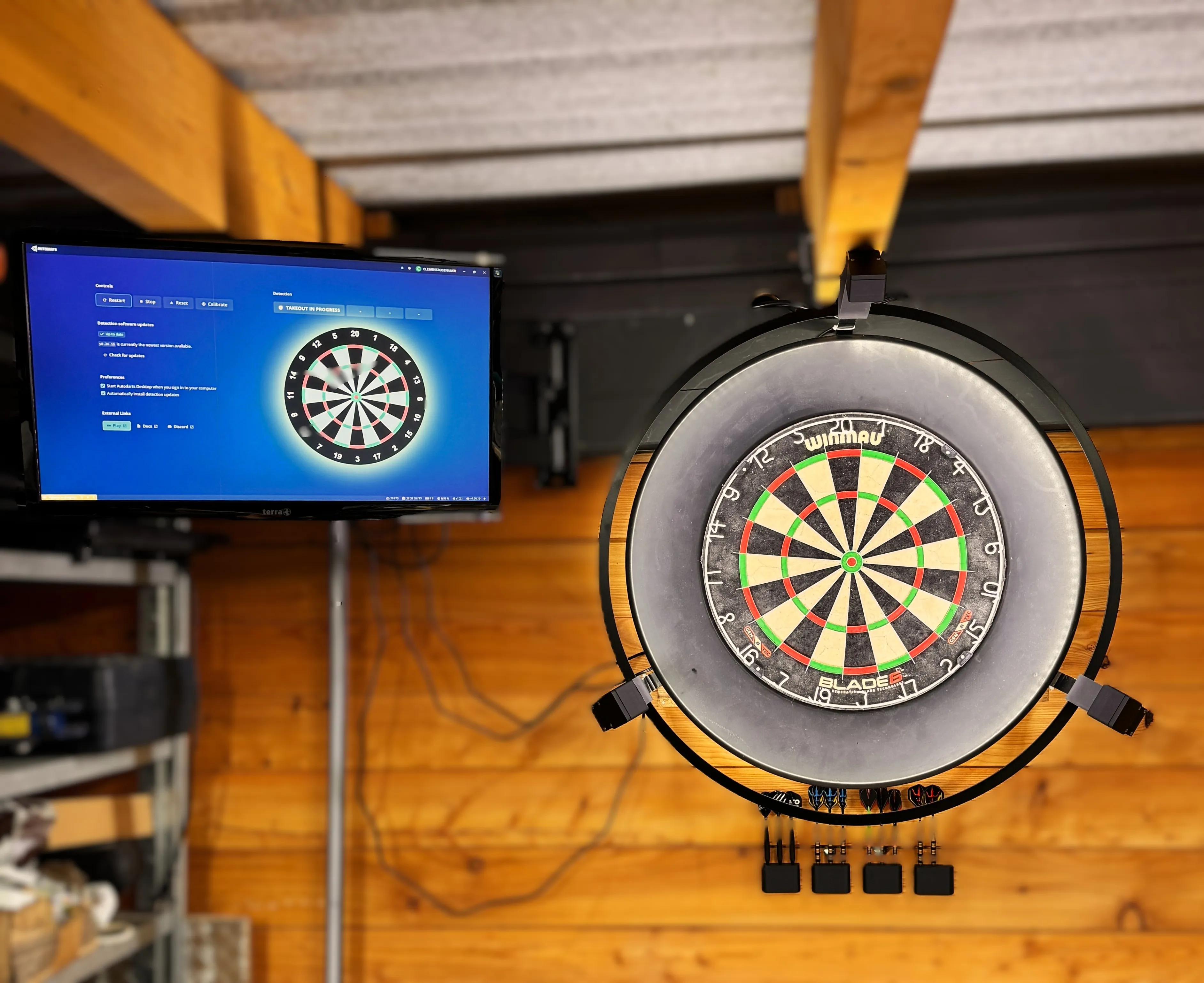

- PC (8 GB RAM or more recommended) with a monitor
- Various screws (refer to: https://autodarts.diy/3d-printing/)
If you have a dartboard with a WINMAU Plasma ring:
- Camera arms only (Profile 4)
- PC (8 GB RAM or more recommended) with a monitor
- Various screws (refer to: https://autodarts.diy/3d-printing/)
- Additionally, an LED strip is required
Further Information:
For detailed assembly guides, parts lists, and 3D print files, visit: https://autodarts.diy/3d-printing/
Boost Me (for free)
If you like the compact profile, feel free to leave a boost!
