Fully Magnetic Pocket Operator Case (With CUT PCB)
Print Profile(2)
Description
Boost Me (for free)
Anything helps! I'm trying to afford an AMS, If you would like to see more versions of this or other cases for electronics please let me know
!!!!!!!!!!PRINT AT YOUR OWN DISCRESION!!!!!!!!!!

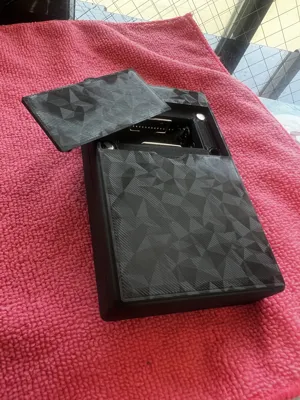

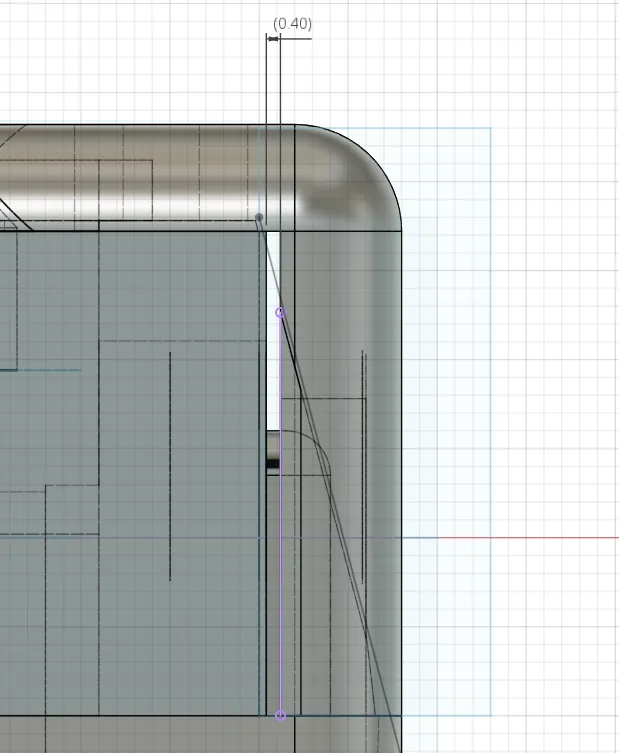

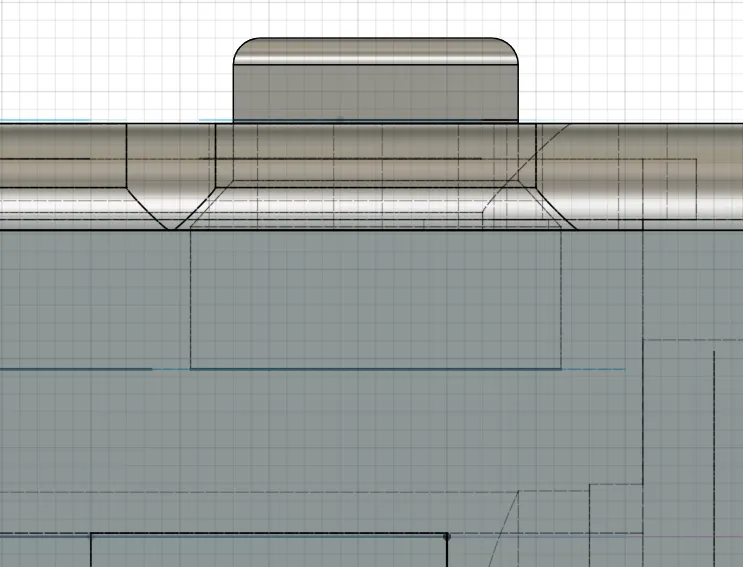

SIDE TOLERANCE OF 0.4 IS BY DESIGN AS SOME MAGNETS VARY IN LENGTH, THIS ALSO WILL APPLY TO BATTERY DOOR

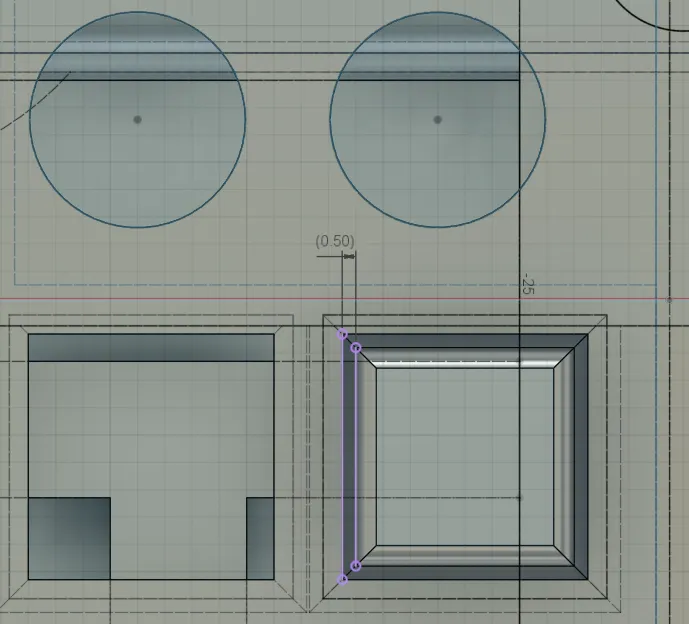

however internal tolerance for device i used doesn't have any problems and only has button rattle due to 0.5mm gap around the buttons as to not cause friction between some materials, also SIDE GAP OF 0.4MM IS BY DESIGN AS SOME MAGNETS VARY IN LENGTH
PRINT AT YOUR OWN DISCRESION PLS
TPU INSERT FOR LOWER PORTION OF THE BUTTTONS HAS BEEN REMOVED FROM MAIN PROFILE

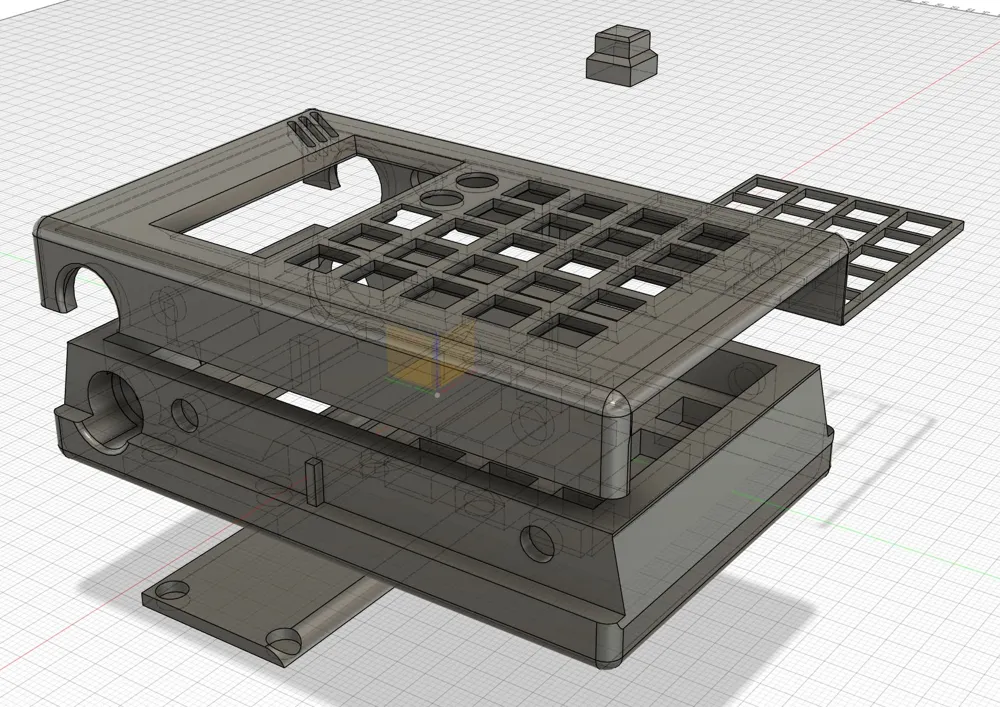

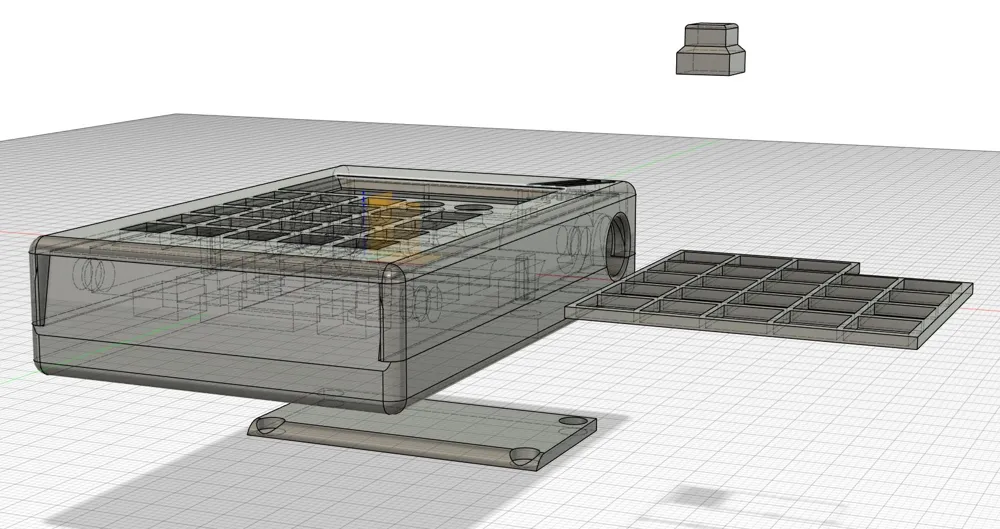

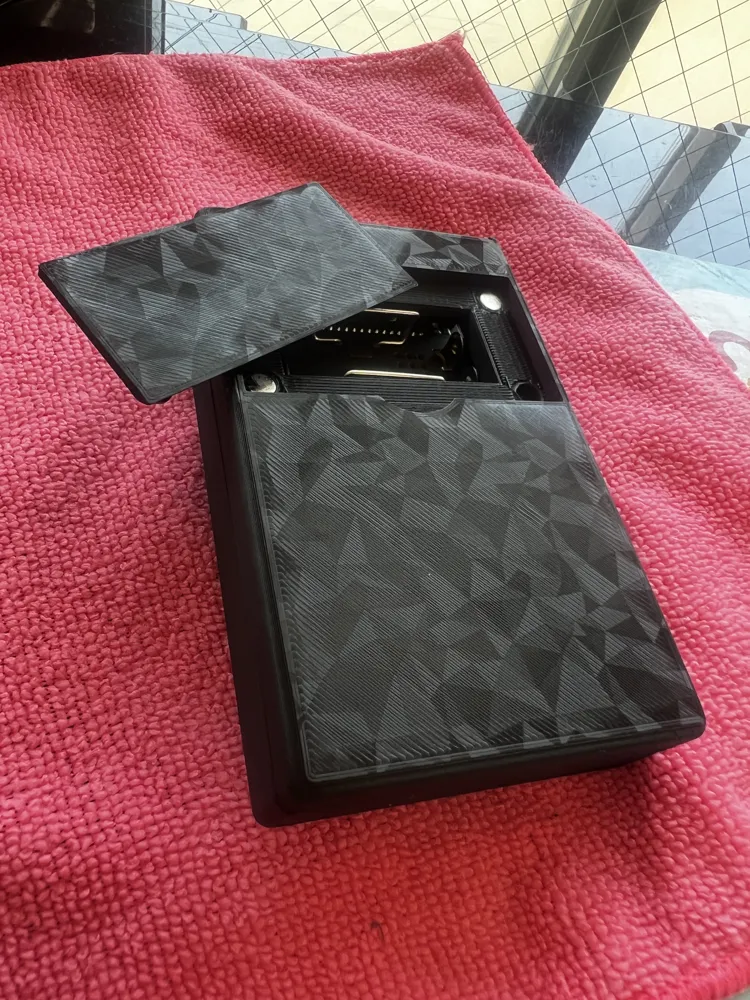

This is a fully magnetic case utilizing 16 6x2.5mm magnets that I had designed for a friend after looking at some models online

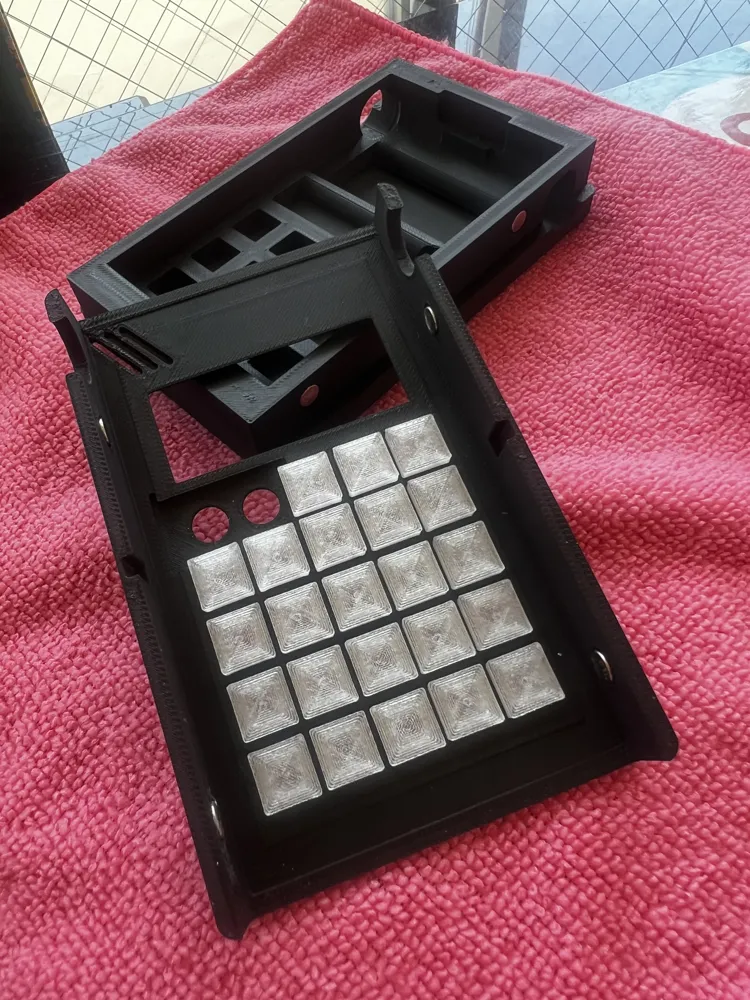

the buttons rattle a little as to not cause excessive pressure on the board however there is included a grid for tpu that can be inserted to get rid of the sound however I would suggest sanding the button sides slightly as it is tight and I didn't end up using it in the final production

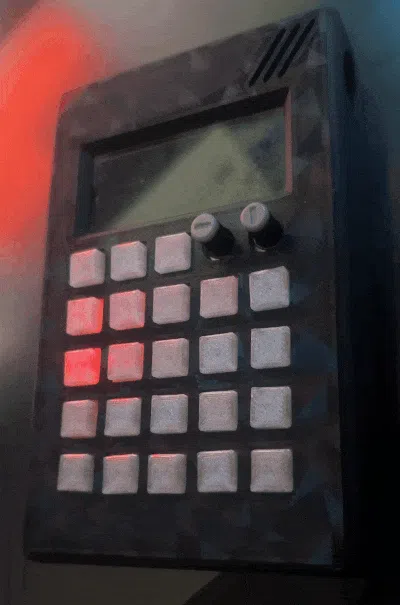

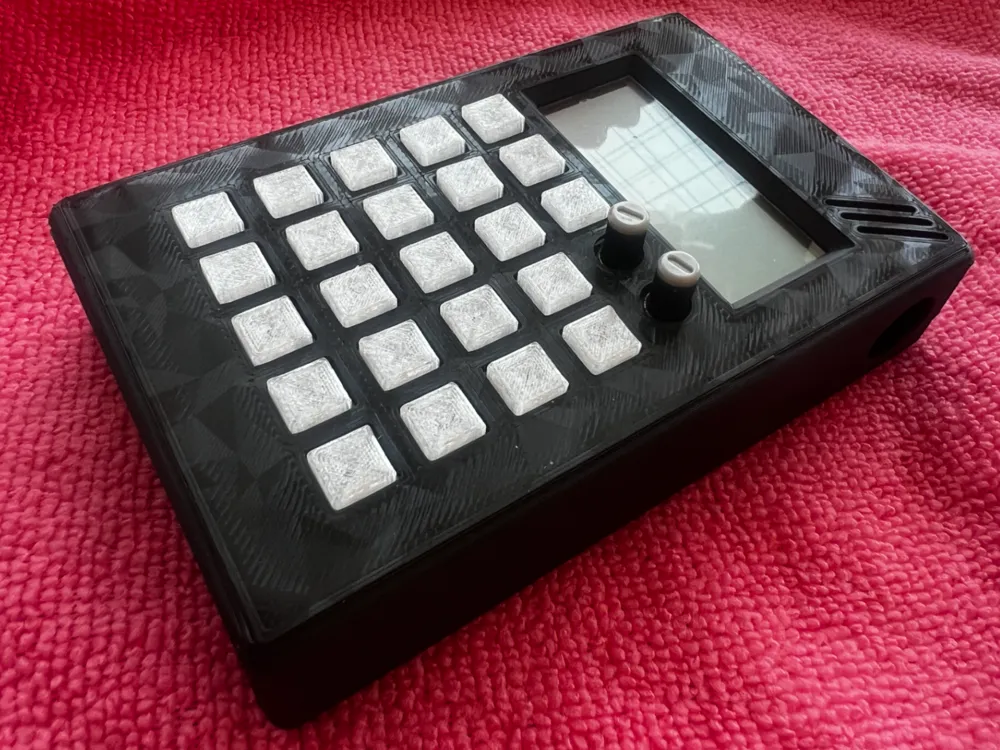

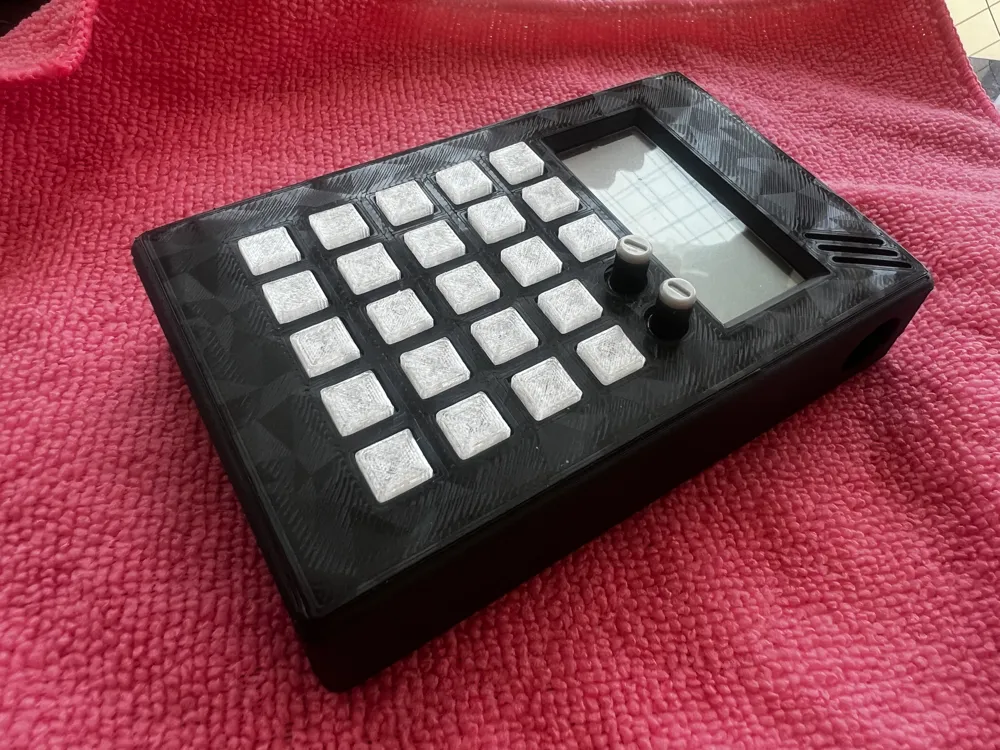

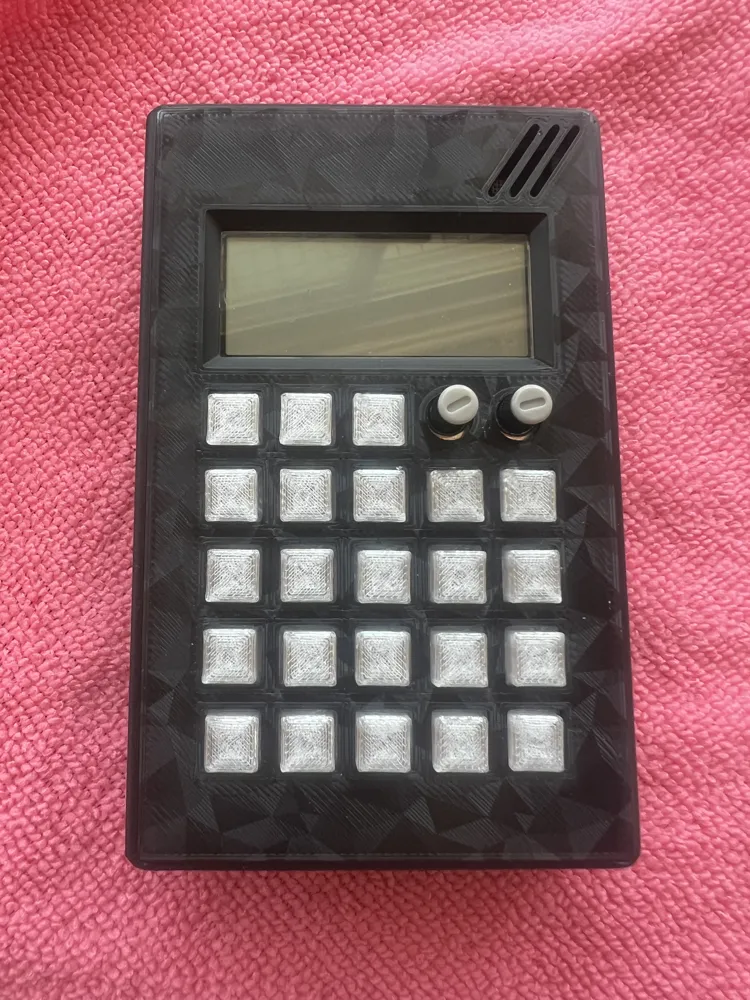

printed on a smooth plate and used clear petg for the buttons allows for LED lights to still be visible
also the interior of the bottom has been slightly altered to allow for soldering on the back to sit freely without modification.
Requires some form of glue
16 magnets size 6x2.5mm
